T9L 58mm thermal label panel embedded printer

Technical Parameters

Printing method	Thermal printing
Resolution	203DPI, 8 dots/mm
Paper width	58mm
Printing width	48mm

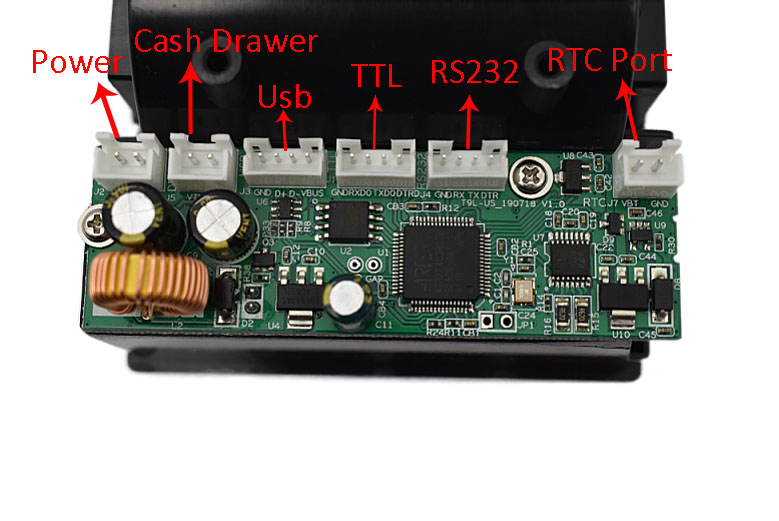

Interfaces	USB+RS232/TTL
Command set	ESC/POS compatible commands
User-defined characters	Support
Graphics printing	Support dots printing with different densities, raster bitmap print and downloaded bit image print
Code pages	Support Chinese, English, Japanese and other 45 kinds of international character sets
Paper type	thermal label and receipt paper
Bar codes	UPC-A; UPC-E; EAN-8; EAN13; CODE39; ITF; CODEBAR; CODE128; CODE93; QR CODE
Paper roll diameter	50mm(Max)
Paper cutting	Manual
TPH life	50km
Power Supply	5-9V/12V
