Taber Abrasion Tester GT-C14B

Taber Abrasion Tester is used to determine the wear resistance of materials and assess its wear resistance degree



Taber Abrasion Tester GT-C14B



Product Introduction

Application:

The Taber Abrasion Tester is used to determine the wear resistance of materials and assess its wear resistance degree, like measuring its mass loss, thickness loss, and transmittance etc.
It’s applicable for flat products, like suitcases, carpet, cardboard, clothing, glass, plastic coatins, metal coating, paint, varnishes, decorative sheets, high pressure sheets, plastics, textiles, flexible floor mats, traffic paint, tile, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, automobile interior decoration, resin, furniture, etc.


Taber Abrasion Test Standards:

ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799, SATRA TM163

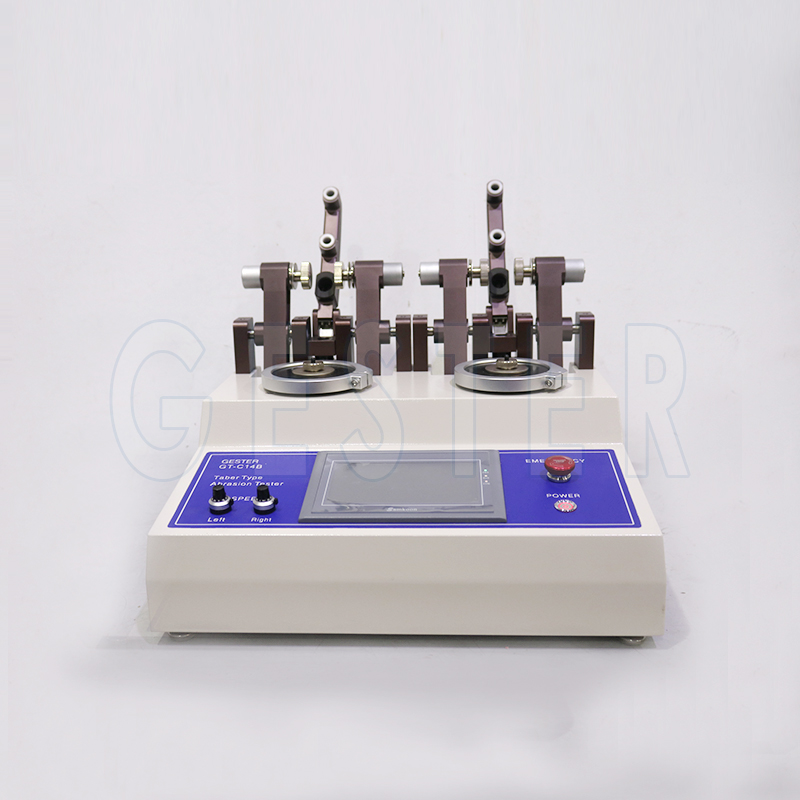

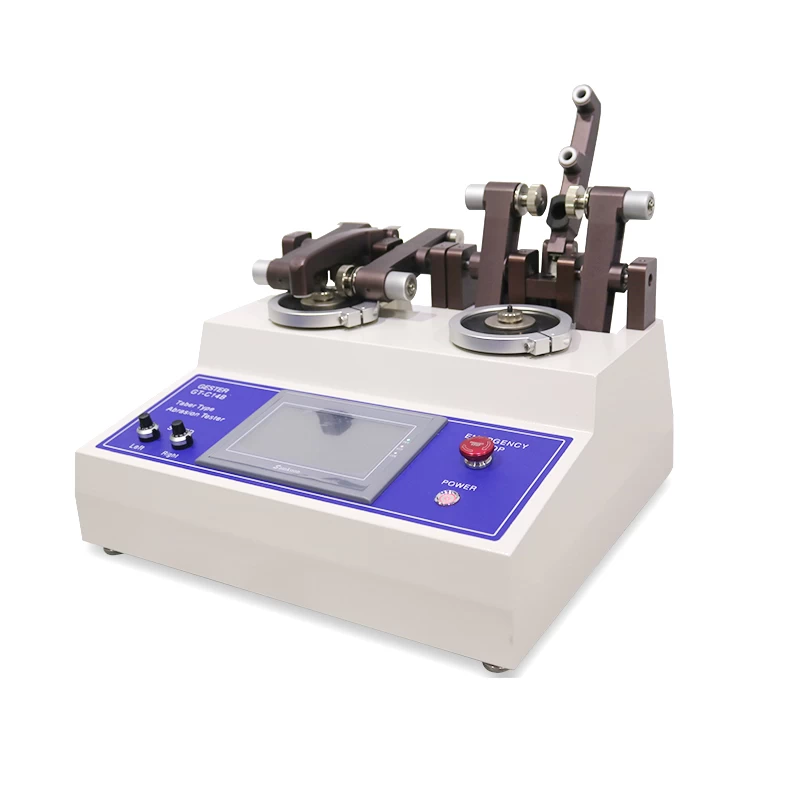

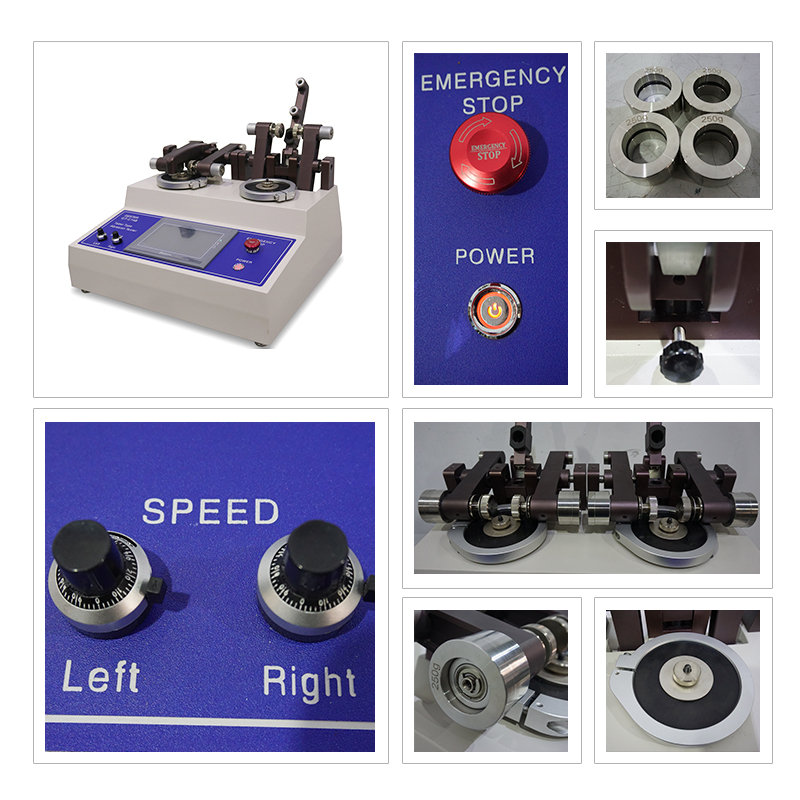

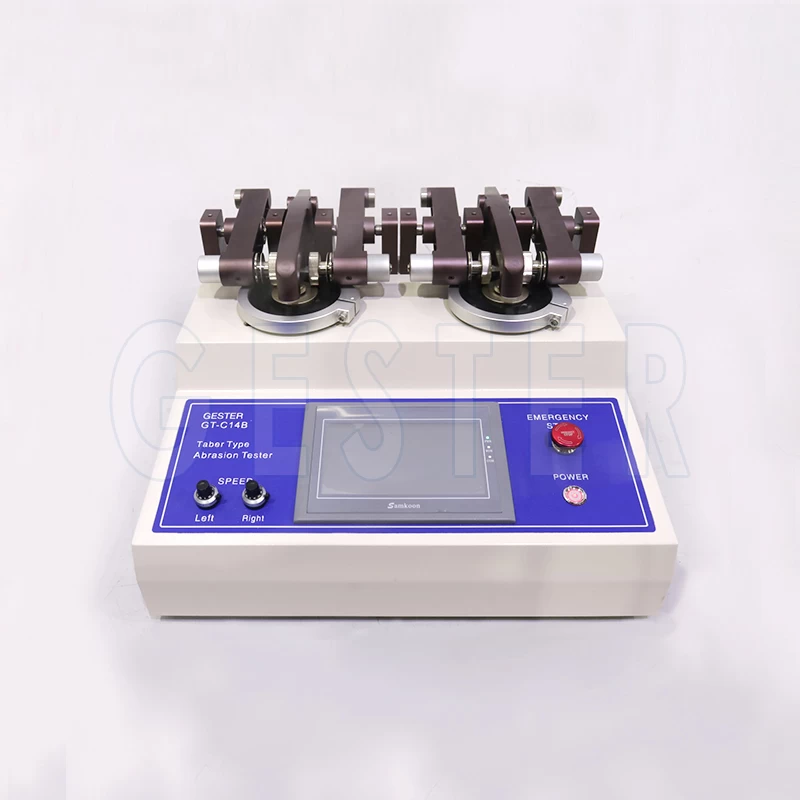

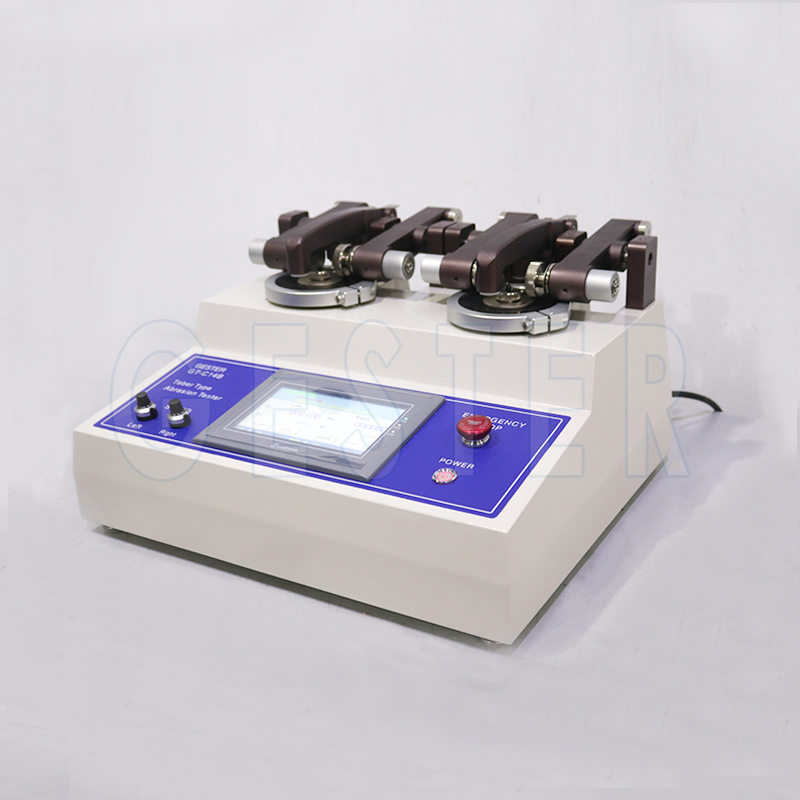

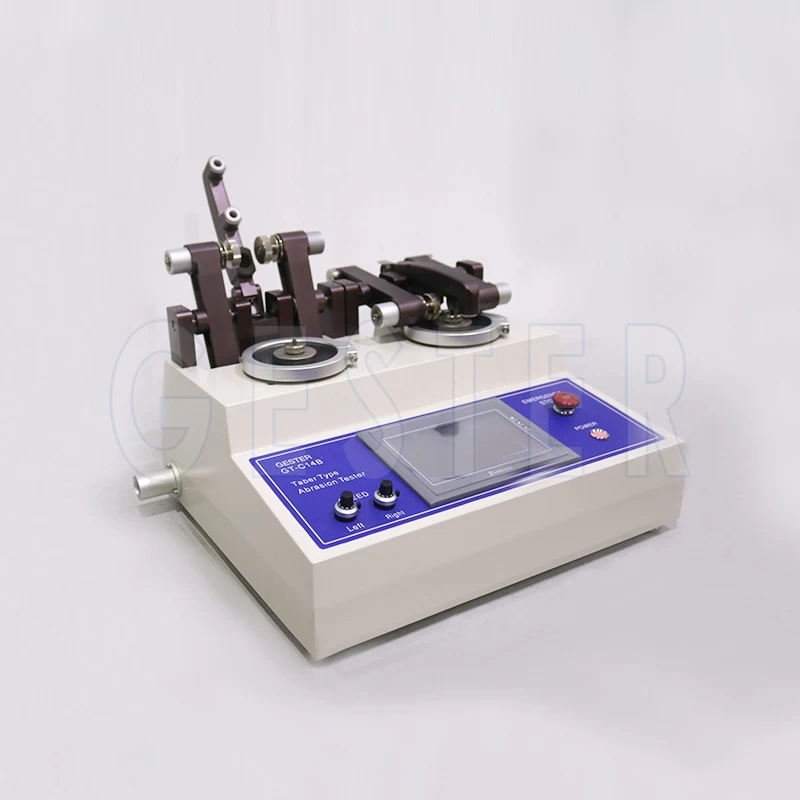

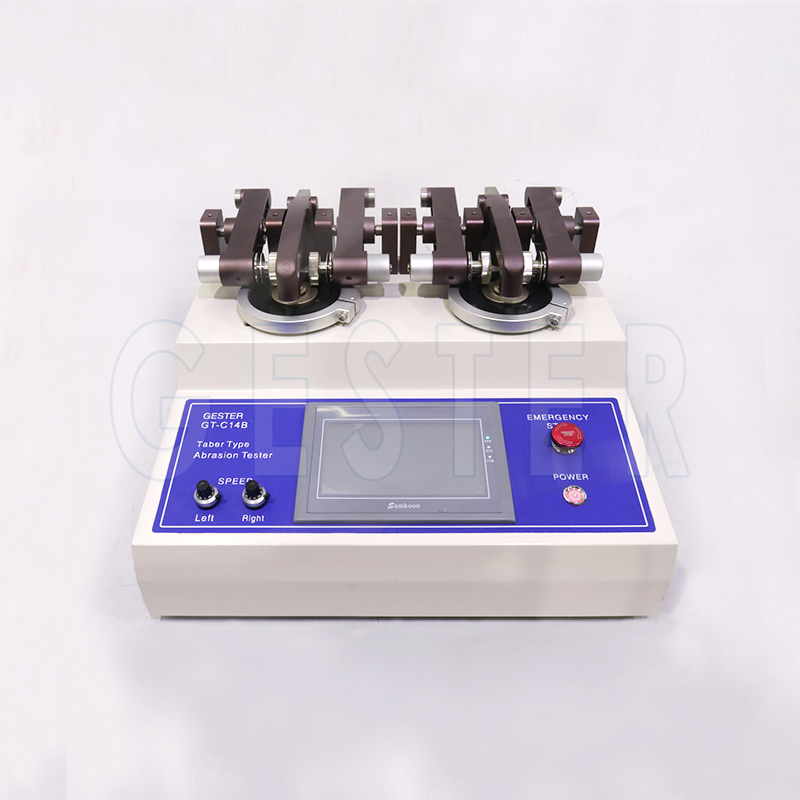

Product Images

Taber Abrasion Tester

Features

1. Unique wear process. Place test sample on turntable and two abrasive wheel press on material to make material to wear.
2. Specimen turntable speed control options of both 60 rpm and 72 rpm.
3. Precision steel weights of 250 grams and 750 grams are furnished to provide standard wheel loads of 500 and 1000 grams.Weights are marked to show total load on each wheel. This marking includes the weight of the abrading arm (250 grams).
4 . Equip with vacuum cleaner to clear abrasive dusts
5. Taber Type Abrasion Tester Can test with different wear medium and accessories.



Key Specifications

Model

GT-C14B

Test position

2

3 kinds of load

250g, 500g, 1000g

Wheel internal faces apart

52.4±1.0 mm

Turntable speed

60±2 rpm or 72 ±2rpm

Counter

LCD display 0-999999

Power supply

AC220V  50/60Hz

Dimensions ( L x W x H )

60×37cm ×27cm

Weight

30kg

Control mode

Touch screen control

Standard accessories

1set

250g weights



1set

750g weights



pack of 5

Paster



CS-10 or H18

Calibrase wheels (Option)



1pcs

Power line

Optional accessories

Optional

Abrasive paper 150#



Optional

Refacing discs S-11



Optional

Calibrase

wheels:CS-32,CS-10F,CS-17,CS-5,CS-35,H-22,H-10,H-38

Taber Wear Wheel Selections

Sand wheel / Type

Material/Grind characteristic

Kind

Composition

CS-10/Soft

Rubber & Abrasive grain/ Gentle

Elasticity

Rubber,Abrasives

CS-10F/Soft

Rubber & Abrasive grain/ Very gentle

Elasticity

Rubber,Abrasives

CS-17/Soft

Rubber & Abrasive grain/Coarse

Elasticity

Rubber,Abrasives

H-10/Hard

Glass material/Fine roughness

Inelastic

Ceramics

H-18/Hard

Glass material/Moderate fine roughness

Inelastic

Ceramics

H-22/Hard

Glass material/Very fine roughness

Inelastic

Ceramics

H-38/Hard

Glass material/Very meticulous

Inelastic

Ceramics

CS-0, S-32/Soft

Smooth rubber/ Very gentle

Elasticity

No abrasive rubber

S-42, S-33/ Soft

Sandpaper stripe /Moderate

Elasticity

Sandpaper stripe

CS-5/Soft

Wool felt/ No wear

Elasticity

Blanket

S-35/ Hard

Tungsten carbide/Cutting

Inelastic

Tungsten carbide

S-39/--

Leather / Gritfeeder



Leather

Coating

Brick

Plywood

Plastic

Cloth

CS10,CS17

CS17,H18

CS32,CS33

H18,H22,CS17

H18,H22,CS17

Application Industry

All kinds of below materials can be tested by the Taber Abrasion Tester GT-C14B

Taber Abrasion Tester
