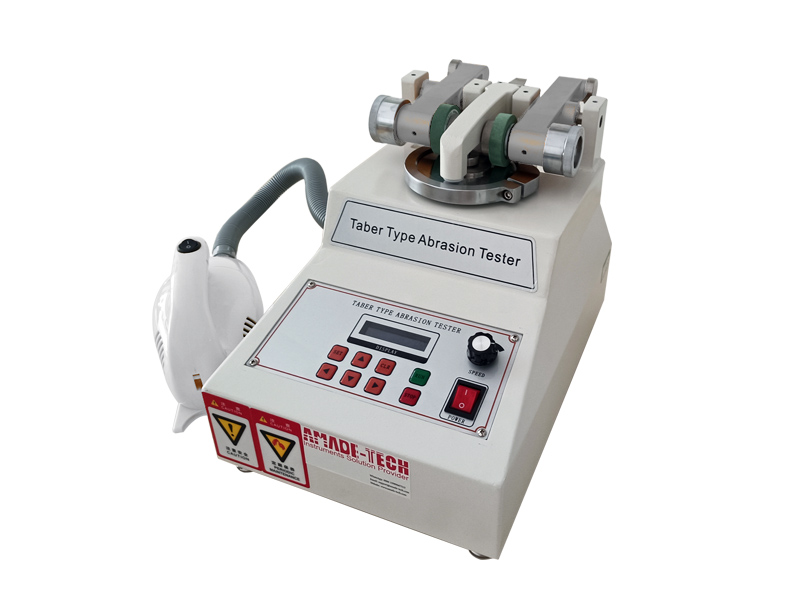

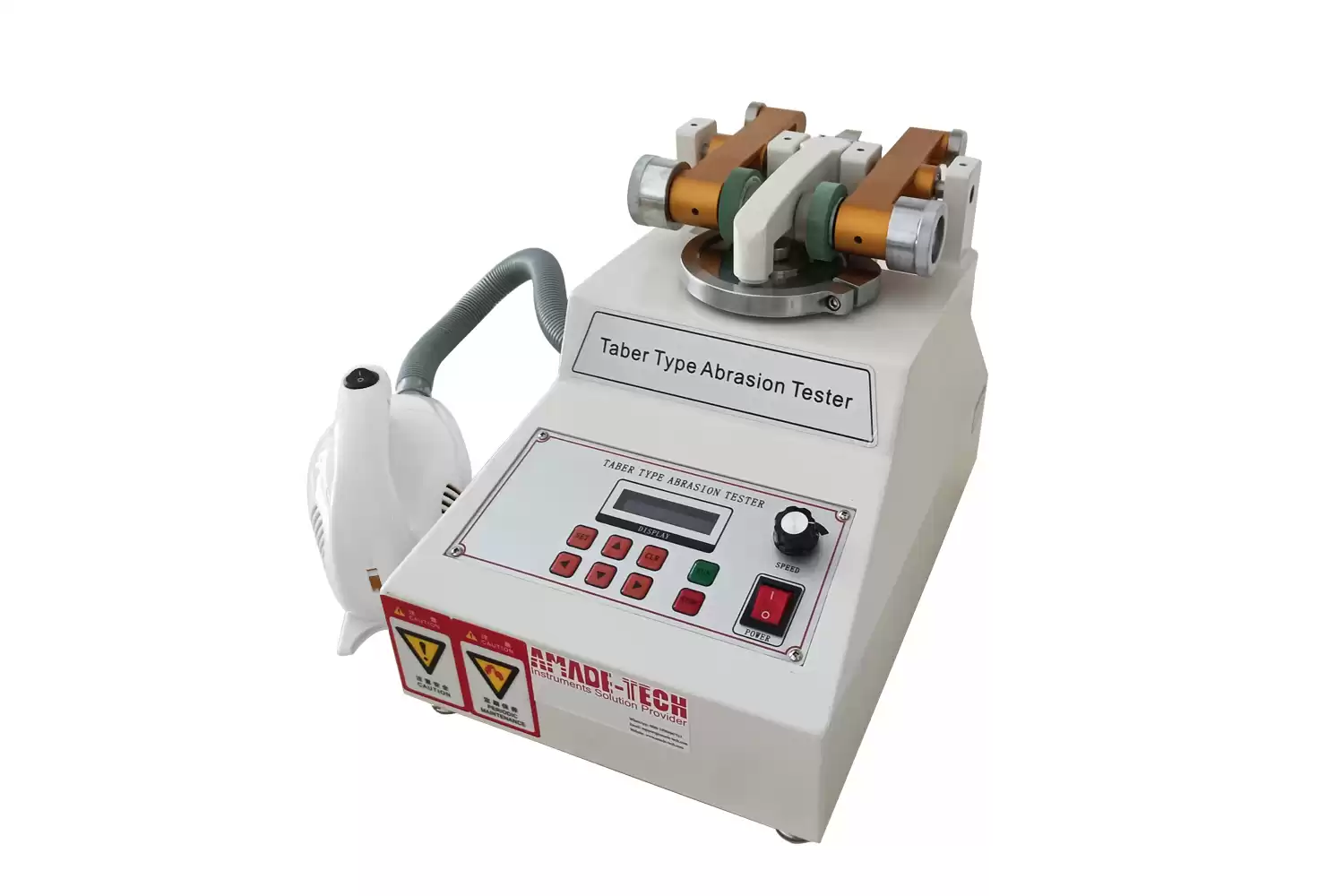

Taber Type Abrasion Tester
Taber Type Abrasion Tester is used to determine the abrasion resistance of the cloth, paper, paint, plywood, leather, floor tiles, glass, natural plastics, etc.
Test Standards
ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, DIN 52347, DIN 53109, DIN 53754, DIN 53799, ISO 17076-1, EN 438-2, DIN 68861-2, ISO 4586-2, etc.
Parameters
Model AT-L9001
Grinding Wheels External diameter: 51.9mm(max. 52mm)
Thickness: 12.7mm
Center hole’s diameter 63.5mm
Rotating speed 60rpm/72rpm
The distance between the inside faces of abrasive wheels 52.4 mm
Additional loads 250g
500g
750g
Counter 0~999,999
Volume/weight 53×32×31cm, 18kg
Power supply 1 phase AC220V, 50Hz, 3A or specified
If you are looking for more lab testing equipment, please feel free to contact .
