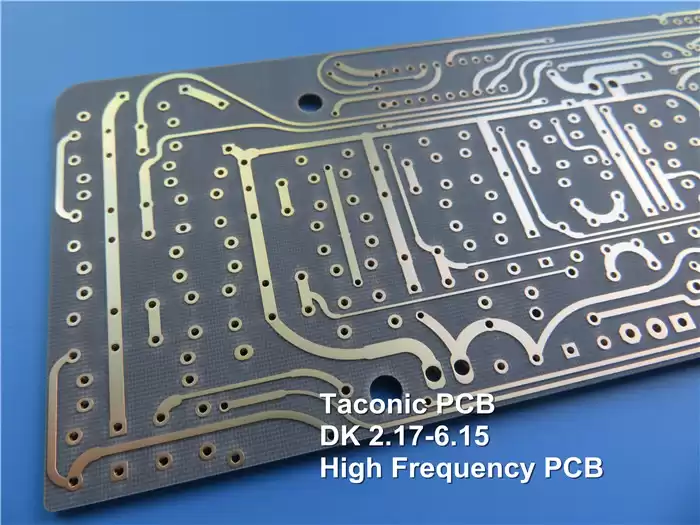

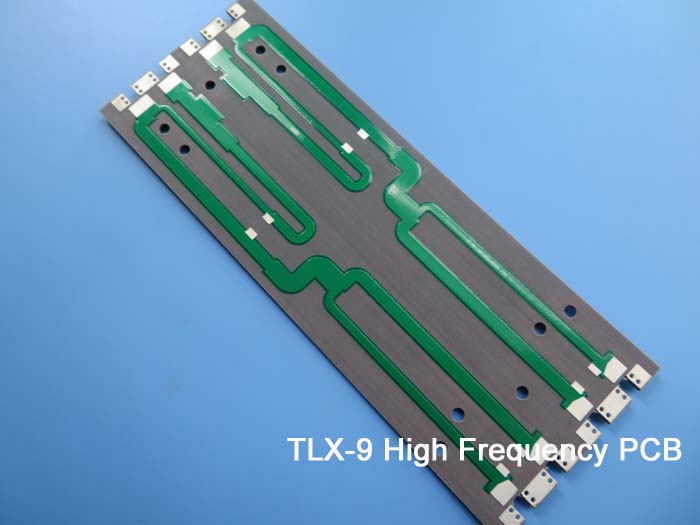

Taconic High Frequency PCB Built on TLX-9 62mil
1.575mm With Immersion Silver for
Mixers, Splitters, Filters & Combiners
(Printed
Circuit Boards are custom-made products, the picture and parameters shown are
just for reference)
TLX is PTFE based fiberglass laminate, it is
ideal for use in radar systems, mobile communications, microwave test
equipment, microwave transmission devices and RF components.
TLX is a workhorse in the RF microwave
substrate world where the fiberglass offers mechanical reinforcement wherever a
substrate experiences severe environments such as: resistance to creep for PCBs
bolted to a housing that encounter high levels of vibration during space
launch, high temperature exposure in engine modules, radiation resistance in
space, antenna for warships that undergo extreme environments at sea and a
substrate for altimeters that see a wide range of temperatures during flight.
There're TLX-0 (dk2.45), TLX-9 (dk2.50), TLX-8
(dk2.55), TLX-7 (dk2.60) and TLX-6 (dk2.65) in the TLX family. Dielectric
thickness of TLX-0 ranges from 0.127mm to 6.35mm (5mil-250mil), TLX-9 ranges
from 0.05mm to 6.35mm (2mil - 250mil), TLX-8 ranges from 0.064mm to 6.35mm
(2.5mil to 250mil), TLX-7 ranges from 0.089mm to 6.35mm (3.5mil - 250mil),
TLX-6 ranges from 0.089mm to 6.35mm (3.5mil to 250mil).
Benefits:
Excellent mechanical & thermal properties
Low & stable DK
Dimensionally stable
Low moisture absorption
UL 94 V-O rating
Tightly controlled DK
Low DF
For low layer count microwave designs
Applications:
Antennas
Couplers, Splitters, Combiners,
Amplifiers, Mixers, Filters
Passive components
PCB Specifications:
|
PCB SIZE
|
134 x 59mm=1PCS
|
|
BOARD TYPE
|
Double
sided PCB
|
|
Number
of Layers
|
2 layers
|
|
Surface
Mount Components
|
YES
|
|
Through
Hole Components
|
NO
|
|
LAYER STACKUP
|
copper
------- 35um(1 oz)+plate TOP layer
|
|
TLX-9 1.575mm
|
|
copper ------- 35um(1oz) + plate BOT Layer
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
15
mil / 15 mil
|
|
Minimum
/ Maximum Holes:
|
0.4mm/3.5mm
|
|
Number
of Different Holes:
|
N/A
|
|
Number
of Drill Holes:
|
N/A
|
|
Number
of Milled Slots:
|
0
|
|
Number
of Internal Cutouts:
|
0
|
|
Impedance
Control:
|
no
|
|
Number
of Gold finger:
|
0
|
|
BOARD
MATERIAL
|
|
|
Glass
Epoxy:
|
TLX-9
1.575mm
|
|
Final
foil external:
|
1
oz
|
|
Final
foil internal:
|
N/A
|
|
Final
height of PCB:
|
1.6
mm ±10%
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
Immersion Silver
|
|
Solder
Mask Apply To:
|
N/A
|
|
Solder
Mask Color:
|
N/A
|
|
Solder
Mask Type:
|
N/A
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of
Component Legend
|
N/A
|
|
Colour
of Component Legend
|
N/A
|
|
Manufacturer
Name or Logo:
|
N/A
|
|
VIA
|
N/A
|
|
FLAMIBILITY RATING
|
UL
94-V0 Approval MIN.
|
|
DIMENSION TOLERANCE
|
|
|
Outline
dimension:
|
0.0059"
|
|
Board
plating:
|
0.0029"
|
|
Drill
tolerance:
|
0.002"
|
|
TEST
|
100%
Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email
file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide,
Globally.
|
TLX-9 Typical Value:
|
TLX-9 TYPICAL VALUES
|
|
Property
|
Test Method
|
Units
|
Value
|
Units
|
Value
|
|
Dielectric
Constant @ 10 GHz
|
IPC-TM 650 2.5.5.5
|
|
2.5
|
|
2.5
|
|
Dissipation
Factor @ 10 GHz
|
IPC-TM 650 2.5.5.5
|
|
0.0019
|
|
0.0019
|
|
Moisture
Absorption
|
IPC-TM 650 2.6.2.1
|
%
|
<0.02
|
%
|
<0.02
|
|
Dielectric
Breakdown
|
IPC-TM 650 2.5.6
|
kV
|
>60
|
kV
|
>60
|
|
Volume
Resistivity
|
IPC-TM 650 2.5.17.1
|
Mohm/cm
|
10^7
|
Mohm/cm
|
10^7
|
|
Surface
Resistivity
|
IPC-TM 650 2.5.17.1
|
Mohm
|
10^7
|
Mohm/cm
|
10^7
|
|
Arc Resistance
|
IPC-TM 650 2.5.1
|
seconds
|
>180
|
seconds
|
>180
|
|
Flexural
Strength Lengthwise
|
IPC-TM 650 2.4.4
|
lbs./in.
|
>23,000
|
N/mm2
|
>159
|
|
Flexural
Strength Crosswise
|
IPC-TM 650 2.4.4
|
lbs./in.
|
>19,000
|
N/mm2
|
>131
|
|
Peel Strength
(1oz copper)
|
IPC-TM 650 2.4.8
|
lbs./linear in.
|
12
|
N/mm
|
2.1
|
|
Thermal
Conductivity
|
ASTM F 433
|
W/m/K
|
0.19
|
W/m/K
|
0.19
|
|
x-y CTE
|
ASTM D 3386 (TMA)
|
ppm/°C
|
9-12
|
ppm/°C
|
9-12
|
|
z CTE
|
ASTM D 3386 (TMA)
|
ppm/°C
|
130- 145
|
ppm/°C
|
130- 145
|
|
UL-94
Flammability Rating
|
UL-94
|
|
V-0
|
|
V-0
|
DK TLX-9
|
Type
|
DK
|
|
TLY-5A
|
2.17
|
|
TLY-5
|
2.20
|
|
TLY-3
|
2.33
|
|
TLT-0
|
TLX-0
|
2.45
|
|
TLT-9
|
TLX-9
|
2.50
|
|
TLT-8
|
TLX-8
|
2.55
|
|
TLT-7
|
TLX-7
|
2.60
|
|
TLT-6
|
TLX-6
|
2.65
|
|
TLE-95
|
2.95
|
|
TLC-27
|
2.75
|
|
TLC-30
|
RF-30
|
3.00
|
|
TLC-32
|
3.20
|
|
TLF-35
|
3.50
|
|
TLF-35-xxxx-A
|
3.50
|
|
RF-35
|
RF-35A2
|
3.50
|
|
TRF-41
|
4.10
|
|
TRF-43
|
4.30
|
|
TRF-45
|
4.50
|
|
RF-60A
|
6.15
|
|
CER-10
|
10
|
