Tailored Made Anodized Aluminum Solar Parking Canopy Design

Kingfeels tailored made anodized aluminium carport is suitable for residential and commercial purposes. Most of its components are highly assembly at the factory, which saves installation time and cost.


  • ColorSilver, Black
  • MaterialAluminium, Steel

Tailored Made Anodized Aluminum Solar Parking Canopy Design

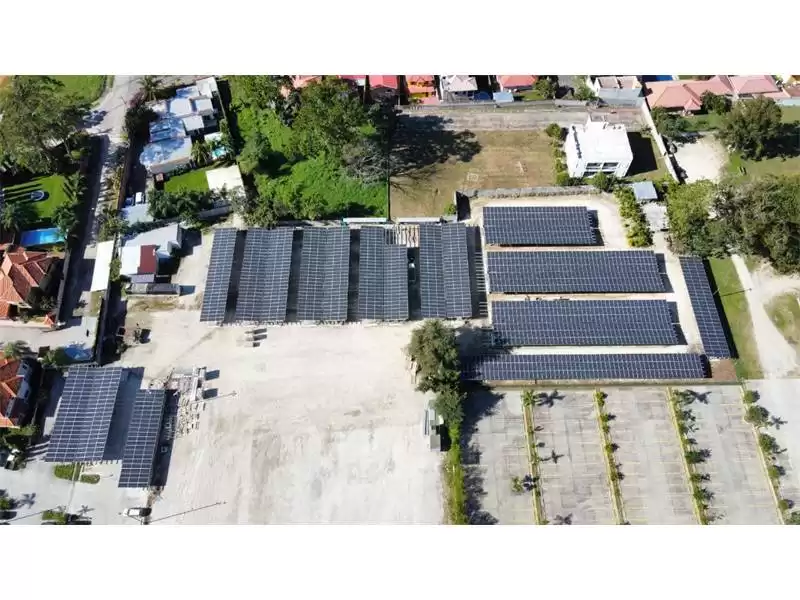

Solar panel canopy design is a system of solar canopies which covers parking areas for residential, commercial and industrial use. Kingfeels offers carport solutions that can shield entire commercial parking lots or for very small sections within a parking lot. Before long, solar carports will be present in most, if not every, parking lot.



Technical Data

Install Site Open field area
Max Wind Speed ≤60m/s
Snow Load ≤1.4KN/M2
Tilt Angle 0-45 degree
Applicable Module Framed or frameless
Module Orientation Landscape, portrait
Standards AS/NZS 1170, ASCE 7-10, JIS2017
Material AL6005-T5, SUS304
Anti-corrosive Anodized
Color Silver, Black
Foundation
Concrete, Ground Screw
Warranty 12 years



Key Features

 - Using aluminum as main material can anti-corrosion well and stainless steel makes sure the intensity. Solar parking canopy design is more economicial solution than others.has anti-corrosion.

 - this solar pv carport system with functions of parking, producing green power, and it can full ultilize the space.

 - Rigorous test under harsh outdoor conditions;

 - Charging station can be optional to matched our carport mounts;

 - Unique design based on the engineering requirements of your solar projects.

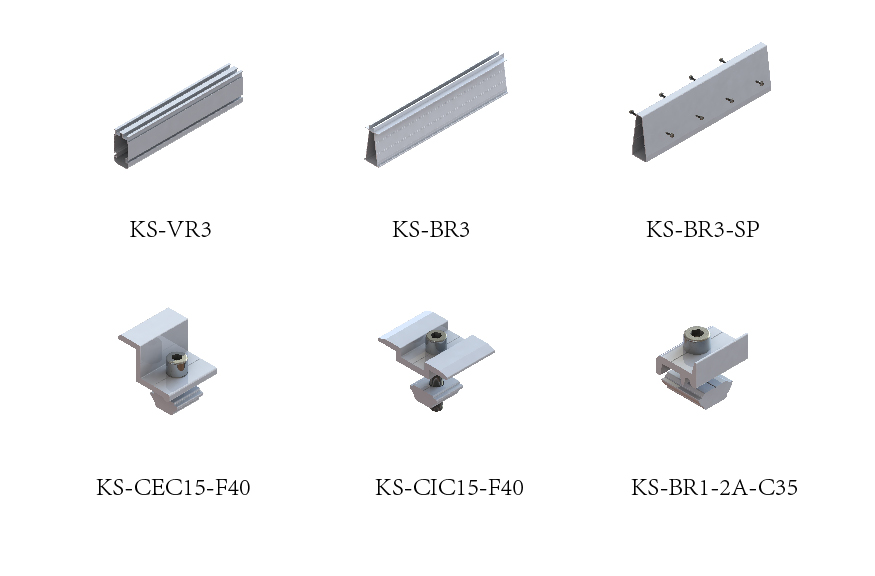

Components

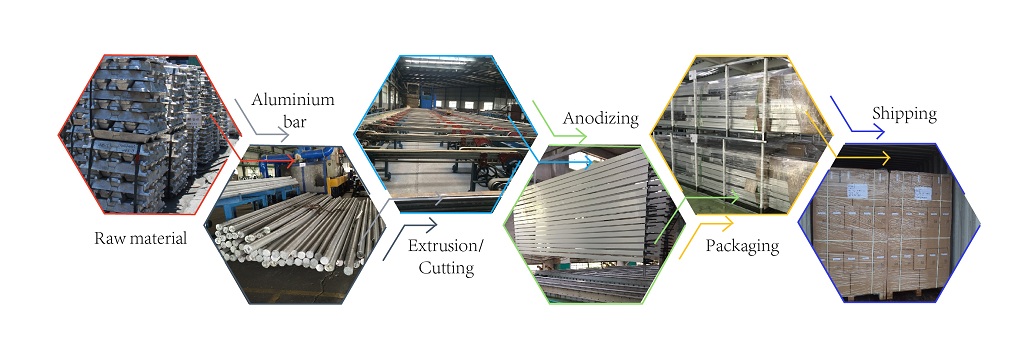

Production Process

Why choose Kingfeels ?

1. Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.

2. Full anodize for all components---offering 12 year warranty and 25 year life time.

3. Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
