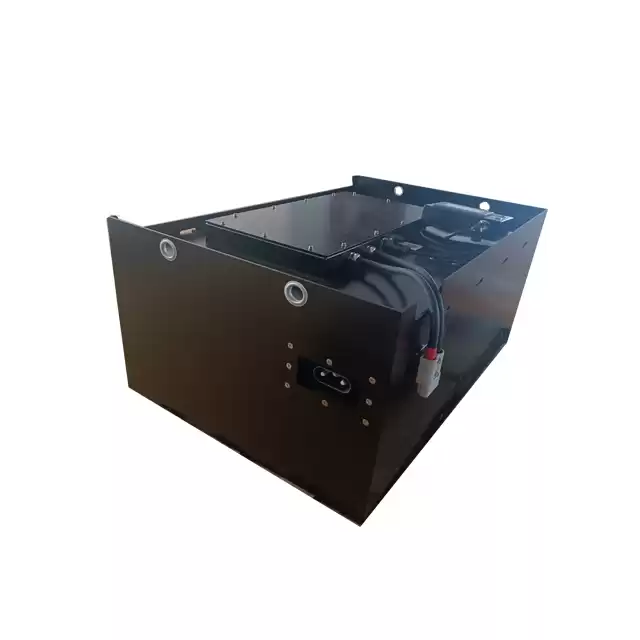

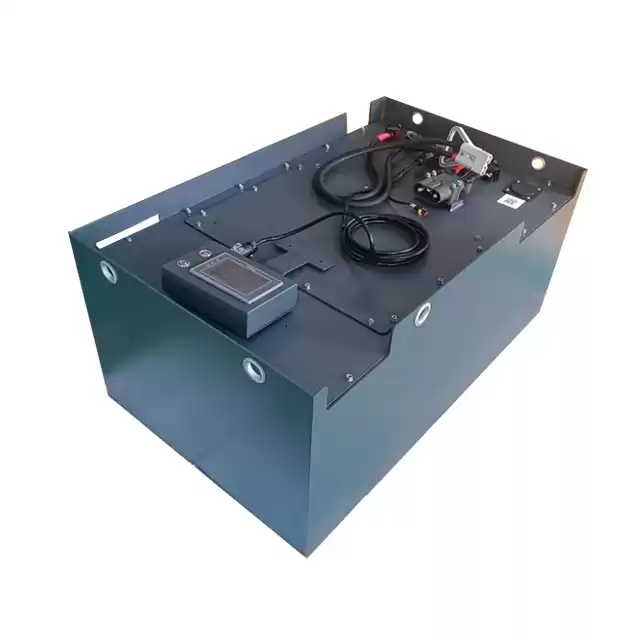

Tailored Power Solution: Custom 48V450AH Li-ion Rechargeable Battery

Customized battery ,more models available( 48V 200AH/300AH/400AH/500AH/600AH etc ) ,charger optional



Quick details




1,Model: 48V450A

2,Dimension: Customized

3,Weight: about 200kgs

4,Charge/Discharge:100A/200A

5,Display:4.3" gauge

case vehicle

electric forklift





model

QH48V450Ah

rated volt

37.5V-54.75V

rated volt

48V

rated capacity

450Ah

discharge current

400A

discharge temperature

-20℃-60℃

charge current

200A

charge temperature

-0℃-45℃

size

customized

weight

190kg

communication

CAN,real time monitor

service life

5Y



More models for choice


Project
Parameters
Notes
Normal voltage
25.6V
51.2V
83.2V

Voltage arrange
20-29.2V
40-58.4V
65-94.9V

Capacity arrange
150-300AH
300-600AH
300-600AH
Customized
Single electrical core
Lithuim iron phosphate(LiFePO4)

Fast charge
available
Customized
Charge voltage
29.2V
58.4V
94.9V
Charge current
50-200A
Continuous discharge current
100-400A
Transient discharge current
200-600A
Work temperature
"-20℃-55℃“

Charge hole
Anderson/REMA/Charge gun

primary protection
Over pressure/Low pressure/Over current/Short-circuit
Over temperature/Low temperature/Relay adhesion test/Wiring falling test

Expanding function
Precharge function/Insulative testing
Customized
Showing function
Voltage Showing/Liquid screen
BMS power
Out auxiliary power/inner convertor
Heating function
Silicone electric heating
Shell/Weight
Metal plate/Customized
Communication
RS485/CAN



FAQ




Q1: what is your MOQ?

A: Only one sample available.
Q2: what is your guarantee life for the battery?
 A: 5Y warranty for lifepo4 built in bms battery .
 Q3. Can you explain in detail how you match cells for a battery pack before you assembling the pack?
 A: We will do the following things before assembling the pack:
a. Select capacity: same capacity rate cells for one pack
b. Measure the voltage: same voltage cells for one pack(difference is under 0.02 v per cell)
c. Measure the inner resistance: same IR cells for one pack (difference is under 1 mOhm)
All above steps are very strict to make sure the pack performance is perfect.
 Q4: Before order, can I have samples for testing?
 A: Yes, we can provide you samples for testing firstly.
 Q5: What kind of environment should lithium batteries store?
A: -40°C~50°C, 65±20%RH storage for a long time(>3 months) and the storage condition shall be:<35°C , 65±20%RH



Q6: What certificate do you have?

 A:CE,FCC,CB,KC,SGS, Rohs, IEC62133 MSDS & UN38.3..

  Q7: Can you ship the battery products to our country?

  A: Yes, for one sample ,we can quote door to door . for more quantity, we will quote FOB China

 Q8: What is your payment and delivery items & time?

 A: 1. Payment items: By T/T , 30% for deposit, and balance all before shipment. For small amount, we also accept payment via Western Union or Alibaba .

2. Delivery Items: we can ship the batteries by sea, by air, by UPS, DHL, TNT, FEDEX and some special transportation lines.

3. Delivery time: Generally, it will take 15 days after receiving your advanced payment.
