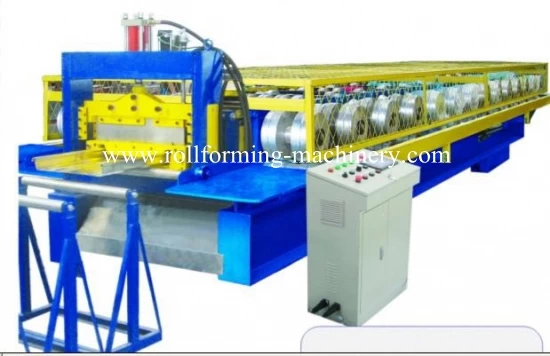

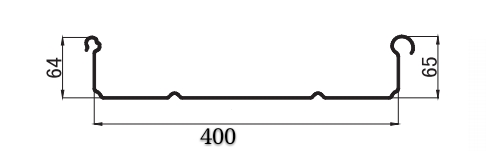

Main Components
1.Manual Decoiler: one set
Un-powered,Manually control steel coil inner bore shrinkage and stop
Max. feeding width: 575mm, coil ID range 470mm±30mm
Capacity: Max.5Ton
2.Cold Rolling Mills:
Material Thickness:0.8-1.2mm,Material Width：575mm,
With feeding material guide, body frame made from 350# H type steel by welding,Side wall thcikness: 18mm
Rollers manufactured from 45#, precision machined, hard Chrome Coated
Shafts manufactured from 45#,Diameter=φ75mm,precision machined
Motor Driving,Gear chain transmission, 14 steps to form
Main Motor=7.5KW , Frequency speed control 380V/50Hz/3Ph
Forming speed approx.15m/min
3.Hydraulic Cutting device
Cutter frame made from high quality 20mm steel plate by welding
Post cut, stop to cutting, use the same hydraulic motor drive
hydraulic motor: 2.2KW, Hydraulic pressure range: 0-18Mpa
Cutting tool material: Cr12, Heat treatment
4.PLC Control System(Touch screen brand:German Schneider Electric,Inverter brand:Taiwan DELTA,Encoder brand:Japan Koyo)
Control the quantity and cutting length automatically
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V
5.Exit Rack Un-powered, two units
6.User's manual in English
Features of Roof Panel Forming Machine
Different roof panel machines can produce different shapes of steel roof, wall sheets according to the clients' profile drawings and requirement. Steel roof, wall sheets are new building materials with various thickness and colors. They have many advantages, such as low cost, easy installation, short building period, re-cycle use, beautiful appearance, and are light weight but high strength. They are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers, etc.
The complete corrugated roof panel machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the wave panel machine produces it automatically. The machines are easy to operate and running stable.
After-sale Service
1. The warranty of the roof panel forming machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: 60 days
3. Port of loading: port of Xiamen
4. Type of payment: T/T
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore, Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
