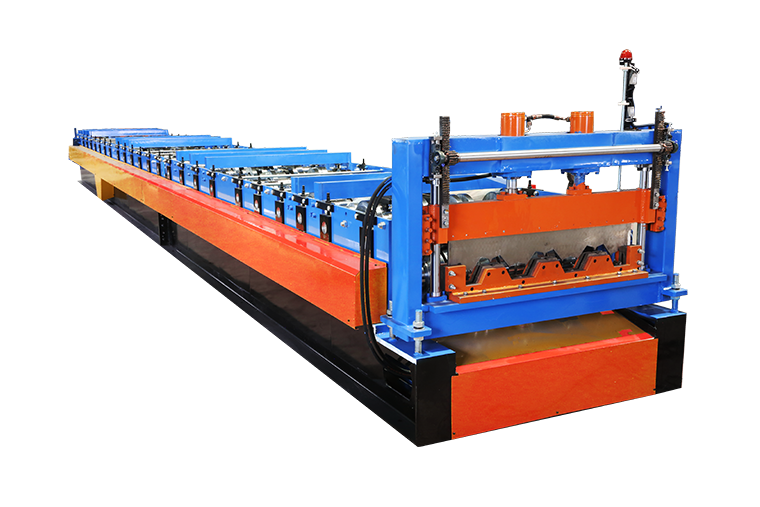

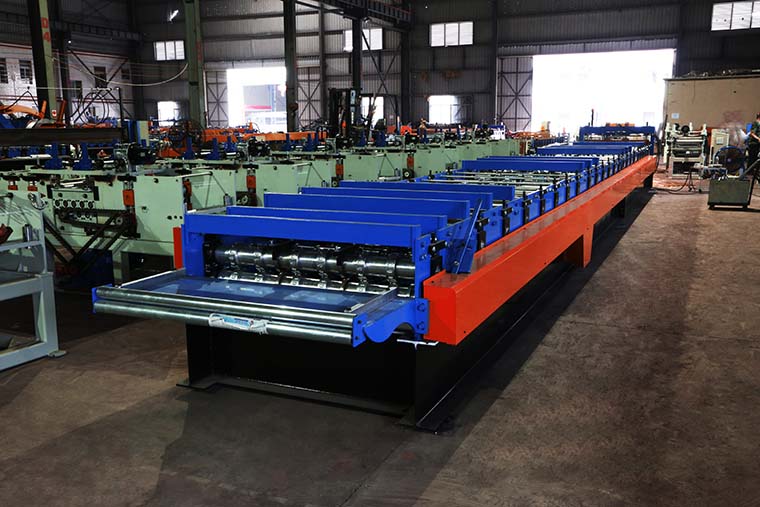

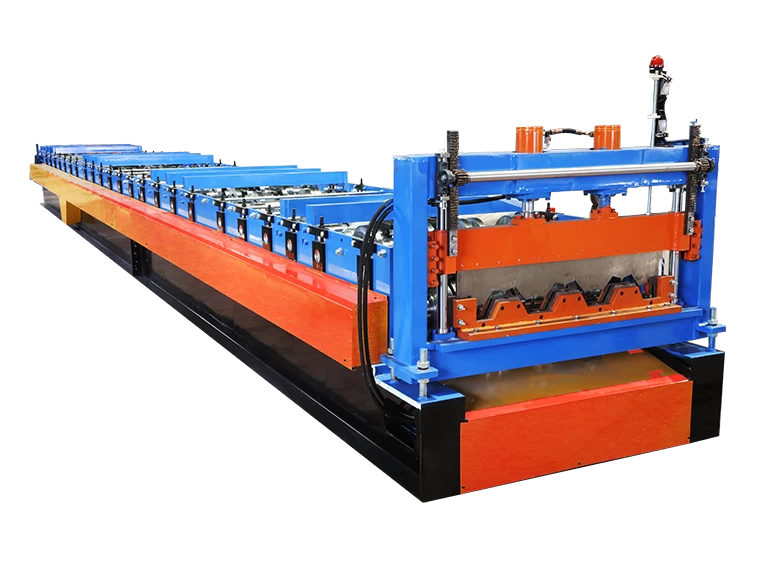

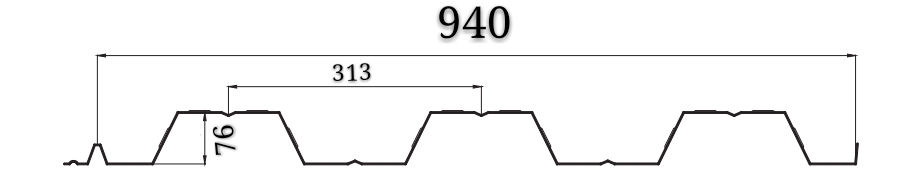

YX76-940 Floor Decking Roll Forming Machine
1.Main features of floor decking roll forming machine
The advantages of floor decking machine are as follows:
1.Low cost, light weight but high strength, short building period, and re-cycle use
2.Save material , no waste.
3.Easy operation, low maintenance cost
2.Detailed Images of YX76- 940 floor decking forming machine
Machine Parts
1) YX76-940 floor decking machine feeding guide
Brand: BMS Original: China

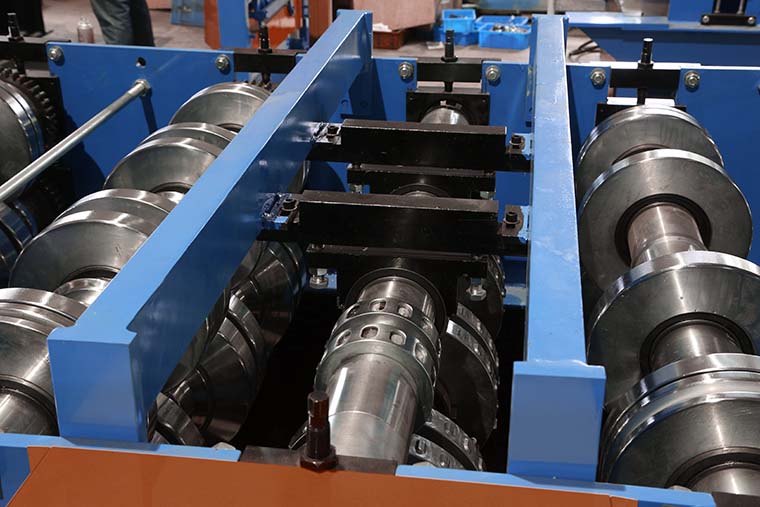

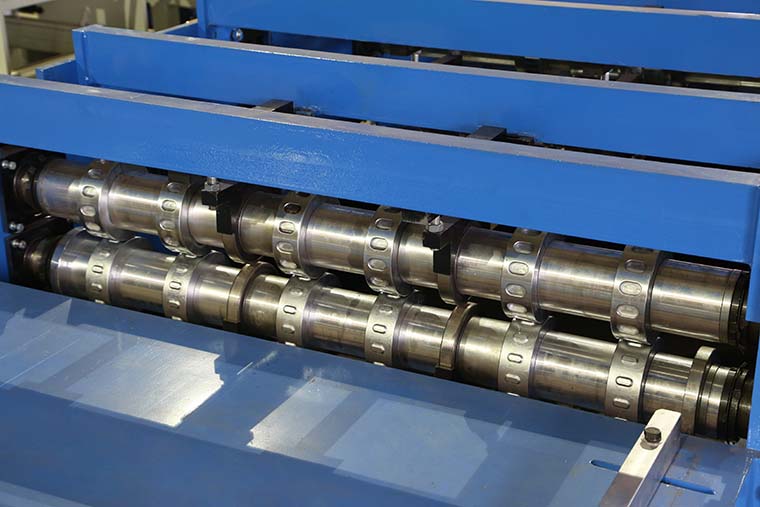

2) YX51-915 floor decking machine embossing

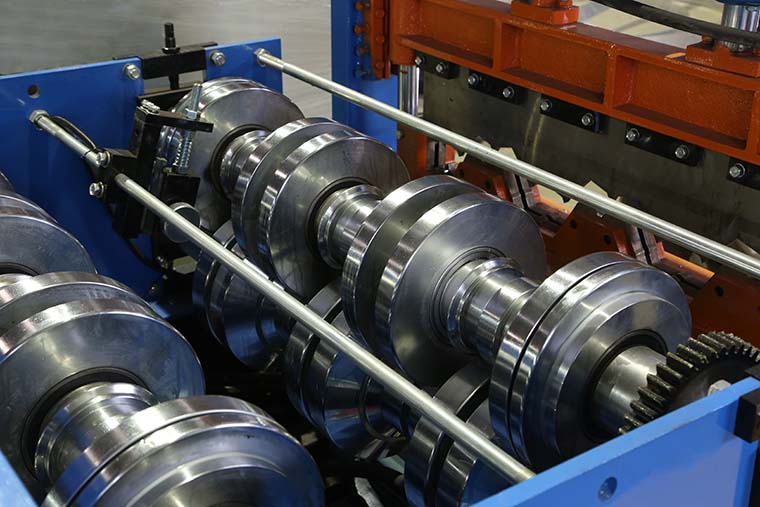

3) YX76-940 floor decking machine rollers
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
Body framemade from 400# H type steel by welding

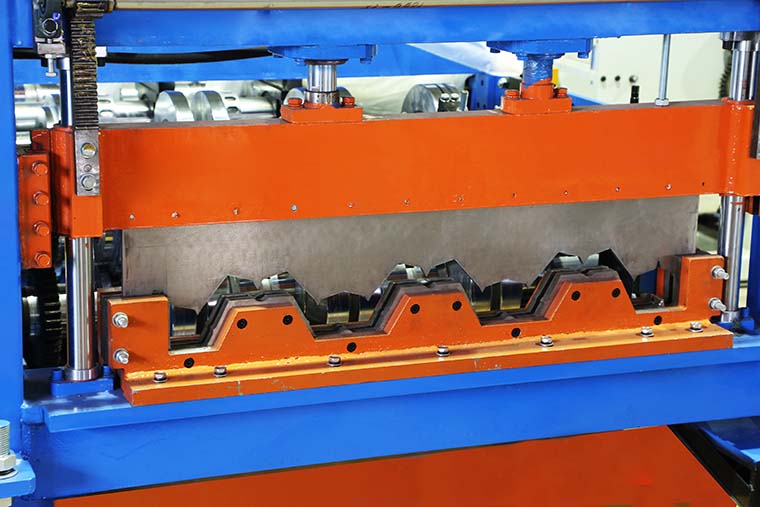

4) YX76-940 floor decking machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor:18.5KW, Hydraulic pressure range: 0-16Mpa
5) YX76-940 floor decking machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1200mm, coil ID range 508mm±30mm
Capacity: 5-9 Ton
With 6 tons hydraulic decoiler for option
6) YX76-940 floor decking machine exit rack
Un-powered,one unit
Other detailes of YX51-915 floor deck roll forming machine
Suitable for material with thickness 0.8-1.5mm
Shafts manufactured from 45#,Main shaft diameter=φ90mm,precision machined
Motor driving,Gear chain transmission, 26 steps to form.
Main motor=22KW , Frequency speed control. Forming speed approx.12-15 m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
After-sale service of floor decking roll forming machine
1. The warranty of floor decking roll forming machine
is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
