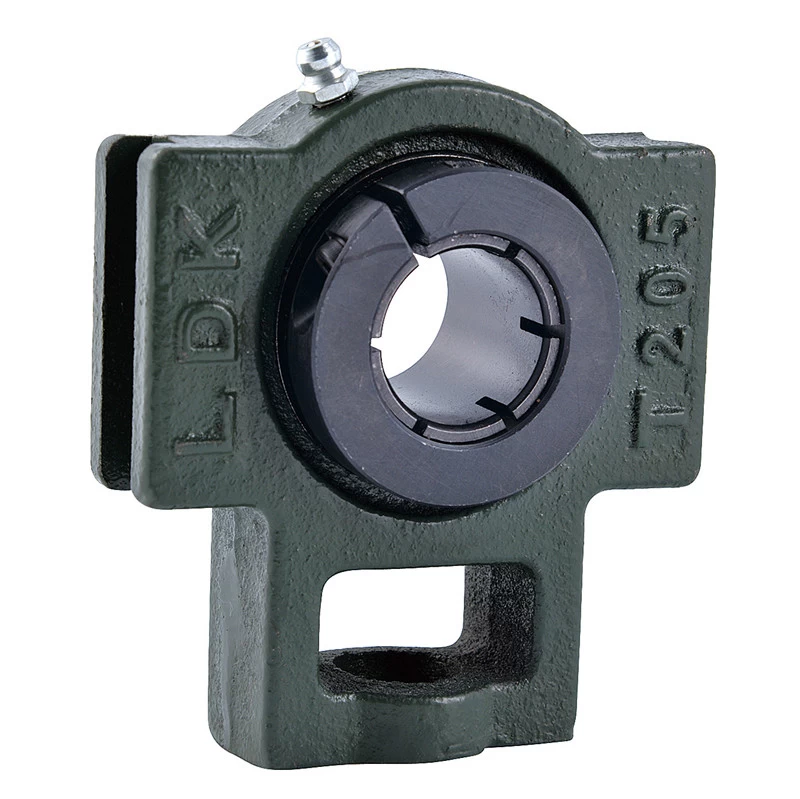

Take Up Bearing Units UET2

UET  Standard duty,Wider inner ring bearing, Concentric locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

UET209 Take Up Housing

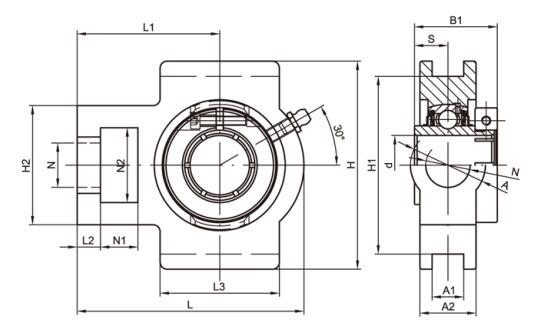

Unit No. Shaft Dia Dimensions(mm) Weight
d N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B1 S (kg)
(in) (mm)
UET204    20 16 10 51 32 19 51 12 76 89 94 32 21 61 33.0 12.7 0.93
UET204-12 3/4  
UET205   25 16 10 51 32 19 51 12 76 89 97 32 24 62 35.4 14.3 0.96
UET205-14  7/8   
UET205-15 15/16  
UET205-16 1
UET206   30 16 10 56 37 22 57 12 89 102 113 37 28 70 39.8 15.9 1.4
UET206-17 1-1/16  
UET206-18 1-1/8  
UET206-19 1-3/16  
UET206-20 1-1/4  
UET207   35 16 13 64 37 22 64 12 89 102 129 37 30 78 43.9 17.5 1.79
UET207-20 1-1/4  
UET207-21 1-5/16  
UET207-22 1-3/8  
UET207-23 1-7/16  
UET208   40 19 16 83 49 29 83 16 102 114 144 49 33 88 50.2 19 2.76
UET208-24 1-1/2  
UET208-25 1-9/16  
UET209   45 19 16 83 49 29 83 16 102 117 144 49 35 87 50.2 19 2.88
UET209-26  1-5/8   
UET209-27 1-11/16  
UET209-28 1-3/4  
UET210   50 19 16 83 49 29 86 16 102 117 149 49 37 90 52.6 19 2.86
UET210-30  1-7/8   
UET210-31 1-15/16  
UET210-32 2  
UET211   55 25 19 102 64 35 95 22 130 146 171 64 38 106 56.6 22.2 4.52
UET211-32  2  
UET211-34 2-1/8  
UET211-35 2-3/16  
UET212   60 32 19 102 64 35 102 22 130 146 194 64 42 119 66.6 25.4 5.41
UET212-36  2-1/4   
UET212-38 2-3/8  
UET212-39 2-7/16  
