SPECIFICATION
Beiben Tractor Trucks For Sale
|

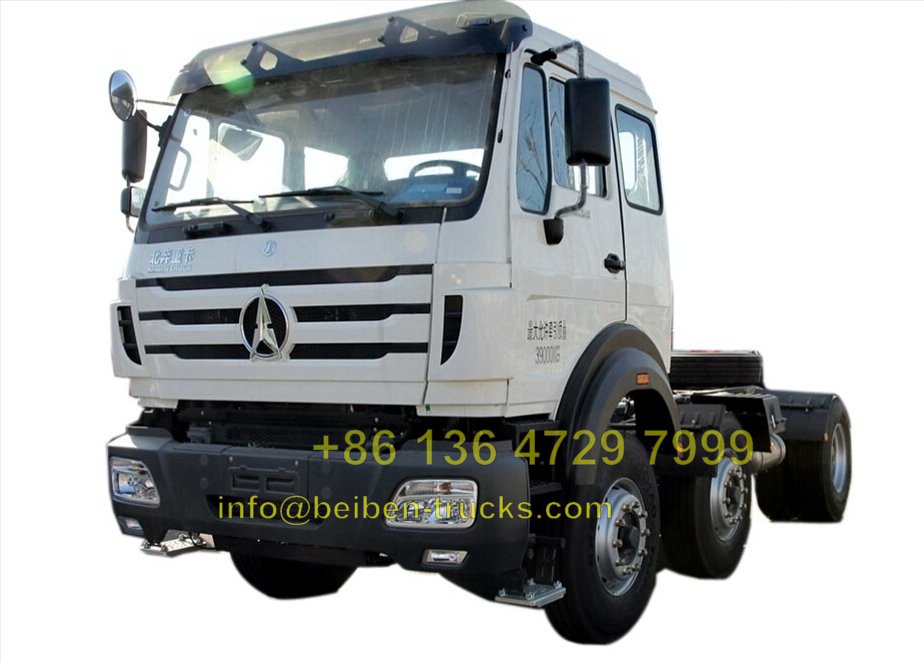

NORTH BENZ TRUCK 6X4 TRACTOR HEAD LHD DRIVE
|
Model
|
ND42501B34J7-SZ
|
Traction
|
6x4
|
Driving type
|
Right hand drive
|
Cabin
Tractor
Truck
|
North Benz cabin with A/C, two bunks
Motor-driven Glass, 2 arm wind screen wiper system with 3 speeds, LCD Panel with LED light
Major color of cab:Ice white lacquer+ color bar, date red lacquer, dolphin grey
|

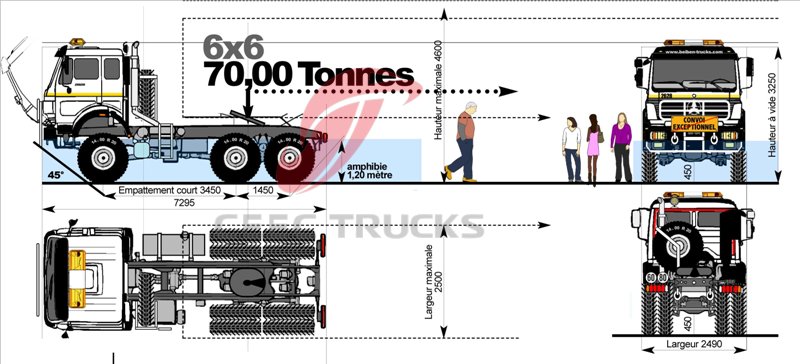

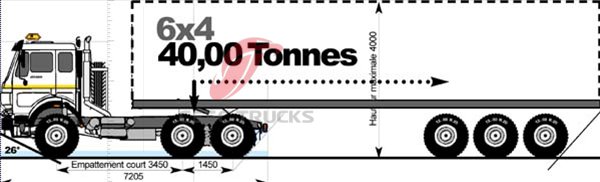

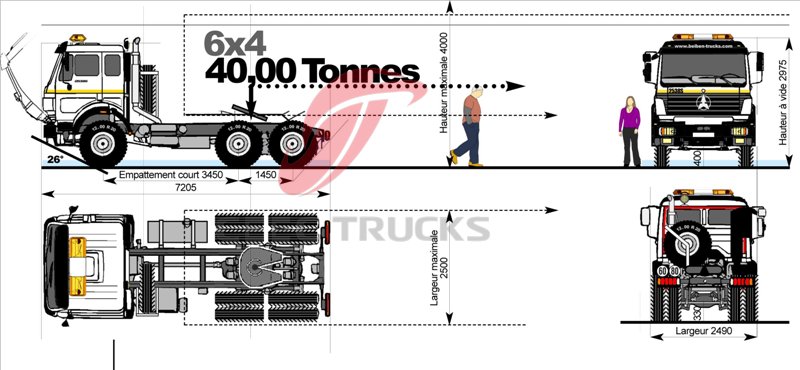

Vehicle Main Dimensions
|
L*W*H(mm)
|
7240x2500x3540
|
Wheel base(mm)
|
3450+1450mm
|
Wheel track(front/rear)(mm)
|
Front track (mm): 1995
Rear track (mm): 1800/1800
|
Approach/Departure angle(°)
|
16 / 60
|
Overhang (front/rear)(mm)
|
1515/825
|
Weight
in KGS
|
Tare Weight(kg)
|
8800kg
|
Trailer Total mass (kg)
|
40000kg
|
Max trailing mass on 5th wheel
|
25000kg
|
Front axle loading capacity
|
7.5tons
|
Rear axle loading capacity
|
2x18tons
|
Driving Speed(km/h)
|
|
110
|
Engine
|
Brand
|
Wei chai
|
Model
|
WP12.420
|
Emission
|
EURIII
|
Engine type
|
Diesel 4-stroke direct injection engine, 6-cylinder in-line
with water cooling, turbo-charging & inter-cooling
|
Displacement
|
9.726L /Diesel
|
Max. output
|
420hp@1900rpm
|
Max torque
|
1400NM@1200-1600rpm
|
Bore/Stroke(mm)
|
126/130
|
Specific fuel consumption
|
198g/Kwh
|
Gear box
|
Model
|
12JS200T
|
Brand
|
Fast 12 speeds
|
Clutch
|
Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting
|
Steering
|
TAS85
|
Tyre
|
Tyre
|
12.00R20 Tyres
|
No. of tyres
Option
|
10+1spare
12R22.5 +USD0.00
|
Fuel tank
|

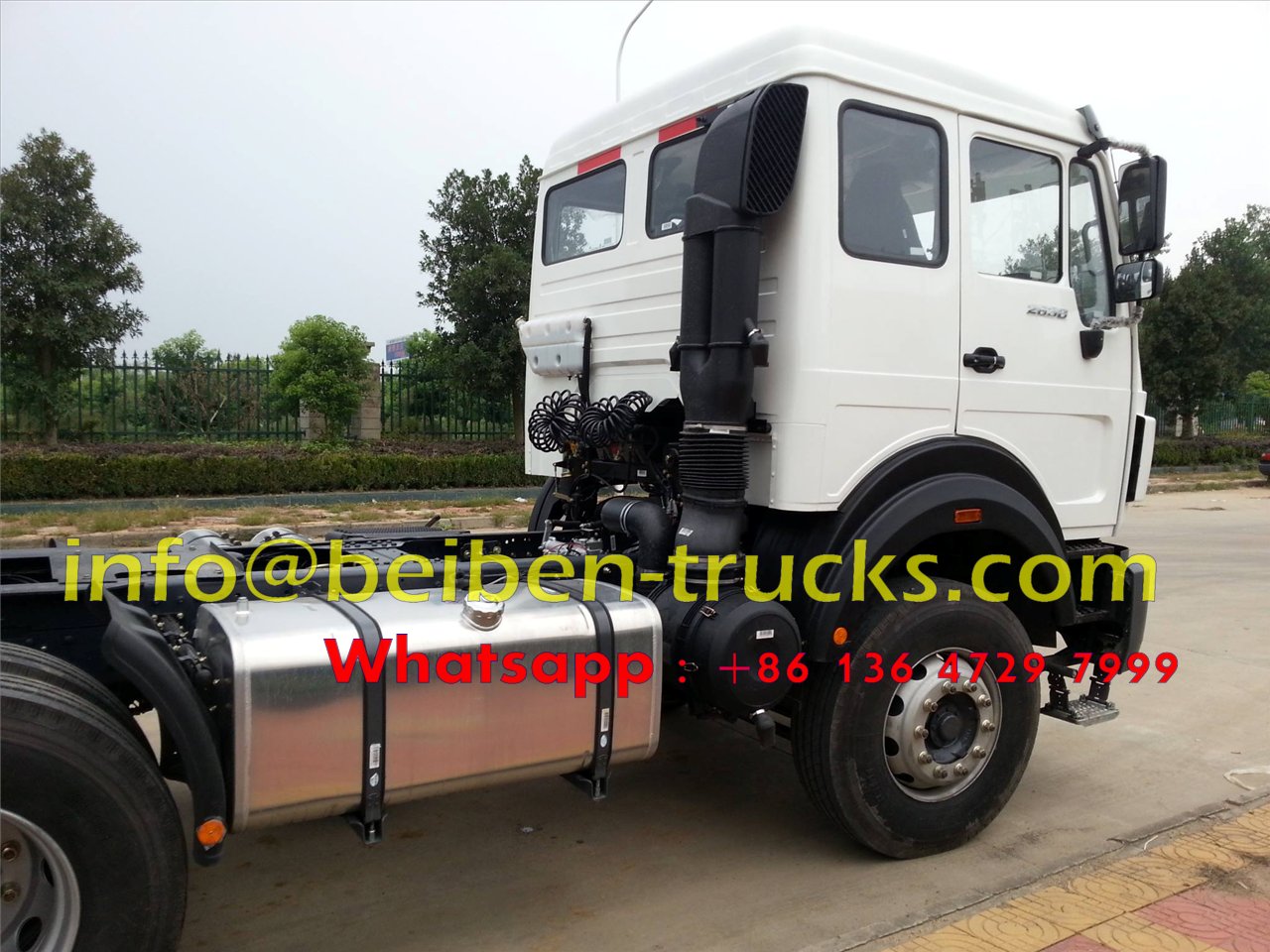

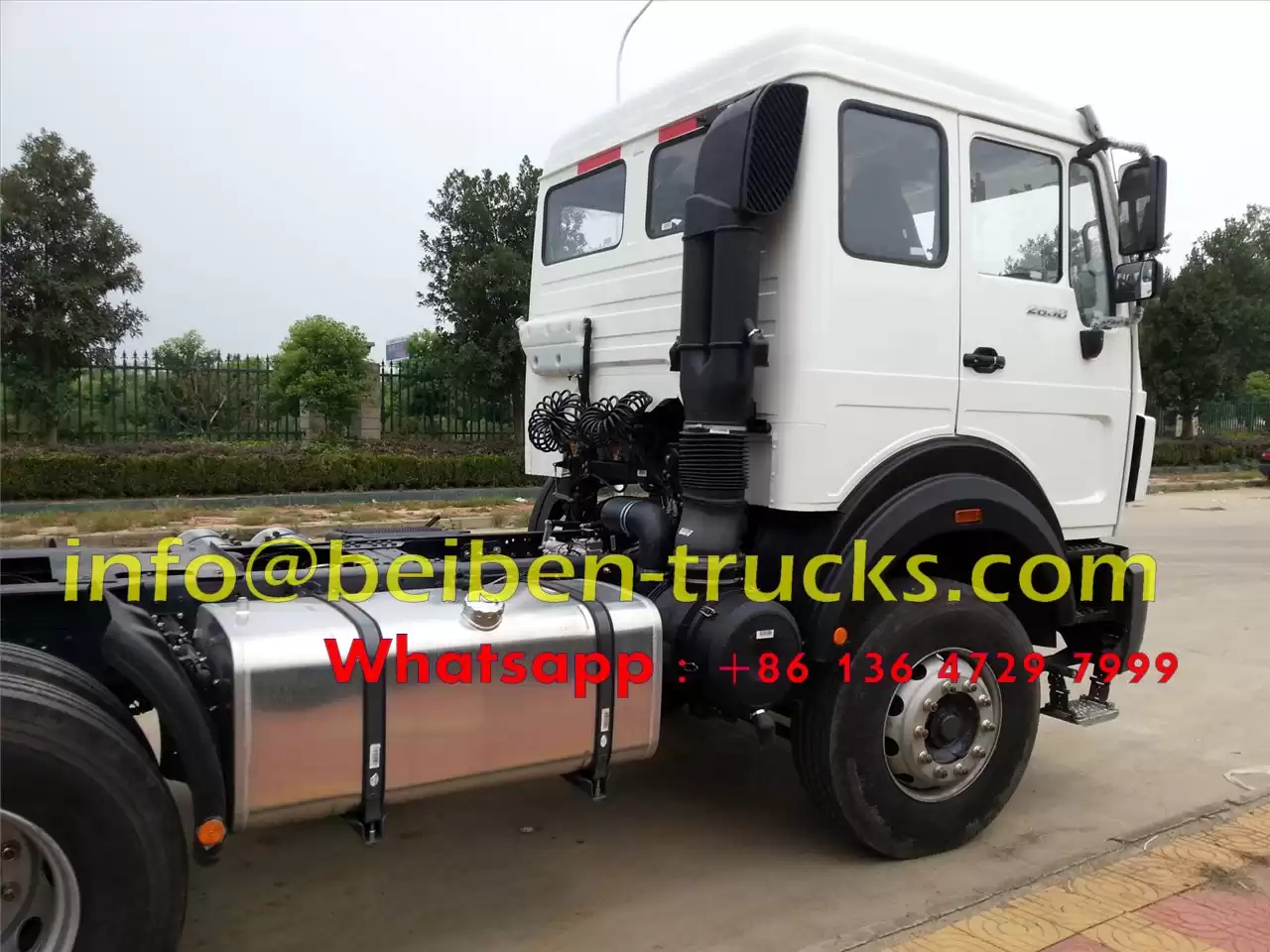

400L Aluminum Tank
|
Front axle
|
Use Mercedes Benz Technology, Double-shoe pneumatic brake, non-driving steering axle
|
Rear axle
|
Use Mercedes Benz Technology, Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
Frame
|
Use Mercedes-Benz technology, Strengthened frame 317x70x8.5+7+12mm
Fish belly, various width, various sections, side beam structure
|
Gradeability
|
28%
|
Brake system
|
Double-circulate brake system, 60L Air tank, Higher Air Pressure, 220mm Brake pad, Air chamber 30/24''
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
Assistant brake
|
Engine exhaust brake
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
Electrical system
|
Battery
|
2X12V/135Ah
|
Generator
|
28V-35A
|
Starter
|
5.4Kw/24V
|
Fifth wheel
|
3.5'
|
Made in China
|
Option
|
2.0' JOST Brand +USD160
|
Option
|
3.5' JOST Brand +USD320
|
Manufacturer
|
BEIFANG BENCHI HEAVY DUTY TRUCK CO.,LTD
|
Origin
|
China |
