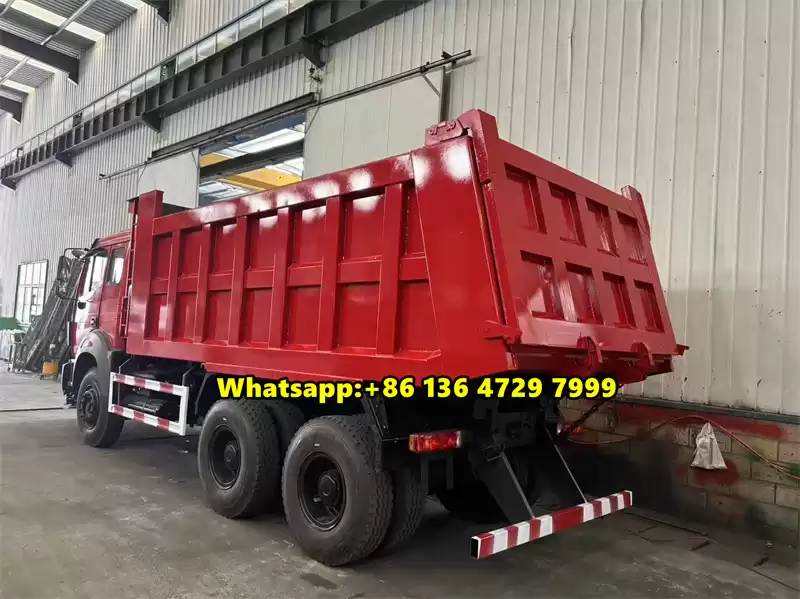

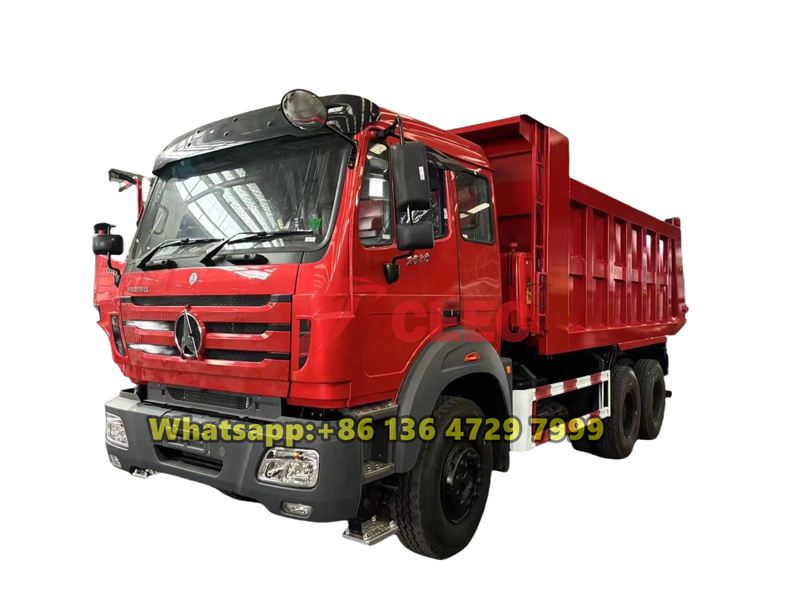

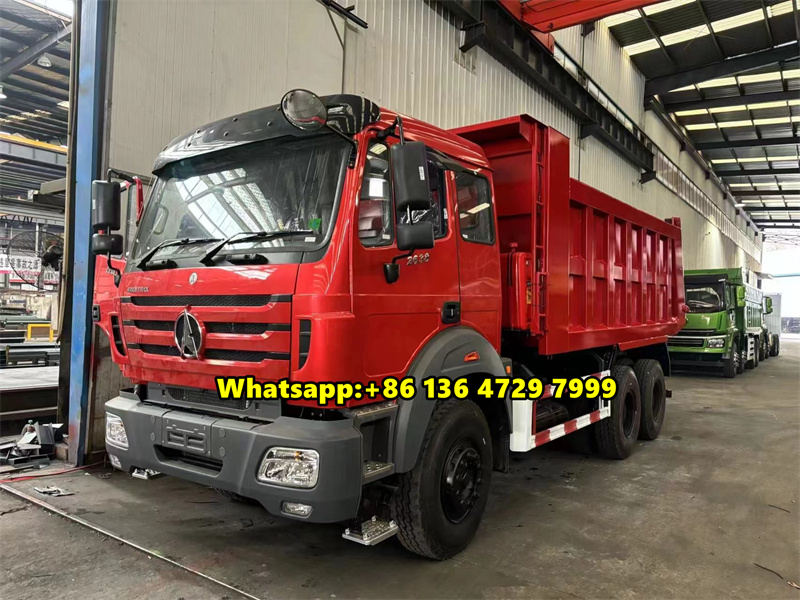

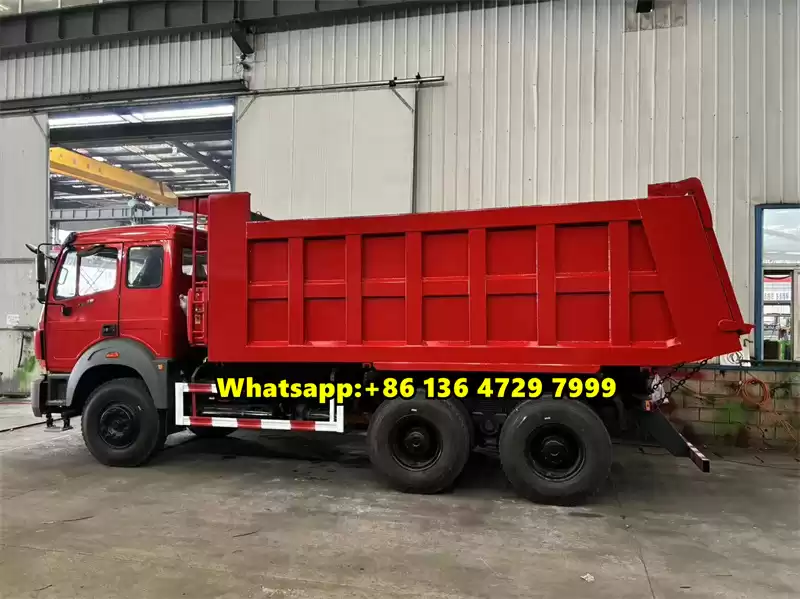

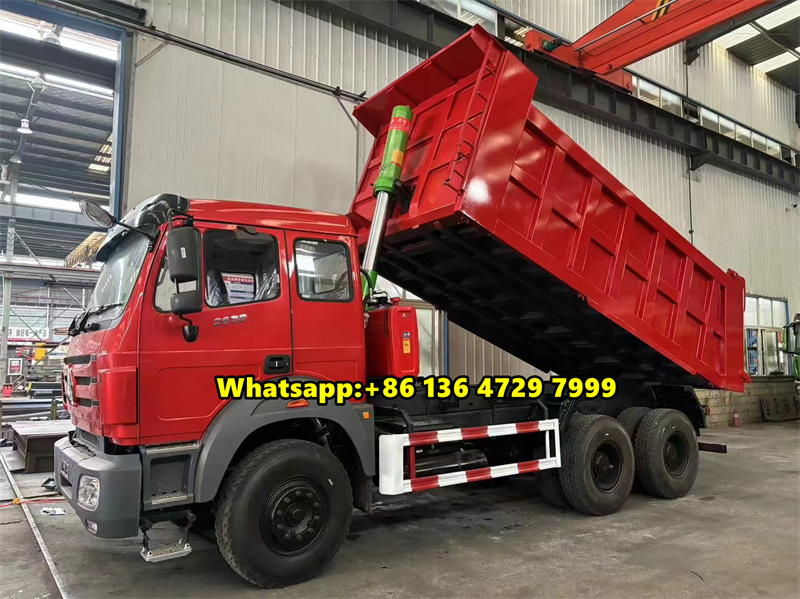

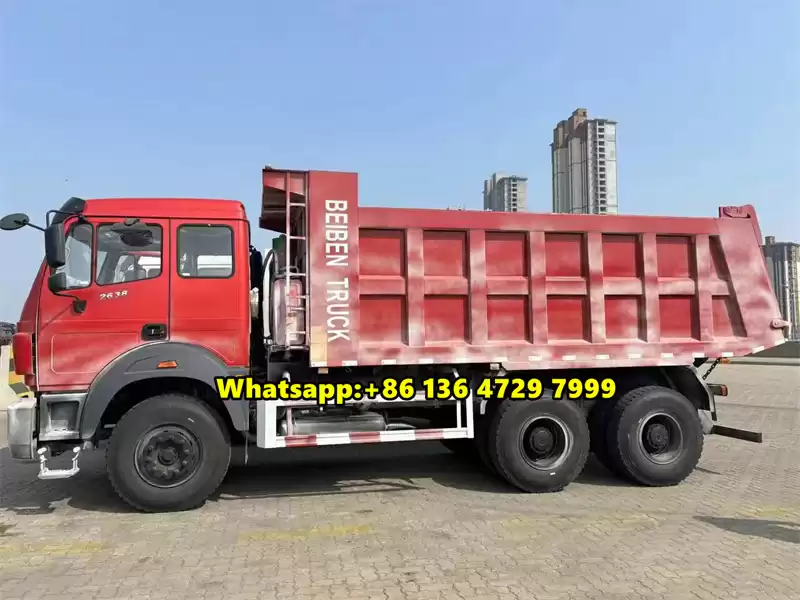

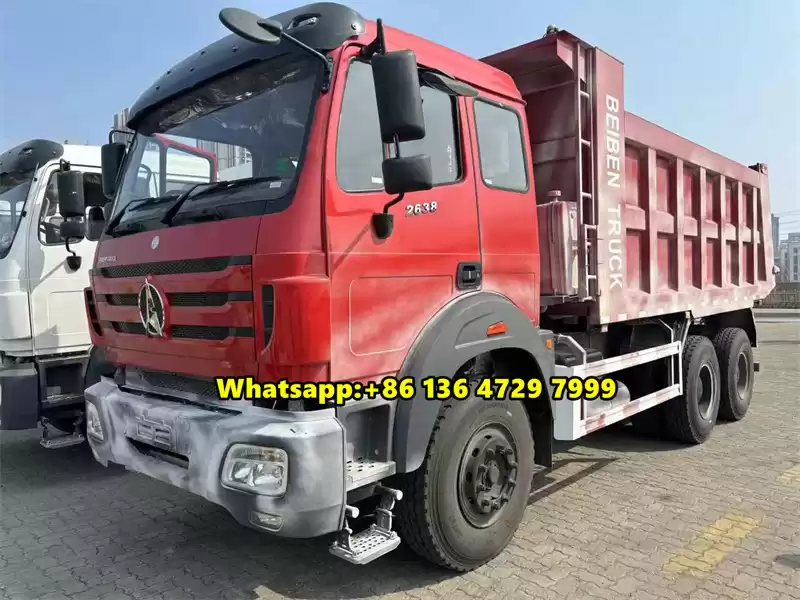

Tanzania Beiben 2638 dump truck is a heavy-duty commercial vehicle designed for transporting and dumping large quantities of materials such as sand, gravel, dirt, and other construction materials. Equipped with a powerful WP10.380 engine, Tanzania Beiben 2638 dump truckk provides the necessary strength and durability to handle demanding tasks in various construction, mining, and infrastructure development projects. The 6x4 drive system of the Beiben 2638 dump truck ensures optimal traction and stability on various terrains, allowing it to navigate rough and uneven surfaces with ease. This drive system also enhances the truck's payload capacity, making it suitable for transporting heavy loads over long distances
The 6x4 drive system of the Beiben 2638 provides excellent traction and stability, making it suitable for off-road construction sites and rugged environments. This allows the truck to navigate challenging terrain and deliver materials to remote locations.
The NG80B full steel cabin of the dump truck provides a safe and comfortable environment for the driver, ensuring that they can operate the vehicle efficiently and effectively. The cabin is equipped with modern amenities and features to enhance the driver's experience and promote safety.
Product Specifications
|
Drive Type
|
6x4 LHD/RHD
|
|
Cab Type
|
Long Cabin
|
|
Equipment
|
With Air Condition, with bed
|
|
Weight
|
|
|
Kerb mass(kg)
|
12800
|
|
GVW(kg)
|
45000
|
|
Dimensions
|
|
Max. length(mm)
|
9880
|
|
Max. width(mm)
|
2500
|
|
Max. height(mm)
|
3630
|
|
Front/Rear overhang(chassis)
|
1410/1870
|
|
Wheel base(mm)
|
4750+1450
|
|
Track width(mm)
|
1995/1808
|
|
Box size
|
|
Length (mm)
|
5600
|
|
Width (mm)
|
2500
|
|
Height (mm)
|
1500
|
|
Thickness of Steel
|
Floor 8mm, side 6mm
|
|
Tipping type
|
Front tipping
|
|
Performance
|
|
Max. speed (km/h)
|
75
|
|
Max. gradeability (%)
|
30
|
|
Approach/Departure angel (°)
|
26/32
|
|
Engine
|
|
Brand
|
WEICHAI BRAND
|
|
Model
|
WP10.380E32
|
|
Power (kw/hp)
|
280kw/380hp
|
|
Max torque (N.M)/rpm
|
1500--1800
|
|
Displacement (L)
|
9.726
|
|
Emission Standards
|
Euro III (optional)
|
|
Transmission
|
|
Brand
|
FAST
|
|
Model
|
9JS180
|
|
Control type
|
Manual
|
|
Gear Shift
|
9-forward & 1-reverse speeds
|
|
Clutch
|
|
Type
|
Single plate,diaphragm spring
|
|
Diameter (mm)
|
Φ430
|
|
Action
|
hydraulically operating with air assistance
|
|
Brakes
|
|
Type
|
Drum
|
|
Service Brake
|
With dual-circuit compressed air brake
|
|
Park Brake
|
Power spring brake acting on rear wheel
|
|
Auxiliary Brake
|
WEVB
|
|
Steering
|
ZJ120D/D50/TAS85
|
|
Chassis
|
Ladder structure with parallel straight
|
|
Dimensions (mm)
|
300x90x8+6+8
|
|
Suspension
|
|
Front
|
Longitudinal leaf spring
|
|
Rear
|
Inverted leaf spring stabilizator suspension
|
|
Axles
|
BENZ TECHNOLOGY
|
|
Front
|
BENZ TYPE: 7.5 tons
|
|
Rear
|
BENZ TYPE: 13tons
|
|
Ratio
|
5.921
|
|
Tyre
|
12.00R20 radial tire
|
|
Fuel tank
|
|
Tank capacity(L)
|
300
|
|
Material
|
Aluminum alloy
|
|
Electrics
|
|
Type
|
24V
|
|
Starter
|
5.58kw (24)
|
|
Generator
|
2.0kw (28V 70A)
|
|
Battery
|
2x135Ah
|
Congo beiben 6x4 drive rigid truck chassis
Congo beiben 2638 double rear axle heavy duty truck
Tanzania Beiben 2638 dump truck is a heavy-duty vehicle equipped with a powerful WP10.380 engine. Its 6x4 drive system provides excellent traction and stability on rough terrain. The NG80B full steel cabin ensures safety and comfort for the driver during long hours of operation. It also features Benz technology front and rear axles for superior performance.
1, the Tanzania Beiben 2638 dump truck is commonly used in construction projects in Tanzania. Its robust build and high payload capacity make it ideal for transporting large quantities of construction materials such as sand, gravel, and rocks.
2, the dump truck is often utilized in mining operations in Tanzania. Its heavy-duty design and high payload capacity make it perfect for hauling large quantities of ore and waste material from mining sites to processing facilities.
3, the dump truck is also utilized in infrastructure development projects such as road construction and maintenance. Its high payload capacity and reliable performance make it crucial for transporting construction materials to and from the project site. The Benz technology front and rear axles enhance the truck's stability and durability, allowing it to deliver materials safely and efficiently to the construction site.
