Beiben tractor truck head is a heavy-duty vehicle designed for powerful towing capabilities. With a sleek and robust design, this tractor head boasts a 2638 model that ensures high performance on the road. The towing capacity of this vehicle is unparalleled, making it a reliable choice for transporting heavy loads over long distances.
Equipped with a durable and efficient engine, the Tanzania Beiben right hand drive tractor offers exceptional power and torque to tackle any towing task with ease. Its advanced transmission system allows for smooth gear shifts, ensuring a comfortable driving experience for operators.
Beiben 2638 tractor head is built with safety in mind, featuring advanced braking systems and stability control to maintain control and prevent accidents on the road. Its sturdy frame and suspension provide stability and durability, making it a dependable choice for towing operations in various terrains.
The features of Beiben 2638 towing tractor head include:
1. Powerful power and carrying capacity: The tractor is equipped with a high-power diesel generator, which can provide sufficient power to support the towing of heavy-load trailers and has a strong carrying capacity.
2. High stability and reliability: Due to the long wheelbase and low center of gravity design, the tractor shows high stability during transportation.
3. Comfortable driving experience: The towing vehicle is equipped with a spacious and comfortable cab, providing the driver with a good long-distance driving experience.
|
BEIBEN 2638S /6×4/3450+1450/Long Cab/LHD
|
|
Dimension
|
7136*2495*3180mm
|
|
Approaching angle/Departure angle
|
26/64°
|
|
Overhang(front/rear)
|
1410/825mm
|
|
Wheel base
|
3450+1450mm
|
|
Max speed
|
90km/h
|
|
Curb weight
|
9200kg
|
|
Max towing weight
|
36900kg
|
|
Max loading on fifth wheel, Permitted(kg)
|
15670kg
|
|
Slope climbing capability
|
Max.40%
|
|
Engine
|
Model
|
WP10.380,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
|
|
Displacement
|
9.726L/Diesel
|
|
Stroke
|
126/130mm
|
|
Max. power
|
280/2200 (kw/rpm)
|
|
Max.torque
|
1460/1200-1600(Nm/rpm)
|
|
Emission stantard
|
Euro 3
|
|
Fuel tanker capacity
|
400L
|
|
Clutch
|
430, Single dry frictional disc,Hydraulic boosting
|
|
Gearbox
|
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
|
|
Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
|
|

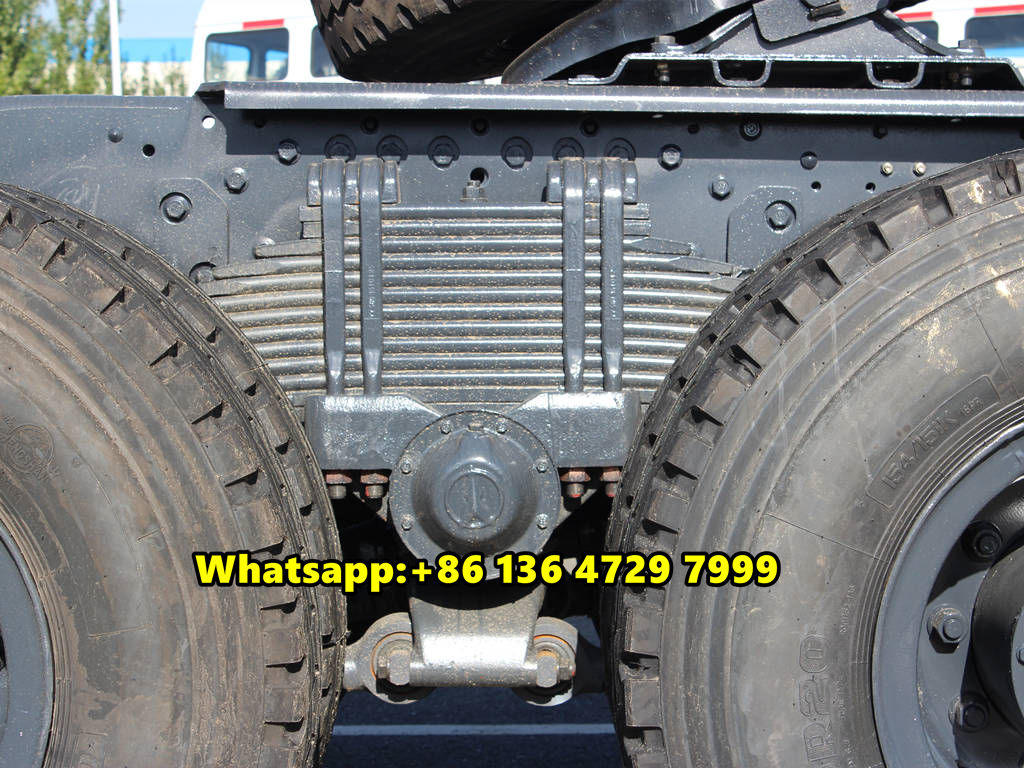

Suspension system
|
Front
|
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
|
|
Rear
|
Non-free standing stablization spring, balance suspension system, 13pcs
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
|
Steering system
|
TAS85,whole circulation in ball, hydraulic booster
|
|
Frame
|
Fish belly shape, variable width, variable sections
|
|
Model
|
JOST 90 single direction
|
|
Height of fifth wheel(mm) (unload)
|
1410
|
|
Radius of front gap (mm)
|
2300
|
|
Radius of rear slew (mm)
|
2600
|
|
Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
|
Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
|
Tyre
|
12.00-R20
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|

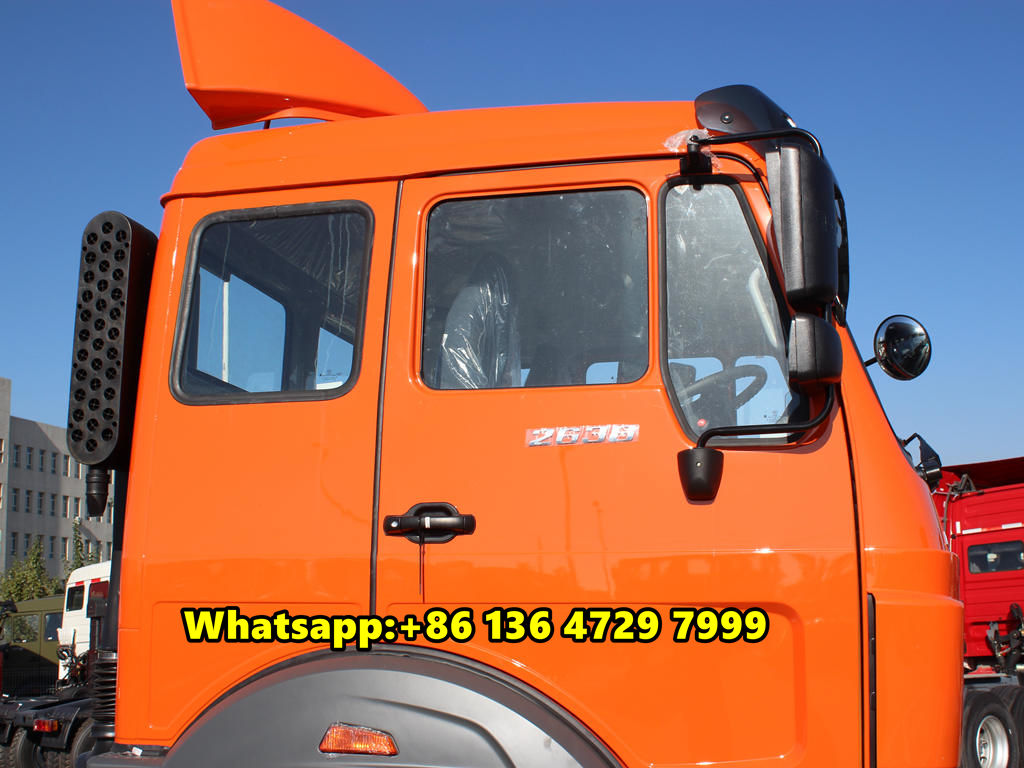

Cabin
|
NG80B Long-Flat roof cabin with single sleeper
|
|
Full steel skeleton structure, covered with double layer steel plate;
|
|
Can be tipped forwardly;
|
|
High back seat for driver;Electric lifting window ;
|
|
With inner A/C
|
1. Tanzania Beiben 2638 right hand drive tractor performs well in power performance.
It is equipped with a high-performance diesel engine, has strong power output, can start quickly and perform stably under different road conditions. Whether it is on urban roads or rugged mountain roads, this tractor head can easily cope with it, ensuring the stability and safety of the vehicle. In addition, Beiben 2638 is also equipped with a professional gearbox system, which makes gear shifting smoother and fully improves the operating efficiency and driving comfort of the vehicle.
2. Tanzania Beiben 2638 tractor head pursues practicality and durability in design.

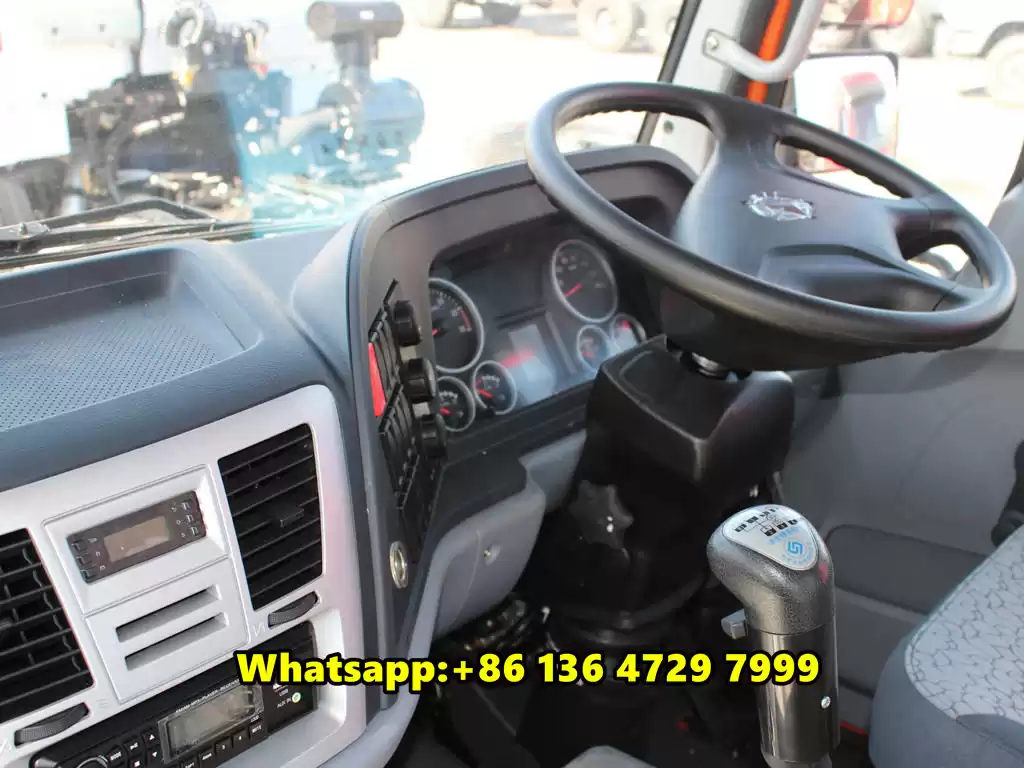

The appearance of the whole vehicle is simple and generous, and the structure is compact and reasonable, giving people a sense of calmness and reliability. The body is made of high-strength materials, has strong pressure resistance and wear resistance, and can be used for a long time in various harsh environments without being easily damaged. At the same time, the interior design of Beiben 2638 is simple and generous, and the layout of various function buttons is reasonable and easy to operate. The overall design takes into account the actual needs of users and provides drivers with a comfortable driving experience.
In general, the Tanzania Beiben 2638 towing tractor head is favored for its excellent power performance and practical and durable design. It is a reliable vehicle product that can be competent in both freight transportation and long-distance transportation.
