tanzania beiben 6x6 drive truck chassis

The Beiben 2629 all wheel drive military truck is a off road heavy duty vehicle designed to meet the demanding needs of military operations. With its powerful WP10.290 diesel engine and military 6x6 off road drive capability, this beiben  military all wheel drive truck is capable of navigating through rough terrain and harsh environmental conditions with ease.

The Beiben 2629 is equipped with 6x6 drive chassis and 4 Ubolt suspension system,Fast 12JS200T transmission allowing it to carry heavy loads and withstand the rigors of off-road driving. Its benz technology all-wheel drive system ensures maximum traction on various surfaces, making it an ideal choice for military missions in challenging environments.


  • Drive system6x6, RHD
  • Engine power380HP, WP10.380
  • Working Capcity20 Ton
  • Payment termsT/T
  • Production time30 days

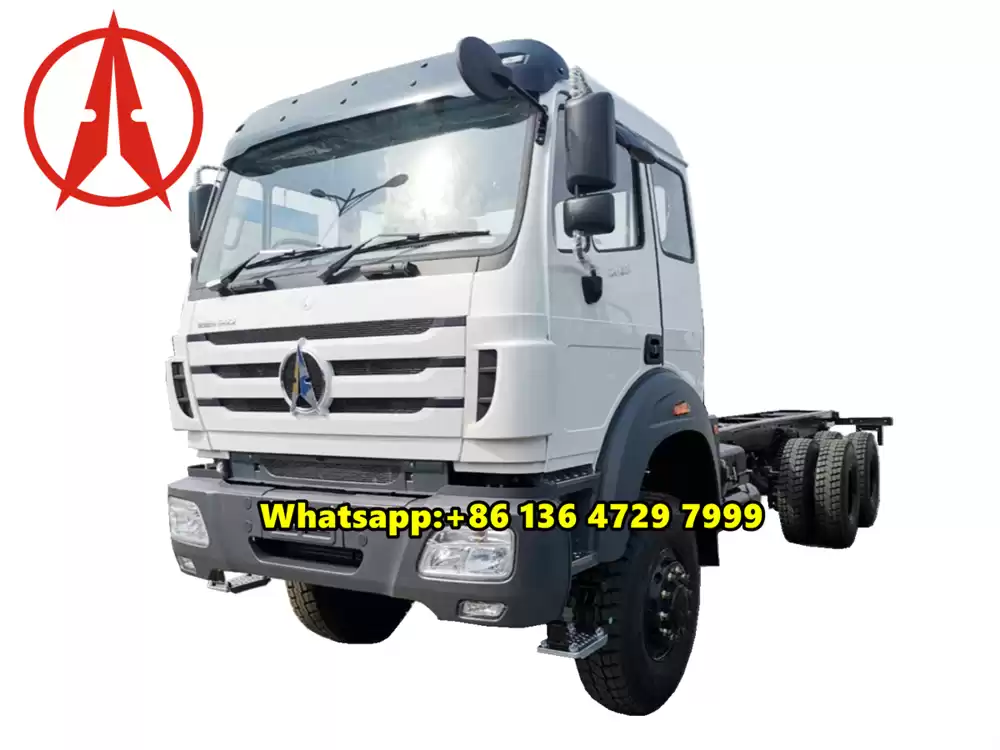

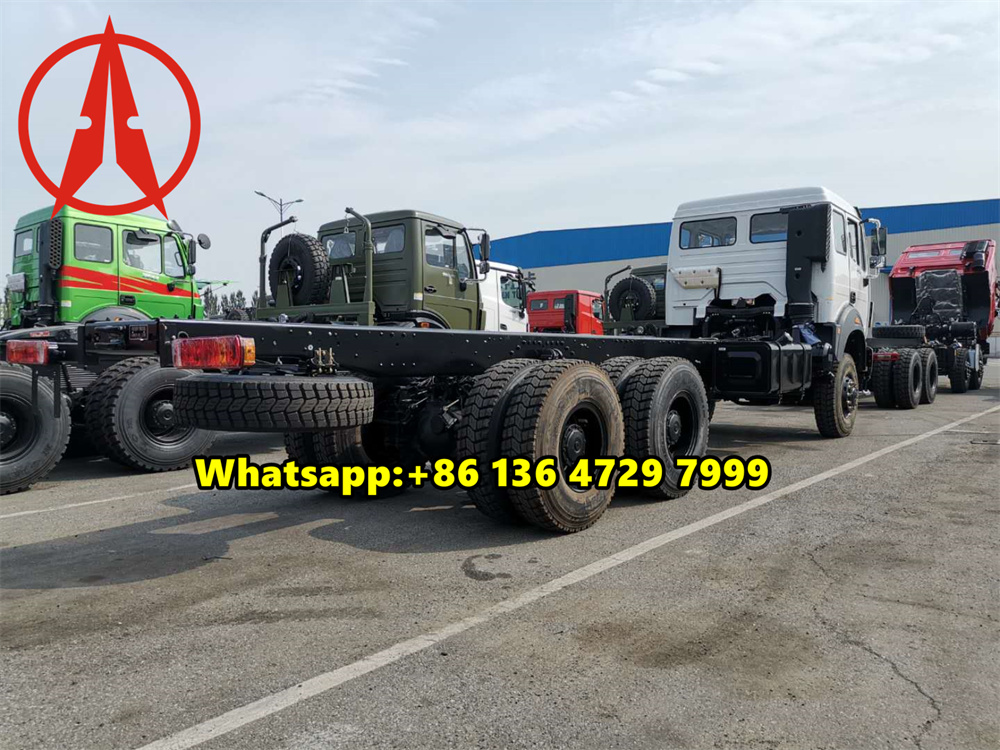

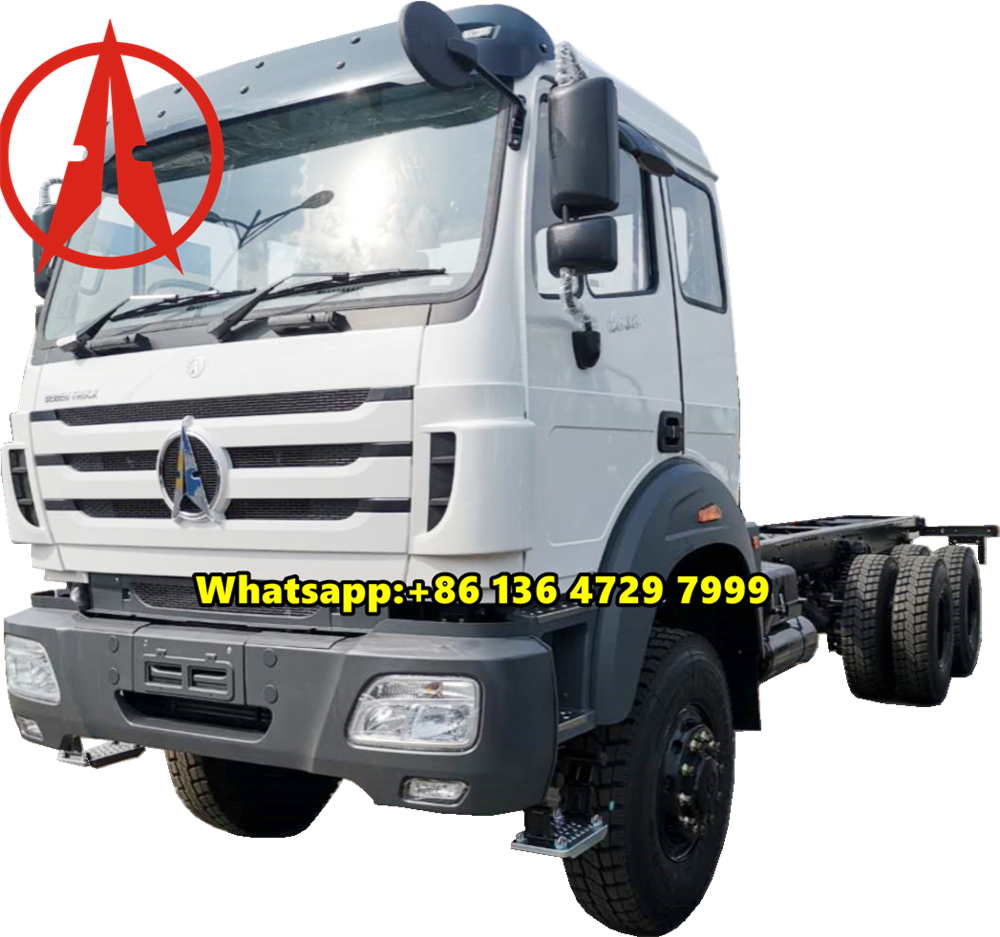

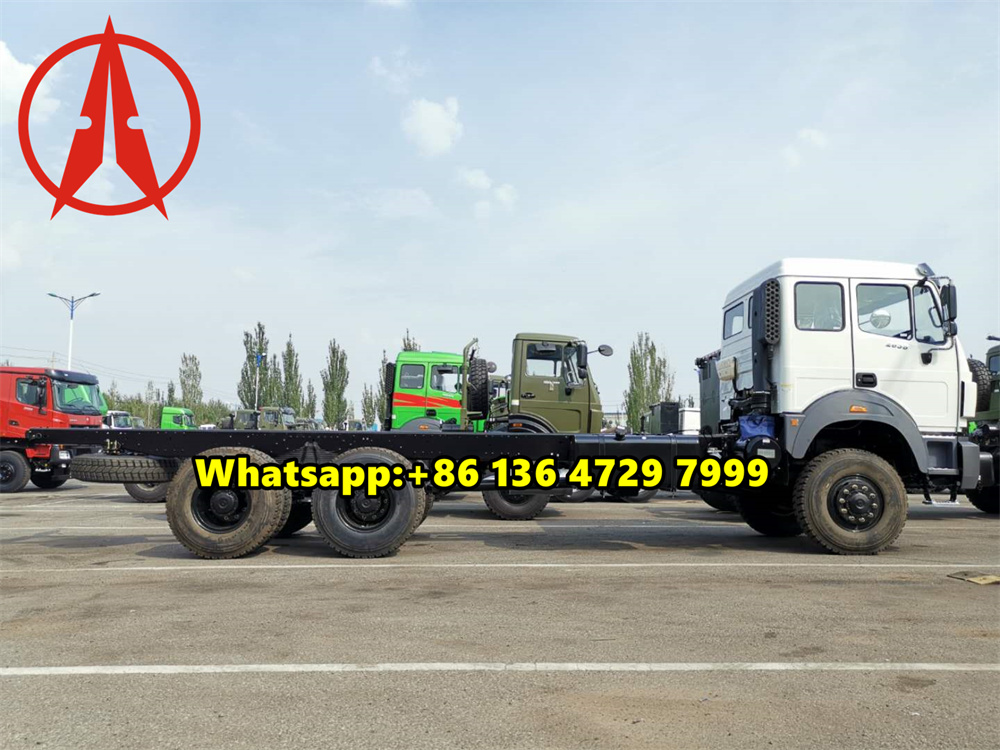

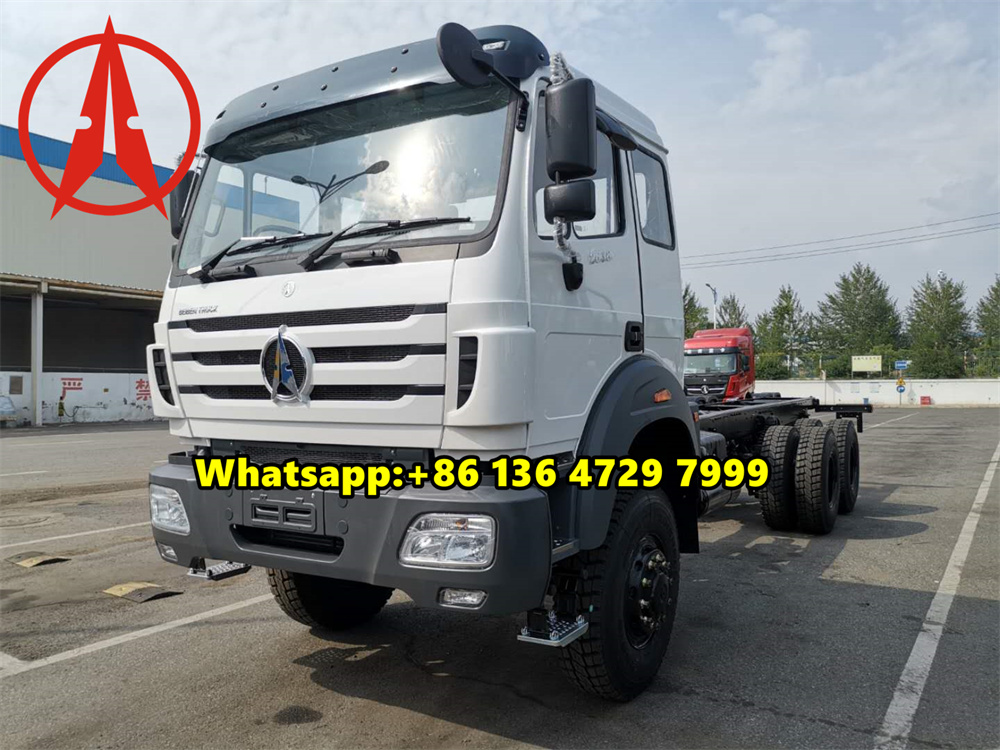

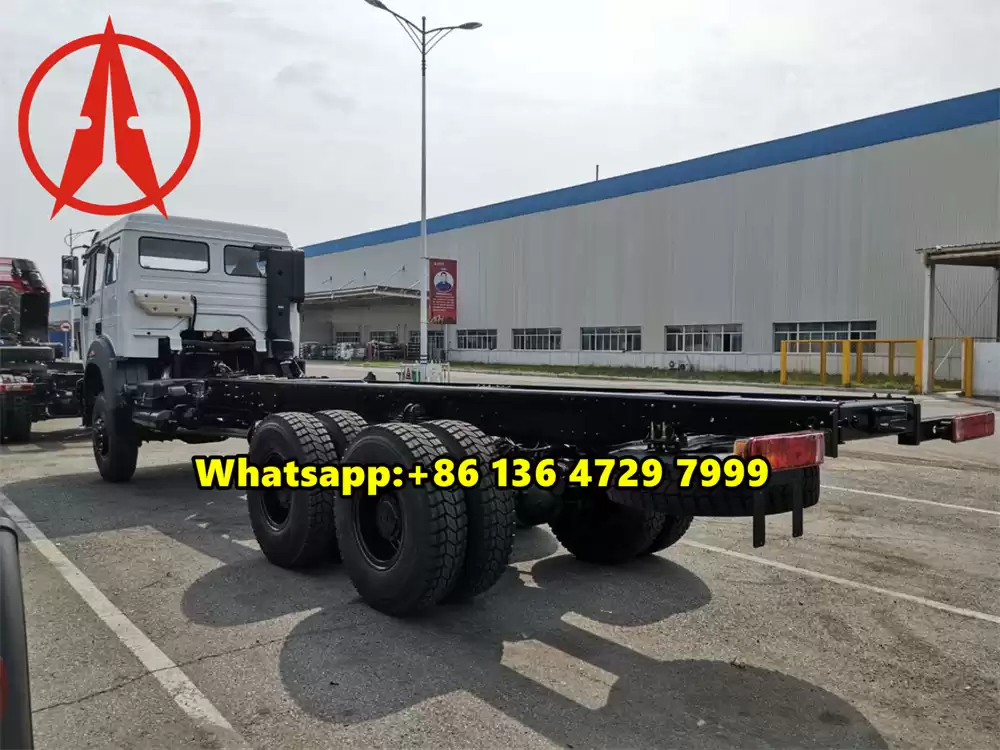

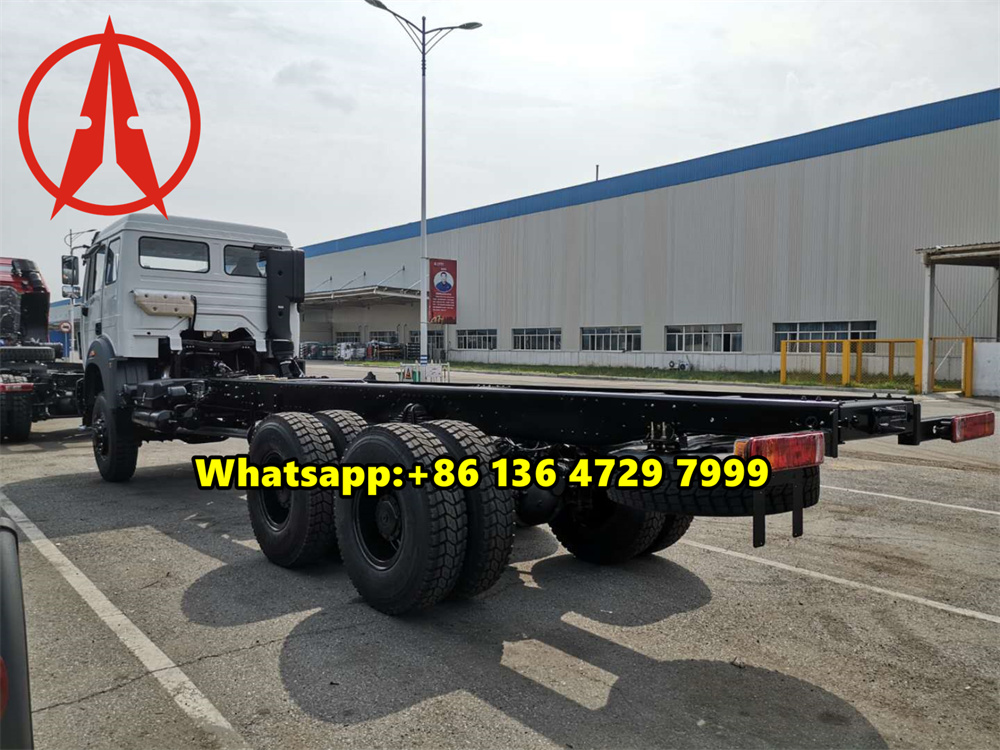

The Tanzania Beiben 6x6 drive truck chassis is a heavy-duty vehicle designed for rough and rugged terrain. With its 6x6 drive configuration, this truck provides exceptional traction and stability, making it ideal for off-road applications such as construction, mining, and military operations.

The chassis of the Tanzania Beiben 6x6 drive truck is built to withstand the most challenging conditions. Constructed from high-strength steel, the chassis is designed to withstand heavy loads and rough terrain. Its robust design ensures durability and longevity, making it a reliable choice for tough environments.

beiben 6x6 drive truck chassis is commonly used by the Tanzanian military for transportation of troops, equipment and supplies in challenging terrains. Its all-wheel drive capability allows it to traverse rough roads and off-road areas, making it an ideal choice for military operations in remote areas.  beiben 6x6 drive truck chassis is also utilized in emergency response and disaster relief efforts in Tanzania. Its rugged design and off-road capabilities allow it to access remote and affected areas during natural disasters such as floods, earthquakes, and droughts. It is often used to transport relief supplies, medical aid, and personnel to areas in need, providing crucial support during times of crisis.

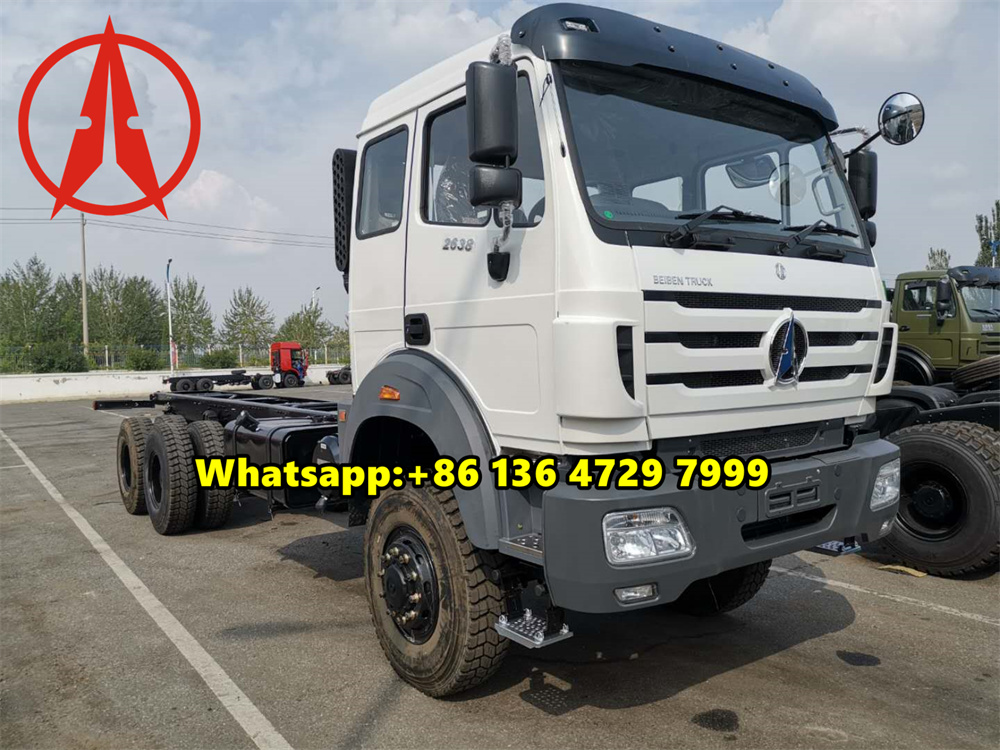

tanzania beiben 2638 off road truck



Tanzania Beiben 6x6 drive truck

Basic parameter



Mode

2638PZ/6×6

Length×width×height(mm)

9526×2500×3385

Wheel-base(mm)

4450+1450

Curb weight(kg)

11400

Engine parameter



Model (six cylinder in line)

WP10.380E32

Max. Power (HP/rpm)

290

Max. Torque(Nm/rpm)

1400/14001600

Displacement(lit)

9.726 L

Fuel tank capacity

400L Iron oil tanker  400L

Transmission system



Clutch

430 Single disc, dry type, friction clutch

Gearbox

Mechanical, 9JS150A

Steering system



Steering gear

8098 Circulating ball steering gear, hydraulic booster

Brake system



Service brake

Double circulation air brake system equipped

Parking brake

Energy storage spring brake

Assisted brake

Engine exhaust brake



Chassis parameter



Frame

Variable width and section  317×70×8.5+7+8.5 mm

Front axle

7.5 T, no-driving steering axle, drum brake

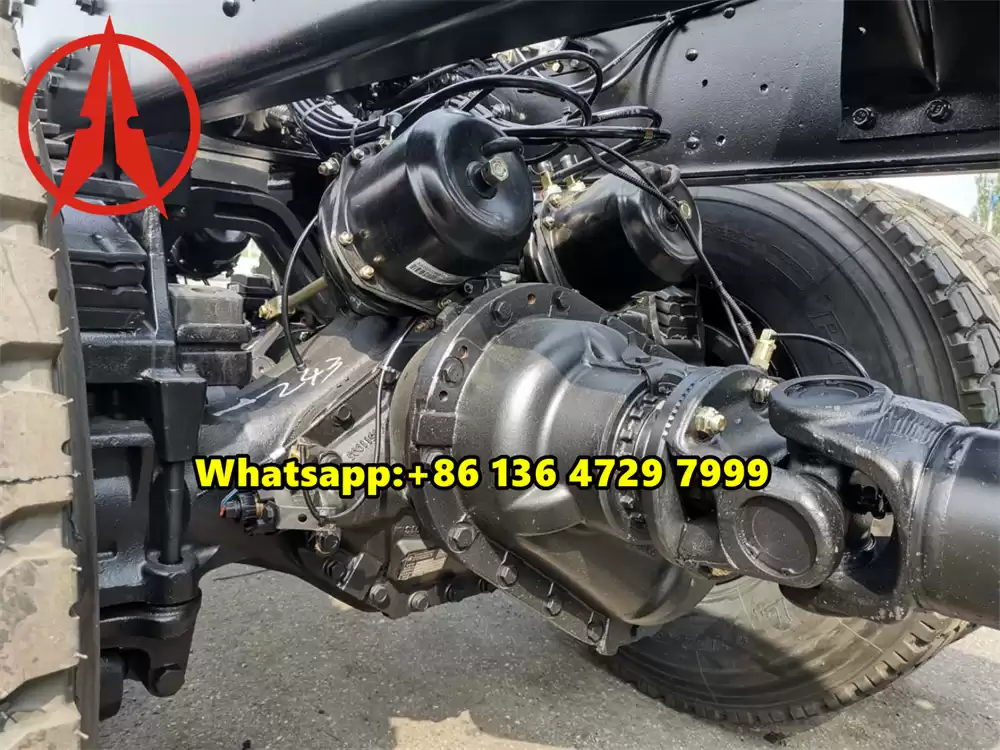

Middle & Rear axle

13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263

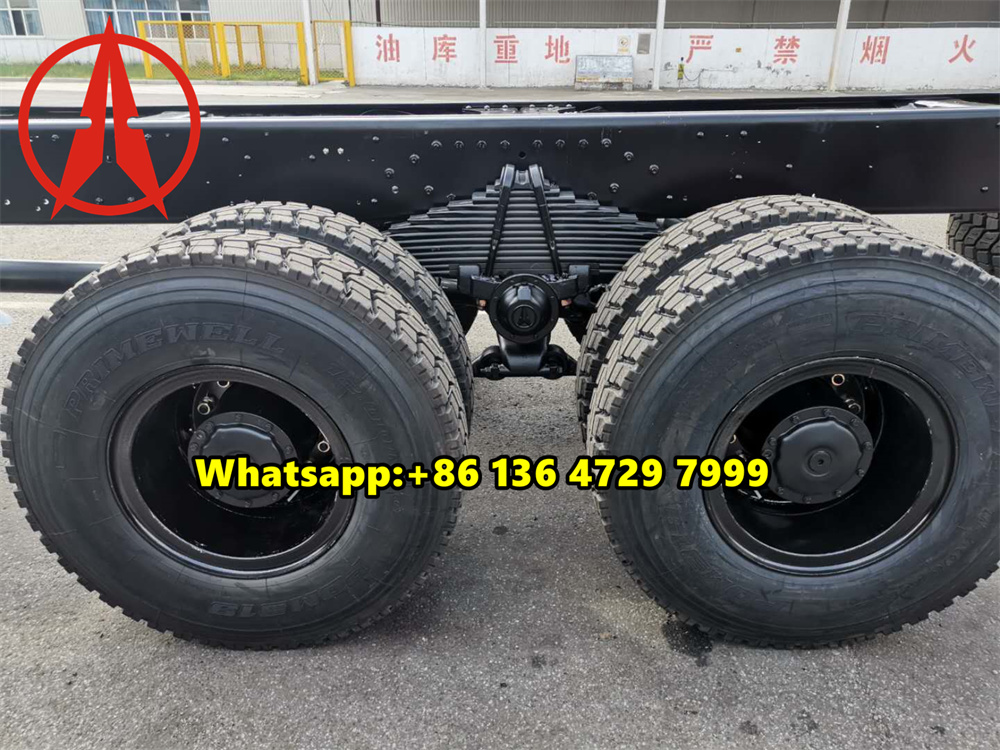

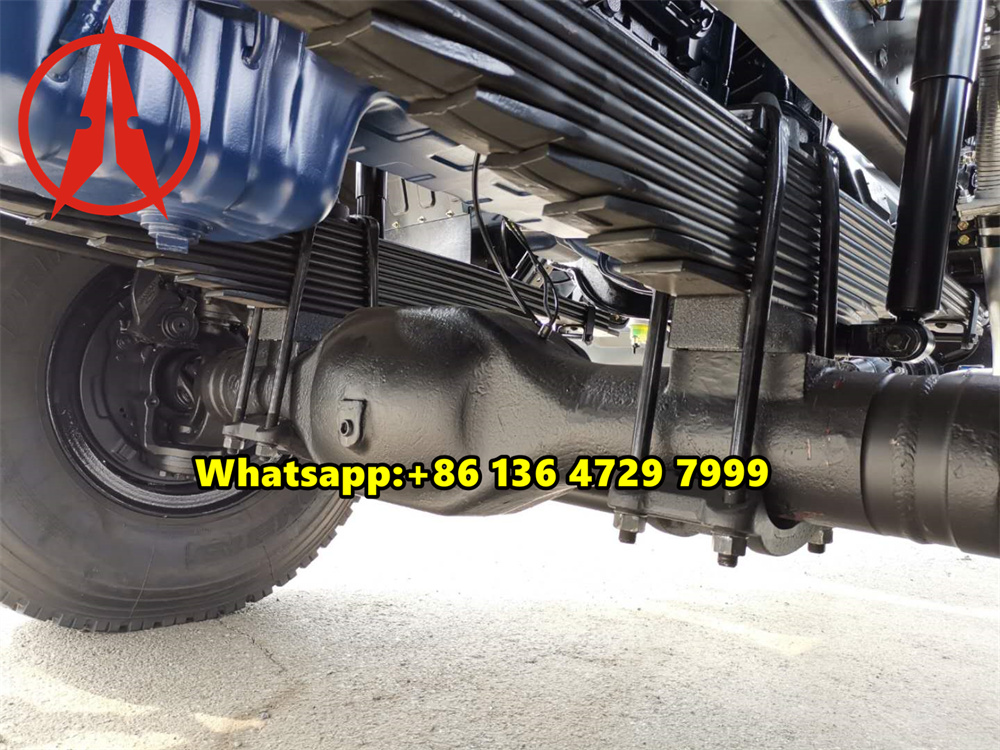

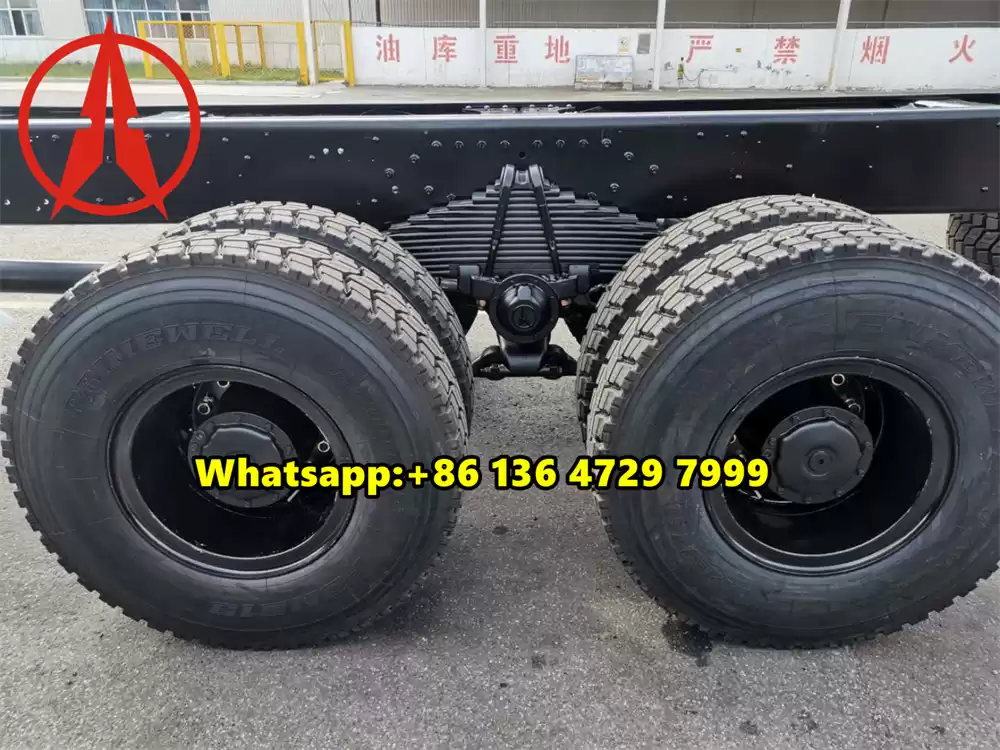

Front and rear suspension

Front/rear: Leaf spring, 13/13 pieces

Tire

12.00R20

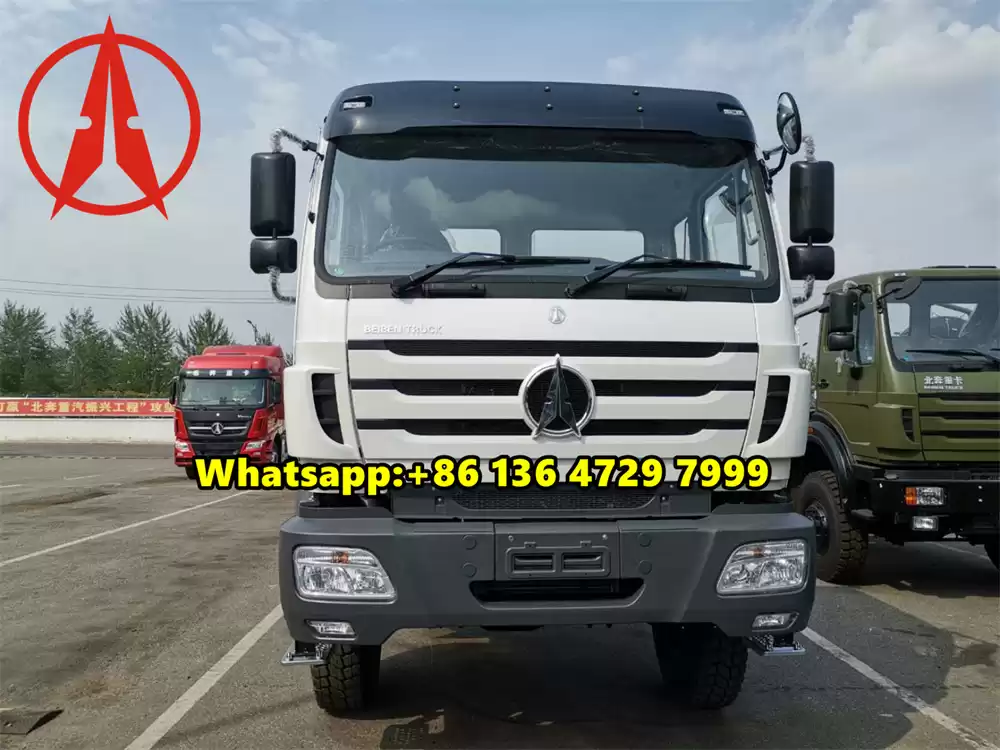

Cab



NG80B Long Cabin/ Flat roof/Left drive

Exterior trimming:

Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual).



Interior trimming:

Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument



Offer











The Beiben 2629 all wheel drive military truck is a powerful and versatile vehicle used for a variety of important purposes. Here are four key ways in which this vehicle is utilized:

1. Transportation of Troops and Equipment: The Beiben 2629 military truck is primarily used for transporting troops and equipment across challenging terrains. Its all wheel drive capabilities make it well-equipped to navigate rough roads, muddy surfaces, and even off-road environments, ensuring that personnel and cargo can reach their destinations safely and efficiently.

2. Logistics and Supply Missions: The Beiben 2629 is also instrumental in supporting logistics and supply missions in military operations. With its robust design and high carrying capacity, this truck can transport large quantities of supplies, ammunition, and other essential items to remote or hard-to-reach locations where traditional vehicles may struggle to access.

3. Rescue and Recovery Operations: In times of crisis or conflict, the Beiben 2629 military truck plays a vital role in rescue and recovery operations. Its rugged construction and powerful engine allow it to navigate through debris, debris, and other obstacles to reach stranded or injured individuals, providing essential assistance in emergency situations.


4. Combat Support and Firepower: Additionally, the Beiben 2629 military truck can be outfitted with various weapon systems and communication equipment to provide combat support and firepower on the battlefield. Whether serving as a mobile command center, a weapon platform, or a troop carrier, this versatile vehicle enhances the military's ability to respond effectively to threats and engage in various operational scenarios.
Overall, the Beiben 2629 all wheel drive military truck is a crucial asset in modern military operations, offering unmatched durability, versatility, and performance in a wide range of missions and environments. Its role in transportation, logistics, rescue, and combat support makes it an indispensable tool for armed forces around the world.

tanzania beiben 2638 off road truck

tanzania beiben 2638 off road truck
