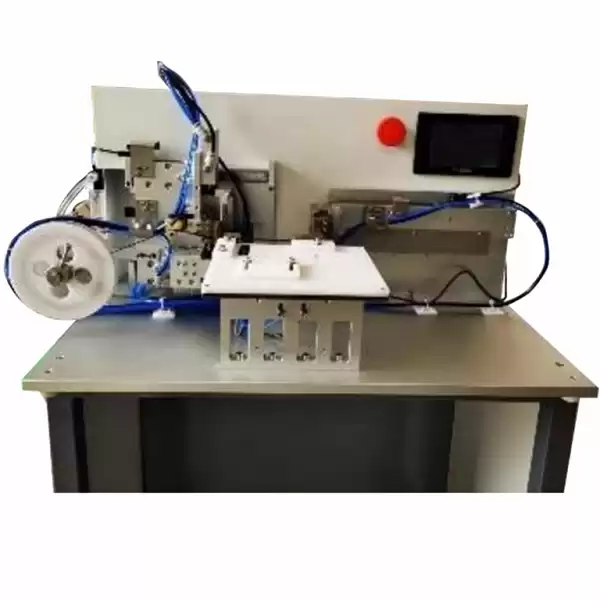

Tape/Glue Winding Machine Winder Device for Polymer Battery Protection Plate
Introduction
1. The equipment is simple and easy to learn, easy to operate, ultra-low failure rate and very energy-saving.
2. The machine solves the rubber winding process of the head of the polymer built-in battery protection plate, with good consistency, improving efficiency and saving labor cost.
3. It is used to wrap glue around the head of polymer built-in battery protection board (including mobile phone power, mobile power supply, digital battery, etc.)
Technical parameters:
|
Power Supply
|
220V 50Hz 30W
|
|
Air Pressure
|
0.4-0.8MPa
|
|
Applicable Battery Range
|
Polymer Cell
|
|
Gluing Length
|
30-140mm
|
|
Gluing Width
|
6-16mm
|
|
Cell Thickness
|
3-8mm
|
|
Capacity
|
800-1200 times/h
|
|
Overall Dimension
|
600*500*400mm
|
|
Weight
|
50KG
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
