Taper Roller Bearing Cup And Cone Assembly 11590/11520 LM11749 LM11710

In tapered roller bearings, the outer ring is sometimes called the "outer ring" and the inner ring assembly is sometimes called the "inner ring." These are sometimes called "sub-units" and the individual bearings are called "units".Our tapered roller bearings are available in a variety of designs and can be customized to your specific speed, load, contamination, temperature or vibration conditions.



Taper Roller Bearing Cup And Cone Assembly 11590/11520  LM11749 LM11710

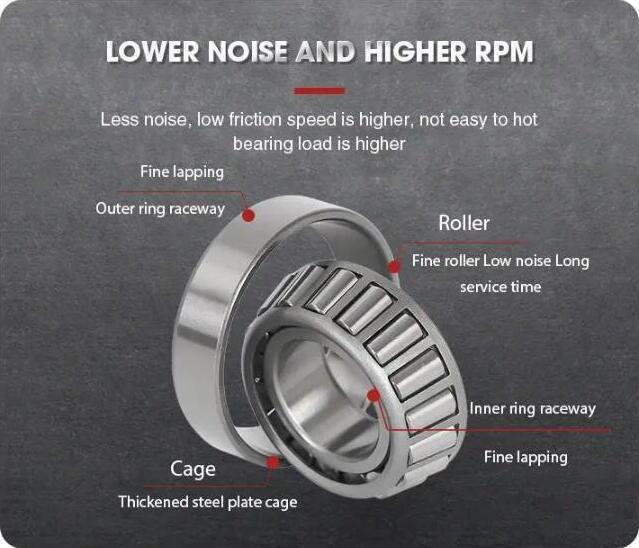

Tapered roller bearings have outer and inner ring assemblies. The outer ring consists of an outer ring, and the inner ring assembly consists of an inner ring, rollers and cage. This bearing structure can withstand combined loads and provide low friction during operation. Rigid bearing applications can be achieved by aligning one single row tapered roller bearing with a second tapered roller bearing and applying preload.

This taper roller bearing cup and cone assembly is typically used as a bearing solution in applications requiring improved performance, reduced friction or increased power density.





WISON Taper Roller Bearings Features :

  • High quality bearing steel: not easy to rust and has high hardness, wear resistance, and corrosion resistance
  • Super quiet effect: Exquisite technology, exquisite workmanship, coordinated operation of engineering and machinery, with good quiet effect
  • Fine workmanship: The surface edges of the product are smooth, and the model is clearly engraved for customers to better identify
  • Various models,long life with high quality,support OEM service.




Application :

It is widely use for

Automobiles

agricultural machine

rolling mills

mining industry

Plastic machinery

Trailers and caravans



Display:

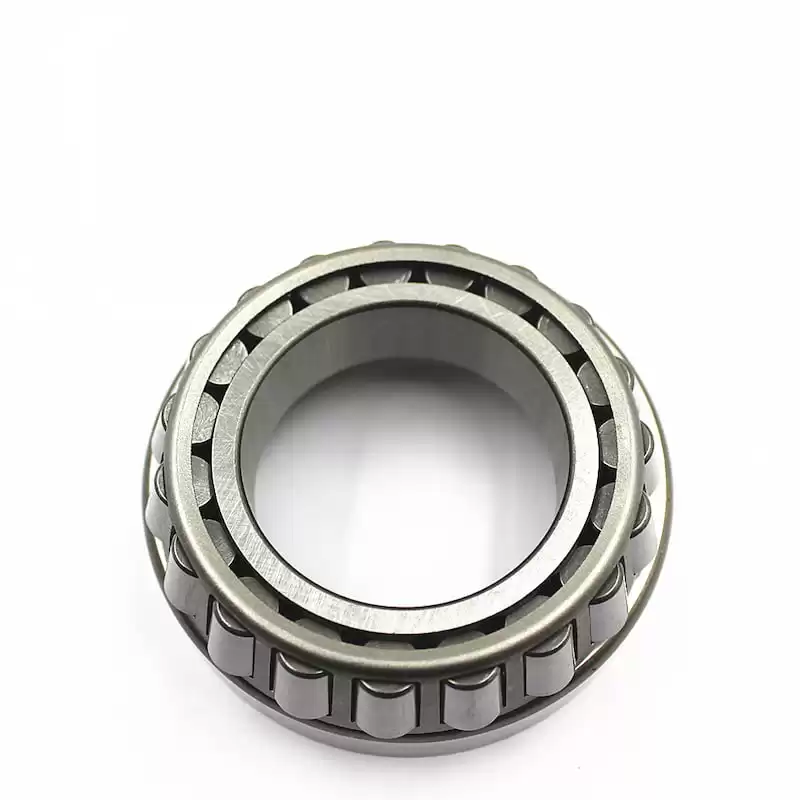

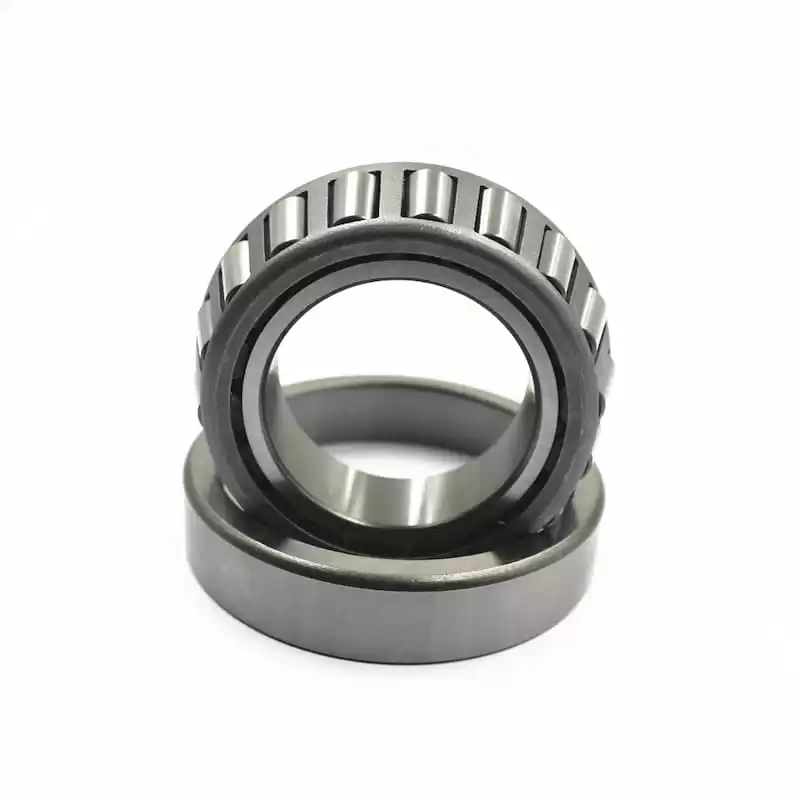

Taper Roller Bearing Cup And Cone Assembly 11590/11520  LM11749 LM11710

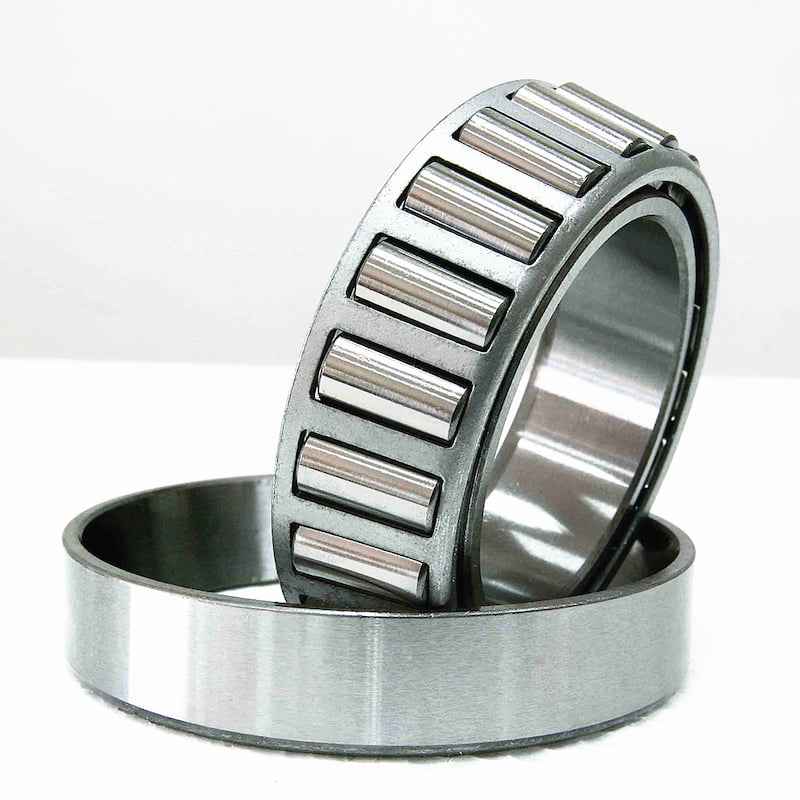

Taper Roller Bearing Cone and Cup Set

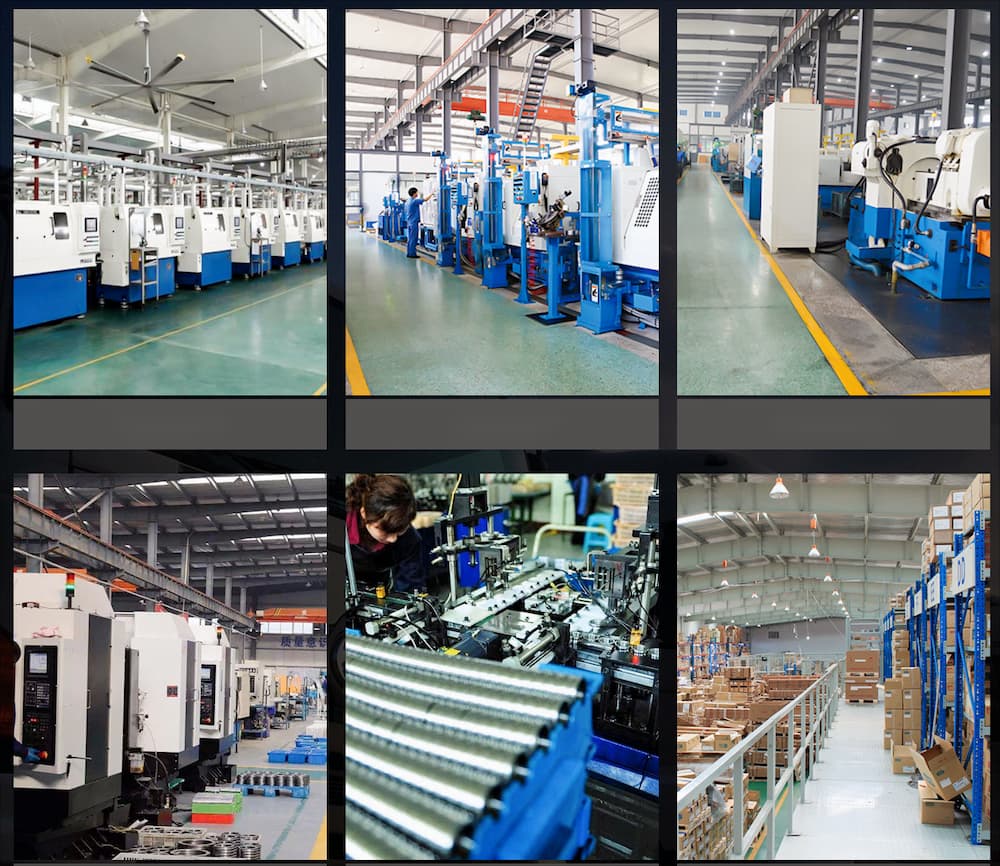

Tapered Roller Bearing Manufacturer



Taper Roller Bearing Cup And Cone Assembly Size Chart





Single-row tapered roller bearings metric series ( inch )

Bearing No.

basic dimensions (mm)

Basic load ratings(KN )

Limiting speeds (rpm)

Cone

Cup

d

D

T

B

C

r min.

r1 min.

Cr

Cor

Grease lub.

Oil lub.

11590

11520

15.875

42.862

14.288

14.288

9.525

1.6

1.6

17.8

17.7

1000

14000

LM11749

LM11710

17.462

39.878

13.843

14.605

10.668

1.2

1.2

25.4

26.0

11000

14000

LM11949

LM11910

19.050

45.237

15.494

16.637

12.065

1.2

1.2

29.4

30.1

9400

13000

09067

09195

19.050

49.225

19.845

21.539

14.288

1.2

1.2

37.7

37.7

8900

12000

09074

09196

19.050

49.225

21.209

19.050

17.462

1.2

1.6

37.7

37.7

8900

12000

A6075

A6157

19.050

39.992

12.014

11.153

9.525

1.0

1.3

14.9

15.7

9500

13000

09067

09196

19.050

49.225

21.209

19.050

17.462

1.2

1.6

37.7

37.7

8900

12000

09074

09195

19.050

49.225

19.845

21.539

14.288

1.5

1.3

38.5

39.0

8500

11000

09074

09194

19.050

49.225

23.020

21.539

17.462

1.5

3.5

37.5

37.0

8500

11000

12580

12520

20.638

49.225

19.845

19.845

15.875

1.5

1.5

37.5

39.0

8200

11000

M12649

M12610

21.430

50.005

17.526

18.288

13.970

1.2

1.2

39.1

40.7

8500

11000

LM12749

LM12710

21.987

45.237

15.494

16.637

12.065

1.2

1.2

30.1

34.6

8900

12000

LM12749

LM12711

21.986

45.974

15.494

16.637

12.065

1.2

1.2

30.1

34.6

8900

12000

M12648

M12610

22.225

50.005

17.526

18.288

13.970

1.2

1.2

39.1

40.7

8500

11000

1280

1220

22.225

57.150

22.225

22.225

17.462

0.8

1.6

52.6

55.7

7600

10000

1755

1729

22.225

56.896

19.368

19.837

15.875

1.2

1.2

460.0

43.1

7600

10000

07093

07196

23.812

50.005

13.495

14.260

9.525

1.5

1.0

26.0

27.9

7600

10000

07097

07196

25.000

50.005

13.495

14.260

9.525

1.6

1.0

26.7

28.8

7900

11000

07100

07204

25.400

51.994

15.011

14.260

12.700

1.0

1.2

26.7

28.8

7900

11000

1780

1729

25.400

56.896

19.368

19.837

15.875

0.8

1.3

42.5

46.5

7200

9600

L44643

L44610

25.400

50.292

14.224

14.732

10.668

1.2

1.2

31.2

37.0

7800

11000

M84548

M84510

25.400

57.150

19.431

19.431

14.732

1.5

1.5

42.5

49.0

6700

9000

15101

15243

25.400

61.912

19.050

20.638

14.288

0.8

2.0

44.6

50.7

6400

8600

07100

07196

25.400

50.005

13.495

14.260

9.525

1.0

1.0

26.7

28.8

7900

11000

07100

07204

25.400

51.994

15.011

14.260

12.700

1.0

1.2

26.7

28.8

7900

11000

15101

15245

25.400

62.000

19.050

20.638

14.282

3.6

1.2

44.6

50.7

6400

8600

15101

15250X

25.400

63.500

19.050

20.638

14.288

0.8

1.2

44.6

50.7

6400

8600

L44649

L44610

26.988

50.292

14.224

14.732

10.668

3.6

1.2

31.2

37.0

7800

1000

1988

1922

28.575

57.150

19.845

19.355

15.875

3.6

1.6

48.8

57.1

7000

9300

02474

02420

28.575

68.262

22.225

22.225

17.462

0.8

1.6

51.0

61.1

6000

8000

02872

02820

28.575

73.025

22.225

22.225

17.462

0.8

3.2

55.0

65.7

5500

7400

15113

15245

28.575

62.000

19.050

20.638

14.288

0.8

1.2

44.6

50.7

6400

8600

L45449

L45410

29.000

50.292

14.224

14.732

10.668

3.6

1.2

28.9

37.2

7600

10000

15116

15245

30.112

62.000

19.050

20.638

14.288

0.1

1.2

44.6

50.7

6400

8600

M86649

M86610

30.162

64.292

21.432

21.432

16.670

1.6

1.6

55.2

70.7

6400

8500

M88043

M88010

30.213

68.262

22.225

22.225

17.462

2.4

1.6

56.1

71.1

6000

7900
