Tapered Aluminum Sheet Standing Seam Roll Forming Machine

This Tapered Aluminum Sheet Standing Seam Roll Forming Machine both can roll forming straighten standing seam roof and tapered standing seam roof. The roof middle width can be changed by changing several Roller Spacers.


  • Driving Motor4KW*2
  • Forming Station15
  • Covered Width416mm
  • Material Width305-610mm
  • Material Thickness0.3-0.7mm

Aluminum sheet standing seam roll forming machines, portable standing seam roof roll forming machine, standing seam roof bending machines and electric seaming machines, tapered slitting machines are acceptable  for custom manufacturing.


Product Name: Tapered Aluminum Sheet Standing Seam Roll Forming Machine


This tapered aluminum standing seam roof roll forming machine  both can produce straight type standing seam roof and tapered standing seam roof, all the sizes can be changed by operating as below:

Remove cutting blades first, change the pre-machined Spacers according instruction manually, which are designed to allow for tapered or straight panels to be formed; Then feed the tapered flat sheet from one side of roll former to form this side’s shape, after run out, take it back to the feeding place, feed the panel from another side to run to the end to form the tapered pane.

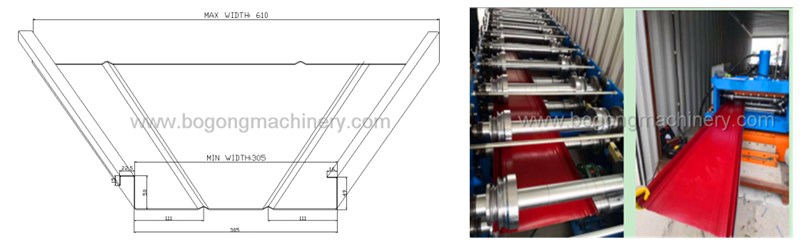

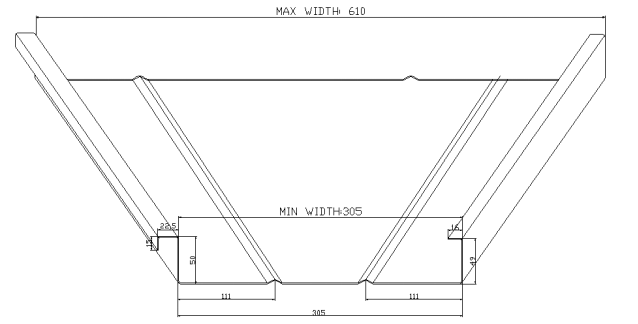

This photo is tapered type roof sheet, see as below:

tapered standing seam roof roll forming machine for sale

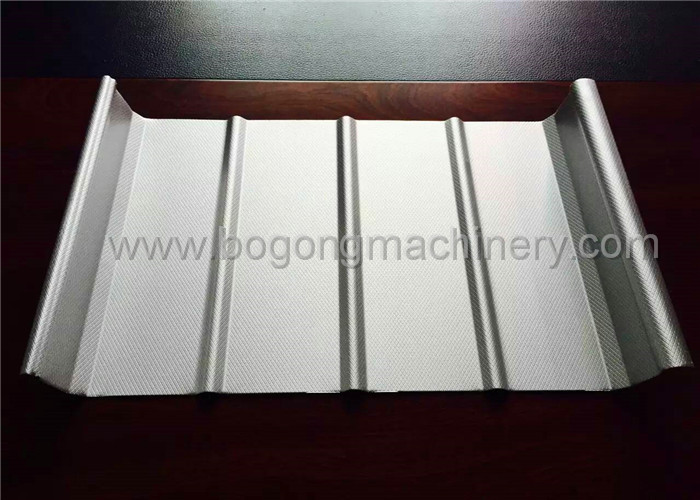

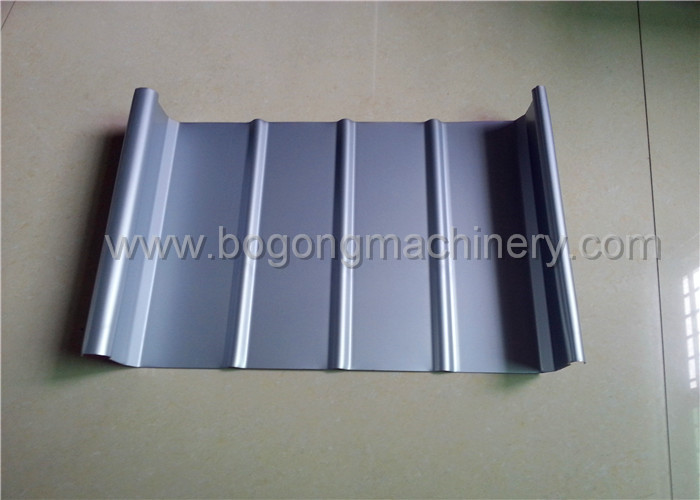

This one is straight type standing seam roof sample, below picture for reference only.

aluminum zinc sheet standing seam roll forming machine


Technical Parameters


Parameters

Specification

Voltage

380V/50HZ/3PH/or customized

Driving Motor

4KW*2

Forming Steps

 15 steps

Working Speed

15-18m/min

Thickness for Steel

0.7-1.0mm

Shaft Diameter

65mm

Effective Width

416mm

Feeding Width

305~600mm

PLC Cabinet

Schneider, Delta

Encoder

Omron

Sprocket Wheel

45 steel high-frequencies quench

Cut-off System

Post cutting, no waste cutting

Cutting Blade Material

Cr12 steel

Machine Frame Material

Fine welded structural steel;

Roofing Material

PPGI, GI steel G330-550

Painted Color

Blue+Orange Or Customization

Overall Size

6500*950*1350mm

Weight

2500KGS

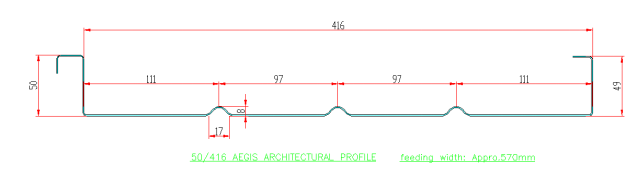

Standing Seam Roof Design

a. aluminum 3004 coil: working thickness: 0.7mm-1.0mm, 0.93mm thickness is for inspection, common use, Tensile strength: 220Mpa, Yield strength: 210Mpa;


b. Pre-painted coil: Job thickness: 0.5mm-0.9mm, 0.5mm thickness is for inspection,common use, Grade: ASTM A653M CSB Z180

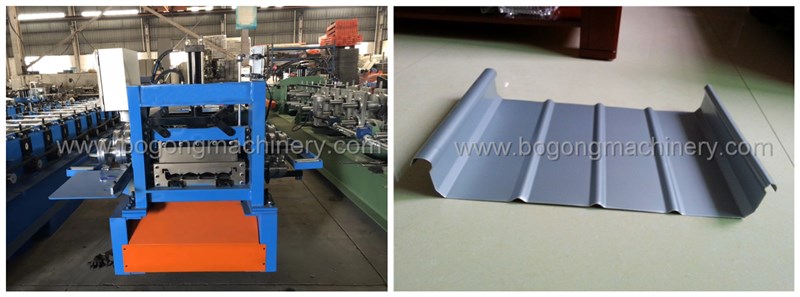

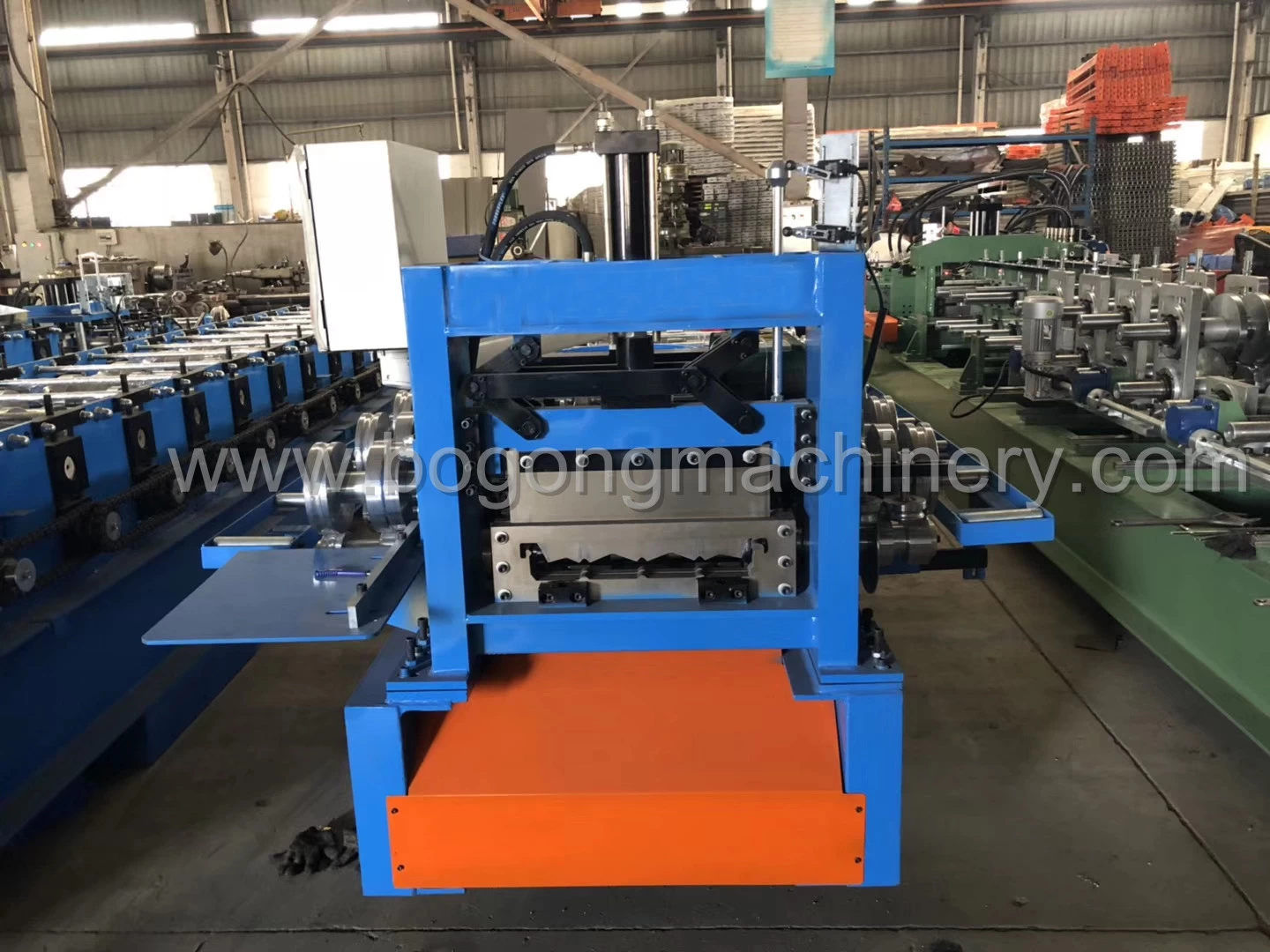

galvanized standing seam roll forming machine

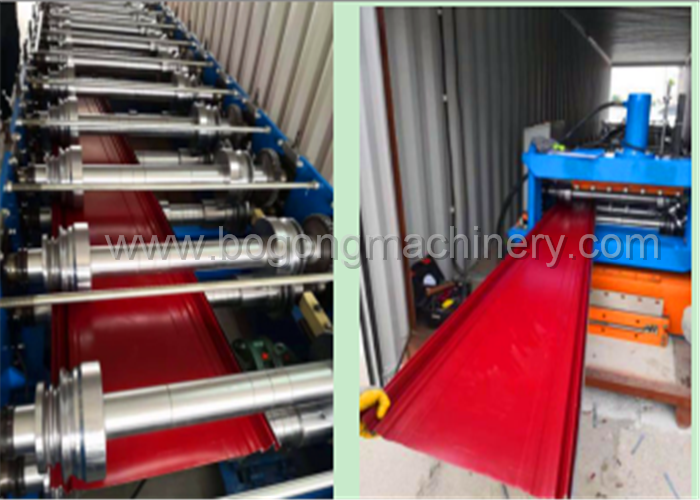

custom sheet roof standing seam roll forming machine
