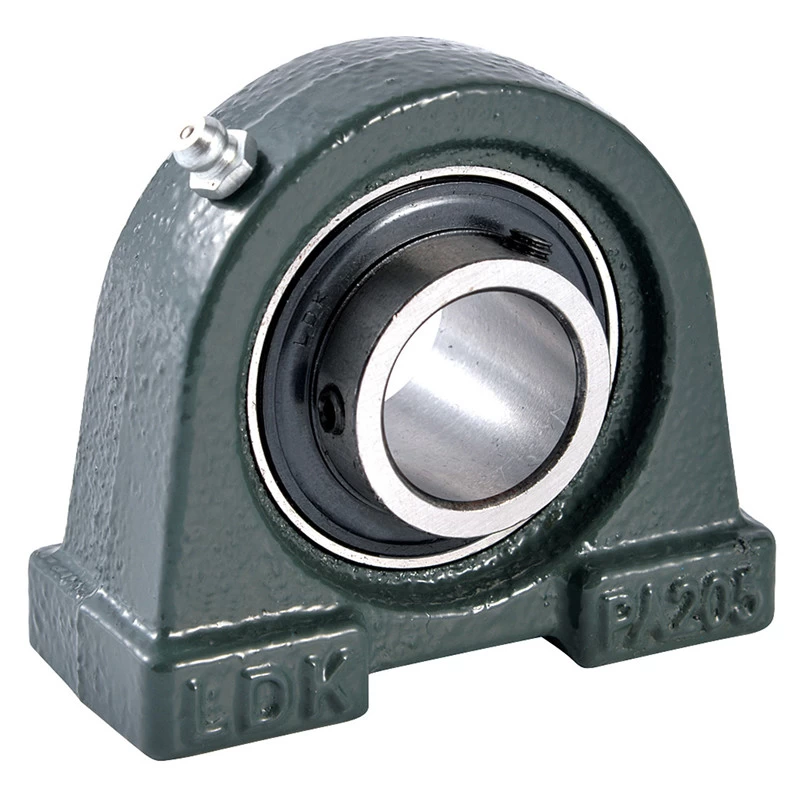

Tapped Base Pillow Block Bearing Units UCPA2


UCPA Standard duty,Wider inner ring bearing,Setscrew locking,Cast gray iron housing .

Cast ductile iron housing available upon request.


Facebook Twitter Pinterest LinkedIn 分享

Tapped Base Pillow Block Bearing Housing UCPA206

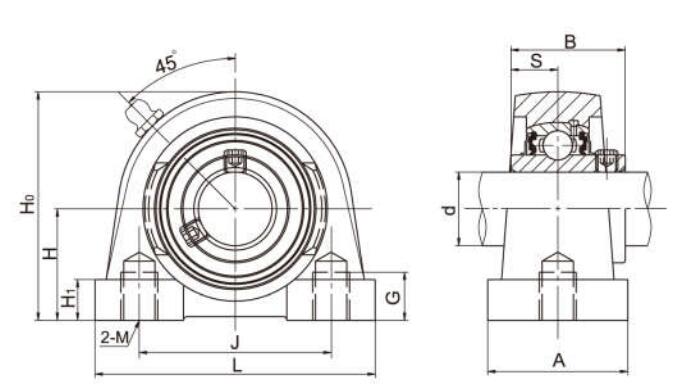

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm)
Weight
(kg)
d H L J A G H1 Ho M B s
(in) (mm)
UCWPA201    12 30.2 71 48 36 9 10 57 M10 27.4 11.5 M10 0.67
UCWPA202   15 30.2 71 48 36 9 10 57 M10 27.4 11.5 M10 0.63
UCWPA203   17 30.2 71 48 36 9 10 57 M10 27.4 11.5 M10 0.62
UCPA201  12 30.2 76 52 38 13 11 62 M10 31.0 12.7 M10 0.67
UCPA201-8 1/2   30.2 76 52 38 13 11 62 M10 31.0 12.7 M10 0.67
UCPA202  15 30.2 76 52 38 13 11 62 M10 31.0 12.7 M10 0.63
UCPA202-9  9/16    30.2 76 52 38 13 11 62 M10 31.0 12.7 M10 0.63
UCPA202-10 5/8   30.2 76 52 38 13 11 62 M10 31.0 12.7 M10 0.63
UCPA203  17 30.2 76 52 38 13 11 62 M10 31.0 12.7 M10 0.62
UCPA203-11 11/16   30.2 76 52 38 13 11 62 M10 31.0 12.7 M10 0.62
UCPA204  20 30.2 76 52 38 13 11 62 M10 31.0 12.7 M10 0.60
UCPA204-12 3/4   30.2 76 52 38 13 11 62 M10 31.0 12.7 M10 0.60
UCPA205  25 36.5 84 56 38 15 12 72 M10 34.1 14.3 M10 0.81
UCPA205-14  7/8   36.5 84 56 38 15 12 72 M10 34.1 14.3 M10 0.81
UCPA205-15  15/16   36.5 84 56 38 15 12 72 M10 34.1 14.3 M10 0.81
UCPA205-16 1   36.5 84 56 38 15 12 72 M10 34.1 14.3 M10 0.81
UCPA206  30 42.9 94 66 48 18 12 84 M14 38.1 15.9 M14 1.20
UCPA206-17  1-1/16   42.9 94 66 48 18 12 84 M14 38.1 15.9 M14 1.20
UCPA206-18  1-1/8   42.9 94 66 48 18 12 84 M14 38.1 15.9 M14 1.20
UCPA206-19  1-3/16   42.9 94 66 48 18 12 84 M14 38.1 15.9 M14 1.20
UCPA206-20 1-1/4   42.9 94 66 48 18 12 84 M14 38.1 15.9 M14 1.20
UCPA207  35 47.6 110 80 48 20 13 95 M14 42.9 17.5 M14 1.70
UCPA207-20  1-1/4   47.6 110 80 48 20 13 95 M14 42.9 17.5 M14 1.70
UCPA207-21  1-5/16   47.6 110 80 48 20 13 95 M14 42.9 17.5 M14 1.70
UCPA207-22  1-3/8   47.6 110 80 48 20 13 95 M14 42.9 17.5 M14 1.70
UCPA207-23 1-7/16   47.6 110 80 48 20 13 95 M14 42.9 17.5 M14 1.70
UCPA208  40 49.2 116 84 54 20 13 100 M14 49.2 19.0 M14 1.90
UCPA208-24  1-1/2    49.2 116 84 54 20 13 100 M14 49.2 19.0 M14 1.90
UCPA208-25 1-9/16   49.2 116 84 54 20 13 100 M14 49.2 19.0 M14 1.90
UCPA209  45 54.2 120 90 54 25 13 108 M14 49.2 19.0 M14 2.20
UCPA209-26  1-5/8    54.2 120 90 54 25 13 108 M14 49.2 19.0 M14 2.20
UCPA209-27  1-11/16   54.2 120 90 54 25 13 108 M14 49.2 19.0 M14 2.20
UCPA209-28 1-3/4   54.2 120 90 54 25 13 108 M14 49.2 19.0 M14 2.20
UCPA210  50 57.2 130 94 60 25 14 116 M16 51.6 19.0 M16 2.60
UCPA210-30 1-7/8   57.2 130 94 60 25 14 116 M16 51.6 19.0 M16 2.60
UCPA210-31  1-15/16   57.2 130 94 60 25 14 116 M16 51.6 19.0 M16 2.60
UCPA210-32 2   57.2 130 94 60 25 14 116 M16 51.6 19.0 M16 2.60
UCPA211  55 63.5 140 104 66 25 14 125 Ml 6 55.6 22.2 M16 3.00
UCPA211-32  2   63.5 140 104 66 25 14 125 Ml 6 55.6 22.2 M16 3.00
UCPA211-34  2-1/8    63.5 140 104 66 25 14 125 Ml 6 55.6 22.2 M16 3.00
UCPA211-35 2-3/16   63.5 140 104 66 25 14 125 Ml 6 55.6 22.2 M16 3.00
UCPA212    60 69.9 150 114 68 25 17 138 M16 65.1 25.4 M16 4.24
UCPA212-36  2-1/4    69.9 150 114 68 25 17 138 M16 65.1 25.4 M16 4.24
UCPA212-38  2-3/8    69.9 150 114 68 25 17 138 M16 65.1 25.4 M16 4.24
UCPA212-39 2-7/16   69.9 150 114 68 25 17 138 M16 65.1 25.4 M16 4.24
