Feature of SHR IPL RF Laser Beauty Machine
. Three working systems: Advanced OPT IPL, Bi-polar RF, Laser

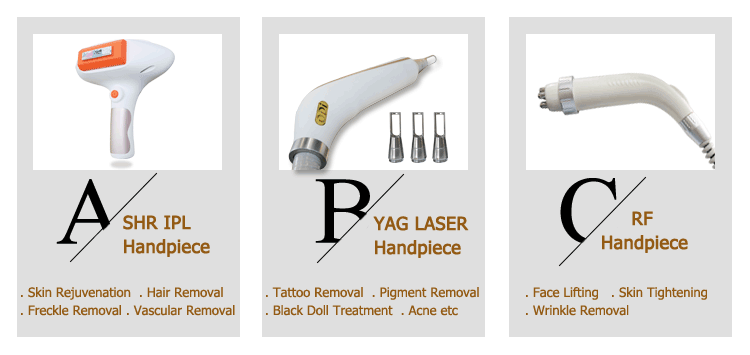

. Three high quality handles: one e-light ipl handle, one RF handle, one nd yag laser handle
. User friendly operating interface for simple or professional operation.
. CPC connector of instantly Plug and Pluck
. Powerful energy, multi-fuctions in one machine
. Three cooling systems together, be more effective and safer
. Machine auto-checking to ensure machine safety and easy for maintenance
. Interchangeable filters for different treatment item and easy cleaning
Application
OPT IPL system: Hair Removal, Speckle Removal, Skin Rejuvenation, Acne treatment, Lighten Blood Vessel
Bi-polar RF system: Skin tightening, Face lifting, Wrinkle removal, Anti-aging, Body shaping
Nd yag Q switch system: Tattoo removal, pigment removal, skin rejuvenation, deep skin cleaning.
Technical Parameters
|
3 in 1 Multifunctional;beauty machine
|
SHR IPL E-light, RF,Nd yag Laser
|
|
E-Light & SHR IPL
|
Wavelength
|
640-1200nm,530-1200nm,430-1200nm,560-1200nm, 590-1200nm (optional)
|
|
Lamp Type
|
UK-imported xenon flash lamp
|
|
Lamp lift time
|
80.000shots
|
|
Treatment Tips
|
640nm,530nm (selective 430nm,560nm,590nm)
|
|
Transmission System
|
Optical Crystal Transmission system
|
|
Treatment Handle
|
Light Filter changeable handle and
unchangeable light filter handle (optional)
|
|
Spot size
|
10*50mm (selective 15*50mm 50*70mm)
|
|
SHR IPL
|
SHR Ipl Type
|
SHR IPL with In-Motion Technique for painless treatment
|
|
Pulse Type
|
Single Pulse
|
|
Pulse Width
|
1-40ms
|
|
Frequency
|
1-10HZ
|
|
E-light
|
Energy
|
20-50J/cm2
|
|
Pusle Type
|
Multi-pulse
|
|
Pulse Duration
|
5ms-50ms
|
|
Sub-pulse
|
1-15
|
|
Energy Density
|
Max50J/cm2
|
|
RF
|
Source
|
Radio frequency
|
|
Energy Density
|
Max50J/cm2
|
|
Polar
|
Bi-polar RF
|
|
Frequency
|
5MHZ
|
|
Working duration
|
50ms—2500ms
|
|
Working interval
|
1—4ms
|
|
Nd yag Laser
|
Laser type
|
ND:YAG Solid-state laser
|
|
Pulse Width
|
~6ms
|
|
Laser Robs
|
Yellow crystal rods
|
|
Wavelength
|
1064nm, 532nm
|
|
Frequency
|
1—10HZ adjustable
|
|
Diameter of light spot
|
1—8mm adjustable according to distance of handle
|
|
Energy voltage
|
1- 1000MJ
|
|
Cooling system
|
Semi-conductor cooling+ embedded circle water cooling +air cooling system
|
|
Power supply
|
AC220V±10%V, 50HZ±1HZ (AC120V±10%V, 60HZ±1HZ)
|

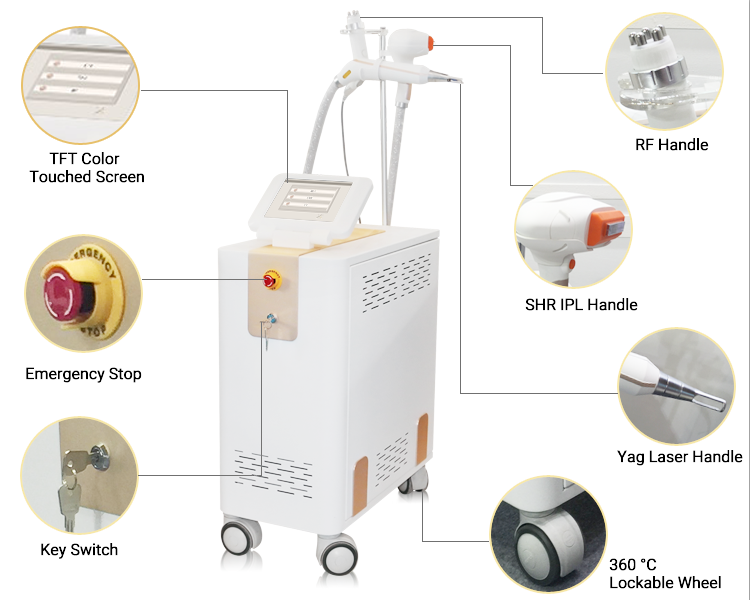

Machine Details
Working Principle

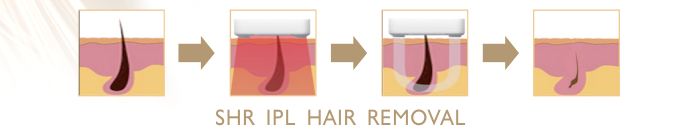

SHR OPT: Innovative mode of hair removal. The frequency can get to 10Hz shots in each second,while the frequency of traditional Intense pulsed light shooting is only 1 Hz. You are able to slip the SHR to manipulate the skin quickly. We call this method of treatment "IN-Motion",it means slips quickly on the skin.
RF: RF power penetrate the skin directly into the dermis, activation of dermal cells enable water molecules to have high-speed vibration friction energy, when the local treatment temperature reach to about 60 °C (subcutaneous gusts of warm sense) dermal collagen immediately convergence and activation of long term growth so as to stimulate the regeneration of the skin for anti-aging effect.

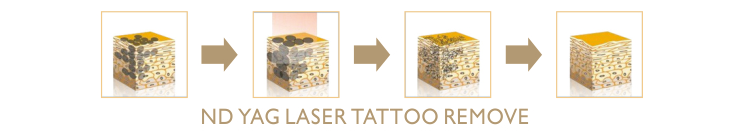

ND Yag Laser: Yag Laser produce a strong energy in a very short time to become a giant pulse, pathological tissues absorb giant pulse to become shock wave,the pigments would be crushed into very small fragment then taken away by human macrophages, and it will fade gradually until disappear to achieve treatment management objectives.

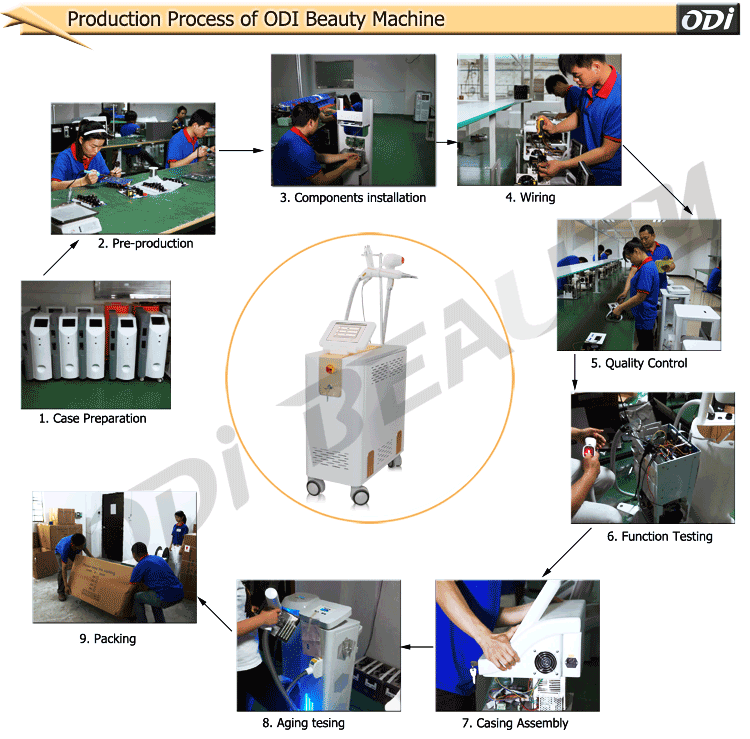

Production Process
. ODI Laser have a group of skilled engineers, technicans and production of high quality staff and a sound and stringent production line, which always offer the newest and high quality machines for you.
. ODI Laser promise that all of beauty machines must be tested well before sending out.
