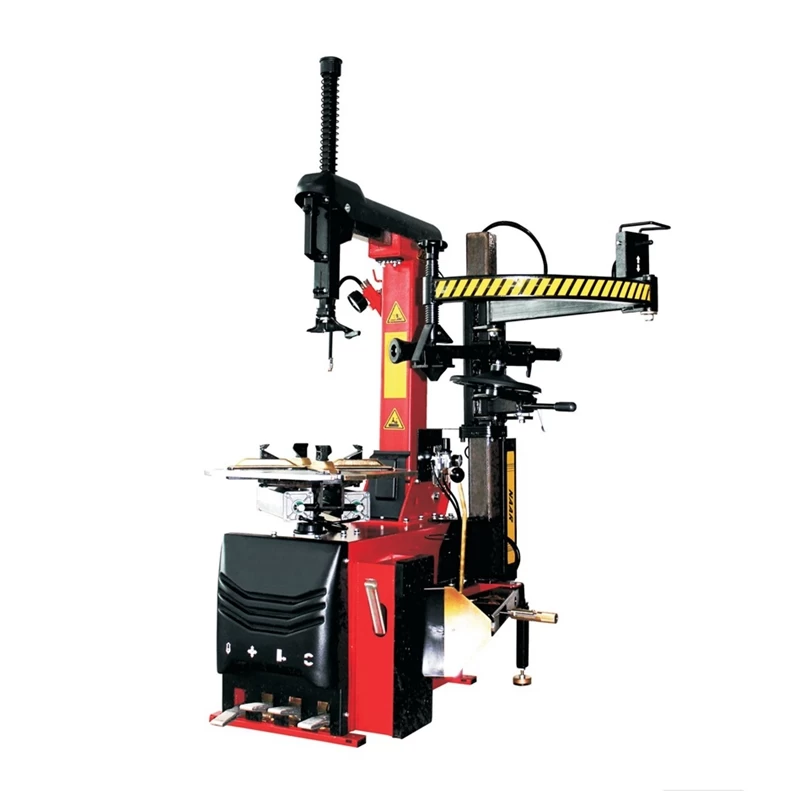

Ausland TCS502 Tire Changer And Wheel Balancer
TCS502 Tire Changer Performance Characteristics
l Pneumatic control,
inverted, automatic positioning, pneumatic locking function.
l The pneumatic tyre
removing device can balance in any position to make the tire more convenient
and convenient to be disassembled
l 360 degree rotary type
tire press mechanical assistant and 24 inch enlarged square plate and
high-power motor, suitable for dismounting bigger and wider new tyres
l The lengthened
extended right auxiliary arm system improves the coverage of the work, and the
pneumatic control manipulator can be freely lifted, positioned and locked in
any position
l Portable combined sub
tire device, suitable for any type of tyre
TCS502 Tire Changer Technical Parameter
l Motor model:
0.75kw/0.55kw/1.1kw
l Power requirements:
220V/400V/110V
l Maximum tire diameter:
41 "(1040mm)
l Outside lock diameter:
10 "-21""
l Inner lock diameter:
12 "-24""
l Pressure requirement:
8bar
l Tyre pressure: 2500kg
l Noise range <70dB
TCS502 Tire Changer Packing Size
l Host:
960mm*760mm*930mm
l Attachment:
1370mm*450mm*350mm
