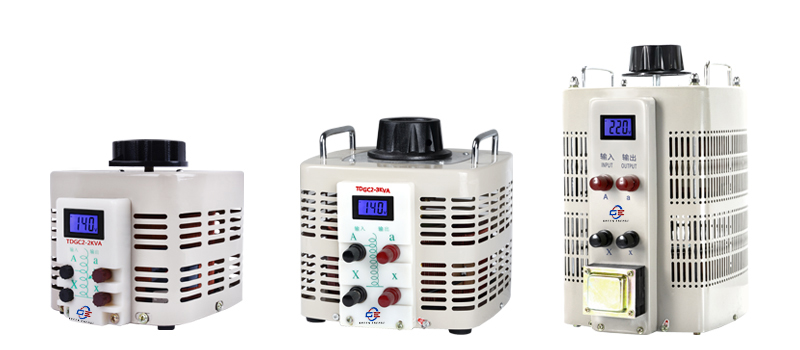

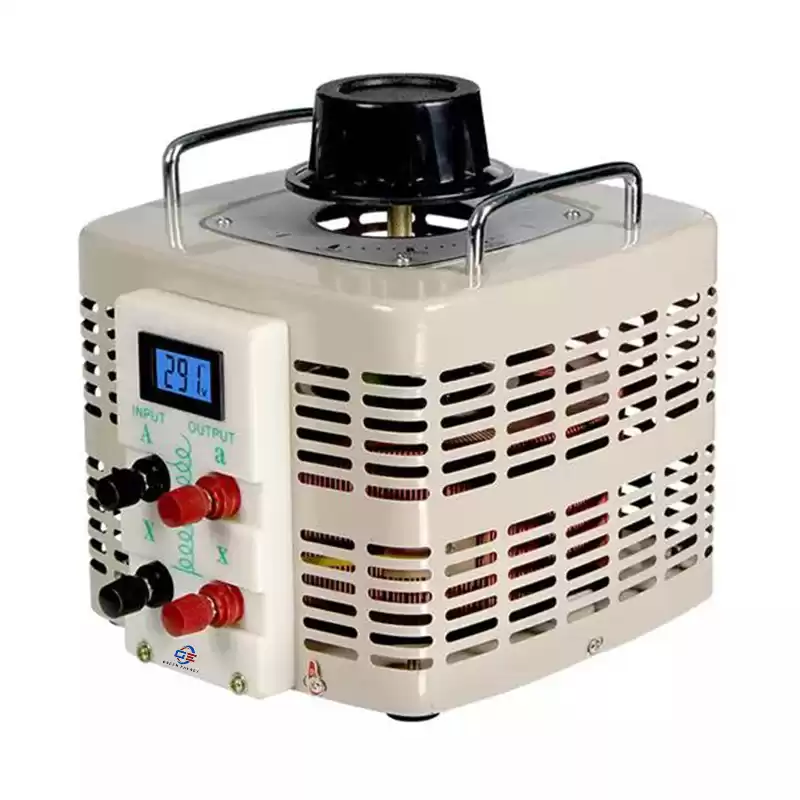

TDGC2 TDGC2J Home Single Phase Voltage Regulator
⇒ PRODUCT DESCRIPTION

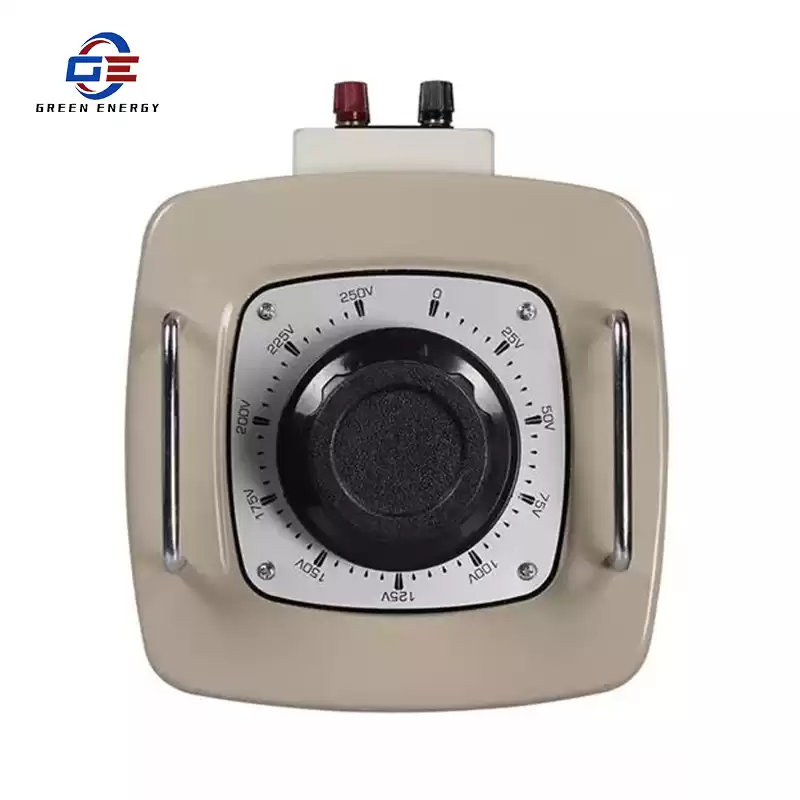

Voltage regulator is an autotransformer with a continuously adjustable turns ratio. When the brush of the voltage regulator slides along the polished surface of the coil with the help of the handwheel spindle and the brush holder, the turns ratio can be continuously changed. So that the output voltage is smoothly regulated from zero to the highest position.
Main Structure

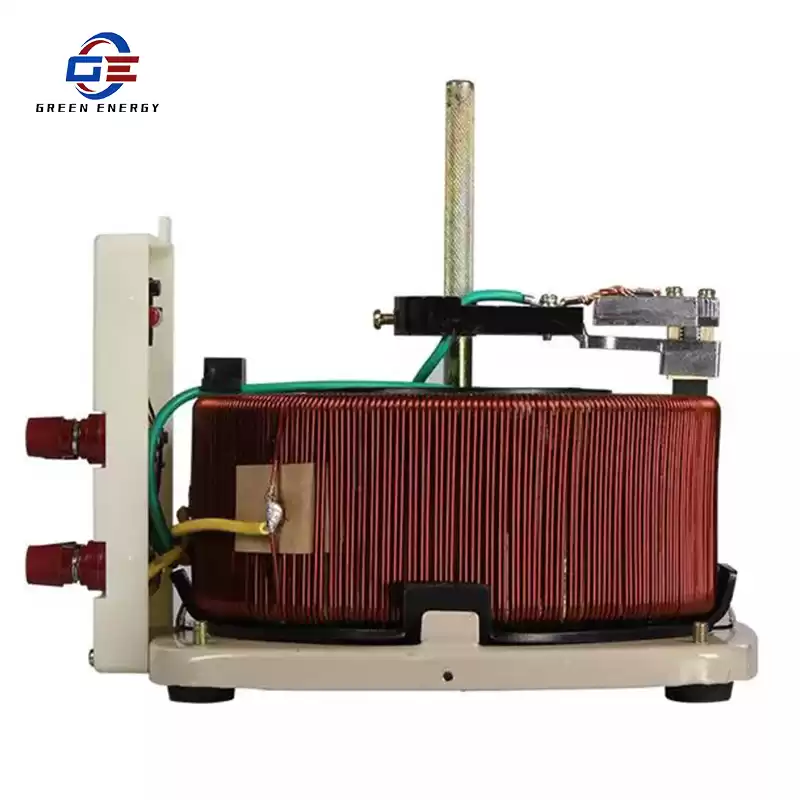

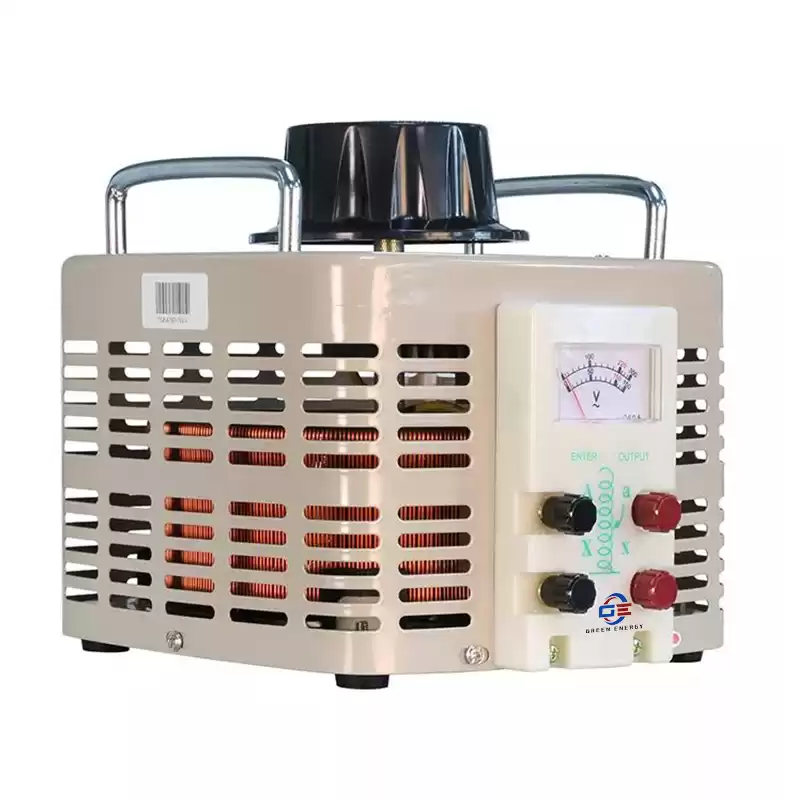

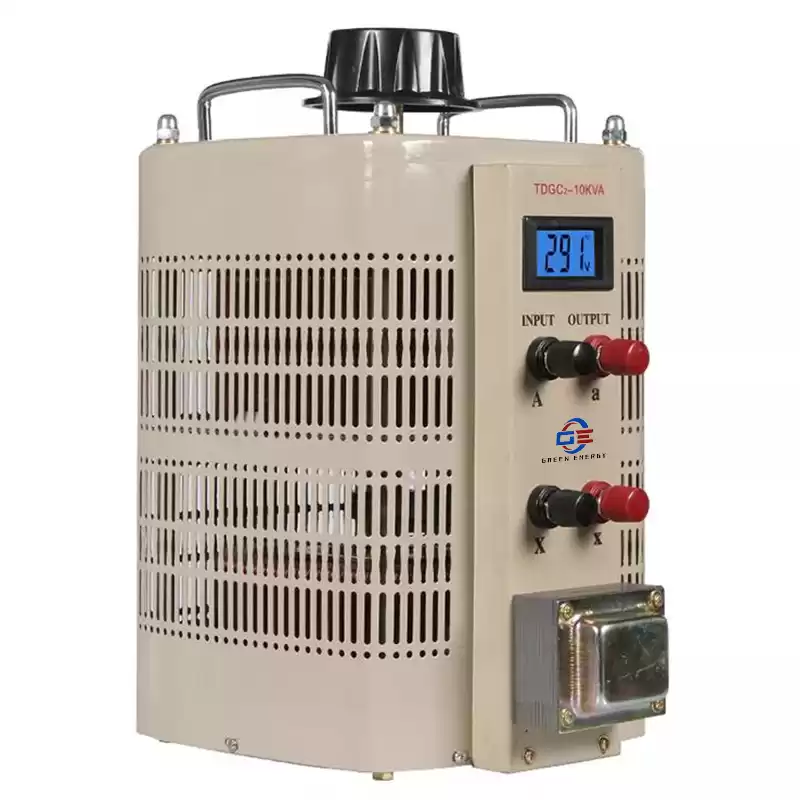

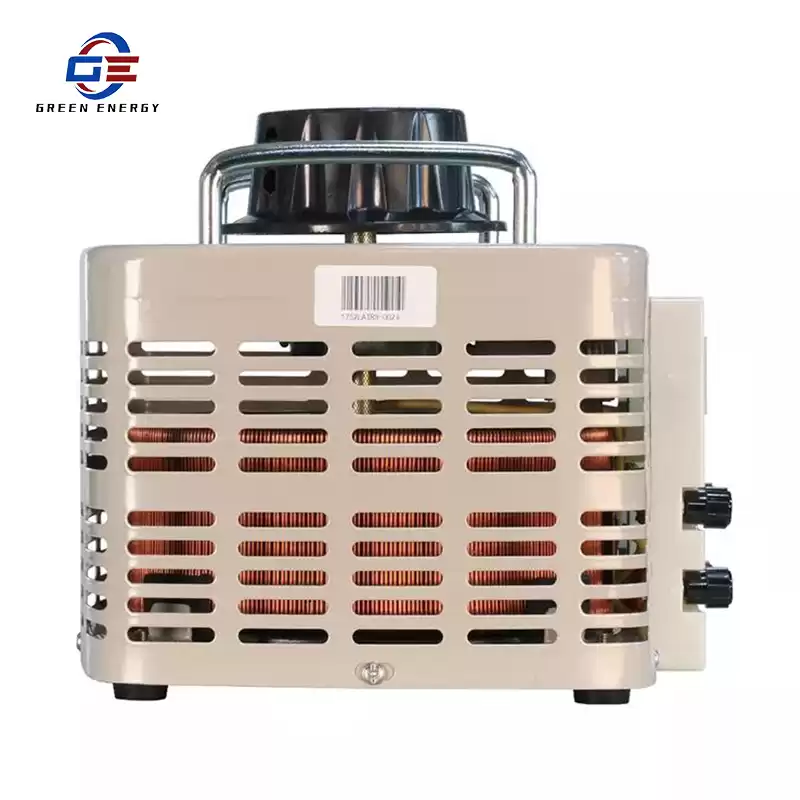

♦Unit structure: 0.5KVA, 10KVA regulators are regulators with a voltage-regulating unit structure, a coil with a wide polished surface on the upper end surface is fixed on the base of the project, and the brushes of the contact group are in contact with the coil under the spring pressure. The polished surface is in close contact. Turn the handwheel to drive the brush to slide on the polished surface of the coil to adjust the pressure. The unit voltage regulator is generally a desktop with a protective ventilation cover outside.

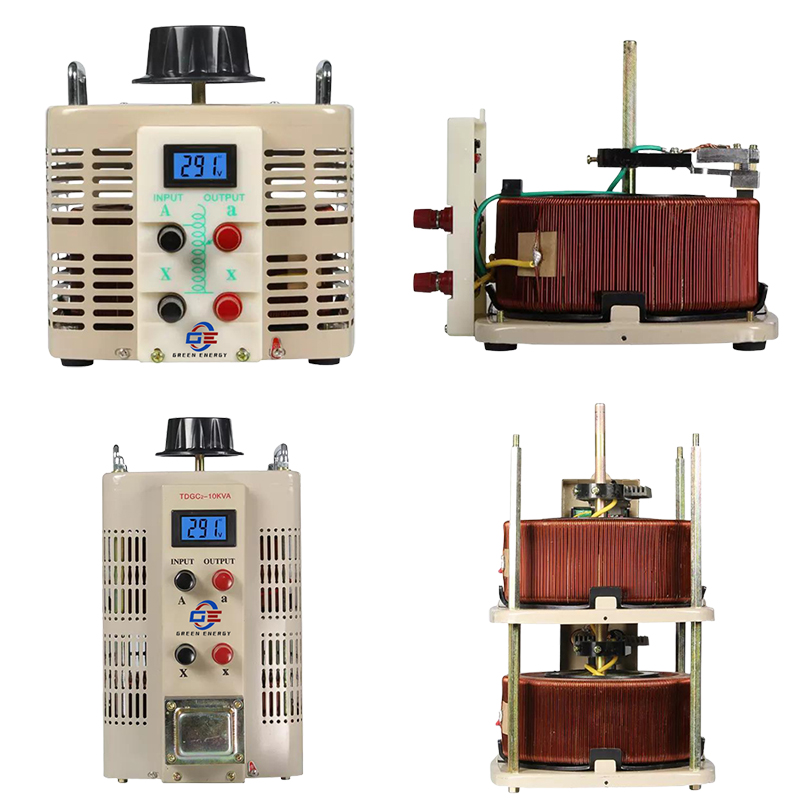

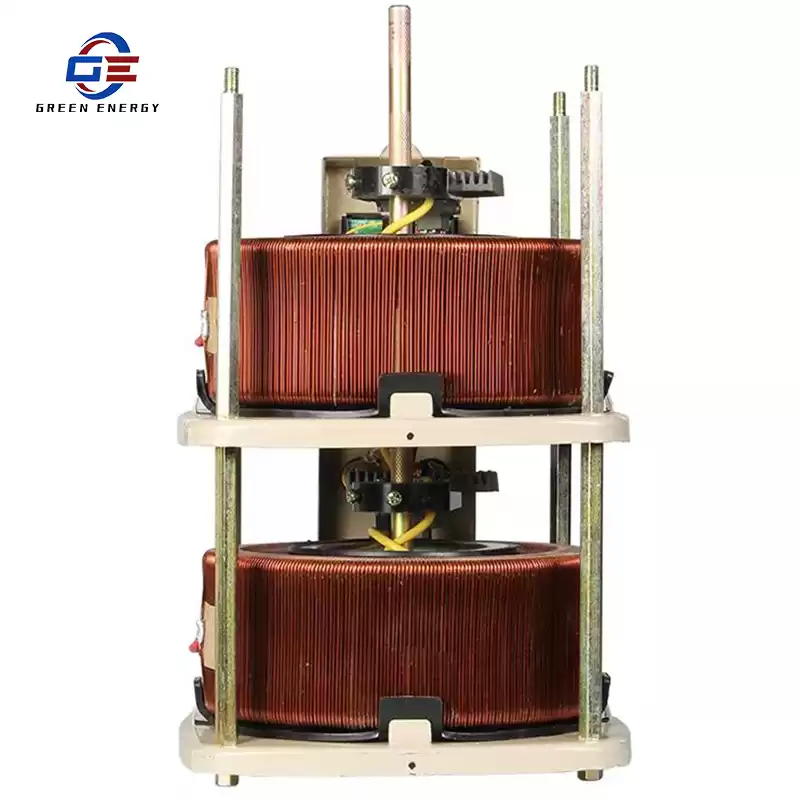

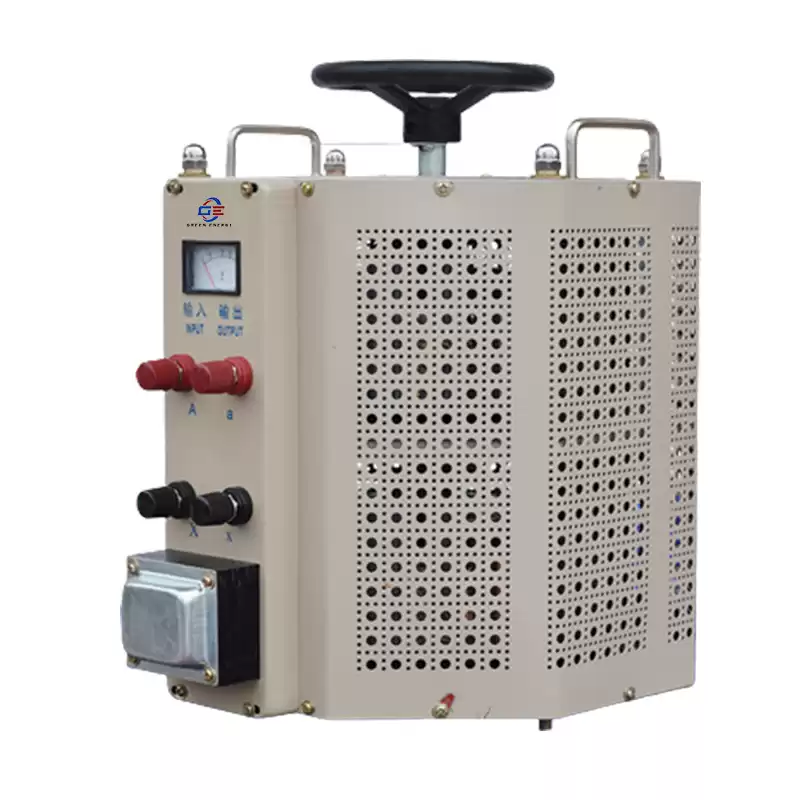

♦Single-phase assembly structure: The single-phase large-capacity voltage regulator is assembled from several units of the same specification. The brushes of each unit are assembled on the same spindle, the coil input ends are connected in parallel, and the output end is connected to a balanced reactor. To balance the current distribution between cells and suppress circulating currents.
♦More than 10KVA is composed of two or three or more units of the same specification coaxially assembled.
♦Brush structure: 3KVA and below unit voltage regulators use 1~2 graphite brushes and a metal frame with good heat dissipation, 4KVA and above unit voltage regulators use two copper-graphite composite brushes, the brush contact group The pressure plate is fixed on the upper end of the coil to limit its axial position, and at the same time, it is locked with the main shaft by screws. conduct.
Product Performance
Working Frequency: 50Hz/60Hz
Efficiency: 95%
Waveform Distortion: No Additional Distortion
Temperature Rise:<60℃
Dielectric Strength: 2000V/min
Insulation Resistance: Single-phase>5MΩ
Adaptation Range
TDGC2, TDGC2J series voltage regulators have the characteristics of undistorted waveform, small size, light weight, high efficiency, convenient use, reliable performance, and long-term operation. They can achieve voltage regulation, temperature control, dimming, power control and other purposes, widely used It is an ideal AC voltage regulating power supply for chemical, metallurgical instrumentation, electromechanical manufacturing, light industry, scientific experiments, public facilities, household appliances, temperature control and speed regulation, dimming, and power control.
Adaptation adaptation range
TDGC2, TDGC2J series voltage regulators have the characteristics of undistorted waveform, small size, light weight, high efficiency, convenient use, reliable performance, and long-term operation. They can achieve voltage regulation, temperature control, dimming, power control and other purposes, widely used It is an ideal AC voltage regulating power supply for chemical, metallurgical instrumentation, electromechanical manufacturing, light industry, scientific experiments, public facilities, household appliances, temperature control and speed regulation, dimming, and power control.
■Ambient temperature: maximum temperature +40℃, minimum temperature -5℃
■ Altitude: The altitude of the regulator installation site shall not exceed 1000 meters
■Relative air humidity: The monthly average relative humidity of the wet month is 90%, and the average temperature of the month is 25℃
■Power supply voltage waveform: The power supply voltage waveform is a sine wave or similar to a sine wave
■The installation site is free from gas, vapor, chemical deposits, dust, dirt and other explosive and aggressive media that seriously affect the insulation of the regulator
■The installation site should be free from severe vibration and turbulence
■Indoor use
