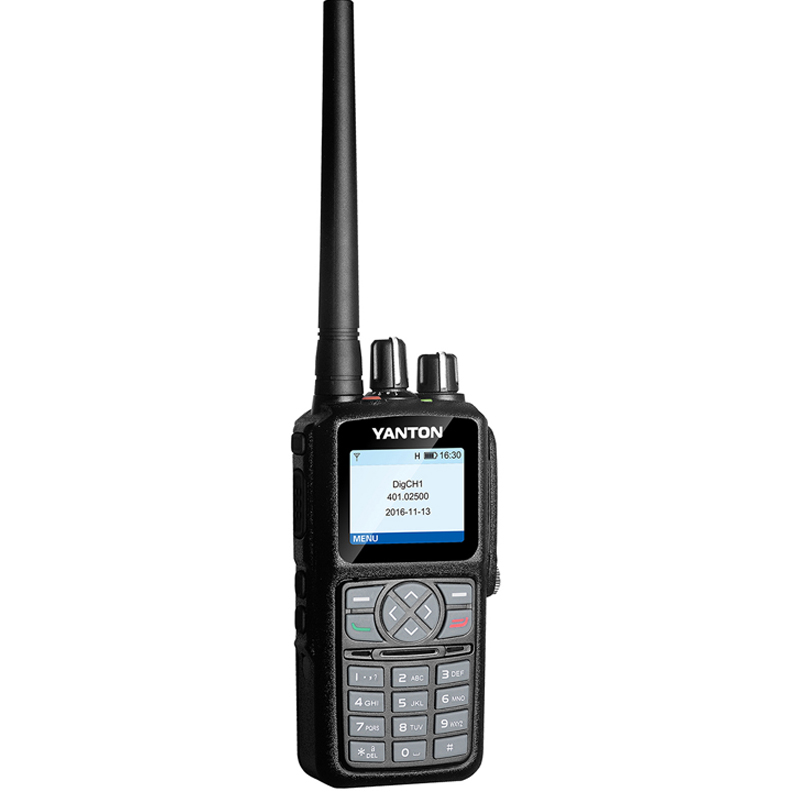

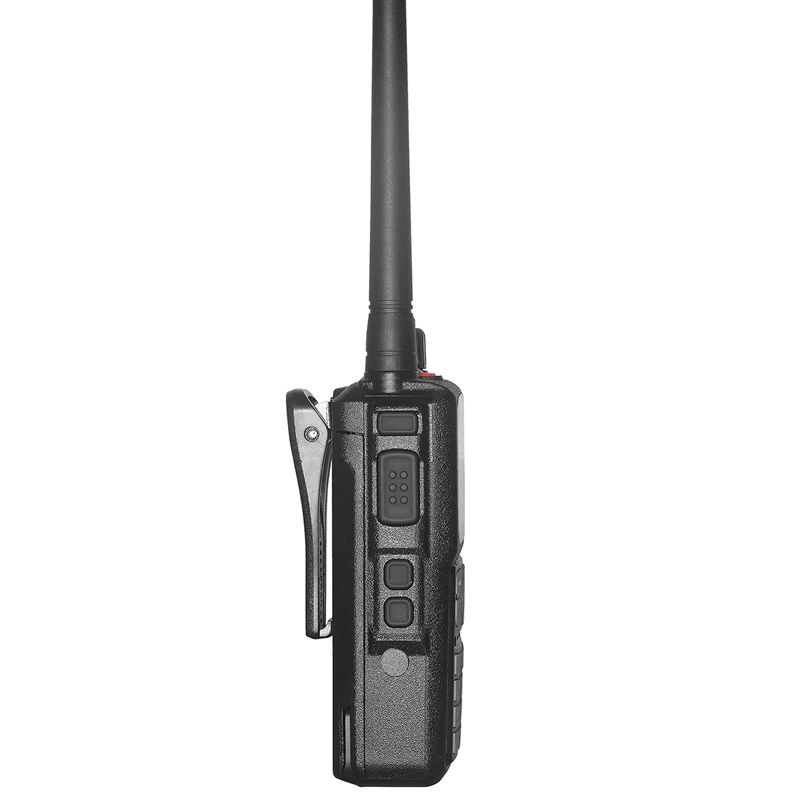

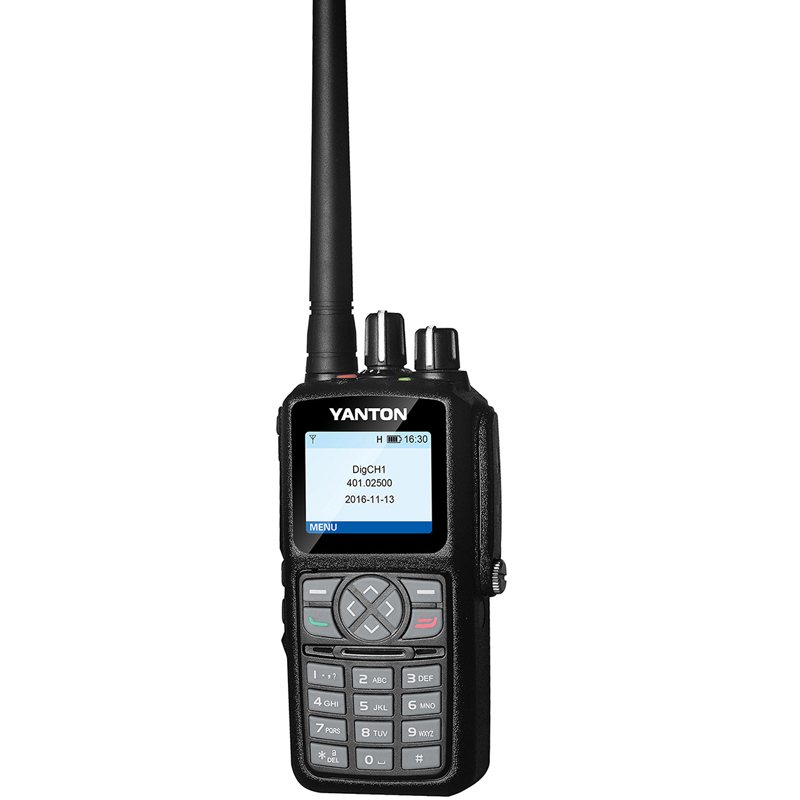

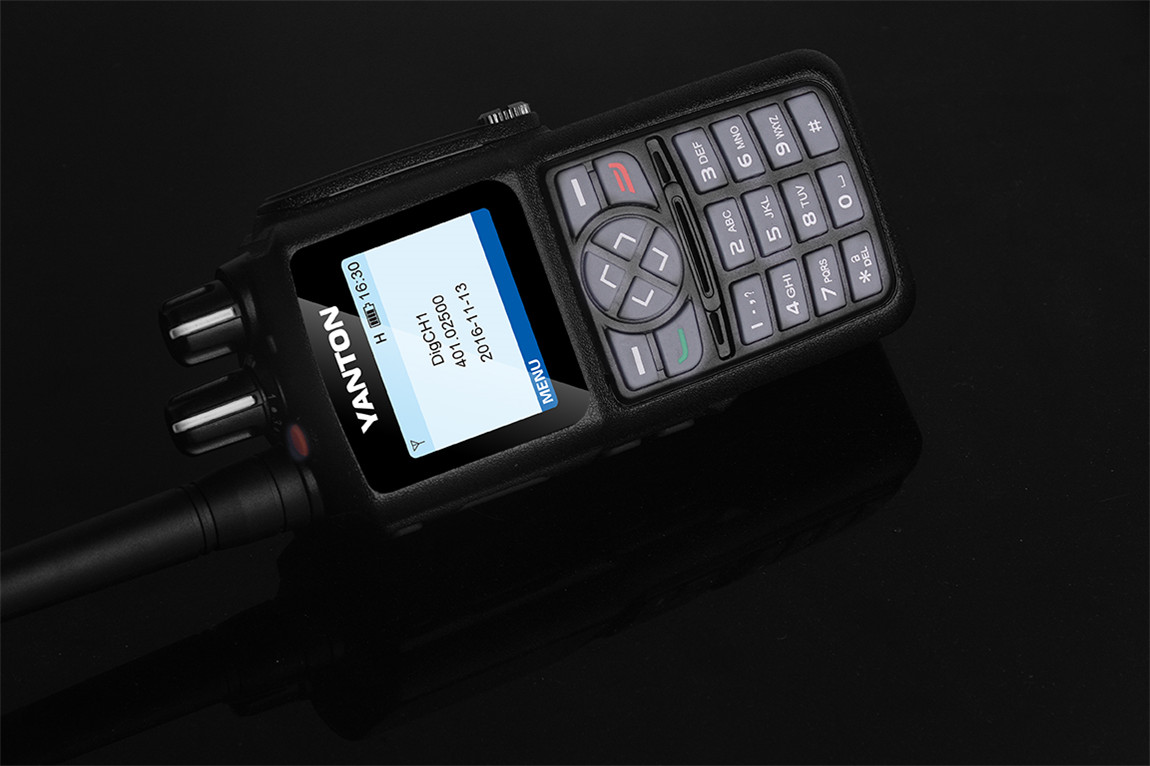

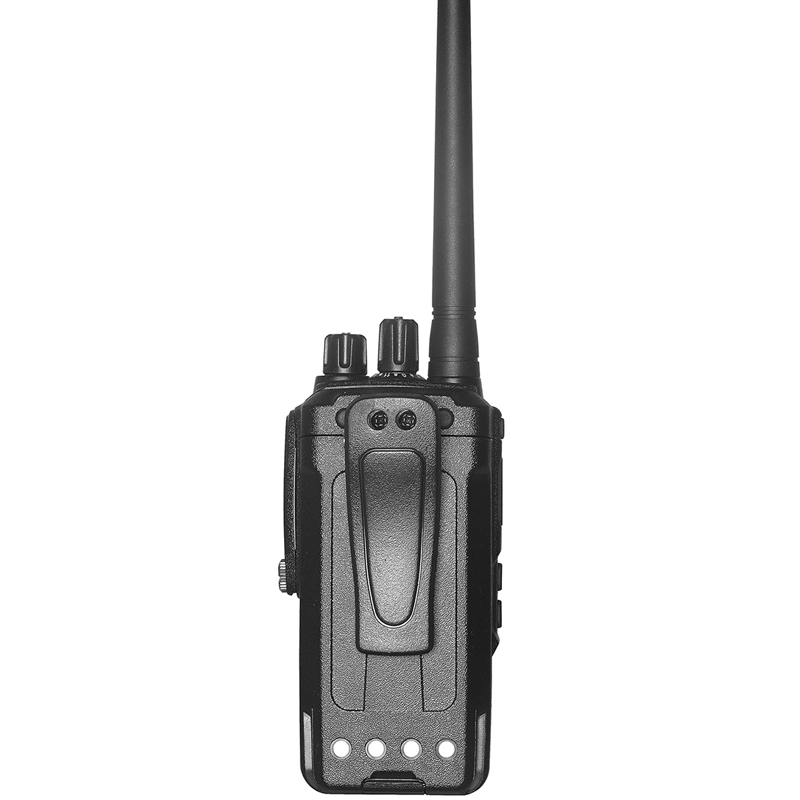

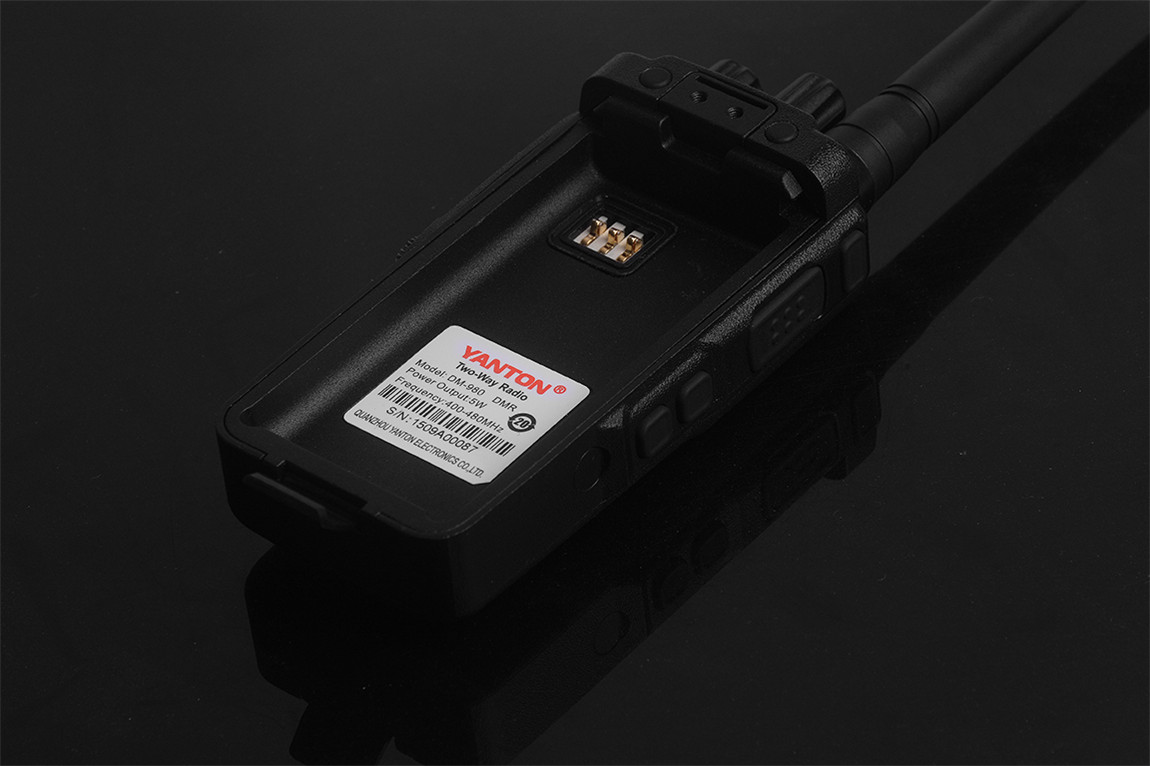

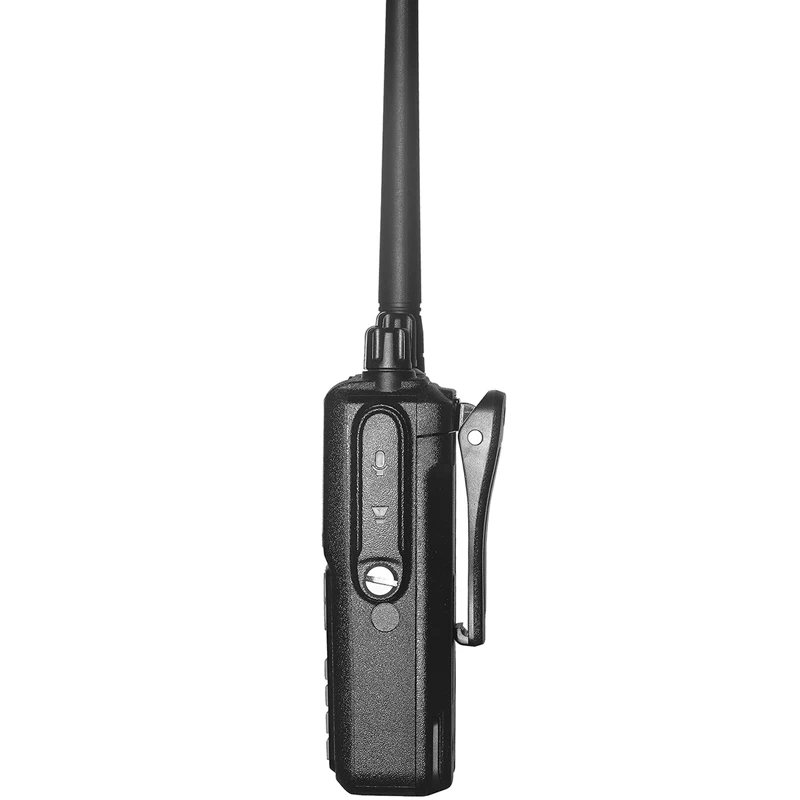

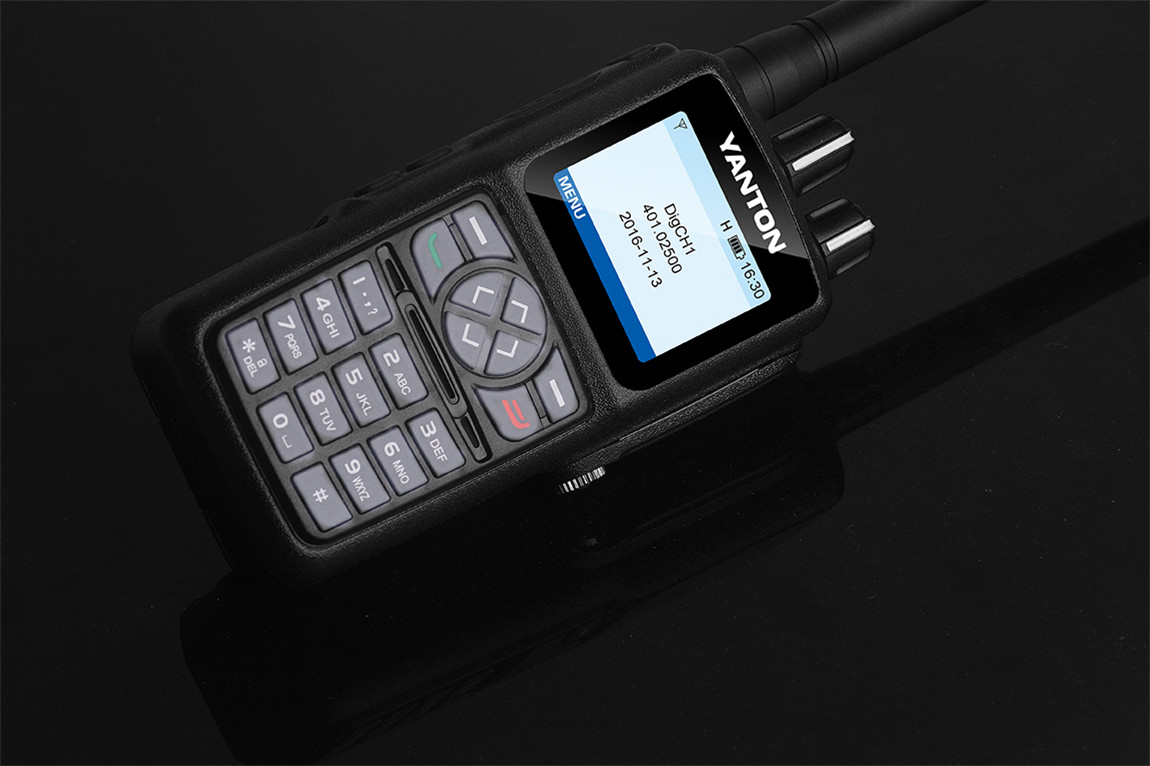

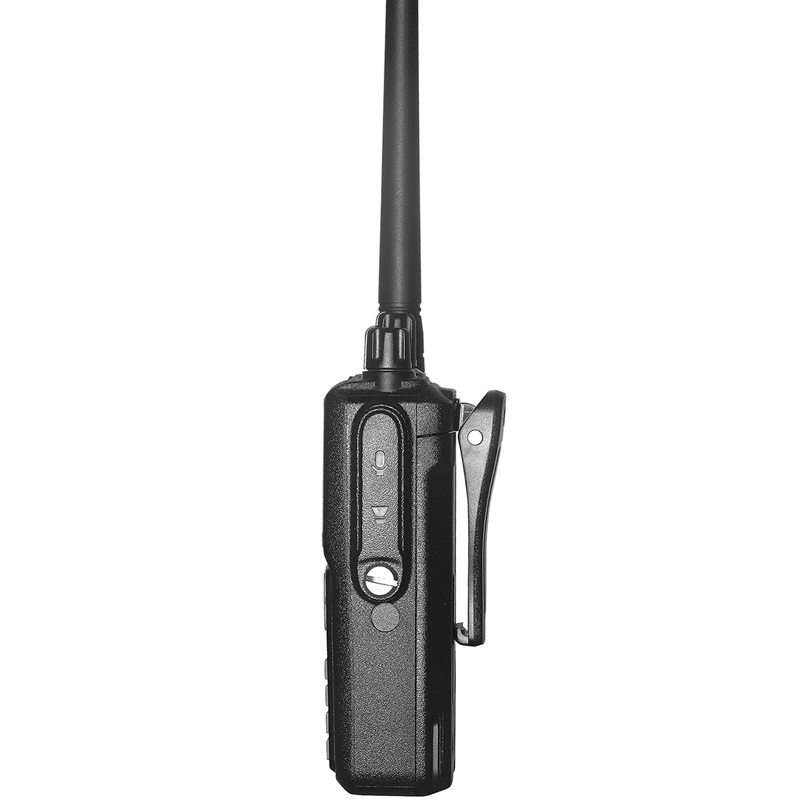

TDMF 2 Timeslots DMR 5W Digital Radio

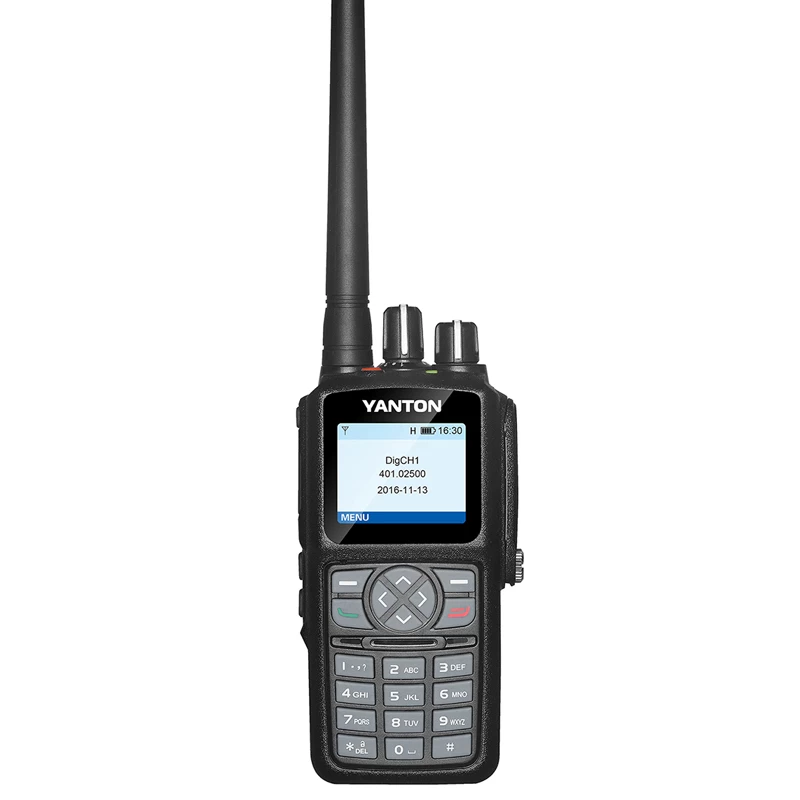

compatible and stable, DMR digital two-way radio,DM-980 handheld digital radio offers a simple communication solution with 1.77" colour screen, navigation keypad, emergency button, ideal for users operating in manufacturing, facilities management or education environments.
Quick Details
Built for dual-mode (Digital+ Analog)
Tier1&Tier2 compatible motorola
Record function
136-174MHz/400-480MHz
1000Channels
Versatile Voice Call (Private call,group call, all call and emergency call)
Digital encryption
SMS function
AMBE5000
Various Analog Signaling Types(DTMF,2 Tone)
Large-size high-definition color display
Multi-functional navigation keypad
Recorder
2tone and DTMF
Display color
Battery capacity 2800mah
CE approve
1024 Channel capacity
64 Zone capacity
Specification
|
GENERAL
|
|
Frequency
Range
|
400-480MHz/450-520MHz
|
|
Operating
Temperature
|
-20℃to +55℃
|
|
Frequency
Combination
|
please
lock frequency synthesiz
|
|
Frequency
Stability
|
±2.5ppm
|
|
Memory
Channel
|
1024
|
|
Working
voltage
|
7.4v
|
|
Antenna
Impedance
|
50Ω
|
|
Audio output power
|
≤1000mW@16Ω
|
|
Dimensions
|
126*53*34mm
|
|
Weight
|
194g
|
|
TRANSMIT PART
|
|
RF
power
|
High: ≤5W(HI) Low: ≤1W(Low)
|
|
High: ≤5W(HI) Low: ≤1W(Low)
|
+/-1.0ppm
|
|
Adjacent channel Power
|
≤-60dB
|
|
Free time slot power
|
TDMA: ≤-57dBm
|
|
FM modulation mode
|
12.5KHZ:11K 0 F 3 E
|
|
RECEIVER PART
|
|
Analog sensibility
|
0.35uV/-116dBm(20dB SINAD) / 0.22 uV/-120dB m(Type)
|
|
Digital sensibility
|
0.3 uV/-117.4dBm(BER 5%) / 0.7 uV/-110dBm(BER 1%)
|
|
Co-channel Rejection
|
≥-12dB
|
|
Spurious response
|
TIA603C: 75dB ETSI: 70dB
|
|
Adjacent channel selectivity
|
TIA603C: 65dB ETSI: 60dB
|
|
Rated audio power
|
1w
|
