Main
Features
-Supply

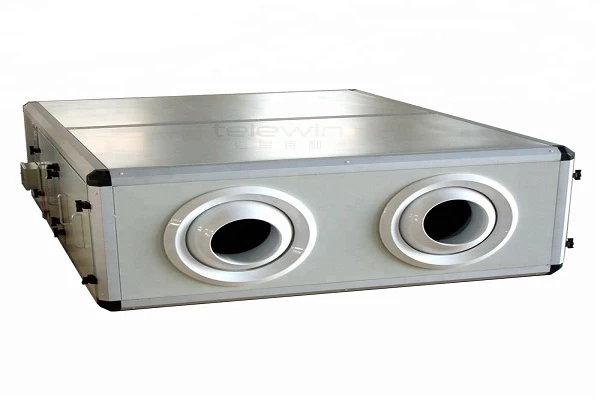

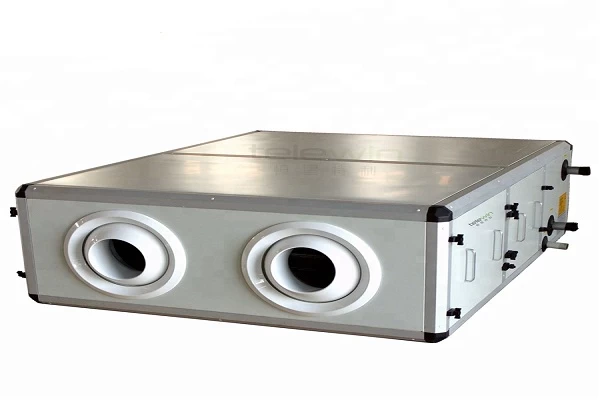

jet blow air of air throw up to 40M to conditioning open space

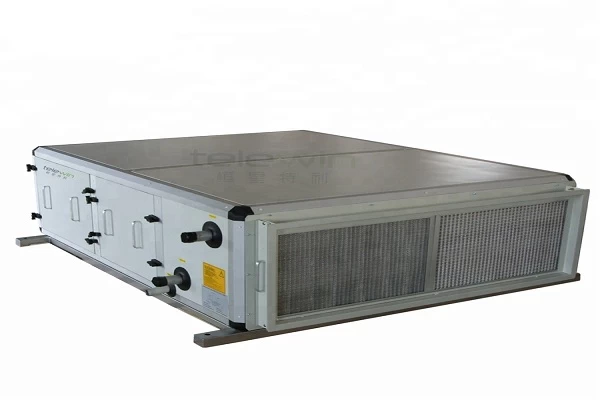

-Ultra slim ceiling mounted AHU (only 490mm height up to 2000CMH), save
installation space
-Plug and play concept for easy installation and commissioning
-No ductwork, save installation cost and time
-Large air volume (20000CMH) and cooling capacity (200kW)

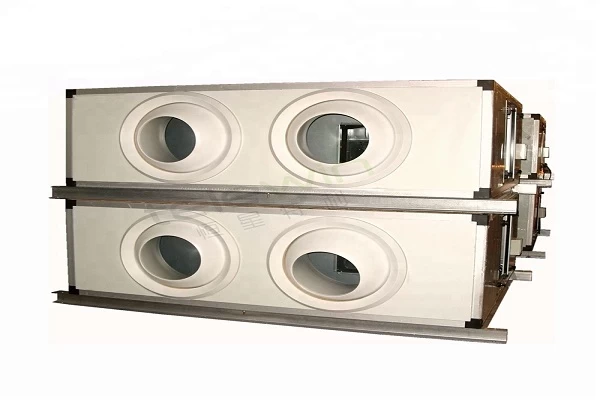

-Fixed points jet distribution, max distribution distance more than 40M
-Operation efficiency and energy saving
-Outstanding reliability and performance
Frame
•
Penta-post extra heavy gauge aluminium profiles and strong
fiber-reinforced PE corner connection forming the structural frame
• superior mechanical strength and rigidity to the unit frame and to
prevent any buckling or deformation
• Thermal bridge free design, the profiles filled with polyurethane foam
for insulation
• Anodizing surface treatment for profiles, corrosion-resistant
• Stainless steel frame available
Casing
Panel and Insulation
•
Double skin construction is provided by sandwich type panels comprising
inner and outer painted steel skins and polyurethane foam with minimum
48kg/m3 density, providing a good thermal and acoustical performance
• The gasket liner between the panels and frame ensures the air leakage
rate to comply with GB/T 14294 clean air conditioning requirement
• The factory painted steel sheet covered with 6 insulation coatings,
complies to 500h salt spray testing, showing an excellent corrosion
protection performance
Famous
Brand Fan and Motor
•
Fan selection based on the air flow and air static requirement is
done by fan selection software
• Direct driven/ belt driven, forward curve/ backward curve centrifugal
fans, and EC fan is available for option
• Nicotra, Kruger, Deton, Yilida is offered as option
• Motor is TEFC type, class F insulation and IP54 or IP55 protection,
energy saving and stable operation
• Mounted on an adjustable slide for belt tension adjustment
• Variable frequency drive (VFD) motor is available
• Siemens, ABB, WEG, TECO is offered as option
High
Efficiency Cooling and Heating Coil
•
All coils calculation and selection is done by selection software to
match the required conditions
• Large coil face area ensures maximum heat transfer rate
• All coils tested at 30bar pressure underwater 24 hours
• Various corrosion resistance coils for option:
-Cooper tube with cooper fins coil
-Epoxy coated fins coil
-Electrophoresis fins coil
-Heresite coated coil
Vibration
Eliminator
•
To reduce the transmission of vibration and noise, fan and motor are
installed on an independent complete base frame
• The complete base frame is isolated by deflection type spring isolators
• This unique structure not only reduce the vibration and noise, but also
protect fan and motor during transportation
Stainless
Steel Drain Pan
•Slop
type design, no drain water carryover
•Avoid the micro-organisms growth inside the drain pan
Antimicrobial Drain Pan is offered as option
•SteriTouch technology Drip Pan Coating
•Antimicrobial surface
•Good exterior durability and corrosion resistance
•Non-toxic, comply with BS476 part 7
