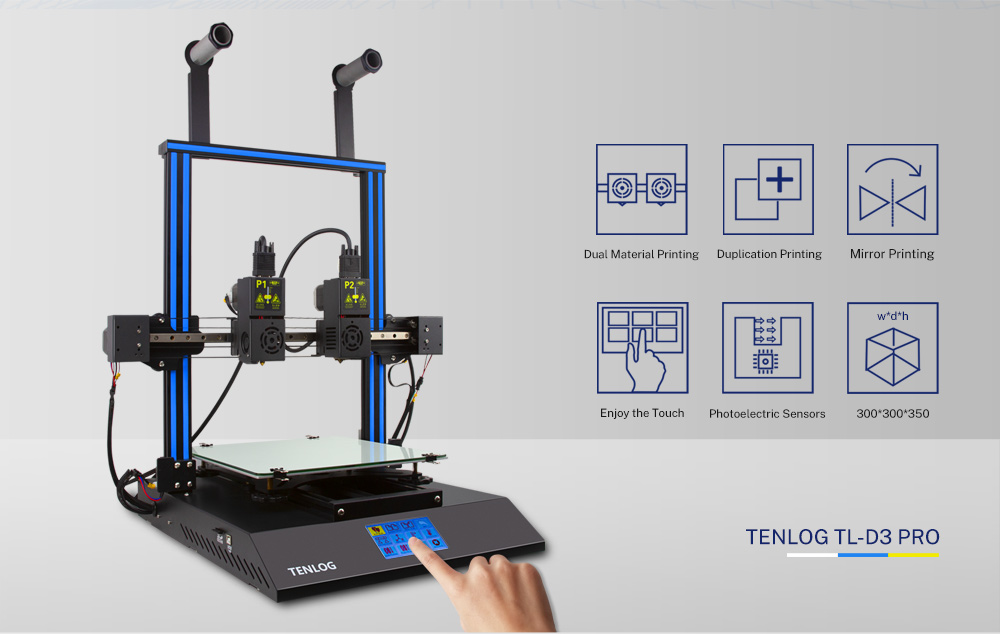

Features
1. Dual Material Printing
Temperature, Extruder Speed, Printing Speed, and Infill Density are separately set for each nozzle. Even with different diameter nozzles, the TL-D3 Pro 3D Printer can seamlessly print.

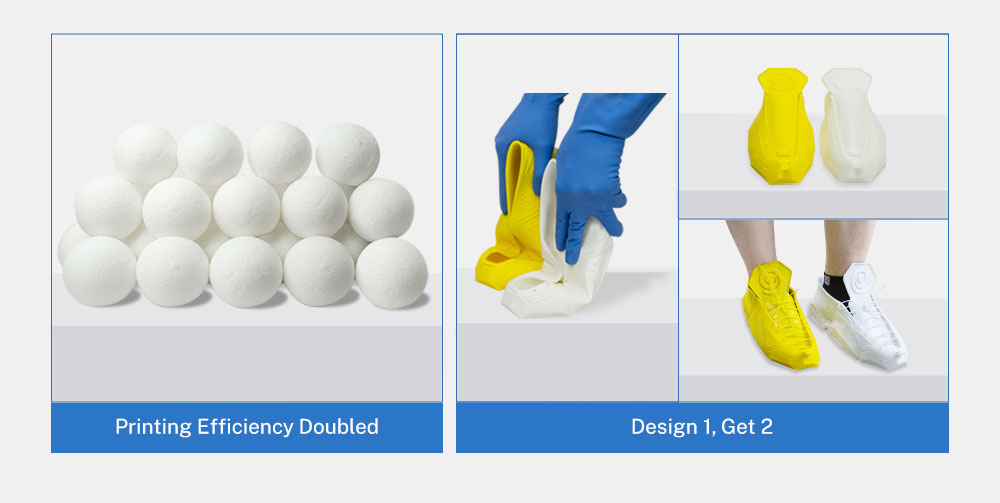

2. Duplication Mode Printing
Double the
printing efficiency and save your time, Get the object's twins right away!
3. Mirror Mode Printing
Print two
symmetrical models, two nozzles full-time double-drive printing, and immediately
get the objects in the mirror.
Specifications
|
Model
|
TL-D3 Pro
|
|
Additive
Manufacturing Accuracy
|
±0.1mm
|
|
Frame Material
|
Aluminum Alloy & Sheet Metal
|
|
Platform Board
|
Aluminum Alloy
& Glass
|
|
Nozzle Quantity
|
2
|
|
Nozzle Diameter
|
0.4mm
|
|
Nozzle
Temperature
|
Max 250 ℃
|
Heatbed Temperature
|
MAX 80℃
|
Working Temperature
|
10-50℃
|
|
Build Volume
|
300mm*300mm*350mm
|
|
Layer Thickness
|
0.1mm-0.4mm
|
|
Printer IO
|
8G SD card/USB
2.0
|
|
Screen
|
4.3-inch 480*272
Resolution Full Color Capacitive Touch Screen
|
|
Printing Speed
|
10-150mm/s
|
|
Supported
Filaments
|
TPU, PVA, PLA,
ABS, HIPS, WOOD, PETG, FLEXIBLE
|
|
Filaments
Diameter
|
1.75mm
|
|
Language
|
English,
Language custom accepted
|
|
Support Files
|
G-code, STL, jpg, etc.
|
|
XY-Axis
Positioning Accuracy
|
0.011mm
|
|
Z-Axis
Positioning Accuracy
|
0.0025mm
|
|
Input Power
|
100V-240V@50/60Hz
|
|
Output Power
|
24V, Max 15A
|
|
File Preparation
Software
|
Cura, Repetier-Host
|
|
Operative
Systems
|
XP, WIN7/8/10,
Linux
|
|
Voltage Range
|
110-120V / 6.8A,
200 - 240V / 3.4A, 50 / 60Hz
|
Machine Size(W*D*H)
|
59cm*52cm*76cm
|
|
Machine Weight
|
15.6Kg
|
|
Shipping Box Size
|
66cm*60cm*26cm
|
|
Volumetric(Dimensional) Weight
|
21Kg
|
Our Services
Provide a 2-year warranty with shipping charges only!
Free shipping for quality problems within 1 year!
Technical support for life!

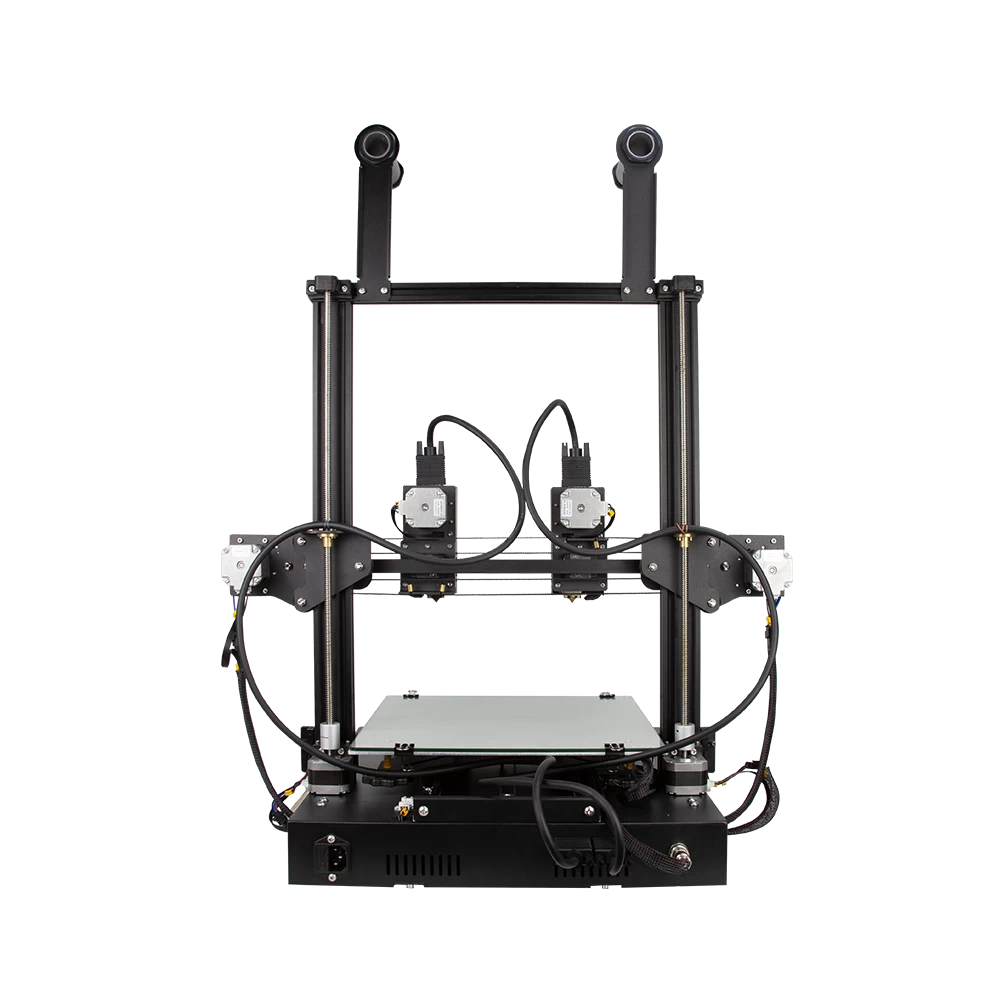

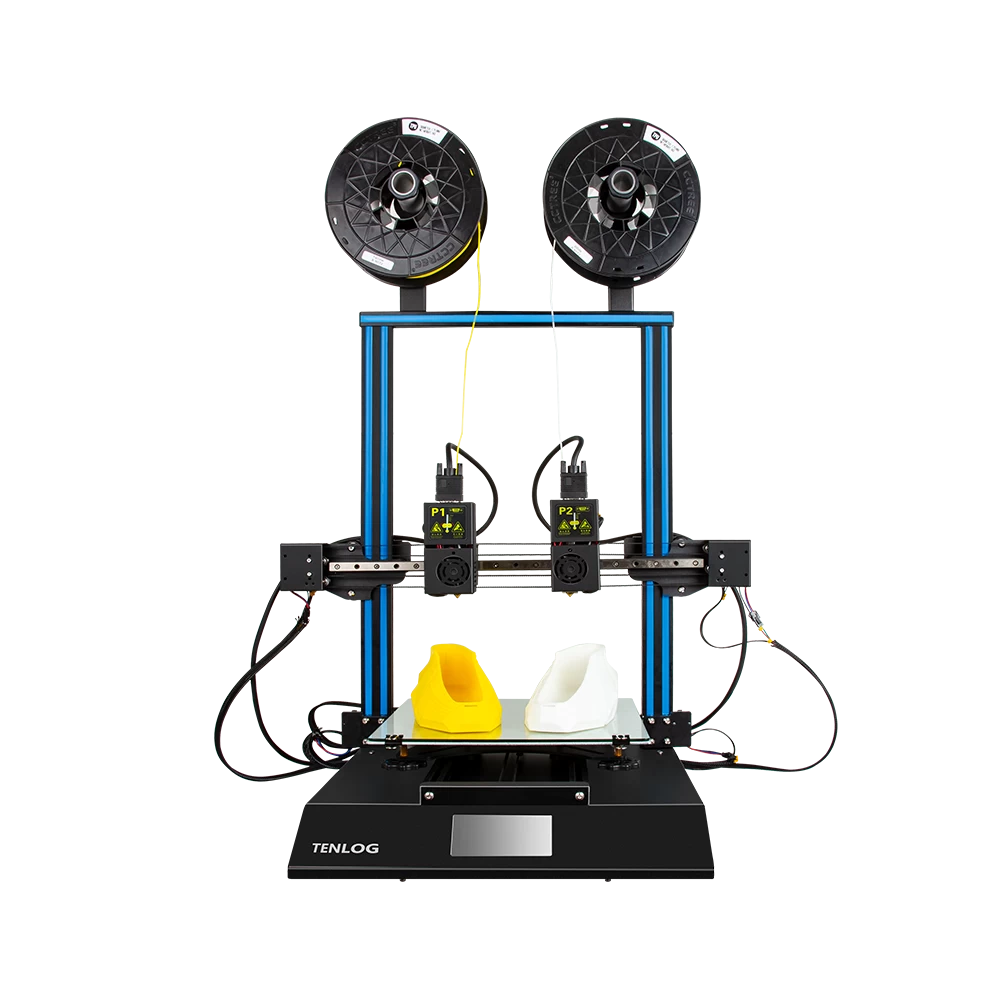

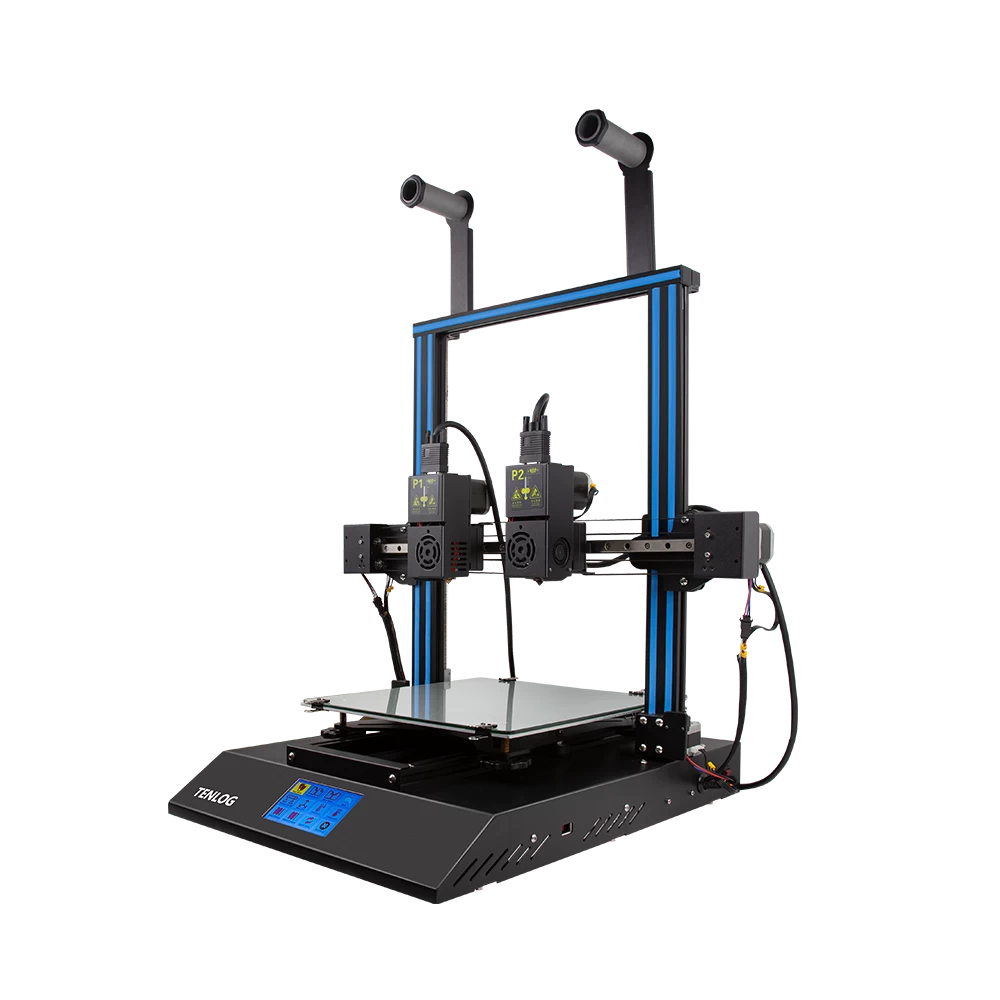

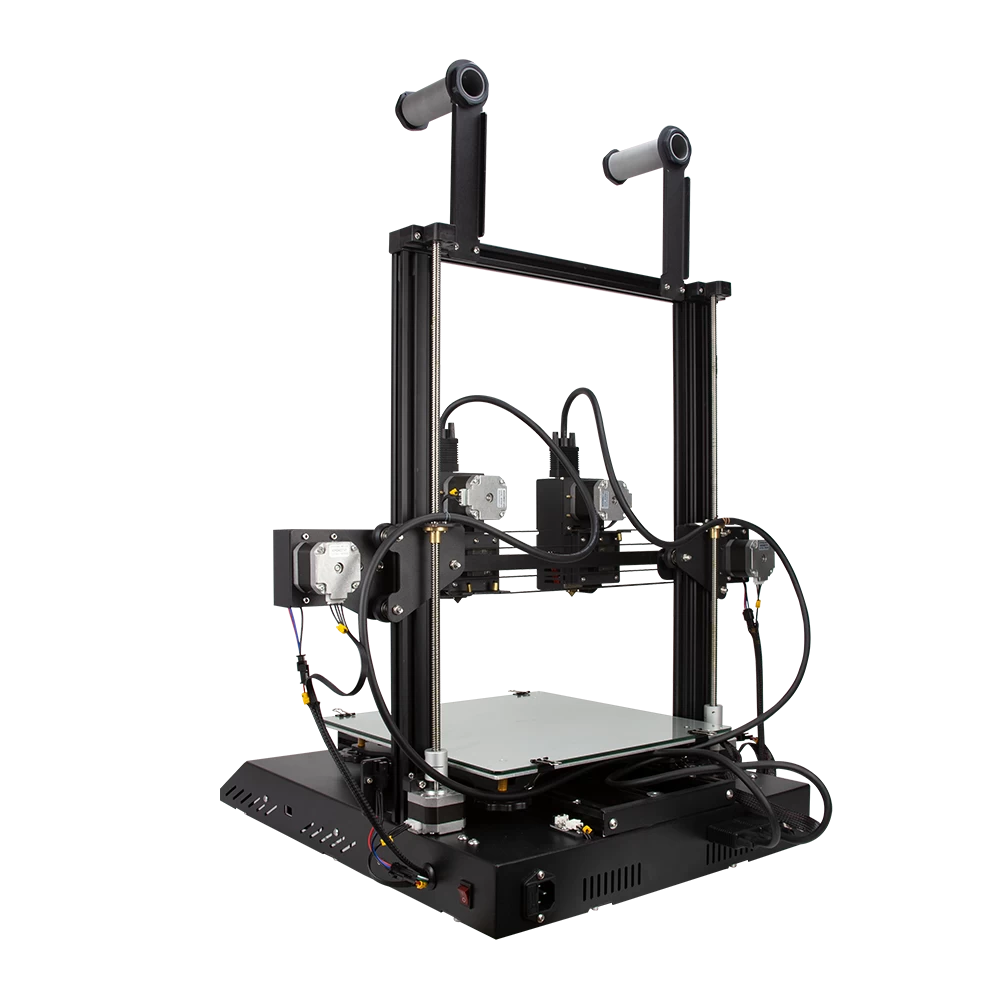

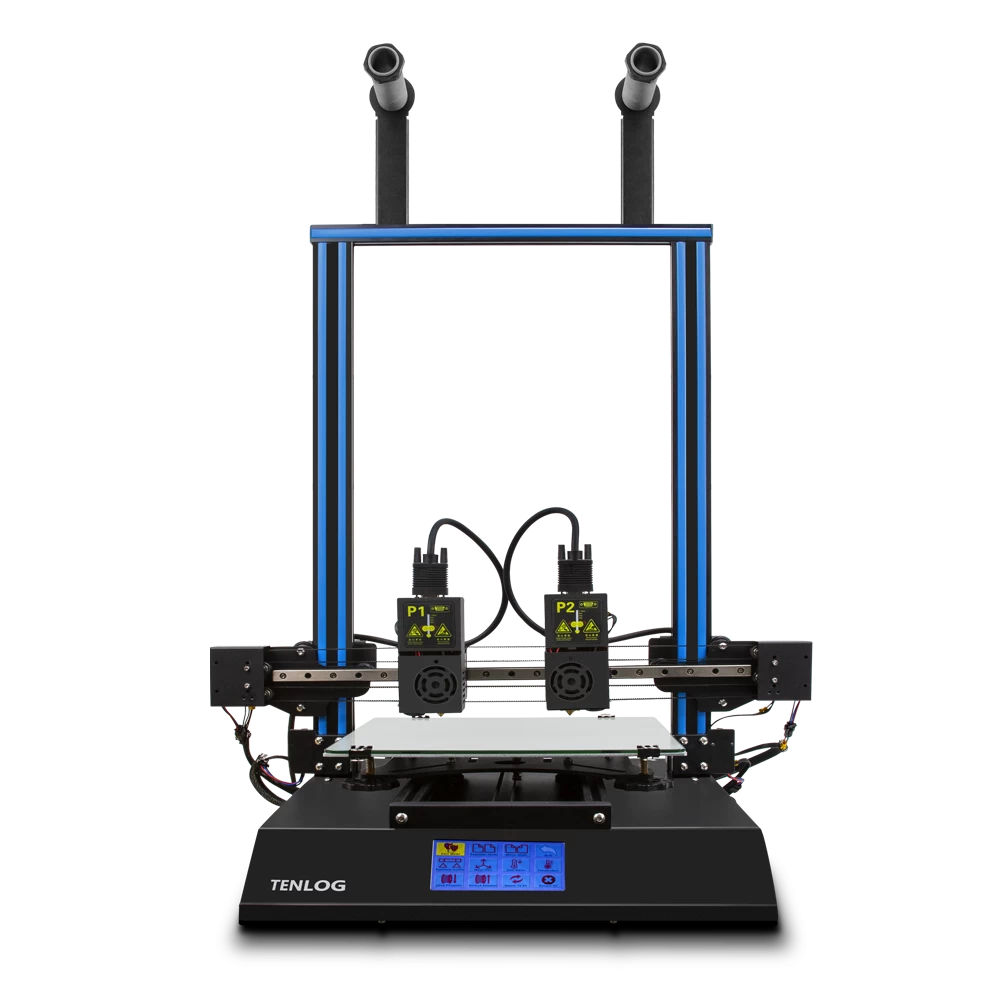

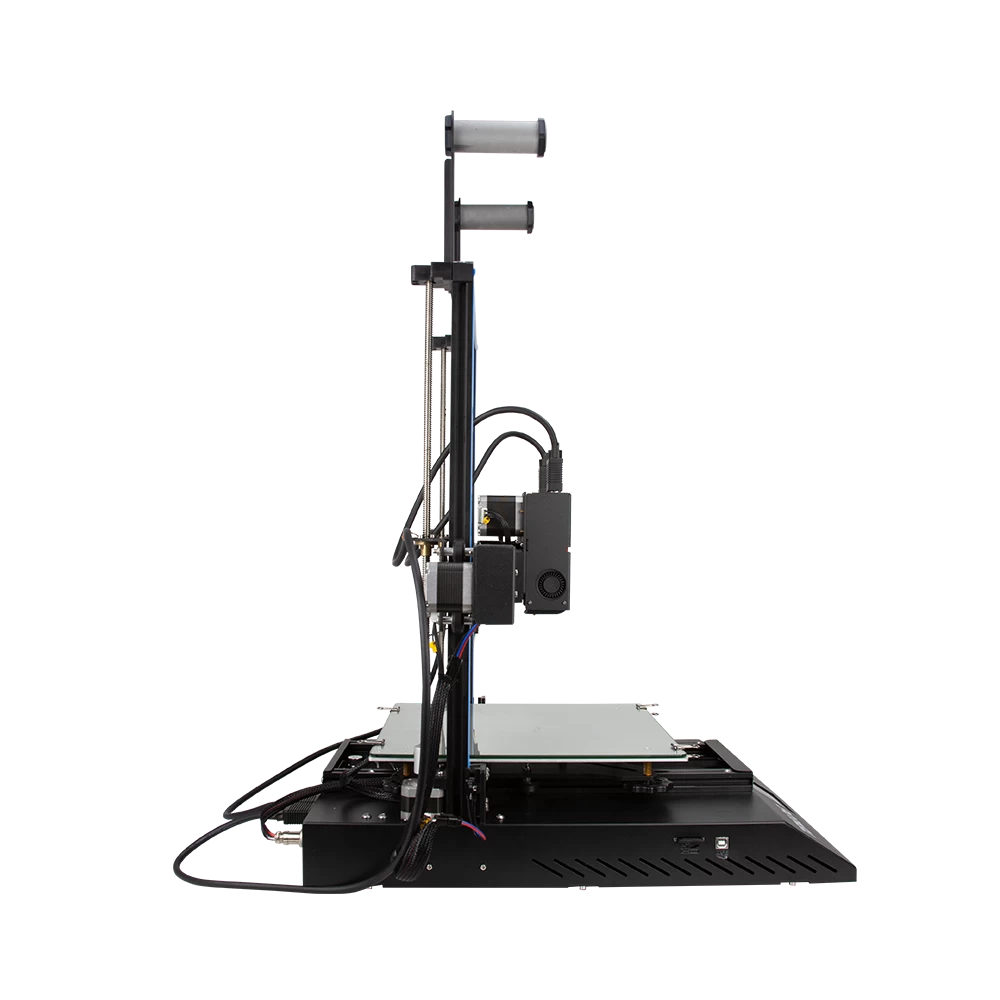

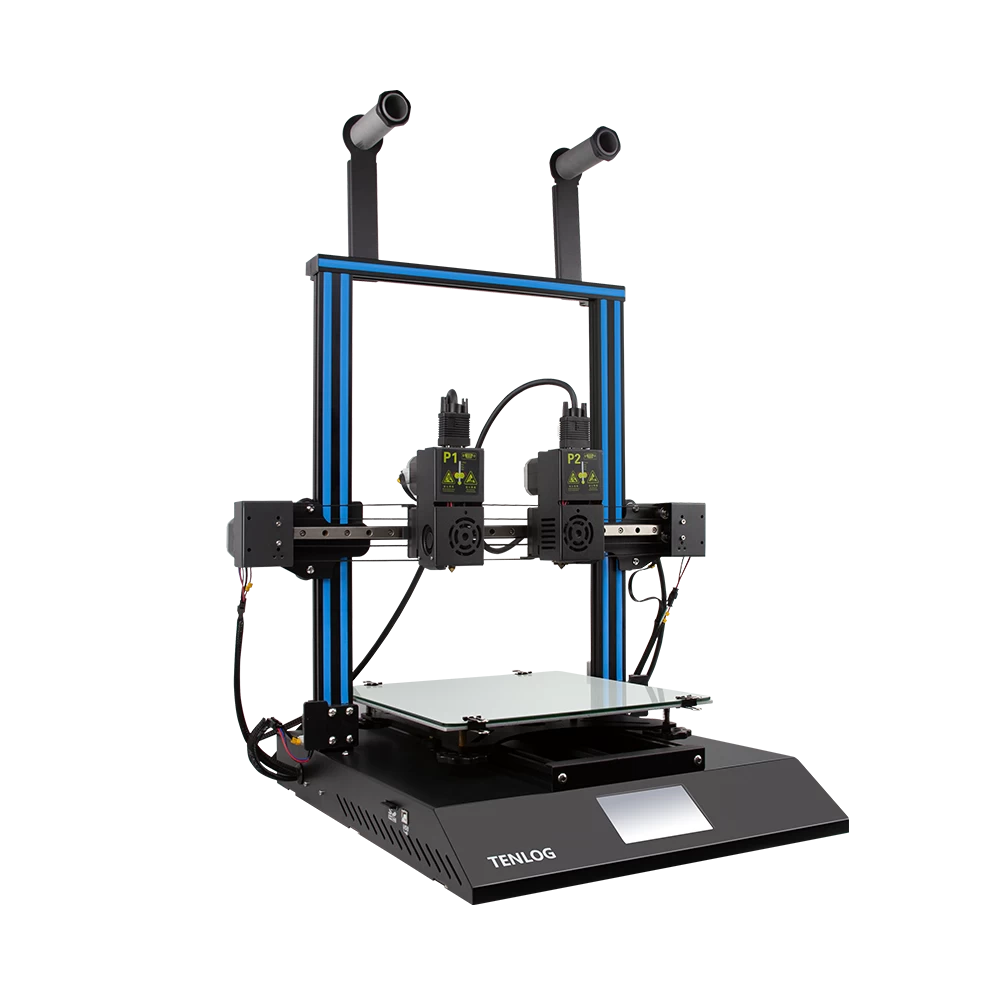

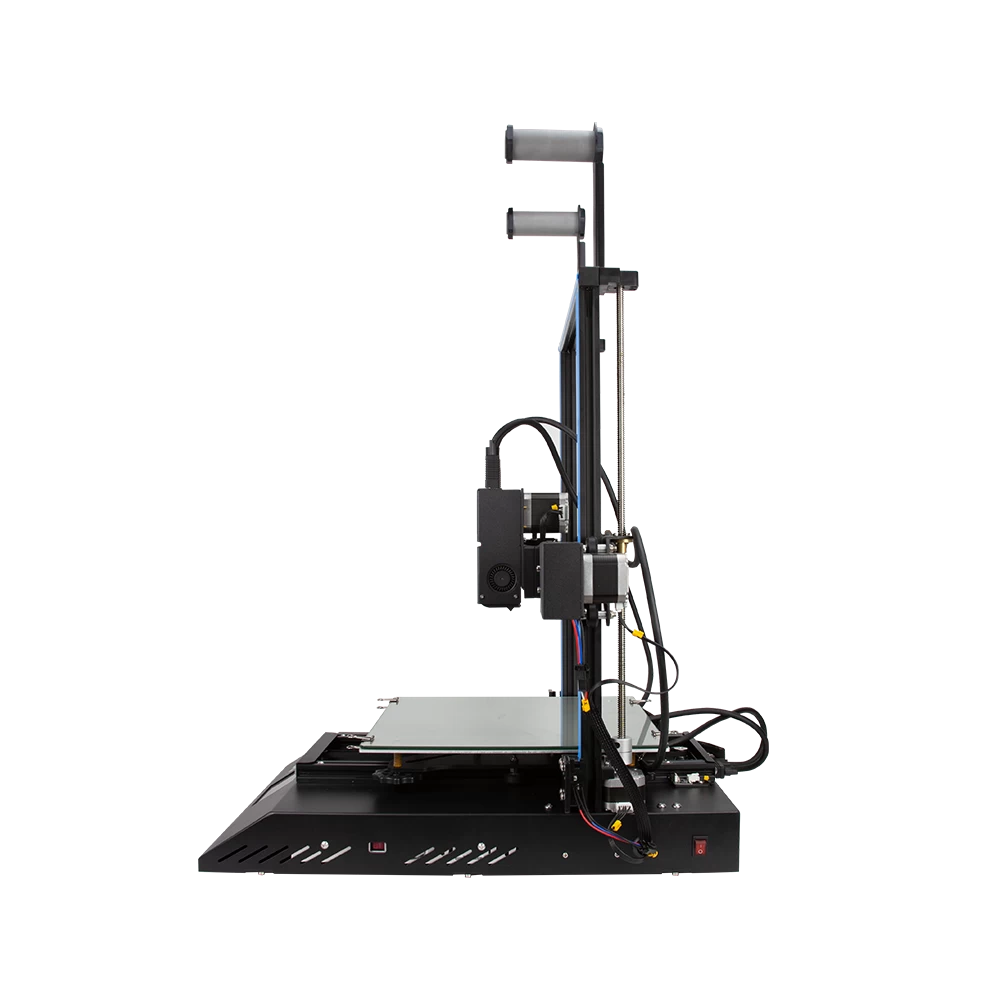

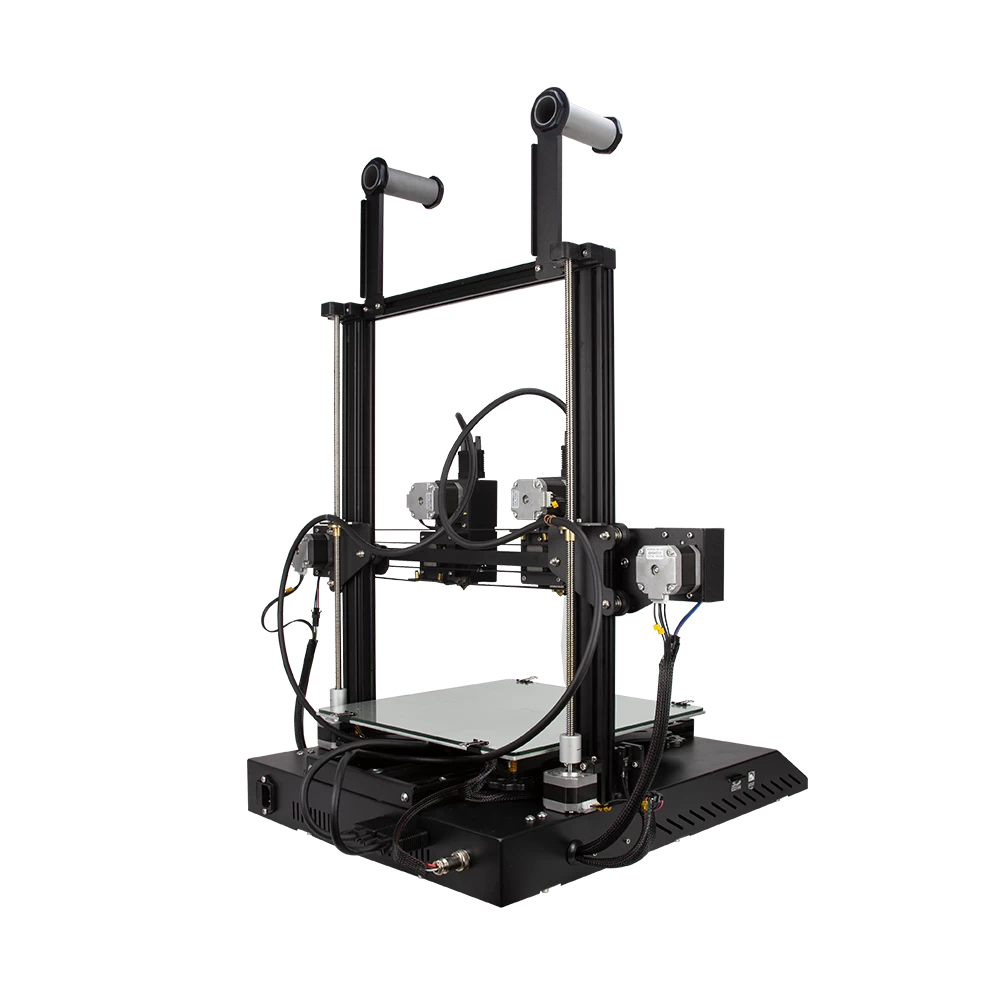

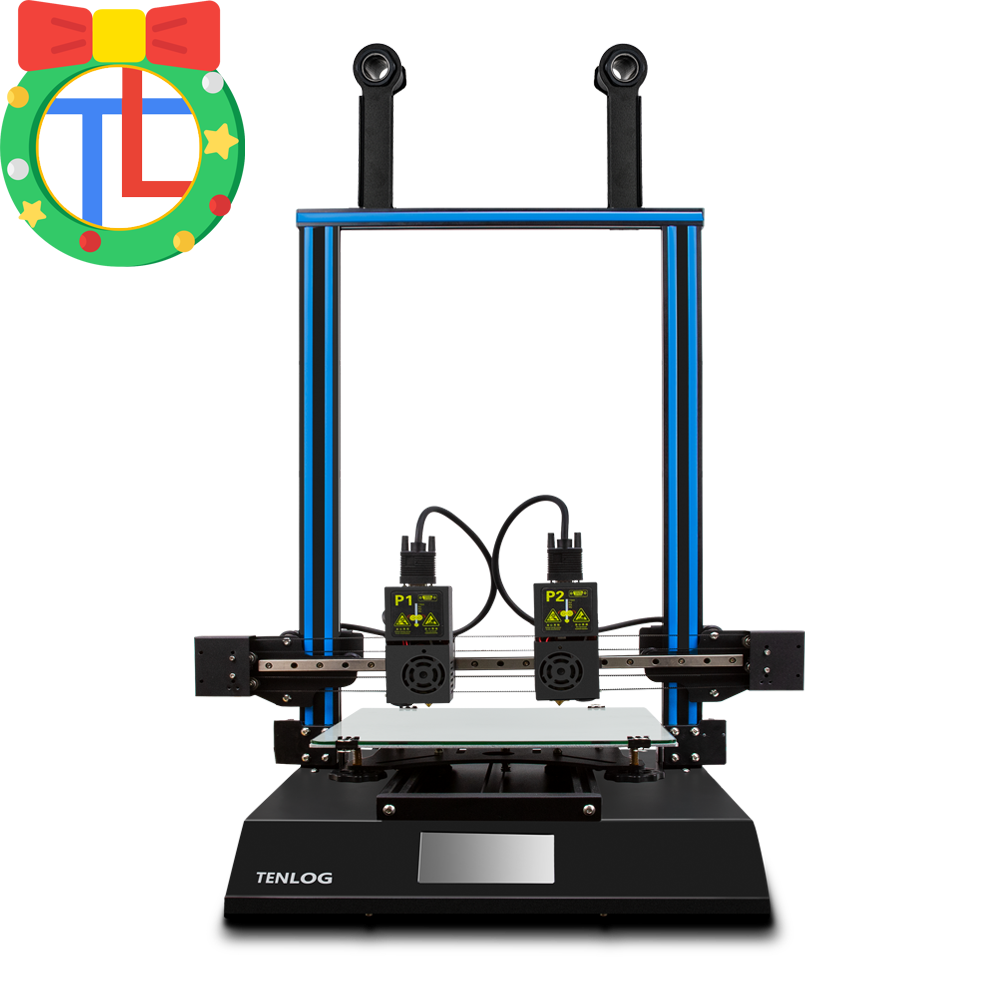

Photo of Double Color 3D Printer
Packaging & Shipping
Shipping Box Size: 66cm*60cm*25cm
|
TL-D3 Pro Packing List
|
|
No.
|
Part Name
|
Quantity
|
|
1
|
Printer host
|
1 Set
|
|
2
|
H-linkage kit
|
1 Set
|
|
3
|
Installation & maintenance tool
|
2 Boxes
|
|
4
|
Nozzle Kits
|
2 Sets
|
