Features
1. Big Building Volume

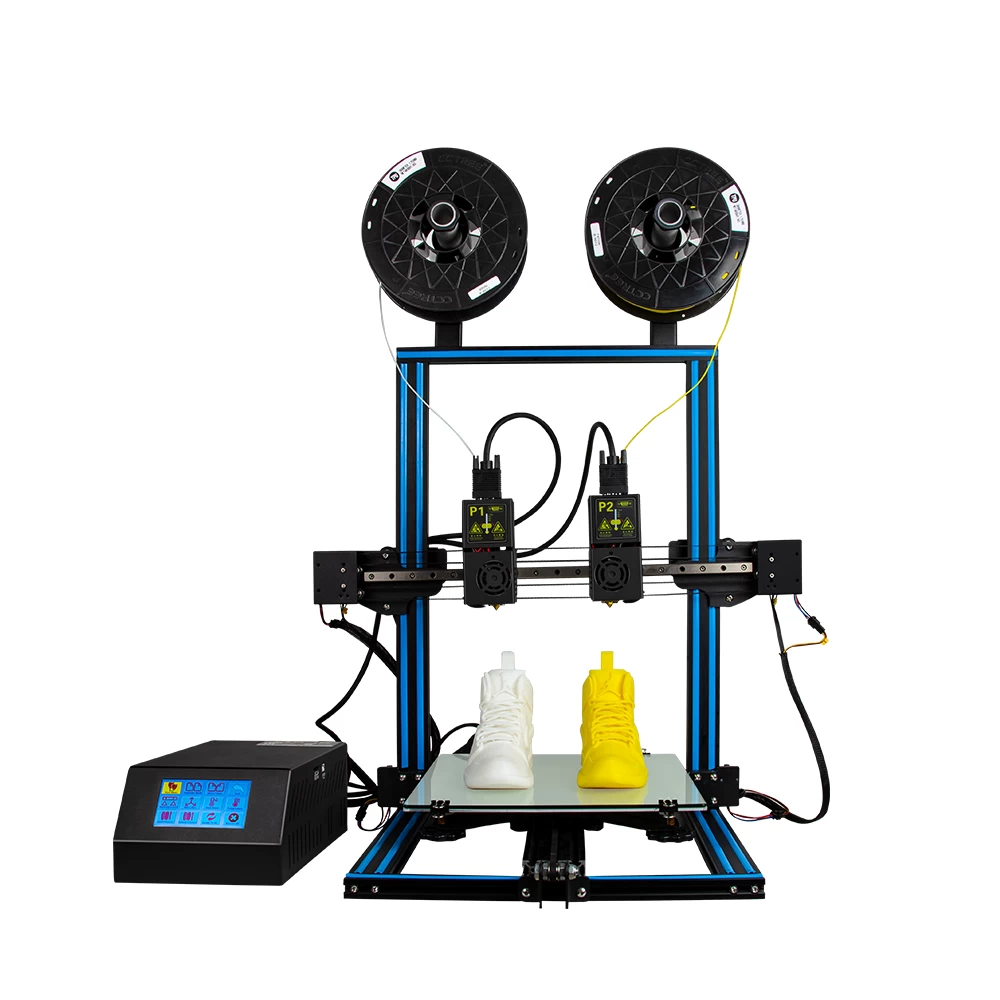

Big Dual Nozzle 3D Printer with building volume 300*mm*300mm*400mm

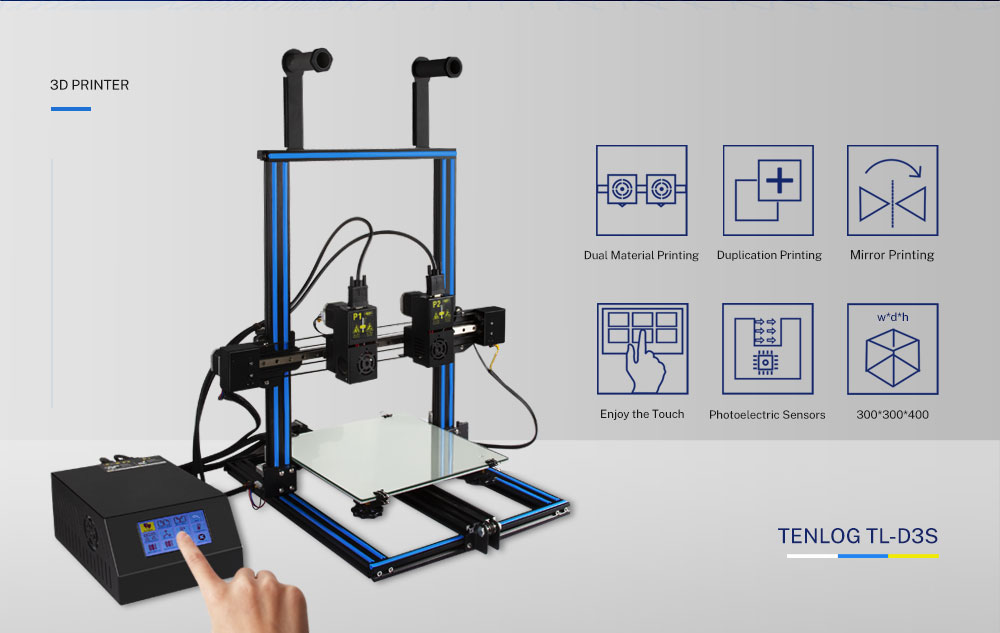

2. Dual Material Printing
Nozzle Temperature, Extruder Retraction Speed, Print Speed, and Infill Density are separately set for each nozzle. Even with different diameter nozzles, the TL-D3S 3D Printer can seamlessly print.

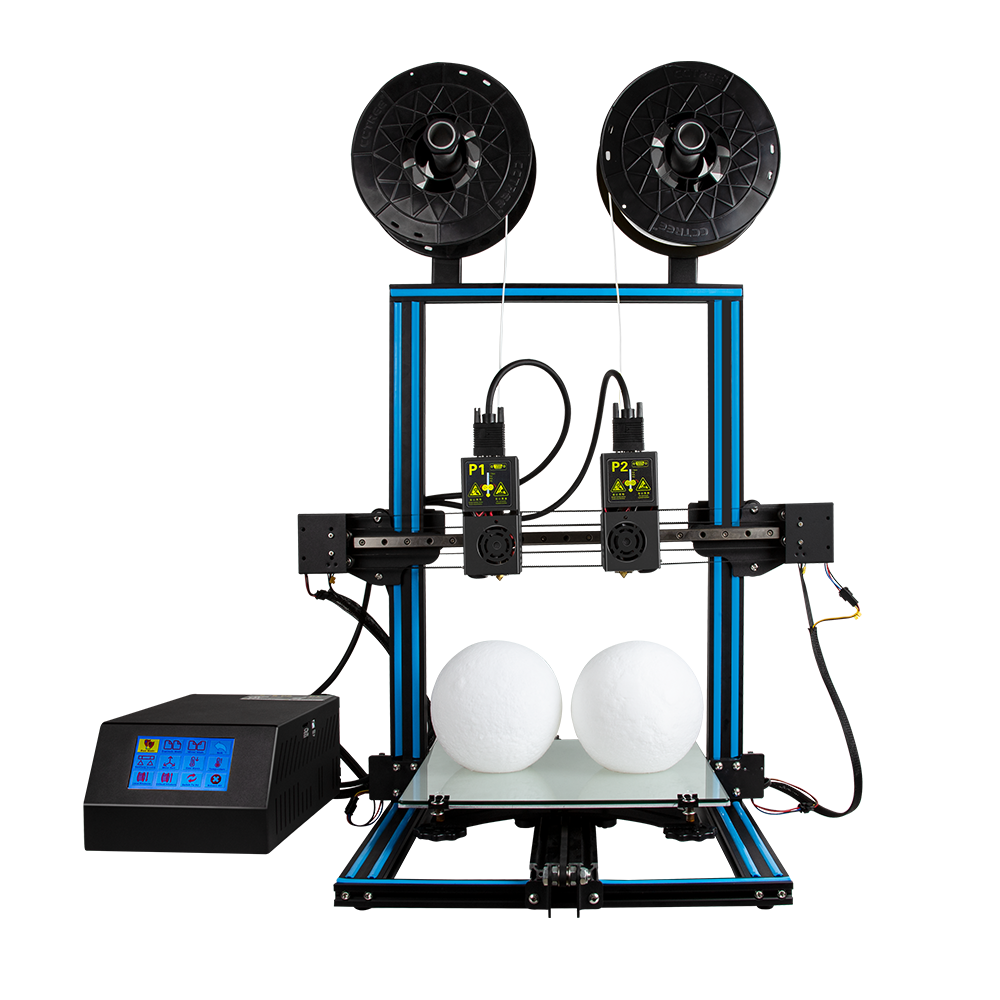

3. Duplication Mode Printing
Double the printing efficiency and save your time, Get the object's twins right away!
4. Mirror Mode Printing
Print two symmetrical models, two nozzles full-time double-drive printing, and immediately get the objects in the mirror
Specifications
|
Model
|
TL-D3S
|
|
Additive Manufacturing Accuracy
|
±0.1mm
|
|
Frame Material
|
Aluminum Alloy & Sheet Metal
|
|
Platform Board
|
Aluminum Alloy & Glass
|
|
Nozzle Quantity
|
2
|
|
Nozzle Diameter
|
0.4mm
|
|
Nozzle Temperature
|
Max 250 ℃
|
|
Build Volume
|
300mm*300mm*400mm
|
|
Layer Thickness
|
0.1mm-0.4mm
|
|
Printer IO
|
8G SD card/USB 2.0
|
|
Screen
|
4.3-inch 480*272 Resolution Full Color Capacitive Touch Screen
|
|
Printing Speed
|
10-150mm/s
|
|
Heatbed Temperature
|
MAX 80℃
|
|
Supported Filaments
|
TPU, PVA, PLA, ABS, HIPS, WOOD, PETG, FLEXIBLE
|
|
Filaments Diameter
|
1.75mm
|
|
Language
|
English, Language custom accepted
|
|
Support Files
|
G-code, STL, jpg, etc.
|
|

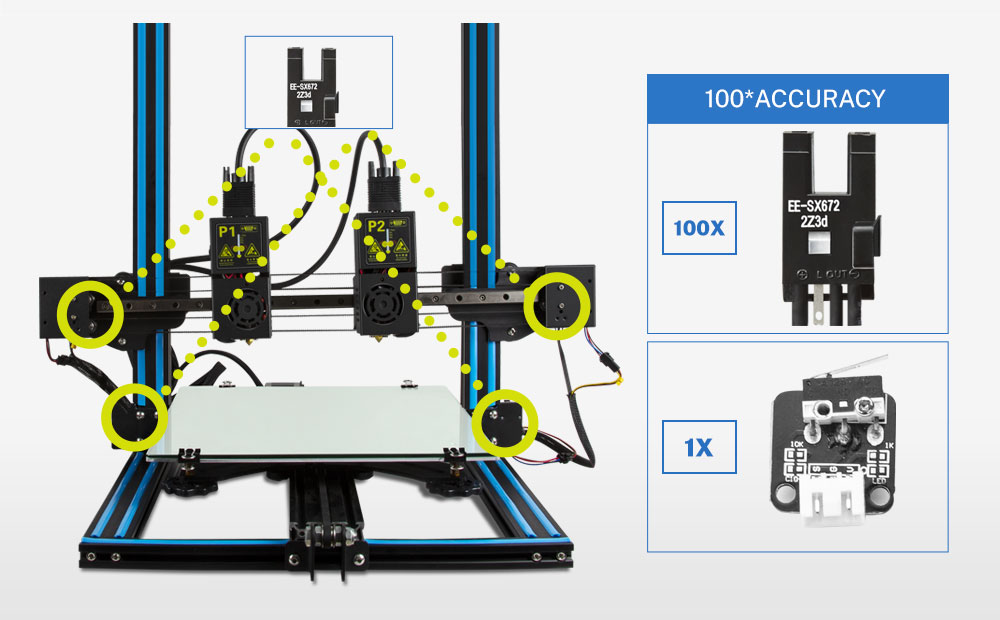

XY-Axis Positioning Accuracy
|
0.011mm
|
|
Z-Axis Positioning Accuracy
|
0.0025mm
|
|
Input Power
|
100V-240V@50/60Hz
|
|
Output Power
|
24V, Max 15A
|
|
File Preparation Software
|
Cura, Repetier-Host
|
|
Operative Systems
|
XP, WIN7/8/10, Linux
|
|
Voltage Range
|
110-120V / 6.8A, 200 - 240V / 3.4A, 50 / 60Hz
|
|
Machine Weight
|
14Kg
|
|
Shipping Box Size
|
65cm*65cm*30cm
|
|
Volumetric(Dimensional) Weight
|
28Kg
|
Our Services
Provide a 2-Year Warranty with shipping charges only!
Free shipping for quality problems within 1 year!
Technical support for life!
Packaging & Shipping
|
TL-D3S Packing List
|
|
No.
|
Part Name
|
Quantity
|
|
1
|
Printer host
|
1 Set
|
|
2
|
H-linkage kit
|
1 Set
|
|
3
|
Installation & maintenance tool
|
2 Boxes
|
|
4
|
Nozzle Kits
|
2 Sets
|
