Tensile Fabric Roof Truss Design And Architecture Planning Firms

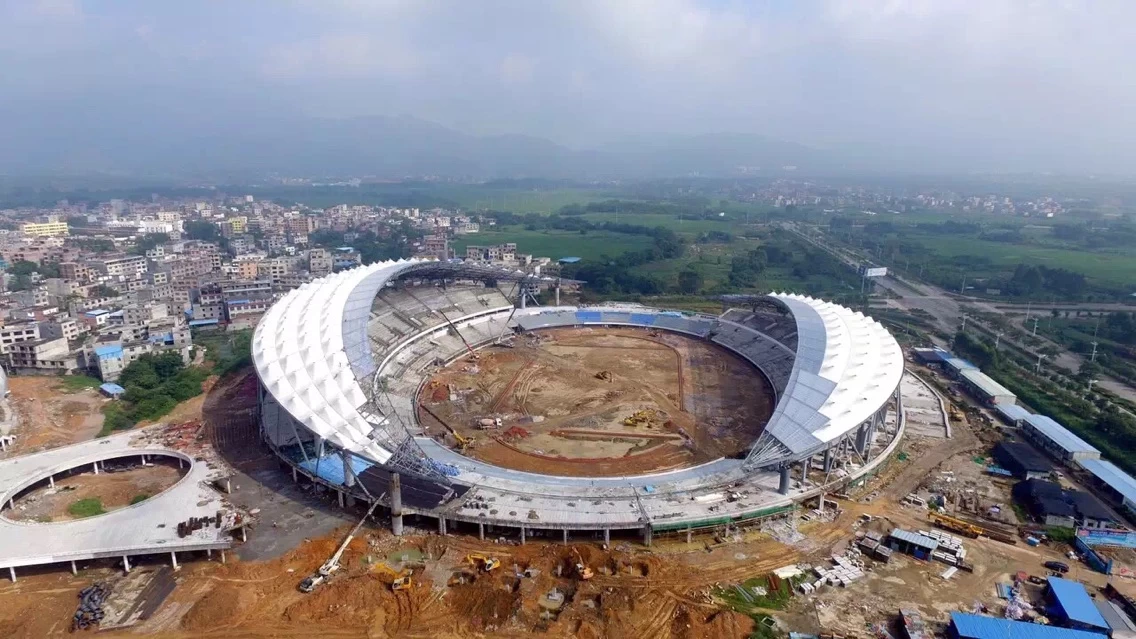

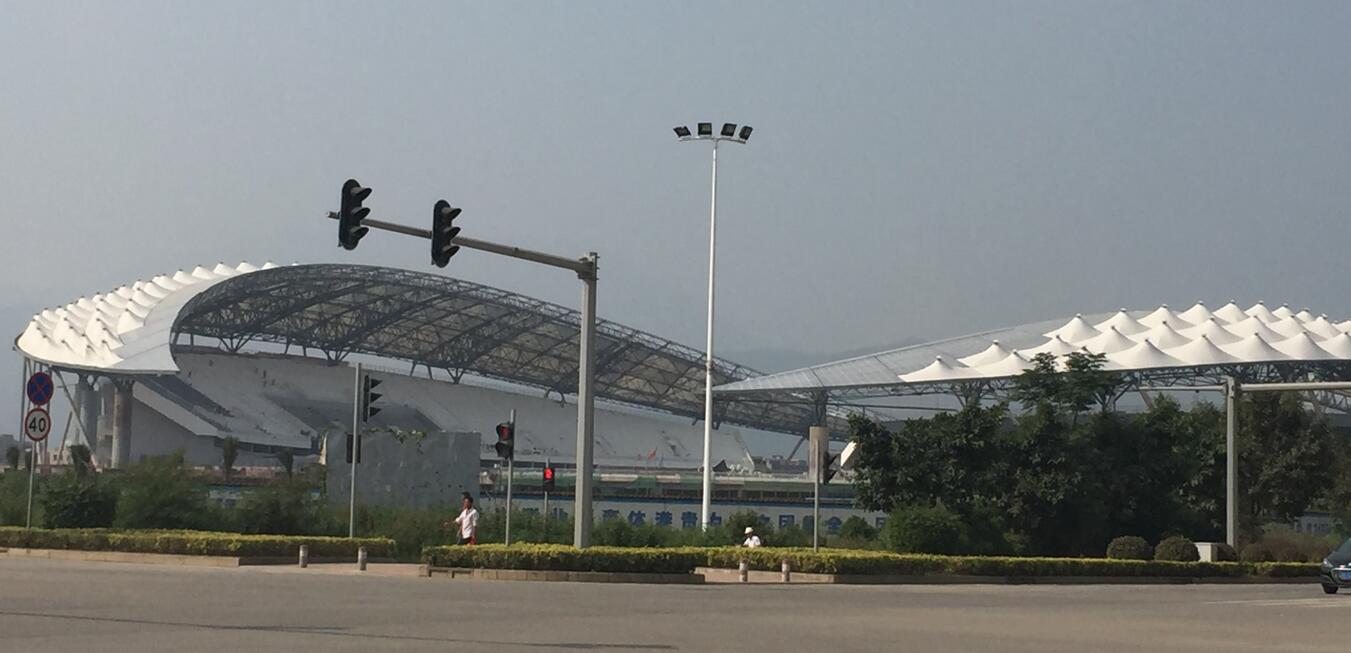

Project Summary:The membrane structure project of Wuzhou Stadium is located in the Vocational College of Wuzhou City on the north side of Sanlong Avenue in Cangzhou City. The west stand is a membrane structure stand. The PTFE membrane block has 96 triangles, ETFE The roof is made up of 14 triangles. The membrane structure has an unfolded area of about 12,000 square meters, of which ETFE is about 2,000 square meters and PTFE is about 10,000 square meters.
Location
|
Wuzhou city,Guangxi Province
|
|
Project Size
|
12,000 Square meters
|
|
Fabric Material
|
ETFE,PTFE
|
|
Completion Date
|
2007
|
|
Structure Type
|
Light Steel Structure
|
|
Warranty
|
1Year
|
1. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs;
2. Short Construction time: Half time is saved compared to the traditional buildings;
3.Various Shape: Changeful supporting structure can make lots of different shapes of membrane structure with flexible membrane;
4.Security: Membrane Structure can keep the good stability under the action of horizontal load such as earthquake;
5.Self-Cleaning: The rain getinto water to down on the surface of membrane and clean itself;
6.Fireproof: Fireproof performance of membrane structure can fill the requirements of US ,French,Germany ,Japan and other contries;
7.Large Span:The largest span of Tension membrane structures can exceed to 200m.
