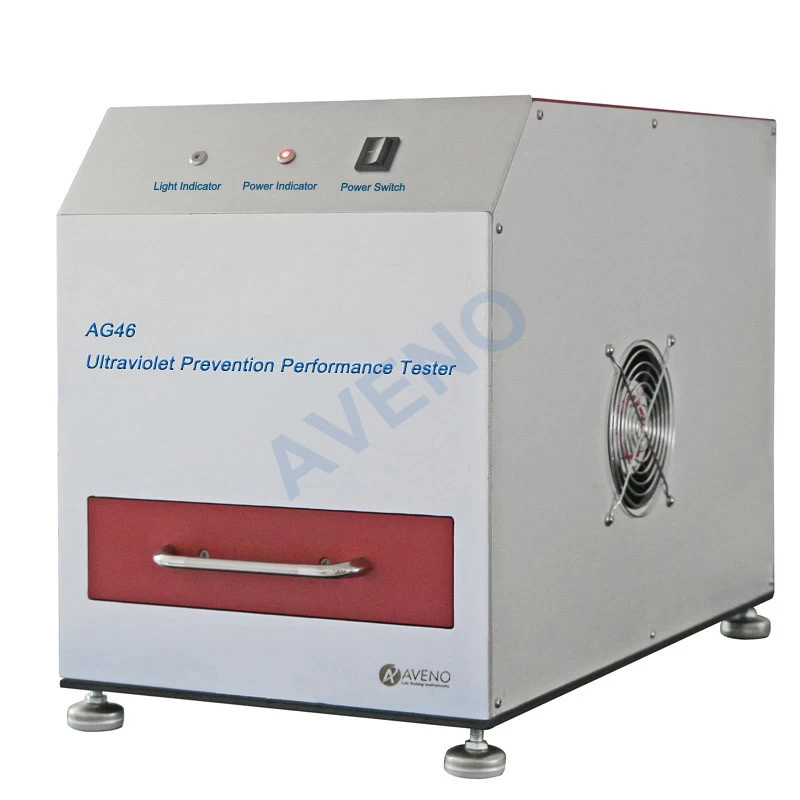

AG46-Textile Ultraviolet Prevention Performance Tester
(UPF Tester)
Application Of Textile Ultraviolet Prevention Performance Tester
Textile Ultraviolet Prevention Performance Tester is used for testing the UV transmittance and UV protection of textiles can directly test the UV protection factor UPF of textiles.
Feature Of Textile Ultraviolet Prevention Performance Tester
-
ERAEUS deuterium lamp, built-in integrated ball spectrophotometer, automatic wavelength scanning, measurable all ultraviolet bands, wide range of measurement and high precision.
-
Ultraviolet photomultiplier tube is adopted, the testing range is wide and the precision is high.
-
Full computer control, automatic data processing, multiple graphics, report statistics, analysis, storage, output.
Standards Of Textile Ultraviolet Prevention Performance Tester
GB/T18830, AATCC 183, AS/NZS4399, BS 7914, PREN 13758
Key Specification Of Textile Ultraviolet Prevention Performance Tester
|
Model
|
AG46 Textile Ultraviolet
Prevention Performance Tester
(UPF Tester)
|
|
Measure range
|
Transmittance:
0—100%±0.01％, UPF: 0—100
|
|
Wavelength range
|
280～400nm±0.5nm
|
|
Wavelength repeatability
|
0.25nm
|
|
Data interval
|
1nm—5nm,
adjustable
|
|
Slit-width
|
≤5nm
|
|
Sample beam diameter
|
10mm
|
|
Power supply
|
AC220V,
50/60HZ
|
|
Dimension
|
30*50*40cm
|
|
Weight
|
25kg
|
