Specification
|
|
Part No.
|
TST043015CMHX-P
|
|
Outline Dimension(mm)
|
105.5x67.2x4.2(Typ.)
|
|
Display Area(mm)
|
95.04(H)x53.856(V)
|
|
Driver IC
|
HX8257A
|
|
Resolution(dots)
|
WQVGA, 480*RGB*272
|
|
Description
|
4.3" 500 nits brightness lcd display panel
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
480RGB(H)*272(V)
|
|
Pixel Pitch
|
0.198(H)*0.198(V)
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Display mode
|
Normal white,262k colors, 4.3 inch tft lcd
|
|
Surface treatment
|
Antiglare, Hard-Coating(3H), AF,AR coating
|
|
Weight(g)
|
50(Typ.)
|
|
Module brightness(cd/m2)
|
500(Typ.)
|
|
Backlight
|
LED Side-light type,
|
|
10 pcs. white led(20MA/chip, recomendation)
|
|
Power Consumption(w)
|
Logic system
|
0.09Max.
|
|
B/L system
|
0.924Max.
|

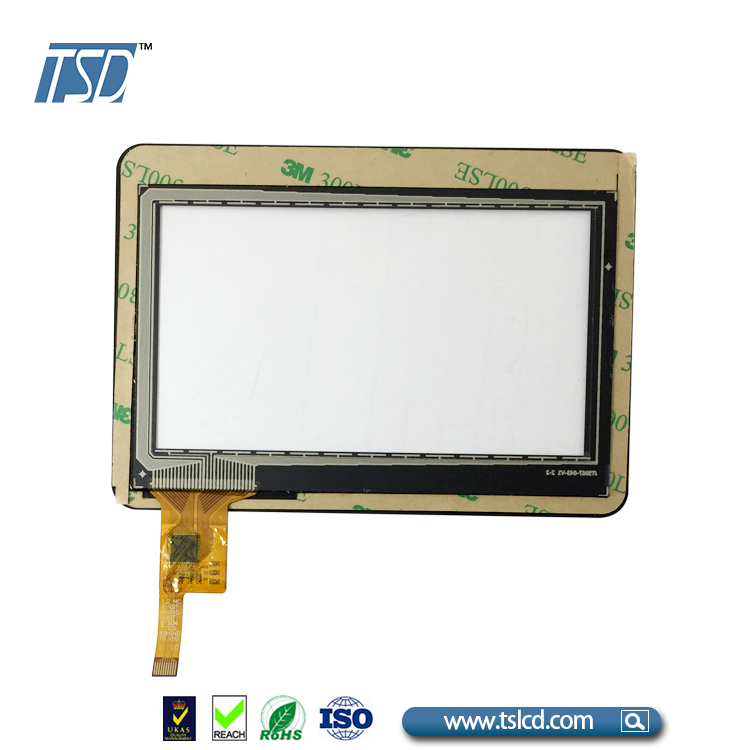

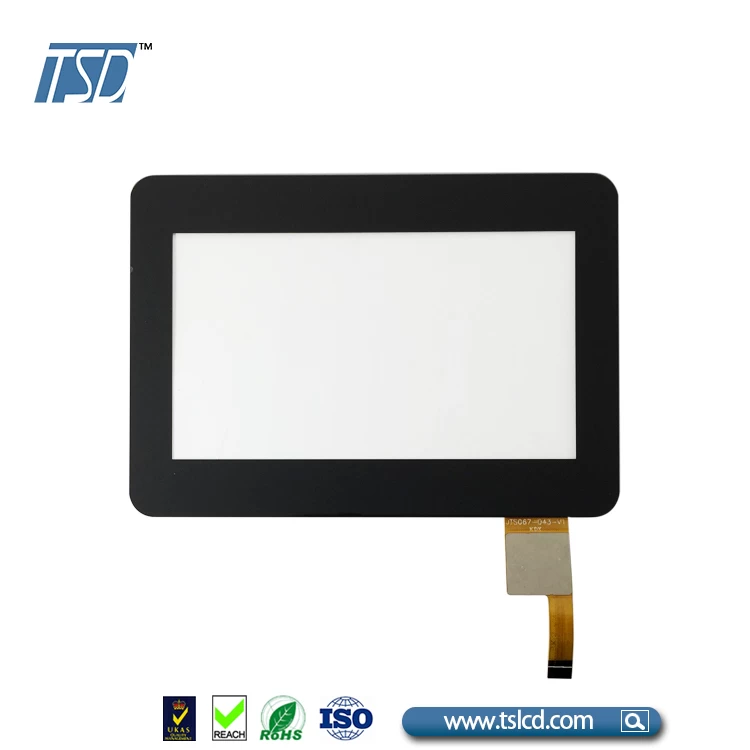

Customized CTP for 4.3inch TFT:
We can design and customize Capacitive touch panel for
you with different size, shape and Logo. Welcome to contact us for details. We
would like to help you develop your project.
Custom
CTP：
1.up to 10 touch points
2. CTP Bonding : OCA bonding or 3M double side tape
3. AR(anti-reflective),AG(anti-glare),AF(anti-fingerprint)Coating available
4. …
Custom
Process:
Confirm specific requirements → pay tooling charge
→ Provide drawing → confirm drawing → make tooling & samples → Samples
finished → Delivery via freight or sea collect
Lead
time for custom LCD:
drawing
making:2-5days
tooling
and samples: around 3wks
