Total electrical independence starts here.
Sunpal Off-Grid solar system is available in 10KVA ~ 120KVA models with DSP digital control technology, it is combined with pulsewidth modulation (SVPWM), disturbance MPPT control and multi-level control technology to enable the system to track the maximum power of solar panels fast. Its secure power supply feature provides good quality power with regulated voltage and frequency to the loads, and it is featured with energy storage and staggering power consumption as well. It is an ideal inverter for medium-sized or large-scale residential, commercial and industrial PV applications which are off the grid, such as village, farm, factory, office building and islands etc.
Product Benefits
-
The don’t require a grid provider to run
-
Can connect a backup generator
-
Adds a layer of energy security to any property
Common Application
-
Sites that have no grid infrastructure available
-
Remote locations where utility services are limited
-
Governments looking to add power to remote housing developments

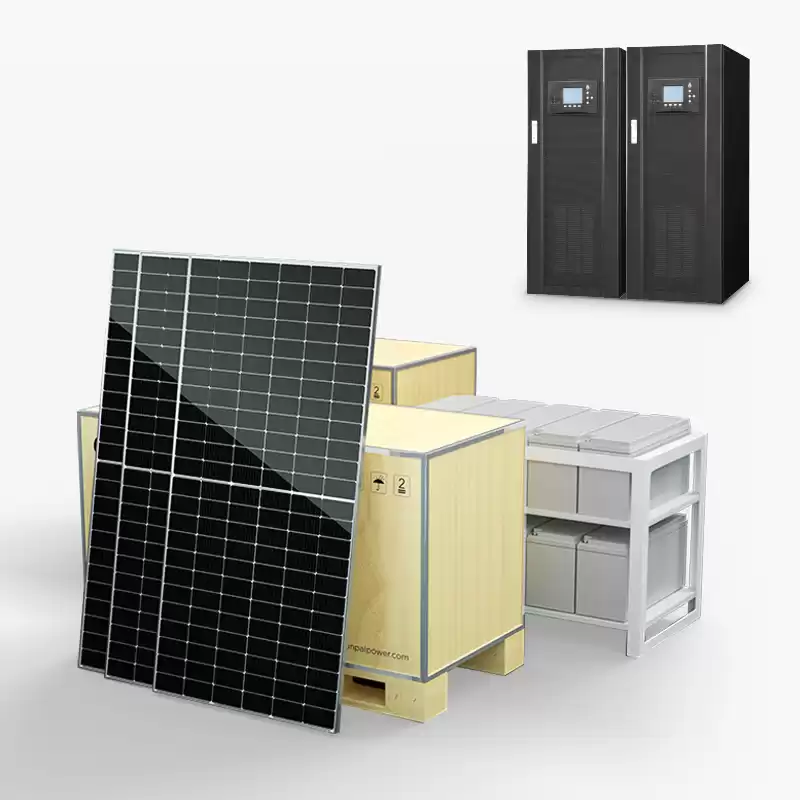

What is in sunpal off grid package:
Mono Solar Panels
Peak Power Watts: 340W (SP340M-60H)
Maximum Power Voltage: 34.2V
Maximum Power Current: 9.94A
Open Circuit Voltage: 41.1V
Short Circuit Current: 10.6A
Dimensions:1698×1004×35 mm (66.85×39.53×1.38 inches)
Weight:18.7 kg (40.8 lb)

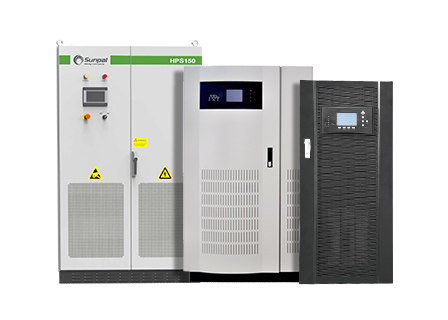

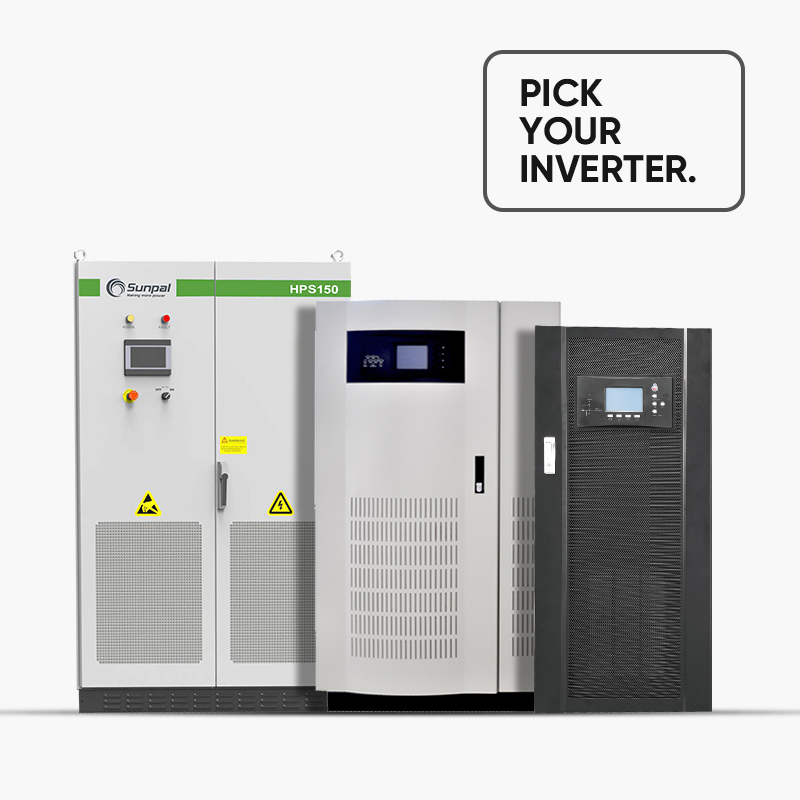

Off Grid Inverter
High-speed DSP digital control
Using multicore control technology and auto MPP trackers, auto-start AC rectifier enable PV and AC source to supply power to the loads at the same time in the event of insufficient PV, which reduces battery discharge times and entend the battery life
Intelligent staggering power consumption function

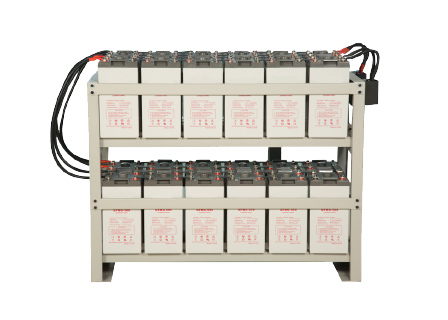

Gel Battery
GEL series is the general purpose battetry with 10 years design life in float service. With up-dated AGM vale regulated technology and high-purity raw materials,the GEL series battery maintains high consistency for better performance and reliable standby service life.It is suitable for UPS/EPS application.
Solar Panel Mounting Structure
With a full range of roof hooks and brackets, It is suitable for most roofing types, including pitched tile roofs, metal roofs, concrete roofs and even slate roofs.compatible with most of the major framed and frameless PV modules on the market.
PV Combiner Box
Single-channel current monitoring function (optional).
Easy Installation,with Mounting Buckle, Suit for Any Regular Surface, Compatible with any Brand of Solar Panel with Solar Connector
Other Accessories
Solar panel install tools
PV cable(4m㎡,6m㎡,10m㎡ etc, optional)
DC and AC switch, protective effect
MC4(normal type, T and Y type etc)
Off grid solar panel system meet certifications:
IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
