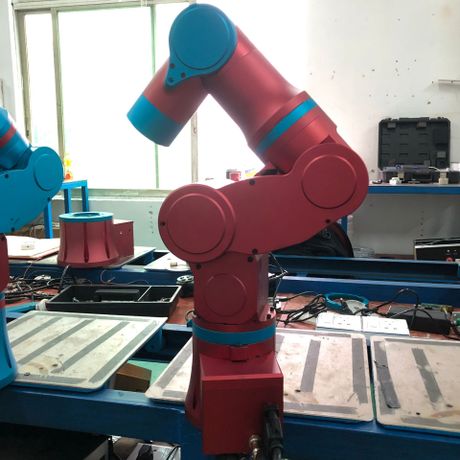

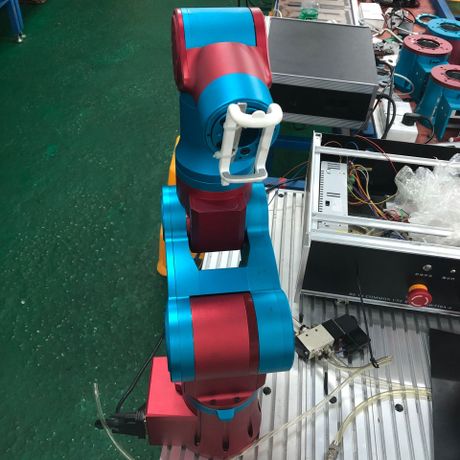

The second generation educational 6 axis robot with absolutely encoder

The TRE500S body joint is made of high-strength aluminum to ensure the machine's high strength, high speed, high accuracy and high stability.




It's full Aluminum Body with absolutely encoder, back to Home position when you power on it !!!

Functions and Features:

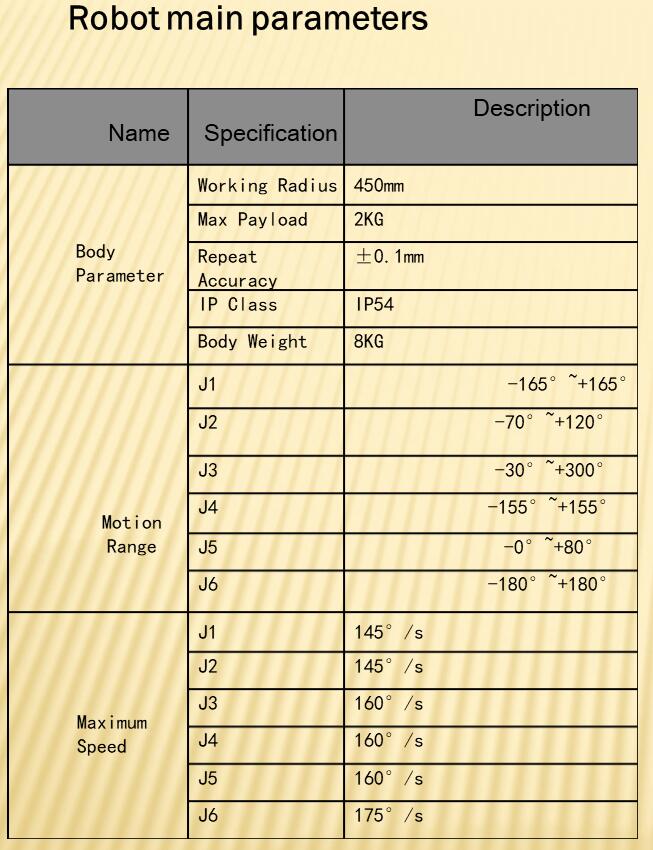

TRE500S adopts a six-axis articulated robot structure. Six absolute servo motors drive the rotation of six joint axes through a precision gear reducer. It has six degrees of freedom, which are rotation (X), lower arm (Y), upper arm (Z), wrist rotation (U), wrist swing (V), and wrist rotation (W).
The TRE500S body joint is made of high-strength aluminum to ensure the machine's high strength, high speed, high accuracy and high stability.
● Servo motor with gear reducer, small size, flexible work, fast speed and high precision.
● The control system has two types of teach pendant and computer operation. The machine is easy to learn and suitable for various applications.
● The robot body adopts internal wiring, which is safe and environmentally friendly.
● The robot is independently developed by us. The all-gear reducer structure has a leading design concept and is easy to maintain.
d5

Reducer:

The reducer used on the robot is a precision gear reducer.
Its main features are:
1. High carrying capacity and strong rigidity.
2. High transmission efficiency and stable movement.
3. Simple structure, few parts and easy installation.
4. Compact mechanical structure, light weight, small size and high efficiency;
5. Good heat exchange performance and fast heat dissipation;
6.Easy installation, flexible and light, superior performance, convenient maintenance and overhaul;
7.Smooth running, low noise and durable;
8. Strong applicability, great safety and reliability.
d6

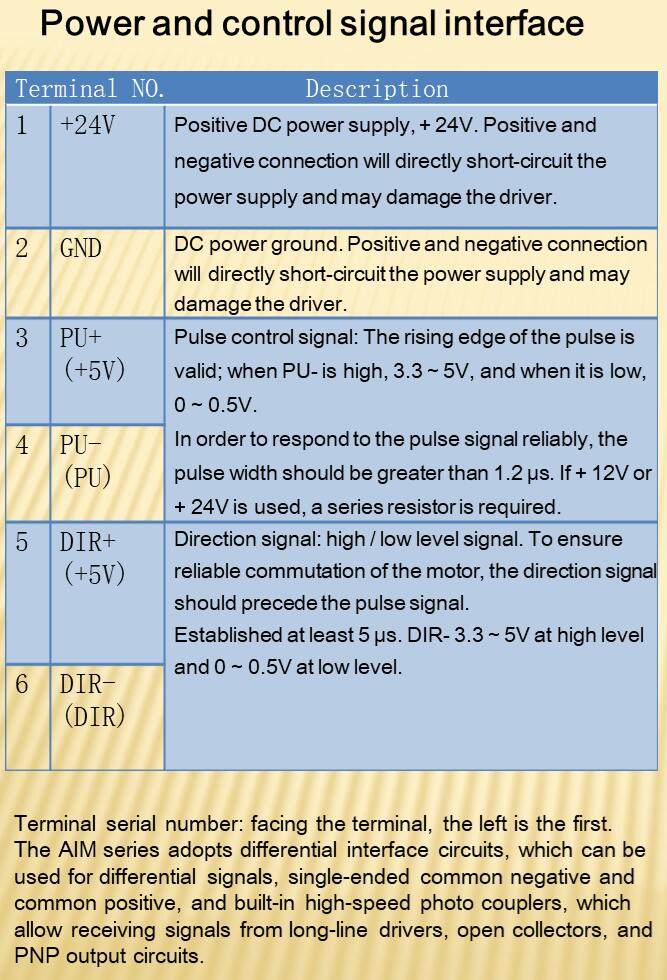

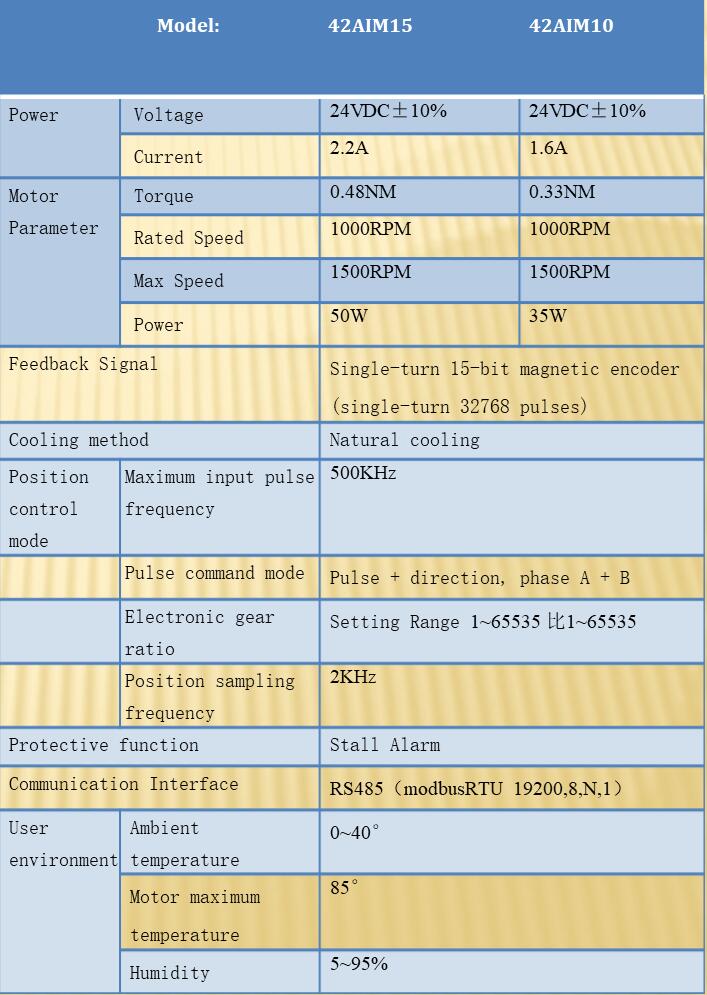

Motor parameters and performance:

1. 15-bit absolute encoder with up to 32768 pulses per revolution.
2. Multi-turn absolute value (requires battery).
3-pulse mode: Automatically return to power-off position when power is turned on again. Communication mode: Power-off recording position.
4. Multi-stage DD motor structure, high torque output.
5. Integrated servo, simplified wiring, ultra-small size.
6, low noise, low vibration, high-speed positioning, high reliability.
7, FOC field directional vector control, support position / speed closed loop.
8. It can work in a given pulse state with zero lag, following zero lag.
9, 16-bit electronic gear function.

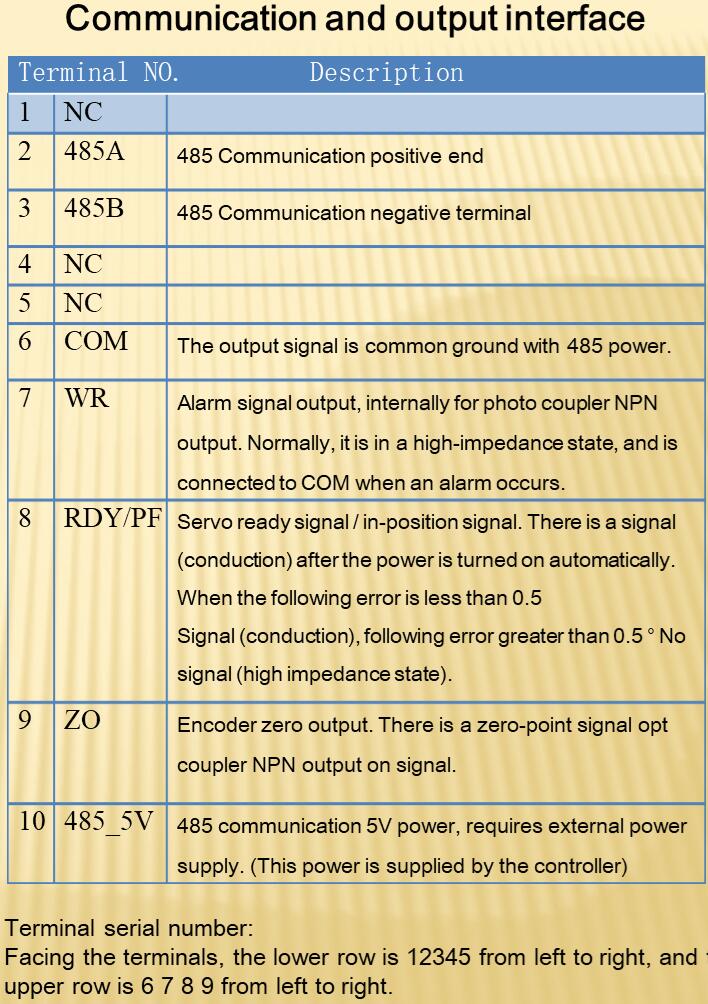

10. Modbus RTU communication (19200, 8, N, 1).
11. Position mode, support pulse + direction signal
12, with stall, over-current protection, over-voltage protection.
d2
450i
d3
450f
d4
450
