The surface boards are the materials to be
used for the production of EPS wall boards. Currently, the mainstream panels in
the market are calcium silicate boards and fiber cement boards. Both panels can
be used as surface panels for EPS wall panels, and customers choose which
panels to use based on the local market.

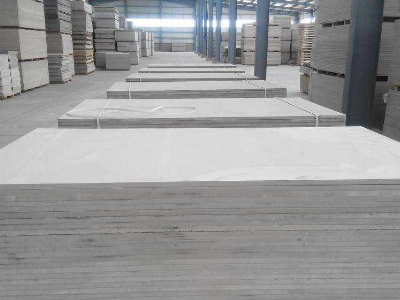

Calcium
silicate board as a new type of green building materials, used in a large
number of ceilings and partition walls of commercial and industrial engineering
buildings, home decoration, furniture linings, billboard linings, warehouse
sheds, network floors and tunnel wall panels.
Calcium
silicate board advantages produced by calcium silicate board production line:
1. Fire
protection, waterproof, moisture-proof, sound insulation, heat insulation,
corrosion resistance, high strength.
2. Anti-seismic, anti-impact, anti-ultraviolet, anti-weathering,
anti-static.
3. Easy to clean, durable, long life.
4. Safe and green, economical and easy to use.
5. Deep processing can be performed on the base plate, which is
highly customizable.

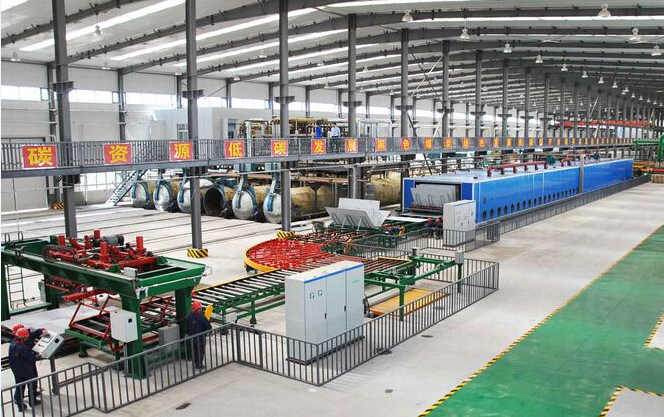

The calcium silicate
board production line consists of refining system, board making system,
stacking system, transportation system, steaming system, drying system, edging
system, etc.. The production line has the advantages of high efficiency, low
energy, high throughput, and economical efficiency.
Calcium
silicate board general specifications:
Length 2440mm,
width 1220mm, common thickness 4-30mm

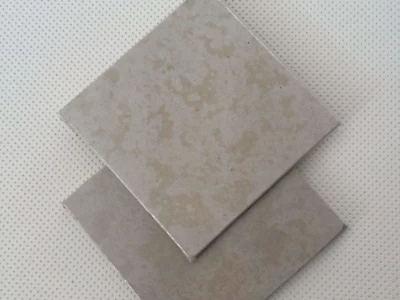

Fiber
cement board is a kind of building concrete slab produced with fiber and cement
as main raw materials. It is widely used in various fields of the construction
industry for its superior performance. According to the difference of the added
fiber, it is divided into asbestos fiber cement board and non-asbestos fiber
cement board, and is divided into fiber cement non-pressure plate and fiber
cement pressure plate according to the different forming pressure.
Fiber
cement pressure plate production line advantages:
1. The production line is
designed with reasonable investment.
2. High degree of automation,
easy operation, smooth operation.
3. The pressure plate has a
smooth surface, high density and strong shock resistance.
4. High yield, large output,
low energy consumption.
5. Can be customizable, according to
user requirements to produce different specifications, different materials
products.
Fiber
cement board advantages produced by fiber cement board production line:
1. Fire insulation,
waterproof, moisture-proof, anti-corrosion and pest control.
2. Sound insulation, light
weight, high strength, safe and harmless.
3. Large bearing capacity,
high flexural strength.
4. Deep processing, good
workability, free cutting, drilling, engraving, paste.
Fiber cement pressure board general specifications:
1200*2400(mm)、1220*2440(mm) Conventional thickness specification is 4-20mm
Fiber cement pressure plate application
scope: wall hanging panels, indoor (bathroom) partitions, sound-absorbing
ceilings, curtain wall liners, composite wall panels, outdoor billboards,
metallurgy, electric furnace insulation panels, electrical distribution cabinets,
transformer partitions.

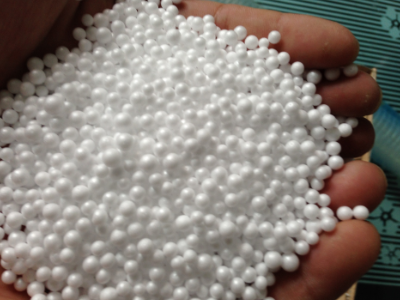

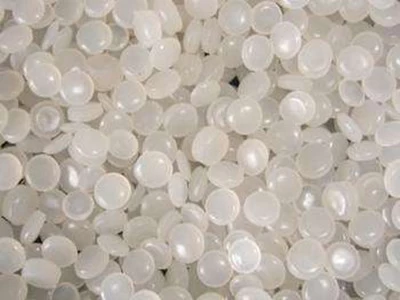

The EPS pre-expander is a device that must
be equipped for the production of EPS wall panels. There are two main types, one
is continuous pre-expander, and the other is batch pre-expander. The
characteristics of the two devices are different and can meet the different
needs of customers.

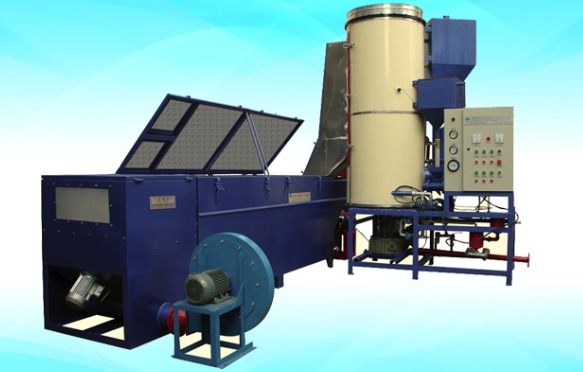

The feature of continuous pre-expander:
1. EPS continuous foaming and conveying, simple
and convenient operation.
2. High production efficiency and affordable
price.
3. Foamed particles are generally uniform and
suitable for customers who do not require high particle uniformity.

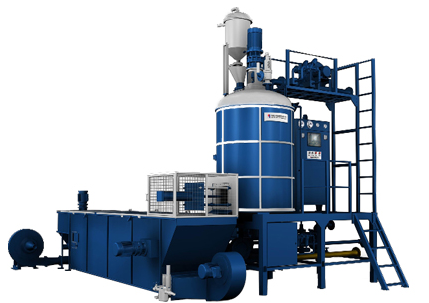

The feature of batch pre-expander:
1. Programmable control, automatic
cycle production.
2. The electronic weighing system,
correctly control the bulk density of the foamed material so that the density
of the bead after foaming is uniform, and each error is less than 3%.
3. The temperature in the boiler is controlled within ±1%°C, so as to
ensure the consistency of the issued EPS raw materials and prevent the EPS from
caking due to poor temperature control.
4. Closed foaming, high thermal efficiency, saving steam.
