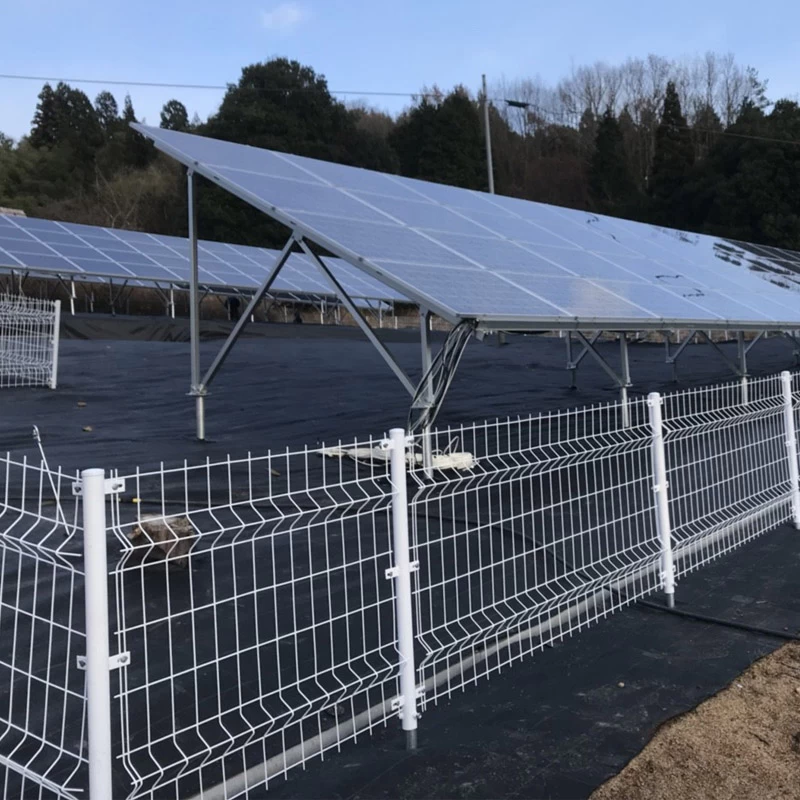

The Triangle Bending Fenceing
To ensure safety , solar project with fence more durable and safer.
To prevent accidents, the fence can prevent children entering to causing accidents.
- Ground clearanceaccording to your need
- Installation siteOpen field
- Materialsteel
- Foundation typeground screw
- Snow load1.4kn/m2
- Max. wind speed60m/s
The Triangle Bending Fenceing
|
Color |
Green, white, black, gray |
|
Surface |
Dip coating , Hot galvanizing |
|
Bolt material |
Steel |
|

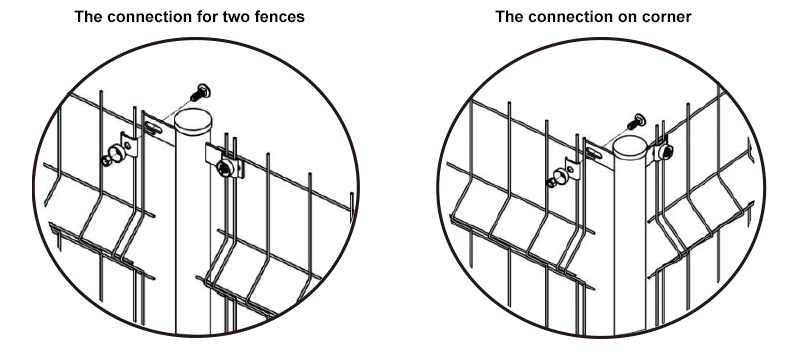

Connection between fence and post |
Connect with fastener after welded |
|
Foundation |
Ground screw ,concrete foundation ,pile in type |
|
Wire diameter |
3.5mm 4.0mm/75*150mm |
|
Post |
Diameter: 38mm,48mm thickness: 2.0mm |
|
Fence size |
Width 2.0mm height: 1.2m,1.5m,1.8m |
|
Fence height |
Ground screw length (pile in type) |
Ground screw length (ground screw foundation) |
Pile in depth (pile in type) |
Pile in depth (ground screw foundation) |

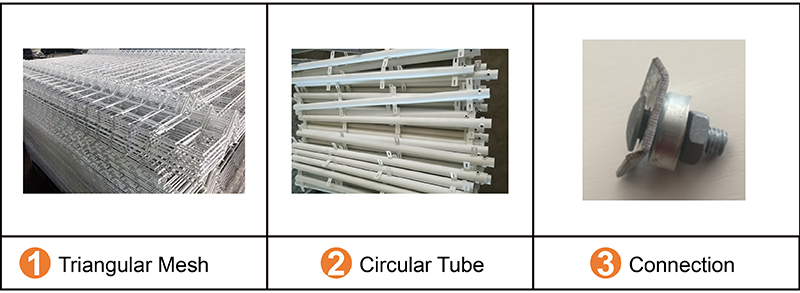

Mesh |
|
H800 |
1100 |
1000 |
300 |
200 |
75*150 |
|
H1000 |
1300 |
1200 |
300 |
200 |
75*150 |
|
H1200 |
1500 |
1400 |
300 |
200 |
75*150 |
|
H1500 |
1800 |
1700 |
300 |
200 |
75*150 |
|
H1800 |
2100 |
2000 |
300 |
200 |
75*150 |

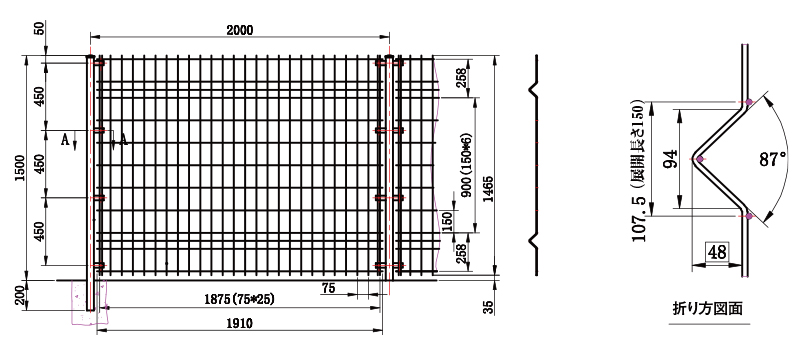

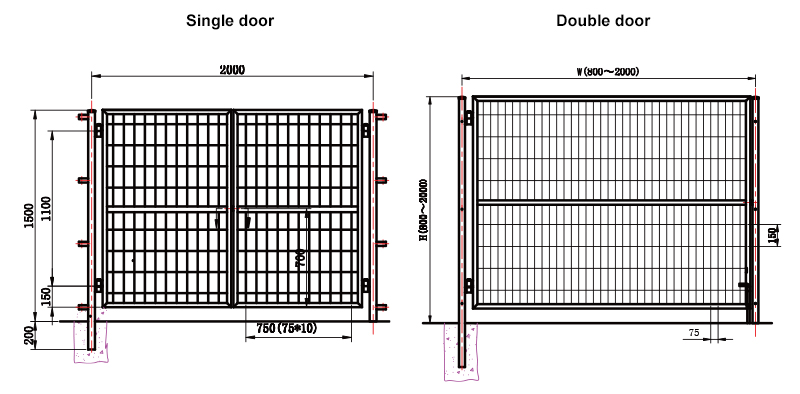

Technical Drawing

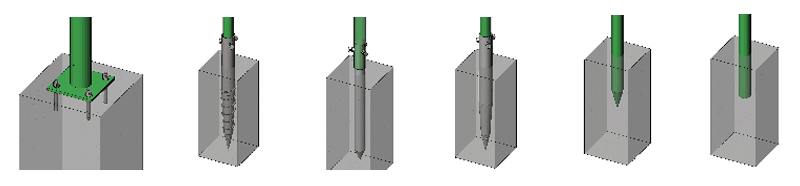

Six type foundation for the install
