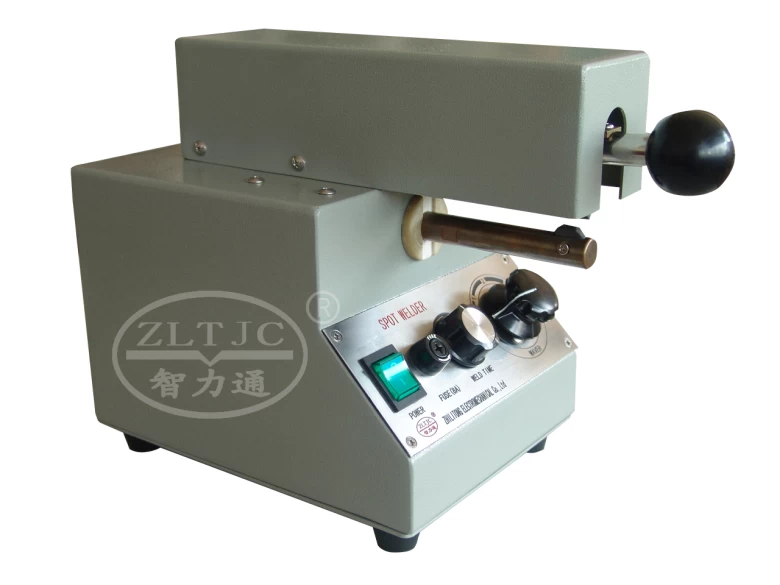

Thermocouple welder
Model ZLT-TC1
The thermocouple welder especially suitable for small wire k type thermocouples is made by extracting the carbon bar from a 6 volt carbon-zinc lantern battery then connecting the negative side of a large capacity, 6 volt sealed lead acid battery as shown. The positive side of the battery is then connected by alligator clip to within diameter 0.5 mm of the twisted thermocouple wires to be welded.
Power Supply 220V 50Hz or 115V 60Hz
Short Current 100A(Max)
Export Voltage 8.5Vac(Max)
Output Power 1：220V/0.2A/9W
2：220V/0.4A/13W
3：220V/0.9A/18W
4：220V/2A/25W
