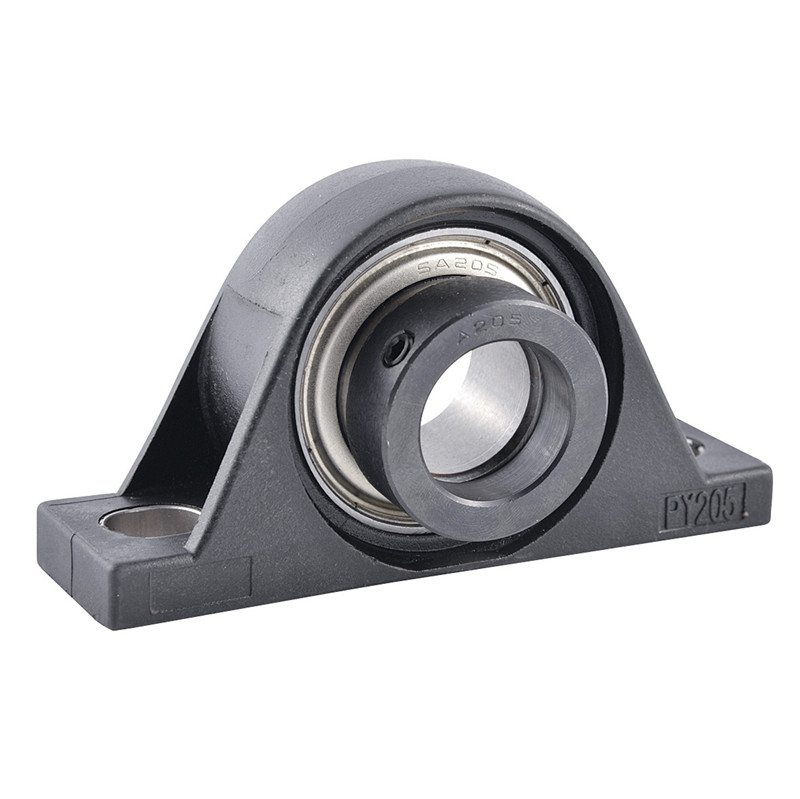

Thermoplastic Bearing Units TP-SBPY2 TP-SAPY2


TP-SBPY/TP-SAPY  Thermoplastic pillow blocks,Chrome steel inserts,Narrow inner ring,Setscrew/Eccentric locking


Facebook Twitter Pinterest LinkedIn 分享

Thermoplastic Housing With BEARING INSERTS TP-SSAPY205-16

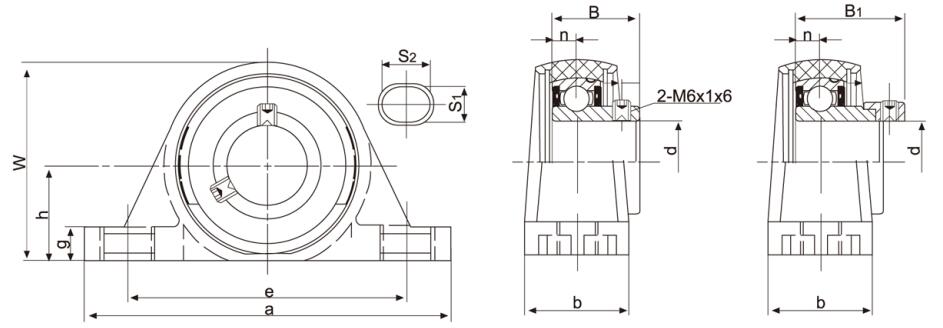

Unit No Shaft d(mm) Dimensionsfmm) Bolt Size Housing No. Bearing No. Housing Weight (kg)
h a e b S1 S2 g w B1 B n
TP-SBPY205-16 1" 29 114 87 32 11 15 10 61 - 27 7.5 3/8 PY205 SB205-16 0.065
TP-SSBPY205-16 1" 29 114 87 32 11 15 10 61 - 27 7.5 3/8 PY205 SSB205-16 0.065
TP-SAPY205-16 1" 29 114 87 32 11 15 10 61 31.5 - 7.5 3/8 PY205 SA205-16 0.065
TP-SSAPY205-16 1" 29 114 87 32 11 15 10 61 31.5 - 7.5 3/8 PY205 SSA205-16 0.065
