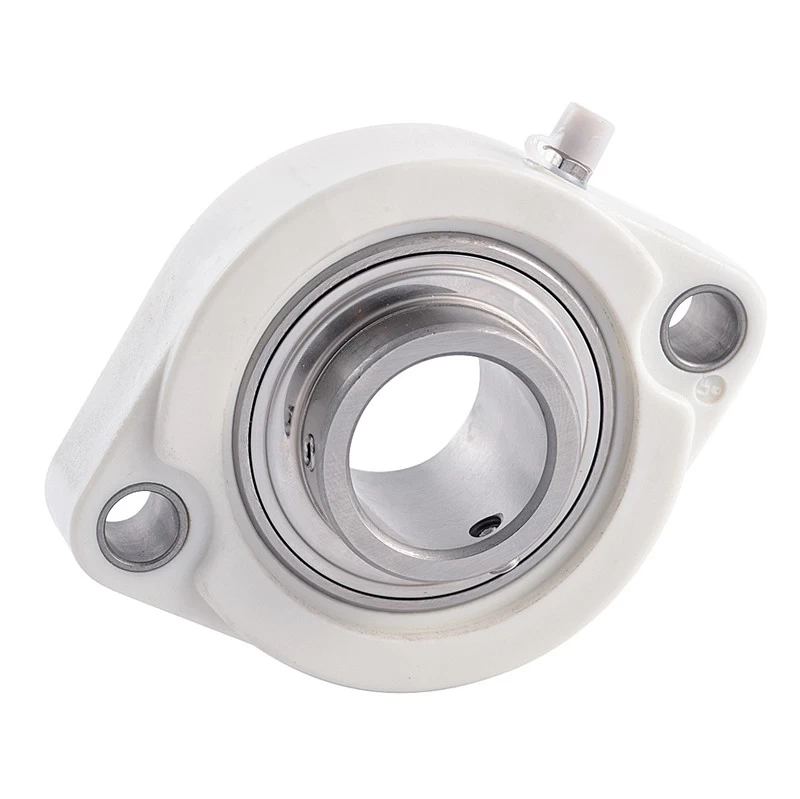

Thermoplastic Bearing Units TP-SSBLF

TP-SSBLF   Thermoplastic flange 2-bolt,Stainless steel inserts,With food grade grease and silicon rubber seal,Setscrew locking

Facebook Twitter Pinterest LinkedIn 分享

Thermoplastic Bearing Units TP-SSBLF205

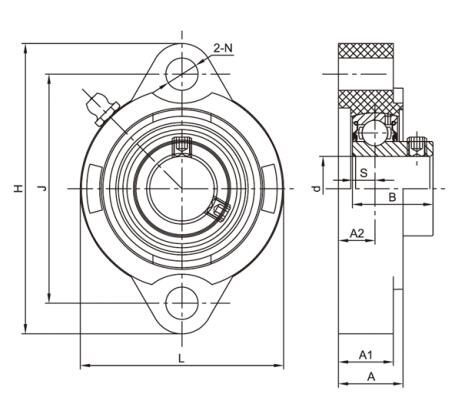

Unit No. Shaft Dia Dimensions(mm) Weight (kg)
d H J L A1 A N A2 B S
(in) (mm)
TP-SSBLF203   17 81 63.5 56 16 18 9 9.5 22 6 0.18
TP-SSBLF203-11 11/16    
TP-SSBLF204    20 90.5 71.4 66.5 18.4 20 9 9.5 25 7 0.17
TP-SSBLF204-12 3/4    
TP-SSBLF205    25 97 76.2 71 18.4 21.2 9 10 27 7.5 0.26
TP-SSBLF205-13  13/16   
TP-SSBLF205-14  7/8   
TP-SSBLF205-15  15/16   
TP-SSBLF205-16 1  
TP-SSBLF206    30 112.5 90.5 84 20.5 23.3 11 11.5 30 8 0.36
TP-SSBLF206-17  1-1/16   
TP-SSBLF206-18  1-1/8   
TP-SSBLF206-19  1-3/16   
TP-SSBLF206-20 1-1/4  
TP-SSBLF207    35 126 100 94 22.5 25.3 11 12.5 32 8.5 0.56
TP-SSBLF207-20  1-1/4   
TP-SSBLF207-21  1-5/16   
TP-SSBLF207-22  1-3/8   
TP-SSBLF207-23 1-7/16  
TP-SSBLF208    40 150 119 100 24 26.8 14 13.5 34 9 0.78
TP-SSBLF208-24  1-1/2   
TP-SSBLF208-25 1-9/16  
