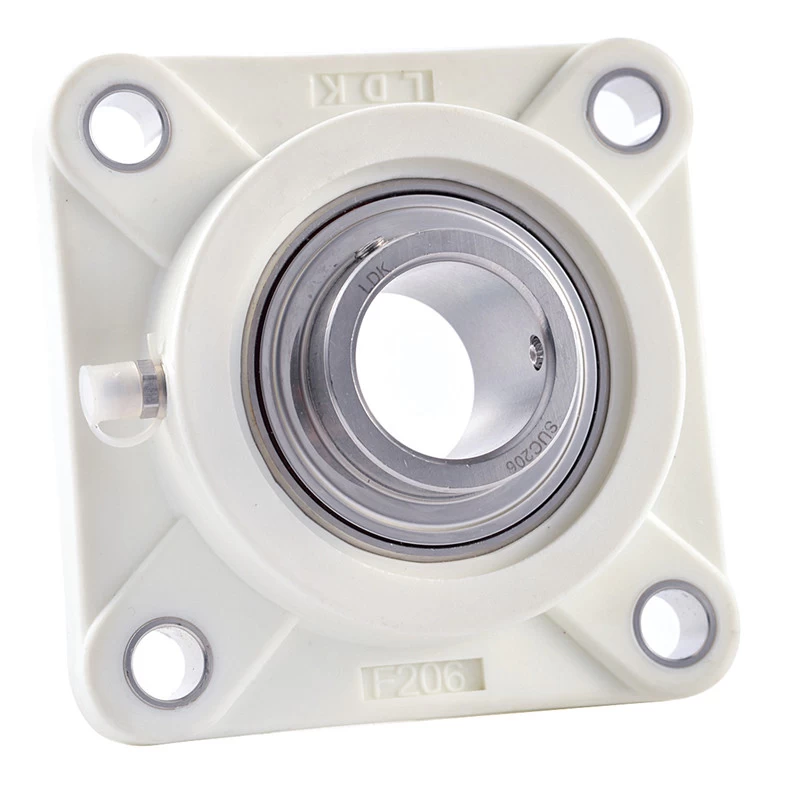

Thermoplastic Bearing Units TP-SUCF2

TP-SUCF  Thermoplastic flange 4-bolt,Solid bade housing,Stainless steel inserts,With food grade grease and silicon rubber seal,Setscrew locking

Facebook Twitter Pinterest LinkedIn 分享

Thermoplastic Bearing Housing TP-SUCF207

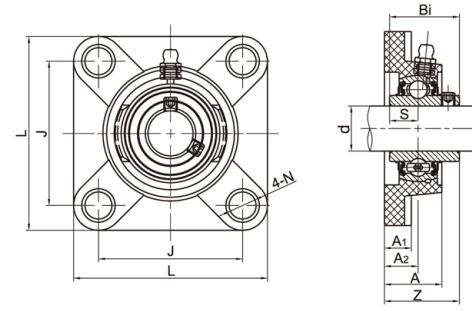

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d L J A2 Al A N B S z
(in) (mm)
TP-SUCF201  12 86 63.5 18 13.4 27.8 11 31 12.7 36.3 M10 0.29
TP-SUCF201-8 1/2   86 63.5 18 13.4 27.8 11 31 12.7 36.3 M10 0.29
TP-SUCF202  15 86 63.5 18 13.4 27.8 11 31 12.7 36.3 M10 0.29
TP-SUCF202-9  9/16    86 63.5 18 13.4 27.8 11 31 12.7 36.3 M10 0.29
TP-SUCF202-10 5/8   86 63.5 18 13.4 27.8 11 31 12.7 36.3 M10 0.29
TP-SUCF203  17 86 63.5 18 13.4 27.8 11 31 12.7 36.3 M10 0.29
TP-SUCF203-11 11/16   86 63.5 18 13.4 27.8 11 31 12.7 36.3 M10 0.29
TP-SUCF204  20 86 63.5 18 13.4 27.8 11 31 12.7 36.3 M10 0.29
TP-SUCF204-12 3/4   86 63.5 18 13.4 27.8 11 31 12.7 36.3 M10 0.29
TP-SUCF205  25 95 70 17 14 28 11 34.1 14.3 36.7 M10 0.32
TP-SUCF205-14  7/8    95 70 17 14 28 11 34.1 14.3 36.7 M10 0.32
TP-SUCF205-15  15/16    95 70 17 14 28 11 34.1 14.3 36.7 M10 0.32
TP-SUCF205-16 1   95 70 17 14 28 11 34.1 14.3 36.7 M10 0.32
TP-SUCF206  30 108 83 19.2 14.3 31.5 11 38.1 15.9 41.4 M10 0.54
TP-SUCF206-17  1-1/16    108 83 19.2 14.3 31.5 11 38.1 15.9 41.4 M10 0.54
TP-SUCF206-18  1-1/8    108 83 19.2 14.3 31.5 11 38.1 15.9 41.4 M10 0.54
TP-SUCF206-19  1-3/16    108 83 19.2 14.3 31.5 11 38.1 15.9 41.4 M10 0.54
TP-SUCF206-20 1-1/4   108 83 19.2 14.3 31.5 11 38.1 15.9 41.4 M10 0.54
TP-SUCF207  35 118 92 21.5 15.5 34.8 13 42.9 17.5 46.9 M12 0.75
TP-SUCF207-20  1-1/4    118 92 21.5 15.5 34.8 13 42.9 17.5 46.9 M12 0.75
TP-SUCF207-21  1-5/16    118 92 21.5 15.5 34.8 13 42.9 17.5 46.9 M12 0.75
TP-SUCF207-22  1-3/8    118 92 21.5 15.5 34.8 13 42.9 17.5 46.9 M12 0.75
TP-SUCF207-23 1-7/16   118 92 21.5 15.5 34.8 13 42.9 17.5 46.9 M12 0.75
TP-SUCF208  40 130 102 23 18 37.5 14 49.2 19 53.2 M12 0.99
TP-SUCF208-24  1-1/2    130 102 23 18 37.5 14 49.2 19 53.2 M12 0.99
TP-SUCF208-25 1-9/16   130 102 23 18 37.5 14 49.2 19 53.2 M12 0.99
TP-SUCF209  45 137 105 24 19 41 17 49.2 19 54.2 M16 1.12
TP-SUCF209-26  1-5/8    137 105 24 19 41 17 49.2 19 54.2 M16 1.12
TP-SUCF209-27  1-11/16    137 105 24 19 41 17 49.2 19 54.2 M16 1.12
TP-SUCF209-28 1-3/4   137 105 24 19 41 17 49.2 19 54.2 M16 1.12
TP-SUCF210  50 143 111 25 21 43 17 51.6 19 57.6 M16 1.24
TP-SUCF210-30  1-7/8    143 111 25 21 43 17 51.6 19 57.6 M16 1.24
TP-SUCF210-31  1-15/16    143 111 25 21 43 17 51.6 19 57.6 M16 1.24
TP-SUCF210-32 2   143 111 25 21 43 17 51.6 19 57.6 M16 1.24
TP-SUCF211  55 162 130 25 20 43 17 55.6 22.2 58.4 M16 1.58
TP-SUCF211-32  2   162 130 25 20 43 17 55.6 22.2 58.4 M16 1.58
TP-SUCF211-34  2-1/8    162 130 25 20 43 17 55.6 22.2 58.4 M16 1.58
TP-SUCF211-35 2-3/16   162 130 25 20 43 17 55.6 22.2 58.4 M16 1.58
TP-SUCF212    60 175 143 29 19 48 17 65.1 25.4 68.7 M16 2.1
TP-SUCF212-36  2-1/4    175 143 29 19 48 17 65.1 25.4 68.7 M16 2.1
TP-SUCF212-38  2-3/8    175 143 29 19 48 17 65.1 25.4 68.7 M16 2.1
TP-SUCF212-39 2-7/16   175 143 29 19 48 17 65.1 25.4 68.7 M16 2.1
