Thermoplastic Bearing Units TP-SUCFB2

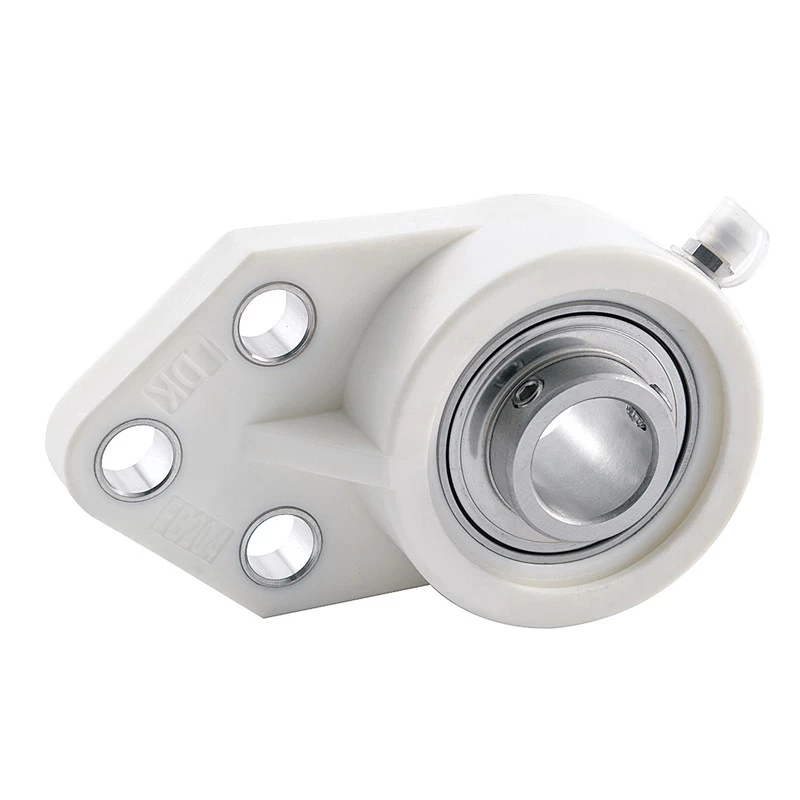

TP-SUCFB  Thermoplastic flange bracket,Stainless steel inserts, With food grade grease and silicon rubber seal,Setscrew locking


Facebook Twitter Pinterest LinkedIn 分享

Plastic Bearing Housing TP-SUCFB207

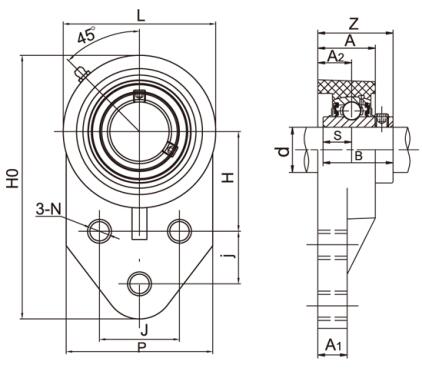

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight
d Ho H J j A2 A1 A N L P B S Z (kg)
(in) (mm)
TP-SUCFB201  12 108 42.9 38.1 22.2 19.7 11.4 31.2 11 63 62 31 12.7 38 M10 0.28
TP-SUCFB201-8 1/2   108 42.9 38.1 22.2 19.7 11.4 31.2 11 63 62 31 12.7 38 M10 0.28
TP-SUCFB202   15 108 42.9 38.1 22.2 19.7 11.4 31.2 11 63 62 31 12.7 38 M10 0.26
TP-SUCFB202-9 9/16   108 42.9 38.1 22.2 19.7 11.4 31.2 11 63 62 31 12.7 38 M10 0.26
TP-SUCFB202-10 5/8   108 42.9 38.1 22.2 19.7 11.4 31.2 11 63 62 31 12.7 38 M10 0.26
TP-SUCFB203  17 108 42.9 38.1 22.2 19.7 11.4 31.2 11 63 62 31 12.7 38 M10 0.25
TP-SUCFB203-11 11/16   108 42.9 38.1 22.2 19.7 11.4 31.2 11 63 62 31 12.7 38 M10 0.25
TP-SUCFB204  20 108 42.9 38.1 22.2 19.7 11.4 31.2 11 63 62 31 12.7 38 M10 0.25
TP-SUCFB204-12 3/4   108 42.9 38.1 22.2 19.7 11.4 31.2 11 63 62 31 12.7 38 M10 0.25
TP-SUCFB205   25 121 46 41.3 28.6 21.3 12.3 33 11 70 63 34.1 14.3 41.1 M10 0.30
TP-SUCFB205-14  7/8    121 46 41.3 28.6 21.3 12.3 33 11 70 63 34.1 14.3 41.1 M10 0.30
TP-SUCFB205-15 15/16   121 46 41.3 28.6 21.3 12.3 33 11 70 63 34.1 14.3 41.1 M10 0.30
TP-SUCFB205-16 1   121 46 41.3 28.6 21.3 12.3 33 11 70 63 34.1 14.3 41.1 M10 0.30
TP-SUCFB206   30 139 52.4 47.6 31.8 22.9 14.5 35.4 11 83 76 38.1 15.9 47.6 M10 0.46
TP-SUCFB206-17 1-1/16   139 52.4 47.6 31.8 22.9 14.5 35.4 11 83 76 38.1 15.9 47.6 M10 0.46
TP-SUCFB206-18 1-1/8   139 52.4 47.6 31.8 22.9 14.5 35.4 11 83 76 38.1 15.9 47.6 M10 0.46
TP-SUCFB206-19 1-3/16   139 52.4 47.6 31.8 22.9 14.5 35.4 11 83 76 38.1 15.9 47.6 M10 0.46
TP-SUCFB206-20 1-1/4   139 52.4 47.6 31.8 22.9 14.5 35.4 11 83 76 38.1 15.9 47.6 M10 0.46
TP-SUCFB207   35 158 60.3 50.8 31.8 24.5 17 37.5 13 94 89 42.9 17.5 50.8 M12 0.66
TP-SUCFB207-20 1-1/4   158 60.3 50.8 31.8 24.5 17 37.5 13 94 89 42.9 17.5 50.8 M12 0.66
TP-SUCFB207-21 1-5/16   158 60.3 50.8 31.8 24.5 17 37.5 13 94 89 42.9 17.5 50.8 M12 0.66
TP-SUCFB207-22 1-3/8   158 60.3 50.8 31.8 24.5 17 37.5 13 94 89 42.9 17.5 50.8 M12 0.66
TP-SUCFB207-23 1-7/16   158 60.3 50.8 31.8 24.5 17 37.5 13 94 89 42.9 17.5 50.8 M12 0.66
TP-SUCFB208   40 178 67.3 54 35.5 26 18.5 39.5 13 103 99 49.2 19 54 M12 0.9
TP-SUCFB208-24 1-1/2   178 67.3 54 35.5 26 18.5 39.5 13 103 99 49.2 19 54 M12 0.9
TP-SUCFB208-25 1-9/16   178 67.3 54 35.5 26 18.5 39.5 13 103 99 49.2 19 54 M12 0.9
