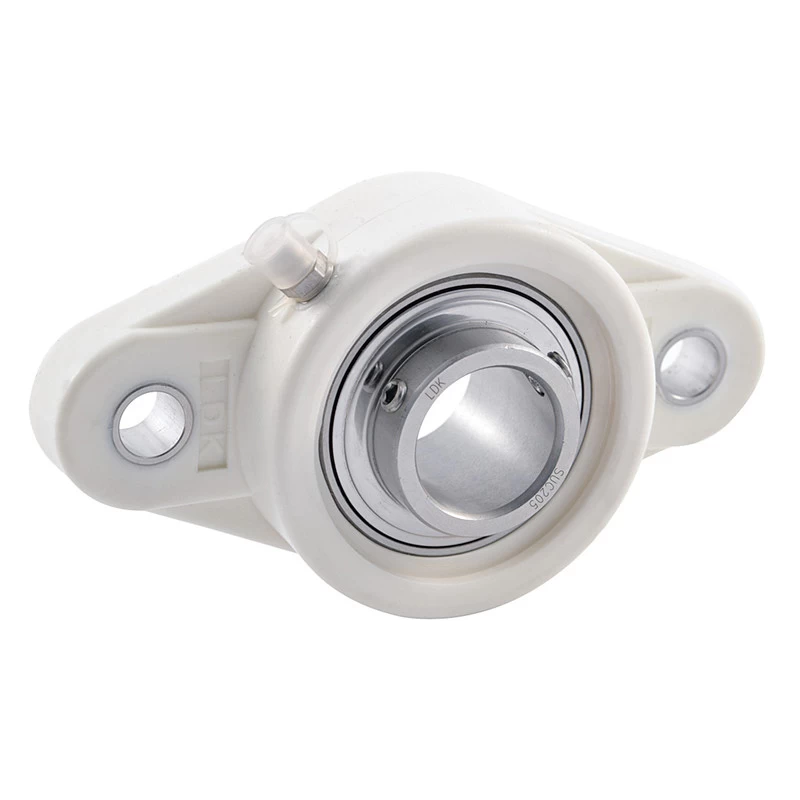

Thermoplastic Bearing Units TP-SUCFL2

TP-SUCFL  Thermoplastic flange 2-bolt,Solid base housing,Stainless steel inserts,With food grade grease and silicon rubber seal,Setscrew locking

Facebook Twitter Pinterest LinkedIn 分享

Thermoplastic Bearing Units TP-SUCFL205-16

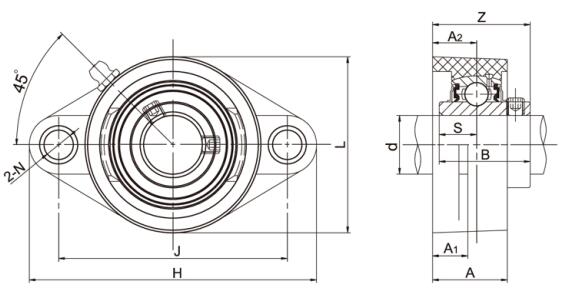

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d H J A2 A1 A N L B S Z
(in) (mm)
TP-SUCFL201  12 113 90 15.4 14 26.5 11 65 31 12.7 33.7 M10 0.25
TP-SUCFL201-8 1/2   113 90 15.4 14 26.5 11 65 31 12.7 33.7 M10 0.25
TP-SUCFL202  15 113 90 15.4 14 26.5 11 65 31 12.7 33.7 M10 0.25
TP-SUCFL202-9  9/16    113 90 15.4 14 26.5 11 65 31 12.7 33.7 M10 0.25
TP-SUCFL202-10 5/8   113 90 15.4 14 26.5 11 65 31 12.7 33.7 M10 0.25
TP-SUCFL203  17 113 90 15.4 14 26.5 11 65 31 12.7 33.7 M10 0.25
TP-SUCFL203-11 11/16   113 90 15.4 14 26.5 11 65 31 12.7 33.7 M10 0.25
TP-SUCFL204  20 113 90 15.4 14 26.5 11 65 31 12.7 33.7 M10 0.25
TP-SUCFL204-12 3/4   113 90 15.4 14 26.5 11 65 31 12.7 33.7 M10 0.25
TP-SUCFL205  25 131 99 17 14 29 11 69 34.1 14.3 36.7 M10 0.32
TP-SUCFL205-14  7/8    131 99 17 14 29 11 69 34.1 14.3 36.7 M10 0.32
TP-SUCFL205-15  15/16    131 99 17 14 29 11 69 34.1 14.3 36.7 M10 0.32
TP-SUCFL205-16 1   131 99 17 14 29 11 69 34.1 14.3 36.7 M10 0.32
TP-SUCFL206  30 148 117 19 14 31 11 80 38.1 15.9 41.2 M10 0.5
TP-SUCFL206-17  1-1/16    148 117 19 14 31 11 80 38.1 15.9 41.2 M10 0.5
TP-SUCFL206-18  1-1/8    148 117 19 14 31 11 80 38.1 15.9 41.2 M10 0.5
TP-SUCFL206-19  1-3/16    148 117 19 14 31 11 80 38.1 15.9 41.2 M10 0.5
TP-SUCFL206-20 1-1/4   148 117 19 14 31 11 80 38.1 15.9 41.2 M10 0.5
TP-SUCFL207  35 166 130 18 16 32 13 92 42.9 17.5 43.4 M12 0.7
TP-SUCFL207-20  1-1/4    166 130 18 16 32 13 92 42.9 17.5 43.4 M12 0.7
TP-SUCFL207-21  1-5/16    166 130 18 16 32 13 92 42.9 17.5 43.4 M12 0.7
TP-SUCFL207-22  1-3/8    166 130 18 16 32 13 92 42.9 17.5 43.4 M12 0.7
TP-SUCFL207-23 1-7/16   166 130 18 16 32 13 92 42.9 17.5 43.4 M12 0.7
TP-SUCFL208  40 176 144 21.5 20 37.5 14 101 49.2 19 51.7 M12 0.89
TP-SUCFL208-24  1-1/2    176 144 21.5 20 37.5 14 101 49.2 19 51.7 M12 0.89
TP-SUCFL208-25 1-9/16   176 144 21.5 20 37.5 14 101 49.2 19 51.7 M12 0.89
TP-SUCFL209  45 189 148.5 24 21 41 17 108 49.2 19 54.2 M16 1.01
TP-SUCFL209-26  1-5/8    189 148.5 24 21 41 17 108 49.2 19 54.2 M16 1.01
TP-SUCFL209-27  1-11/16    189 148.5 24 21 41 17 108 49.2 19 54.2 M16 1.01
TP-SUCFL209-28 1-3/4   189 148.5 24 21 41 17 108 49.2 19 54.2 M16 1.01
TP-SUCFL210  50 197 157 25 21 43 17 116 51.6 19 57.6 M16 1.13
TP-SUCFL210-30  1-7/8    197 157 25 21 43 17 116 51.6 19 57.6 M16 1.13
TP-SUCFL210-31  1-15/16    197 157 25 21 43 17 116 51.6 19 57.6 M16 1.13
TP-SUCFL210-32 2   197 157 25 21 43 17 116 51.6 19 57.6 M16 1.13
TP-SUCFL211  55 224 184 25 20 43 17 130 55.6 22.2 58.1 M16 1.5
TP-SUCFL211-32  2   224 184 25 20 43 17 130 55.6 22.2 58.1 M16 1.5
TP-SUCFL211-34  2-1/8    224 184 25 20 43 17 130 55.6 22.2 58.1 M16 1.5
TP-SUCFL211-35 2-3/16   224 184 25 20 43 17 130 55.6 22.2 58.1 M16 1.5
TP-SUCFL212    60 250 202 29 20 48 18 140 65.1 25.4 68.7 M16 2.1
TP-SUCFL212-36  2-1/4    250 202 29 20 48 18 140 65.1 25.4 68.7 M16 2.1
TP-SUCFL212-38  2-3/8    250 202 29 20 48 18 140 65.1 25.4 68.7 M16 2.1

TP-SUCFL212-39

2-7/16   250 202 29 20 48 18 140 65.1 25.4 68.7 M16 2.1
