Thermoplastic Bearing Units TP-SUCPA2



TP-SUCPA  Thermoplastic pillow blocks,Tapped base,Stainless steel inserts,With food grade grease and silicon rubber seal,Setscrew locking



Facebook Twitter Pinterest LinkedIn 分享

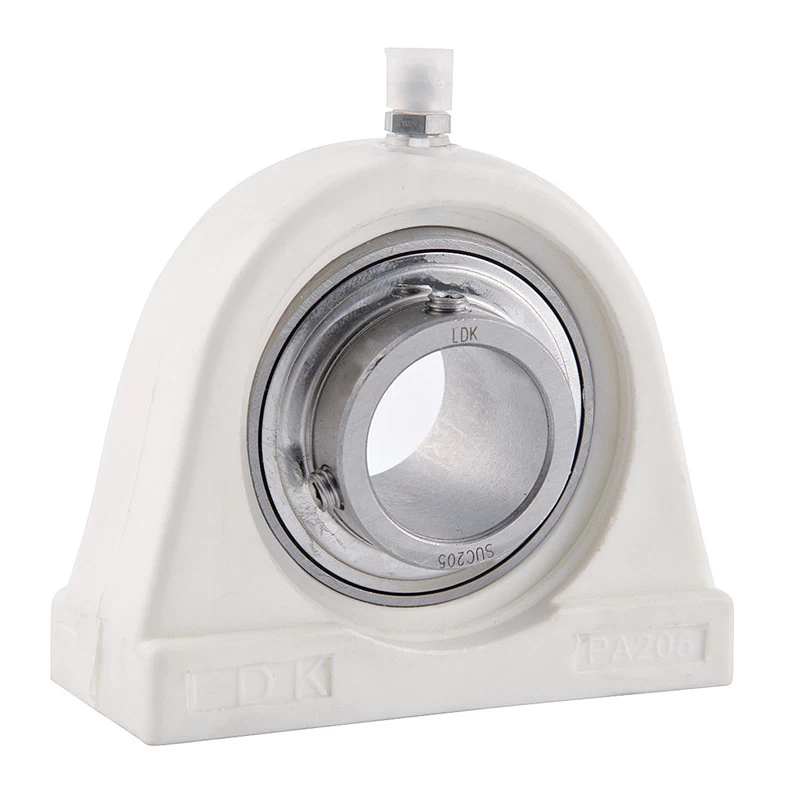

Thermoplastic Bearing Housing TP-SUCPA208

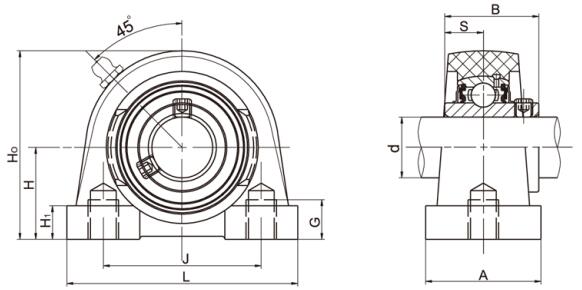

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d h L J A Ho G H1 B S
(in) (mm)
TP-SUCPA201  12 33.3 76 52 38 64 10 13 31 12.7 M8 0.26
TP-SUCPA201-8 1/2   33.3 76 52 38 64 10 13 31 12.7 M8 0.26
TP-SUCPA202  15 33.3 76 52 38 64 10 13 31 12.7 M8 0.26
TP-SUCPA202-9  9/16    33.3 76 52 38 64 10 13 31 12.7 M8 0.26
TP-SUCPA202-10 5/8   33.3 76 52 38 64 10 13 31 12.7 M8 0.26
TP-SUCPA203  17 33.3 76 52 38 64 10 13 31 12.7 M8 0.26
TP-SUCPA203-11 11/16   33.3 76 52 38 64 10 13 31 12.7 M8 0.26
TP-SUCPA204  20 33.3 76 52 38 64 10 13 31 12.7 M8 0.26
TP-SUCPA204-12 3/4   33.3 76 52 38 64 10 13 31 12.7 M8 0.26
TP-SUCPA205  25 36.5 84 56 38 72 12 14 34.1 14.3 M10 0.32
TP-SUCPA205-14  7/8    36.5 84 56 38 72 12 14 34.1 14.3 M10 0.32
TP-SUCPA205-15  15/16    36.5 84 56 38 72 12 14 34.1 14.3 M10 0.32
TP-SUCPA205-16 1   36.5 84 56 38 72 12 14 34.1 14.3 M10 0.32
TP-SUCPA206  30 42.9 95 66 48 84 12 16 38.1 15.9 M10 0.53
TP-SUCPA206-17  1-1/16    42.9 95 66 48 84 12 16 38.1 15.9 M10 0.53
TP-SUCPA206-18  1-1/8    42.9 95 66 48 84 12 16 38.1 15.9 M10 0.53
TP-SUCPA206-19  1-3/16    42.9 95 66 48 84 12 16 38.1 15.9 M10 0.53
TP-SUCPA206-20 1-1/4   42.9 95 66 48 84 12 16 38.1 15.9 M10 0.53
TP-SUCPA207 35 47.6 110 80 48 95 12 18 42.9 17.5 M10 0.73
TP-SUCPA207-20  1-1/4    47.6 110 80 48 95 12 18 42.9 17.5 M10 0.73
TP-SUCPA207-21  1-5/16    47.6 110 80 48 95 12 18 42.9 17.5 M10 0.73
TP-SUCPA207-22  1-3/8    47.6 110 80 48 95 12 18 42.9 17.5 M10 0.73
TP-SUCPA207-23 1-7/16   47.6 110 80 48 95 12 18 42.9 17.5 M10 0.73
TP-SUCPA208  40 49.2 116 84 54 100 15 18 49.2 19 M12 0.93
TP-SUCPA208-24  1-1/2    49.2 116 84 54 100 15 18 49.2 19 M12 0.93
TP-SUCPA208-25 1-9/16   49.2 116 84 54 100 15 18 49.2 19 M12 0.93
TP-SUCPA209  45 54.2 120 90 54 108 15 20 49.2 19 M12 1.06
TP-SUCPA209-26  1-5/8    54.2 120 90 54 108 15 20 49.2 19 M12 1.06
TP-SUCPA209-27  1-11/16    54.2 120 90 54 108 15 20 49.2 19 M12 1.06
TP-SUCPA209-28 1-3/4   54.2 120 90 54 108 15 20 49.2 19 M12 1.06
TP-SUCPA210  50 57.2 130 94 60 116 18 21 51.6 19 M16 1.25
TP-SUCPA210-30  1-7/8    57.2 130 94 60 116 18 21 51.6 19 M16 1.25
TP-SUCPA210-31  1-15/16    57.2 130 94 60 116 18 21 51.6 19 M16 1.25
TP-SUCPA210-32 2   57.2 130 94 60 116 18 21 51.6 19 M16 1.25
