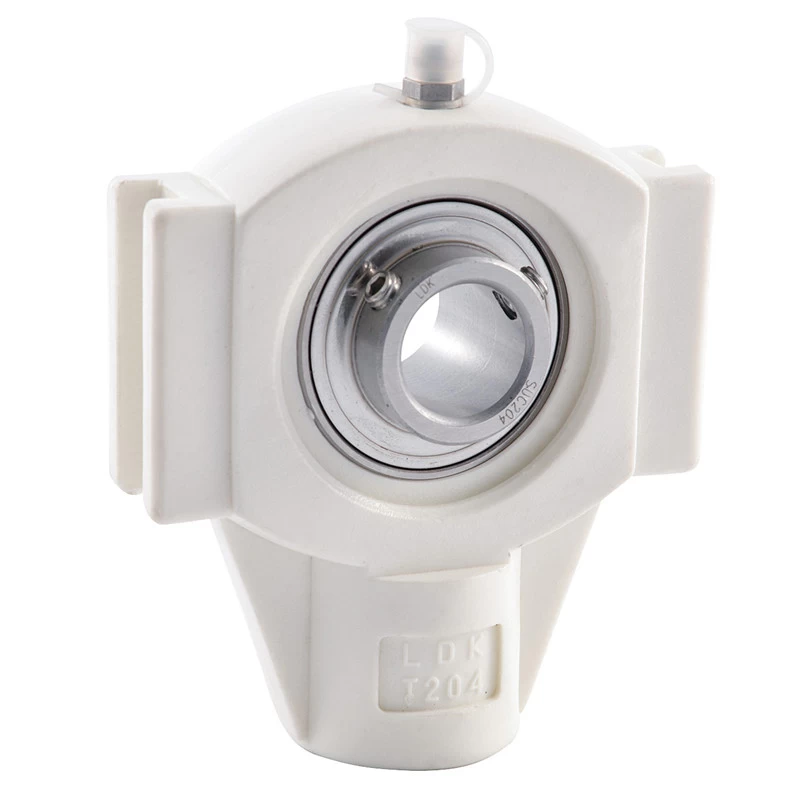

Thermoplastic Bearing Units TP-SUCT2



TP-SUCT  Thermoplastic take up,Stainless steel inserts,With food grade grease and silicon rubber seal,Setscrew locking



Facebook Twitter Pinterest LinkedIn 分享

Plastic Housing TP-SUCT208

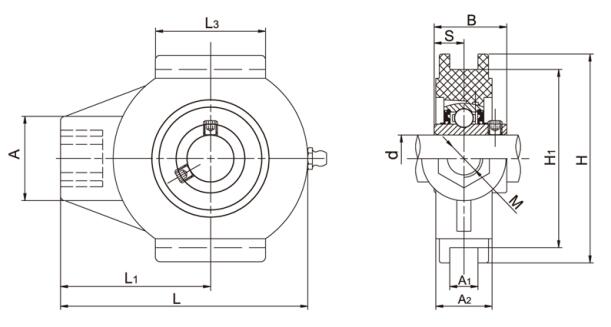

Unit No. Shaft Dia Dimensions(mm) Weight (kg)
d L A2 A1 L1 H H1 M A L3 B S
(in) (mm)
TP-SUCT201  12 99 27.5 12 64 88 76 M16 36 47 31 12.7 0.33
TP-SUCT201-8 1/2   99 27.5 12 64 88 76 M16 36 47 31 12.7 0.33
TP-SUCT202  15 99 27.5 12 64 88 76 M16 36 47 31 12.7 0.33
TP-SUCT202-9  9/16    99 27.5 12 64 88 76 M16 36 47 31 12.7 0.33
TP-SUCT202-10 5/8   99 27.5 12 64 88 76 M16 36 47 31 12.7 0.33
TP-SUCT203  17 99 27.5 12 64 88 76 M16 36 47 31 12.7 0.33
TP-SUCT203-11 11/16   99 27.5 12 64 88 76 M16 36 47 31 12.7 0.33
TP-SUCT204  20 99 27.5 12 64 88 76 M16 36 47 31 12.7 0.33
TP-SUCT204-12 3/4   99 27.5 12 64 88 76 M16 36 47 31 12.7 0.33
TP-SUCT205  25 99 27.5 12 64 88 76 M16 36 47 34.1 14.3 0.34
TP-SUCT205-14  7/8    99 27.5 12 64 88 76 M16 36 47 34.1 14.3 0.34
TP-SUCT205-15  15/16    99 27.5 12 64 88 76 M16 36 47 34.1 14.3 0.34
TP-SUCT205-16 1   99 27.5 12 64 88 76 M16 36 47 34.1 14.3 0.34
TP-SUCT206  30 125 34.5 12 76 102 89 M16 40 63 38.1 15.9 0.62
TP-SUCT206-17  1-1/16    125 34.5 12 76 102 89 M16 40 63 38.1 15.9 0.62
TP-SUCT206-18  1-1/8    125 34.5 12 76 102 89 M16 40 63 38.1 15.9 0.62
TP-SUCT206-19  1-3/16    125 34.5 12 76 102 89 M16 40 63 38.1 15.9 0.62
TP-SUCT206-20 1-1/4   125 34.5 12 76 102 89 M16 40 63 38.1 15.9 0.62
TP-SUCT207  35 125 34.5 12 76 102 89 M16 40 63 42.9 17.5 0.73
TP-SUCT207-20  1-1/4    125 34.5 12 76 102 89 M16 40 63 42.9 17.5 0.73
TP-SUCT207-21  1-5/16    125 34.5 12 76 102 89 M16 40 63 42.9 17.5 0.73
TP-SUCT207-22  1-3/8    125 34.5 12 76 102 89 M16 40 63 42.9 17.5 0.73
TP-SUCT207-23 1-7/16   125 34.5 12 76 102 89 M16 40 63 42.9 17.5 0.73
TP-SUCT208  40 140 34.5 16 85 114 102 M16 40 80 49.2 19 0.96
TP-SUCT208-24  1-1/2    140 34.5 16 85 114 102 M16 40 80 49.2 19 0.96
TP-SUCT208-25 1-9/16   140 34.5 16 85 114 102 M16 40 80 49.2 19 0.96
TP-SUCT209  45 149 40 16 90 116 102 M20 50 85 49.2 19 1.14
TP-SUCT209-26  1-5/8    149 40 16 90 116 102 M20 50 85 49.2 19 1.14
TP-SUCT209-27  1-11/16    149 40 16 90 116 102 M20 50 85 49.2 19 1.14
TP-SUCT209-28 1-3/4   149 40 16 90 116 102 M20 50 85 49.2 19 1.14
TP-SUCT210    50 149 40 16 90 116 102 M20 50 85 51.6 19 1.17
TP-SUCT210-30  1-7/8    149 40 16 90 116 102 M20 50 85 51.6 19 1.17
TP-SUCT210-31  1-15/16    149 40 16 90 116 102 M20 50 85 51.6 19 1.17
TP-SUCT210-32 2   149 40 16 90 116 102 M20 50 85 51.6 19 1.17
