Thermoplastic Bearing Units TP-SUEFB2

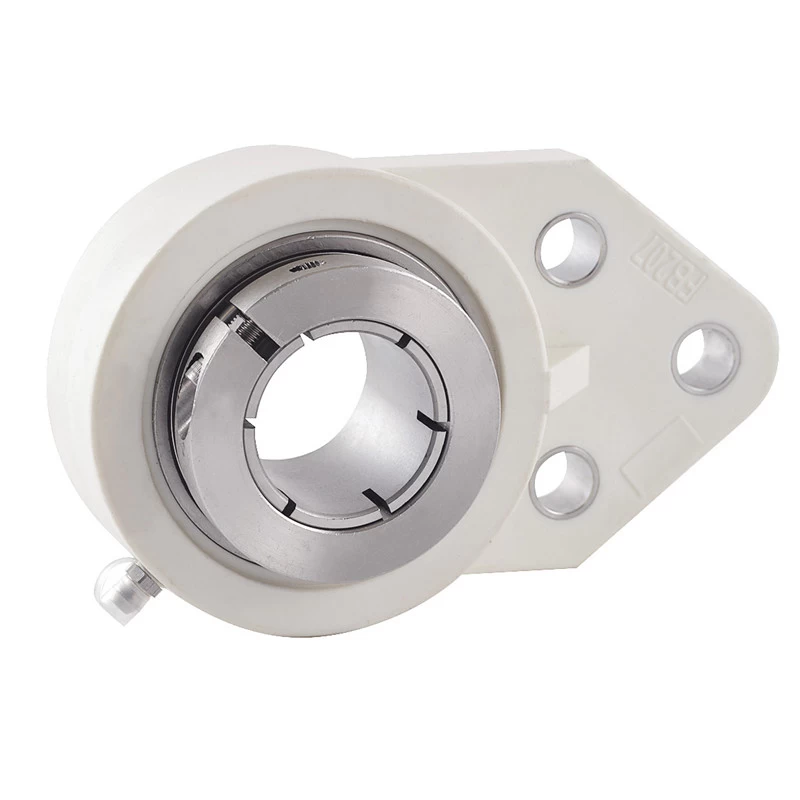

TP-SUEFB  Thermoplastic flange bracket,Stainless steel inserts,With food grade grease and silicon rubber seal,Concerntric locking

Facebook Twitter Pinterest LinkedIn 分享

T[-SUEFB204 Plastic Bearing Housing

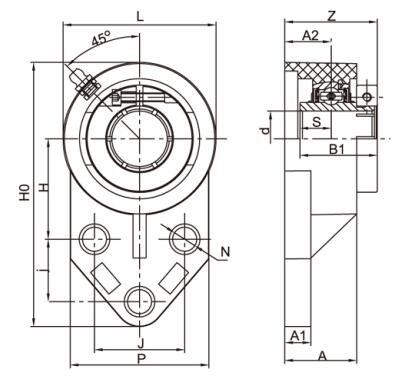

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight
d H0 H J j A2 A1 A N L P B1 S Z (kg)
(in) (mm)
TP-SUEFB204    20 108 42.9 38.1 22.2 19.7 11.4 31.2 11 63 62 33 12.7 40 M10 0.28
TP-SUEFB204-12 3/4   108 42.9 38.1 22.2 19.7 11.4 31.2 11 63 62 33 12.7 40 M10 0.28
TP-SUEFB205   25 121 46 41.3 28.6 21.3 12.3 33 11 70 63 35.4 14.3 42.4 M10 0.33
TP-SUEFB205-14  7/8    121 46 41.3 28.6 21.3 12.3 33 11 70 63 35.4 14.3 42.4 M10 0.33
TP-SUEFB205-15 15/16   121 46 41.3 28.6 21.3 12.3 33 11 70 63 35.4 14.3 42.4 M10 0.33
TP-SUEFB205-16 1   121 46 41.3 28.6 21.3 12.3 33 11 70 63 35.4 14.3 42.4 M10 0.33
TP-SUEFB206   30 139 52.4 47.6 31.8 22.9 14.5 35.4 11 83 76 39.8 15.9 46.8 M10 0.51
TP-SUEFB206-17 1-1/16   139 52.4 47.6 31.8 22.9 14.5 35.4 11 83 76 39.8 15.9 46.8 M10 0.51
TP-SUEFB206-18 1-1/8   139 52.4 47.6 31.8 22.9 14.5 35.4 11 83 76 39.8 15.9 46.8 M10 0.51
TP-SUEFB206-19 1-3/16   139 52.4 47.6 31.8 22.9 14.5 35.4 11 83 76 39.8 15.9 46.8 M10 0.51
TP-SUEFB206-20 1-1/4   139 52.4 47.6 31.8 22.9 14.5 35.4 11 83 76 39.8 15.9 46.8 M10 0.51
TP-SUEFB207   35 158 60.3 50.8 31.8 24.5 17 37.5 13 94 89 43.9 17.5 50.9 M12 0.77
TP-SUEFB207-20 1-1/4   158 60.3 50.8 31.8 24.5 17 37.5 13 94 89 43.9 17.5 50.9 M12 0.77
TP-SUEFB207-21 1-5/16   158 60.3 50.8 31.8 24.5 17 37.5 13 94 89 43.9 17.5 50.9 M12 0.77
TP-SUEFB207-22 1-3/8   158 60.3 50.8 31.8 24.5 17 37.5 13 94 89 43.9 17.5 50.9 M12 0.77
TP-SUEFB207-23 1-7/16   158 60.3 50.8 31.8 24.5 17 37.5 13 94 89 43.9 17.5 50.9 M12 0.77
TP-SUEFB208   40 178 67.3 54 35.5 26 18.5 39.5 13 103 99 50.2 19 57.2 M12 1.02
TP-SUEFB208-24 1-1/2   178 67.3 54 35.5 26 18.5 39.5 13 103 99 50.2 19 57.2 M12 1.02
TP-SUEFB208-25 1-9/16   178 67.3 54 35.5 26 18.5 39.5 13 103 99 50.2 19 57.2 M12 1.02
