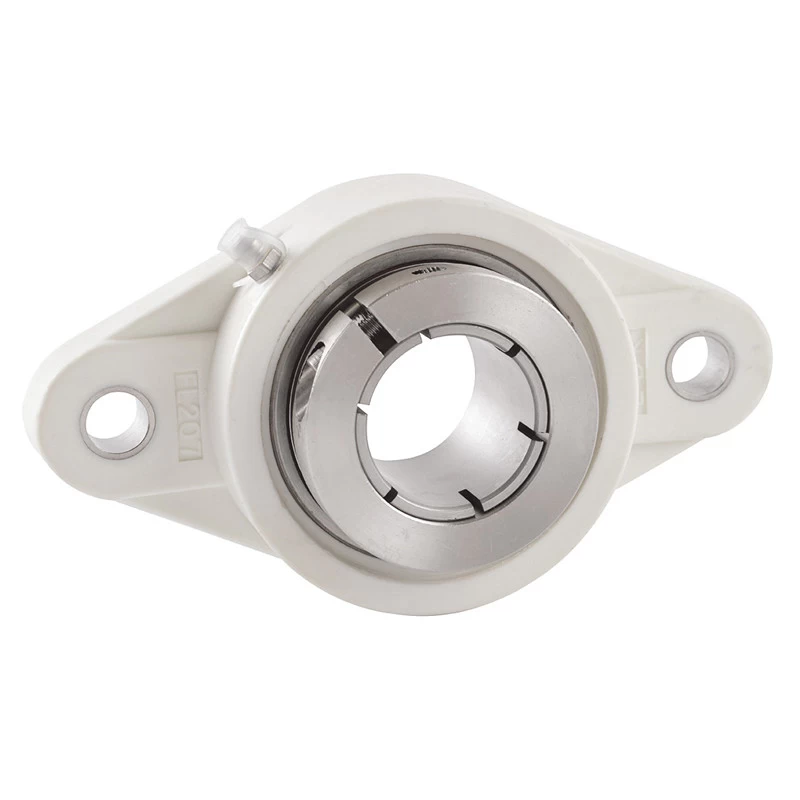

Thermoplastic Bearing Units TP-SUEFL2

TP-SUEFL  Thermoplastic flange 2-bolt,Solid base housing,Stainless steel inserts,With food grade grease and silicon rubber seal,Concerntric locking

Facebook Twitter Pinterest LinkedIn 分享

TP-SUEFL204 Thermoplastic Bearing Units

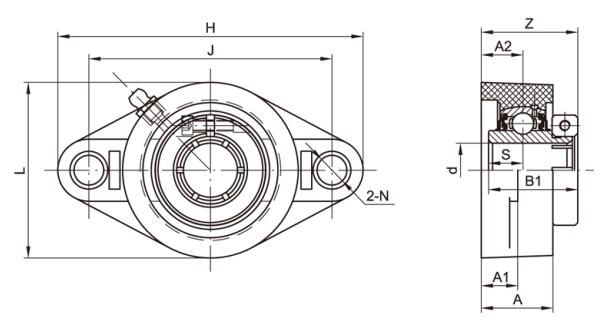

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d H J A2 A1 A N L B1 S Z
(in) (mm)
TP-SUEFL204    20 113 90 15.4 14 26.5 11 65 33 12.7 35.7 M10 0.26
TP-SUEFL204-12 3/4   113 90 15.4 14 26.5 11 65 33 12.7 35.7 M10 0.26
TP-SUEFL205    25 131 99 17 14 29 11 69 35.4 14.3 38.0 M10 0.32
TP-SUEFL205-14  7/8    131 99 17 14 29 11 69 35.4 14.3 38.0 M10 0.32
TP-SUEFL205-15  15/16    131 99 17 14 29 11 69 35.4 14.3 38.0 M10 0.32
TP-SUEFL205-16 1   131 99 17 14 29 11 69 35.4 14.3 38.0 M10 0.32
TP-SUEFL206    30 148 117 19 14 31 11 80 39.8 15.9 42.9 M10 0.47
TP-SUEFL206-17  1-1/16    148 117 19 14 31 11 80 39.8 15.9 42.9 M10 0.47
TP-SUEFL206-18  1-1/8    148 117 19 14 31 11 80 39.8 15.9 42.9 M10 0.47
TP-SUEFL206-19  1-3/16    148 117 19 14 31 11 80 39.8 15.9 42.9 M10 0.47
TP-SUEFL206-20 1-1/4   148 117 19 14 31 11 80 39.8 15.9 42.9 M10 0.47
TP-SUEFL207    35 166 130 18 16 32 13 92 43.9 17.5 44.4 M12 0.73
TP-SUEFL207-20  1-1/4    166 130 18 16 32 13 92 43.9 17.5 44.4 M12 0.73
TP-SUEFL207-21  1-5/16    166 130 18 16 32 13 92 43.9 17.5 44.4 M12 0.73
TP-SUEFL207-22  1-3/8    166 130 18 16 32 13 92 43.9 17.5 44.4 M12 0.73
TP-SUEFL207-23 1-7/16   166 130 18 16 32 13 92 43.9 17.5 44.4 M12 0.73
TP-SUEFL208    40 176 144 21.5 20 37.5 14 101 50.2 19 52.7 M12 0.94
TP-SUEFL208-24  1-1/2    176 144 21.5 20 37.5 14 101 50.2 19 52.7 M12 0.94
TP-SUEFL208-25 1-9/16   176 144 21.5 20 37.5 14 101 50.2 19 52.7 M12 0.94
TP-SUEFL209    45 189 148.5 24 21 41 17 108 50.2 19 55.2 M16 1.11
TP-SUEFL209-26  1-5/8    189 148.5 24 21 41 17 108 50.2 19 55.2 M16 1.11
TP-SUEFL209-27  1-11/16    189 148.5 24 21 41 17 108 50.2 19 55.2 M16 1.11
TP-SUEFL209-28 1-3/4   189 148.5 24 21 41 17 108 50.2 19 55.2 M16 1.11
TP-SUEFL210    50 197 157 25 21 43 17 116 52.6 19 58.6 M16 1.22
TP-SUEFL210-30  1-7/8    197 157 25 21 43 17 116 52.6 19 58.6 M16 1.22
TP-SUEFL210-31  1-15/16    197 157 25 21 43 17 116 52.6 19 58.6 M16 1.22
TP-SUEFL210-32 2   197 157 25 21 43 17 116 52.6 19 58.6 M16 1.22
TP-SUEFL211    55 224 184 25 20 43 17 130 56.6 22.2 59.4 M16 1.61
TP-SUEFL211-32  2   224 184 25 20 43 17 130 56.6 22.2 59.4 M16 1.61
TP-SUEFL211-34  2-1/8    224 184 25 20 43 17 130 56.6 22.2 59.4 M16 1.61
TP-SUEFL211-35 2-3/16   224 184 25 20 43 17 130 56.6 22.2 59.4 M16 1.61
TP-SUEFL212    60 250 202 29 20 48 18 140 66.6 25.4 70.2 M16 2.28
TP-SUEFL212-36  2-1/4    250 202 29 20 48 18 140 66.6 25.4 70.2 M16 2.28
TP-SUEFL212-38  2-3/8    250 202 29 20 48 18 140 66.6 25.4 70.2 M16 2.28
TP-SUEFL212-39 2-7/16   250 202 29 20 48 18 140 66.6 25.4 70.2 M16 2.28
