Thermoplastic Bearing Units TP-SUEPA2


TP-SUEPA  Thermoplastic pillow blocks,Tapped base,Stainless steel inserts,With food grade grease and silicon rubber seal,Concerntric locking


Facebook Twitter Pinterest LinkedIn 分享

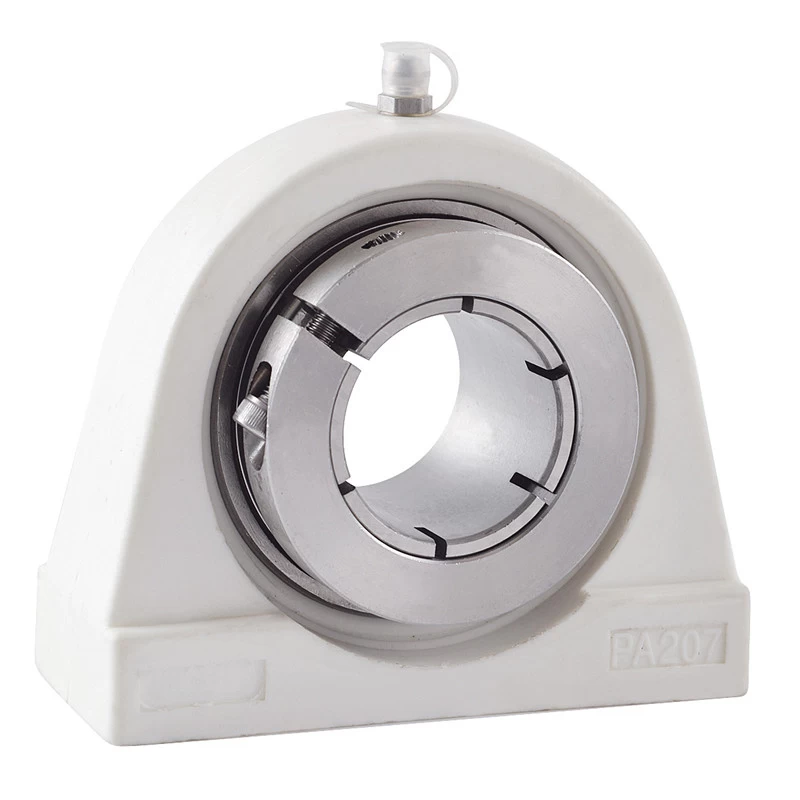

TP-SUEPA210 Thermoplastic Bearing Housing

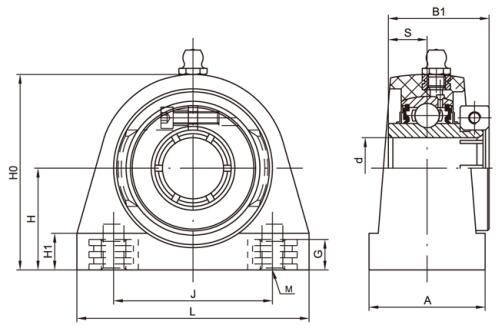

Unit No. Shaft Dia Dimensions(mm) Weight (kg)
d H L J A H0 G H1 B1 S M
(in) (mm)
TP-SUEPA204    20 33.3 76 52 38 64 10 13 33 12.7 M8 0.29
TP-SUEPA204-12 3/4   33.3 76 52 38 64 10 13 33 12.7 M8 0.29
TP-SUEPA205    25 36.5 84 56 38 72 12 14 35.4 14.3 M10 0.33
TP-SUEPA205-14  7/8    36.5 84 56 38 72 12 14 35.4 14.3 M10 0.33
TP-SUEPA205-15  15/16    36.5 84 56 38 72 12 14 35.4 14.3 M10 0.33
TP-SUEPA205-16 1   36.5 84 56 38 72 12 14 35.4 14.3 M10 0.33
TP-SUEPA206    30 42.9 95 66 48 84 12 16 39.8 15.9 M10 0.52
TP-SUEPA206-17  1-1/16    42.9 95 66 48 84 12 16 39.8 15.9 M10 0.52
TP-SUEPA206-18  1-1/8    42.9 95 66 48 84 12 16 39.8 15.9 M10 0.52
TP-SUEPA206-19  1-3/16    42.9 95 66 48 84 12 16 39.8 15.9 M10 0.52
TP-SUEPA206-20 1-1/4   42.9 95 66 48 84 12 16 39.8 15.9 M10 0.52
TP-SUEPA207   35 47.6 110 80 48 95 12 18 43.9 17.5 M10 0.73
TP-SUEPA207-20  1-1/4    47.6 110 80 48 95 12 18 43.9 17.5 M10 0.73
TP-SUEPA207-21  1-5/16    47.6 110 80 48 95 12 18 43.9 17.5 M10 0.73
TP-SUEPA207-22  1-3/8    47.6 110 80 48 95 12 18 43.9 17.5 M10 0.73
TP-SUEPA207-23 1-7/16   47.6 110 80 48 95 12 18 43.9 17.5 M10 0.73
TP-SUEPA208    40 49.2 116 84 54 100 15 18 50.2 19 M12 0.93
TP-SUEPA208-24  1-1/2    49.2 116 84 54 100 15 18 50.2 19 M12 0.93
TP-SUEPA208-25 1-9/16   49.2 116 84 54 100 15 18 50.2 19 M12 0.93
TP-SUEPA209    45 54.2 120 90 54 108 15 20 50.2 19 M12 1.11
TP-SUEPA209-26  1-5/8    54.2 120 90 54 108 15 20 50.2 19 M12 1.11
TP-SUEPA209-27  1-11/16    54.2 120 90 54 108 15 20 50.2 19 M12 1.11
TP-SUEPA209-28 1-3/4   54.2 120 90 54 108 15 20 50.2 19 M12 1.11
TP-SUEPA210    50 57.2 130 94 60 116 18 21 52.6 19 M16 1.28
TP-SUEPA210-30  1-7/8    57.2 130 94 60 116 18 21 52.6 19 M16 1.28
TP-SUEPA210-31  1-15/16    57.2 130 94 60 116 18 21 52.6 19 M16 1.28
TP-SUEPA210-32 2   57.2 130 94 60 116 18 21 52.6 19 M16 1.28
