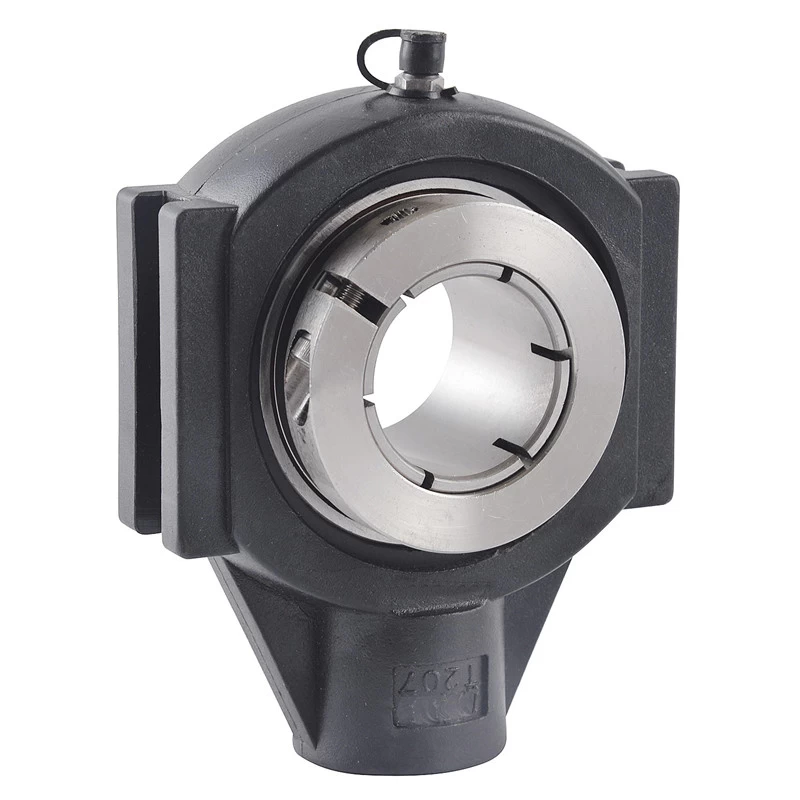

Thermoplastic Bearing Units TP-SUET2

TP-SUET  Thermoplastic take up,Stainless steel inserts,With food grade grease and silicon rubber seal,Concerntric locking



Facebook Twitter Pinterest LinkedIn 分享

TP-SUET207-20 Plastic Housing

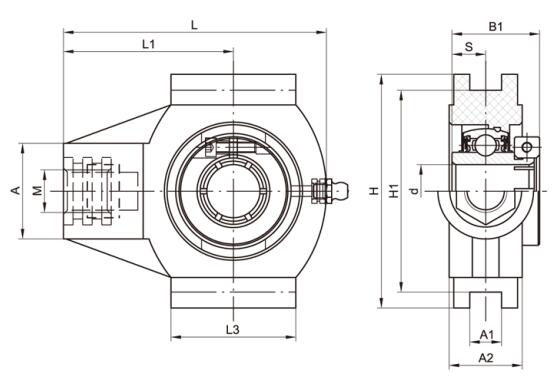

Unit No. Shaft Dia Dimensions(mm) Weight (kg)
d L A2 A1 L1 H H1 M A L3 B1 S
(in) (mm)
TP-SUET204    20 99 27.5 12 64 88 76 M16 36 47 33 12.7 0.34
TP-SUET204-12 3/4   99 27.5 12 64 88 76 M16 36 47 33 12.7 0.34
TP-SUET205    25 99 27.5 12 64 88 76 M16 36 47 35.4 14.3 0.35
TP-SUET205-14  7/8    99 27.5 12 64 88 76 M16 36 47 35.4 14.3 0.35
TP-SUET205-15  15/16    99 27.5 12 64 88 76 M16 36 47 35.4 14.3 0.35
TP-SUET205-16 1   99 27.5 12 64 88 76 M16 36 47 35.4 14.3 0.35
TP-SUET206    30 125 34.5 12 76 102 89 M16 40 63 39.8 15.9 0.59
TP-SUET206-17  1-1/16    125 34.5 12 76 102 89 M16 40 63 39.8 15.9 0.59
TP-SUET206-18  1-1/8    125 34.5 12 76 102 89 M16 40 63 39.8 15.9 0.59
TP-SUET206-19  1-3/16    125 34.5 12 76 102 89 M16 40 63 39.8 15.9 0.59
TP-SUET206-20 1-1/4   125 34.5 12 76 102 89 M16 40 63 39.8 15.9 0.59
TP-SUET207    35 125 34.5 12 76 102 89 M16 40 63 43.9 17.5 0.75
TP-SUET207-20  1-1/4    125 34.5 12 76 102 89 M16 40 63 43.9 17.5 0.75
TP-SUET207-21  1-5/16    125 34.5 12 76 102 89 M16 40 63 43.9 17.5 0.75
TP-SUET207-22  1-3/8    125 34.5 12 76 102 89 M16 40 63 43.9 17.5 0.75
TP-SUET207-23 1-7/16   125 34.5 12 76 102 89 M16 40 63 43.9 17.5 0.75
TP-SUET208    40 140 34.5 16 85 114 102 M16 40 80 50.2 19 0.99
TP-SUET208-24  1-1/2    140 34.5 16 85 114 102 M16 40 80 50.2 19 0.99
TP-SUET208-25 1-9/16   140 34.5 16 85 114 102 M16 40 80 50.2 19 0.99
TP-SUET209    45 149 40 16 90 116 102 M20 50 85 50.2 19 1.19
TP-SUET209-26  1-5/8    149 40 16 90 116 102 M20 50 85 50.2 19 1.19
TP-SUET209-27  1-11/16    149 40 16 90 116 102 M20 50 85 50.2 19 1.19
TP-SUET209-28 1-3/4   149 40 16 90 116 102 M20 50 85 50.2 19 1.19
TP-SUET210    50 149 40 16 90 116 102 M20 50 85 52.6 19 1.22
TP-SUET210-30  1-7/8    149 40 16 90 116 102 M20 50 85 52.6 19 1.22
TP-SUET210-31  1-15/16    149 40 16 90 116 102 M20 50 85 52.6 19 1.22
TP-SUET210-32 2   149 40 16 90 116 102 M20 50 85 52.6 19 1.22
