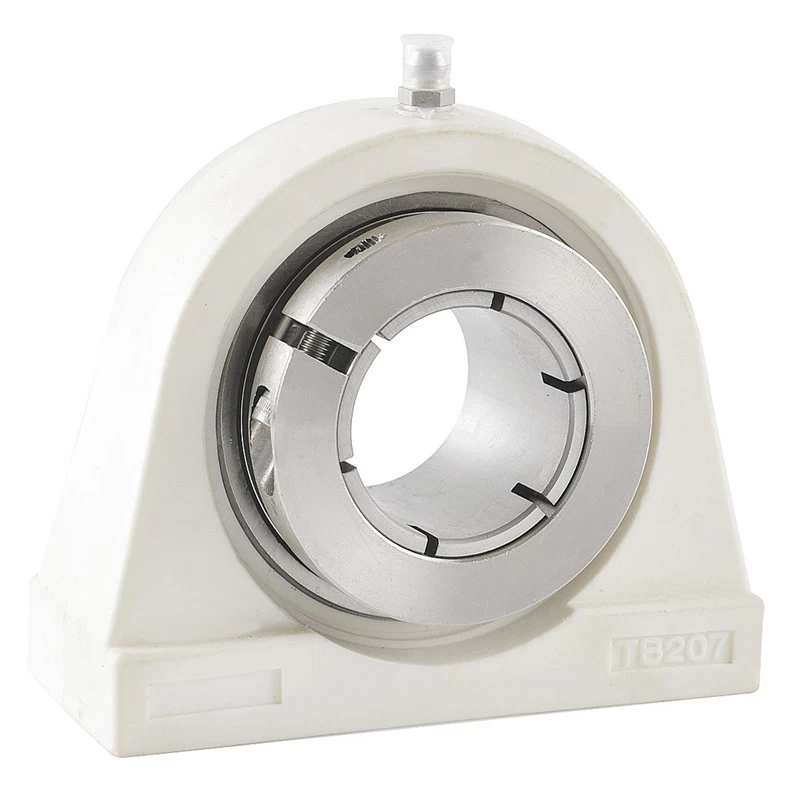

Thermoplastic Bearing Units TP-SUETB2

TP-SUETB   Thermoplastic pillow blocks,Tapped base,Stainless steel inserts,With food grade grease and silicon rubber seal,Concerntric locking

Facebook Twitter Pinterest LinkedIn 分享

TP-SUETB206-19 Thermoplastic Mounted Units

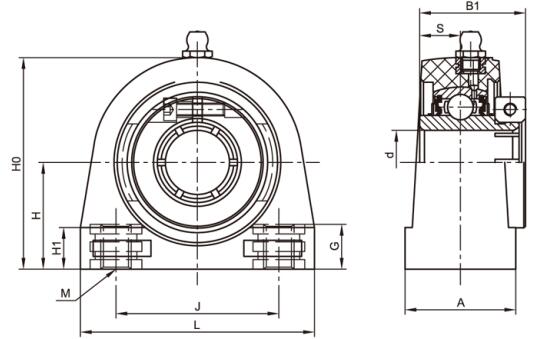

Unit No. Shaft Dia Dimensions(mm) Weight
d H A Ho J L M G H1 B1 S (kg)
(in) (mm)
TP-SUETB204-12  3/4   33.3 34.5 66 50.8 73 3/8-16 14 13 33 12.7 0.28
TP-SUETB204   20 33.3 34.5 66 50.8 73 3/8-16 14 13 33 12.7 0.28
TP-SUETB205-14 7/8   36.5 39.7 73.4 50.8 76.2 3/8-16 14 13 35.4 14.3 0.34
TP-SUETB205-15  15/16   36.5 39.7 73.4 50.8 76.2 3/8-16 14 13 35.4 14.3 0.34
TP-SUETB205   25 36.5 39.7 73.4 50.8 76.2 3/8-16 14 13 35.4 14.3 0.34
TP-SUETB205-16 1   36.5 39.7 73.4 50.8 76.2 3/8-16 14 13 35.4 14.3 0.34
TP-SUETB206-17 1-1/16   42.9 42.5 84 76.2 101.6 7/16-14 14 16 39.8 15.9 0.52
TP-SUETB206-18 1-1/8   42.9 42.5 84 76.2 101.6 7/16-14 14 16 39.8 15.9 0.52
TP-SUETB206   30 42.9 42.5 84 76.2 101.6 7/16-14 14 16 39.8 15.9 0.52
TP-SUETB206-19 1-3/16   42.9 42.5 84 76.2 101.6 7/16-14 14 16 39.8 15.9 0.52
TP-SUETB206-20 1-1/4   42.9 42.5 84 76.2 101.6 7/16-14 14 16 39.8 15.9 0.52
TP-SUETB207-20 1-1/4   47.6 47.6 95 82.6 111 1/2-13 15 16 43.9 17.5 0.75
TP-SUETB207-21 1-5/16   47.6 47.6 95 82.6 111 1/2-13 15 16 43.9 17.5 0.75
TP-SUETB207-22 1-3/8   47.6 47.6 95 82.6 111 1/2-13 15 16 43.9 17.5 0.75
TP-SUETB207   35 47.6 47.6 95 82.6 111 1/2-13 15 16 43.9 17.5 0.75
TP-SUETB207-23 1-7/16   47.6 47.6 95 82.6 111 1/2-13 15 16 43.9 17.5 0.75
TP-SUETB208-24 1-1/2   49.2 47.6 100.4 88.9 120 1/2-13 15 16 50.2 19 0.94
TP-SUETB208-25 1-9/16   49.2 47.6 100.4 88.9 120 1/2-13 15 16 50.2 19 0.94
TP-SUETB208   40 49.2 47.6 100.4 88.9 120 1/2-13 15 16 50.2 19 0.94
TP-SUETB209-26 1-5/8   54.2 50 108.5 95.3 124 1/2-13 15 19 50.2 19 1.11
TP-SUETB209-27  1-11/16    54.2 50 108.5 95.3 124 1/2-13 15 19 50.2 19 1.11
TP-SUETB209-28 1-3/4   54.2 50 108.5 95.3 124 1/2-13 15 19 50.2 19 1.11
TP-SUETB209   45 54.2 50 108.5 95.3 124 1/2-13 15 19 50.2 19 1.11
TP-SUETB210-30 1-7/8   57.2 54 115 101.6 135 5/8-11 18 22 52.6 19 1.26
TP-SUETB210-31  1-15/16   57.2 54 115 101.6 135 5/8-11 18 22 52.6 19 1.26
TP-SUETB210   50 57.2 54 115 101.6 135 5/8-11 18 22 52.6 19 1.26
TP-SUETB210-32 2   57.2 54 115 101.6 135 5/8-11 18 22 52.6 19 1.26
