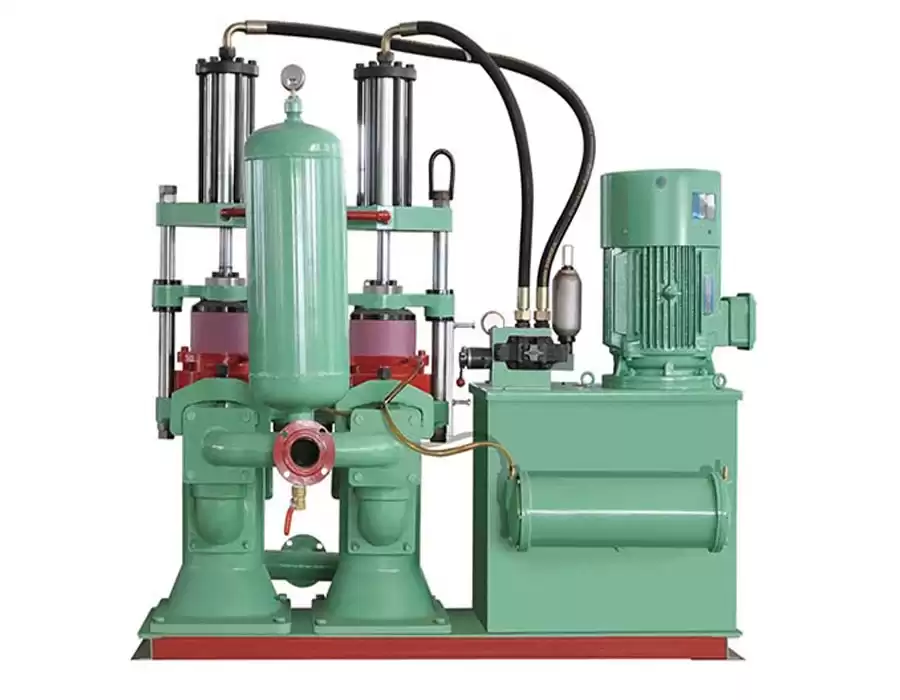

Thick Slurry Transport Hydraulic Ceramic Plunger Pump
Ceramic Plunger Pump Characteristic
1. Hydraulic driven, two ceramic pistons working up and down stably
2. The highest feeing pressure could be 2.5Mpa, the rate pressure is 2.0Mpa, the pressure could be adjusted.
3. Pistons are made of alumina ceramics,of great abrasion resistance and corrosion resistance.
4. Using combined seal, good sealing efficiency
5. Good Design Structure, Convenient Installation and maintenance, Long Usage Life Span
Ceramic Plunger Pump Technical Parameters
YB Series Sludge Piston Pump
Model | Flux (m3/h) | Pressure Range (Mpa) | Rated Pressure (Mpa) | Motor Power (kw) | Diameter （Suction And Discharge） （mm） | External Size (L*W*H) (mm) | Weight (Kg) |
YB-85 | 3.0 | 0-2.5 | 2.0 | 4 | Ø76 | 1300*850*1600 | 482 |
YB-120 | 7.1 | 0-2.5 | 2.0 | 11 | Ø76 | 1600*1300*1800 | 815 |
YB-140 | 10 | 0-2.5 | 2.0 | 11 | Ø76 | 1600*1300*1800 | 870 |
YB-200 | 19 | 0-2.5 | 2.0 | 18.5 | Ø89 | 1730*1400*1900 | 1127 |
YB-250 | 30 | 0-2.5 | 2.0 | 22 | Ø133 | 2000*1700*2100 | 1600 |
YB-300 | 40 | 0-2.5 | 2.0 | 30 | Ø133 | 2100*1900*2200 | 2400
|
Ceramic Plunger Pump Application
Every kind thick slurry transportation, such as marble, granite, glass, ceramic, clay, kaolin, textile, and other kinds of wastewater.
