Thickness Gauge ( Leather ) GT-KD07

Thickness gague,Leather thickness tester,Thickness gague for leather materials

Standards:BS-903-A38, ISO-4648, ASTMD1813, ISO 2589,SATRA TM48

Facebook Twitter Pinterest LinkedIn 分享

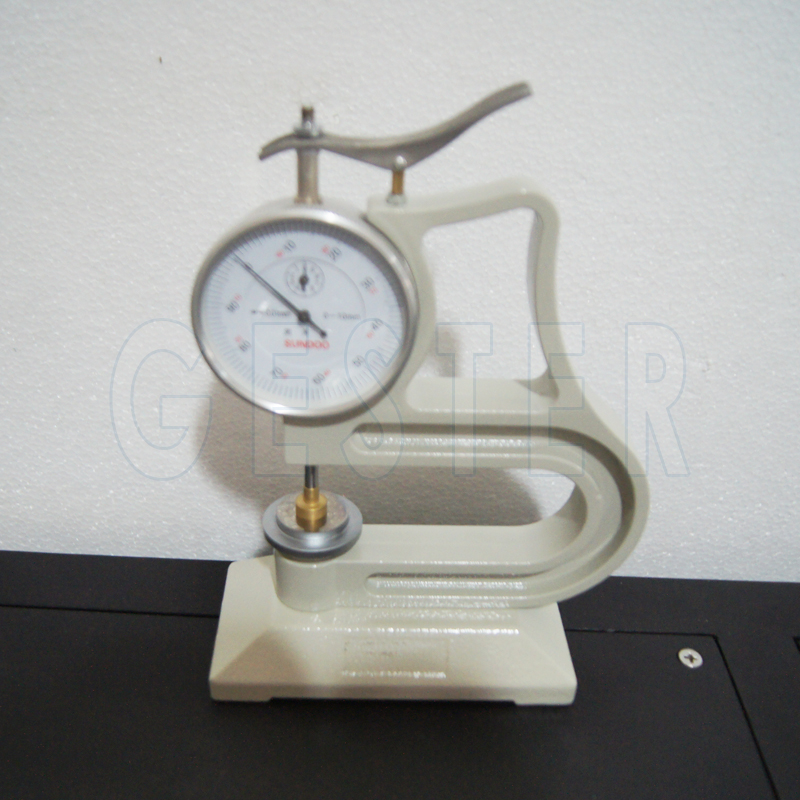

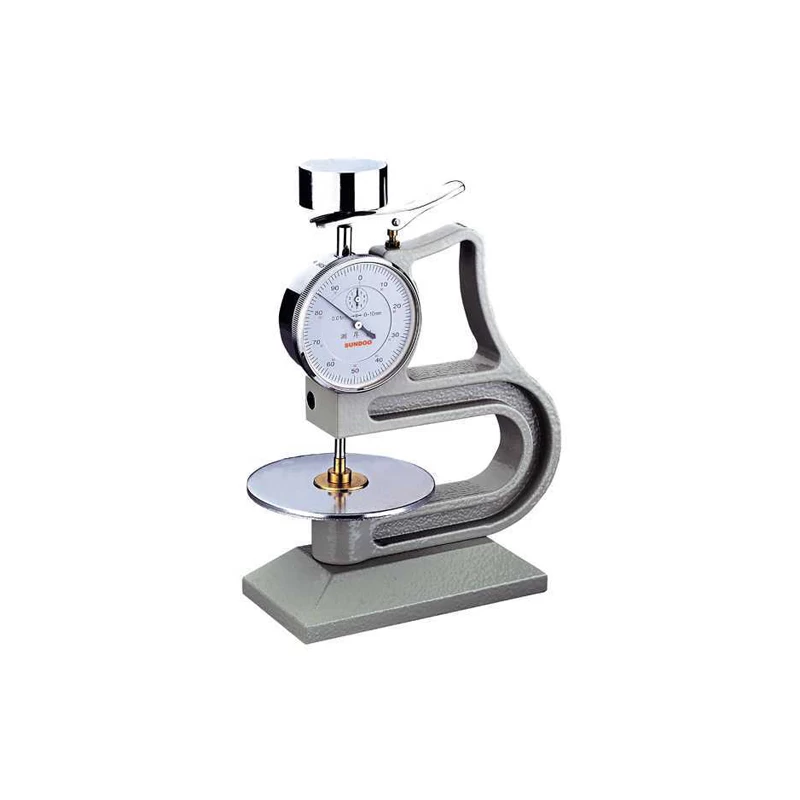

Thickness Gauge ( leather ) GT-KD07


Product Introduction

Application:

The thickness gauge is used to measure the thickness of vulcanized rubber and leather products. Clamp specimen between up and down parallel round plates. The pointed graduation is the thickness.


Standards:

BS-903-A38, ISO-4648

 AASTMD1813, ISO 2589,

SATRA TM48

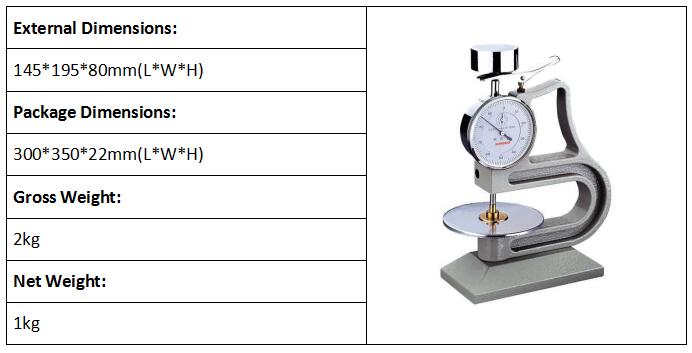

Dimensions

leather thickness gague



Key Specifications



Model

GT-KD07

Range

0.01~10mm

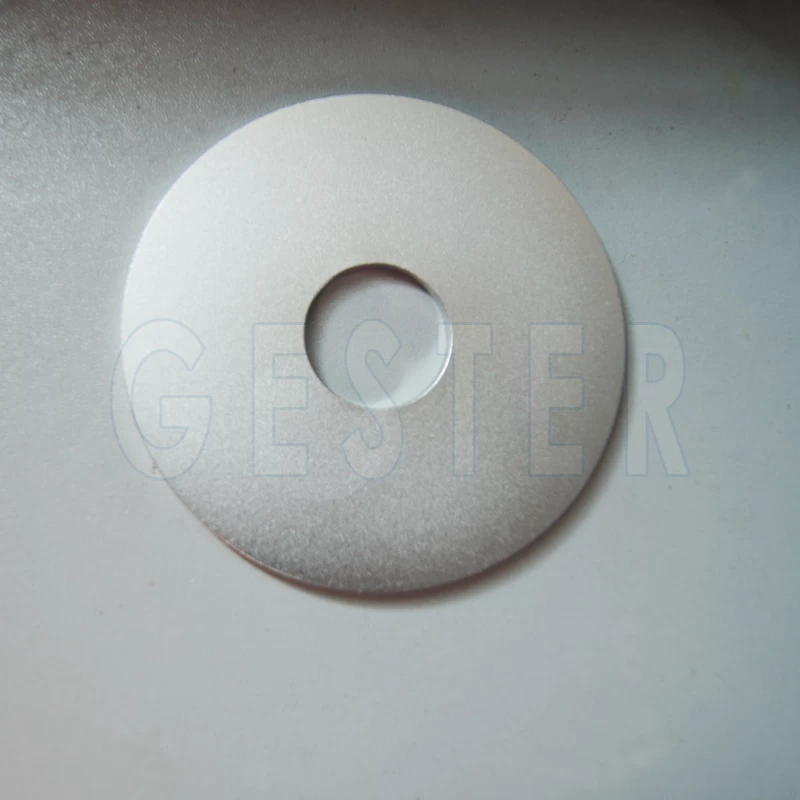

Press Foot

￠10mm±0.05mm

Test Pressure

10±2 Kpa

22±5Kpa

49.1±1Kpa

62±1Kpa

Standards

BS-903-A38,

ISO-4648

ASTMD1813,

ISO 2589,

QB/T2709

SATRA TM48

Dimension (W×D×H)

145×195×80mm

Weight

1kg
