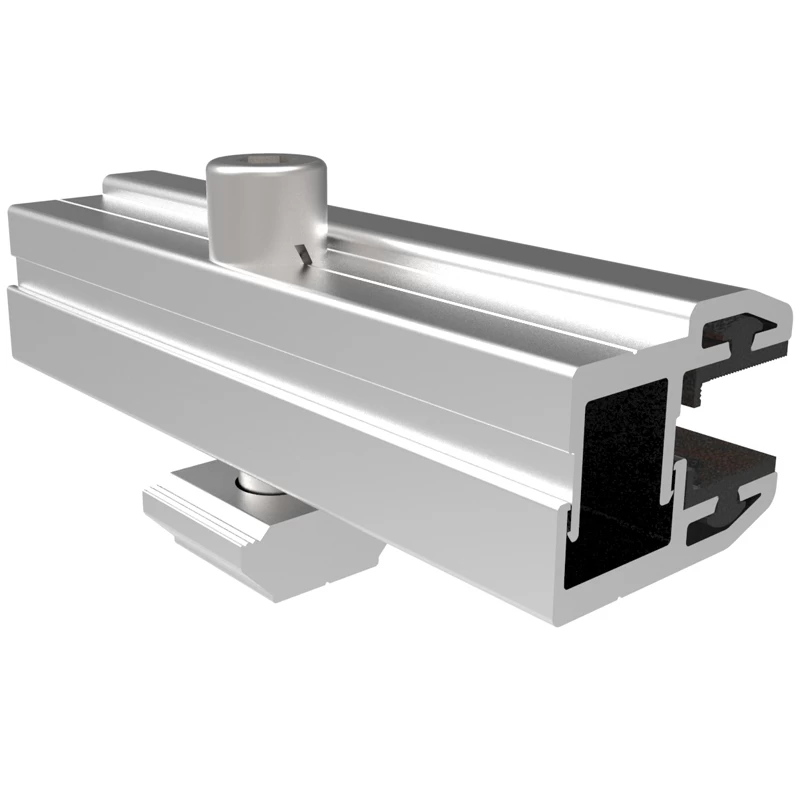

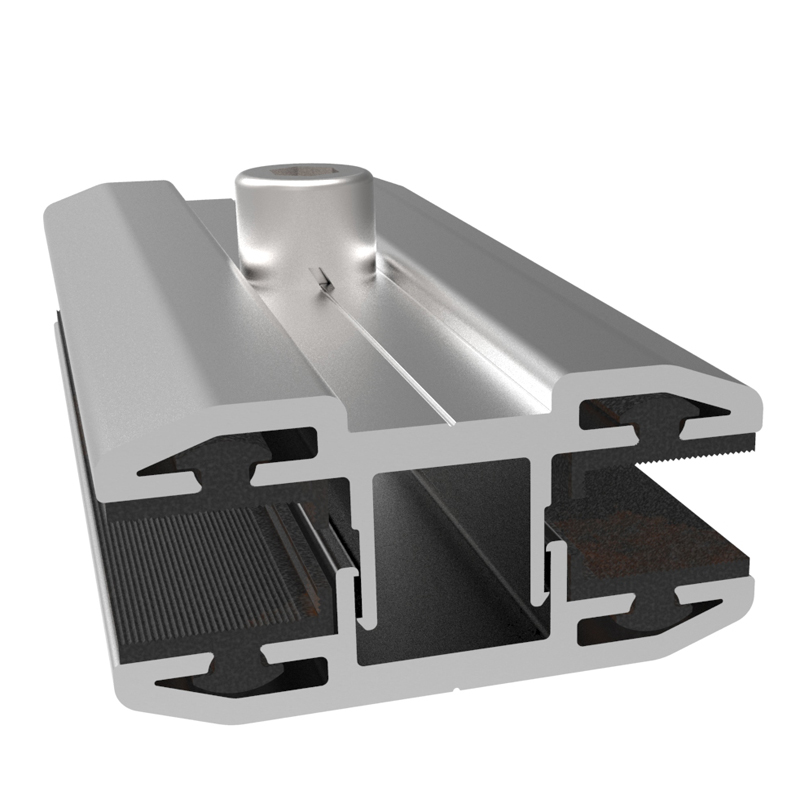

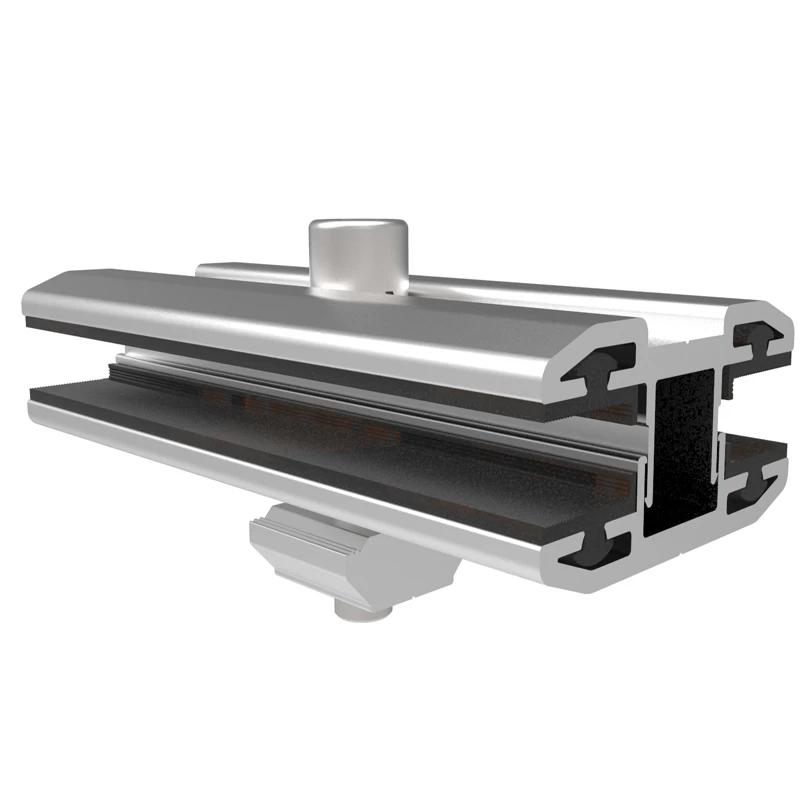

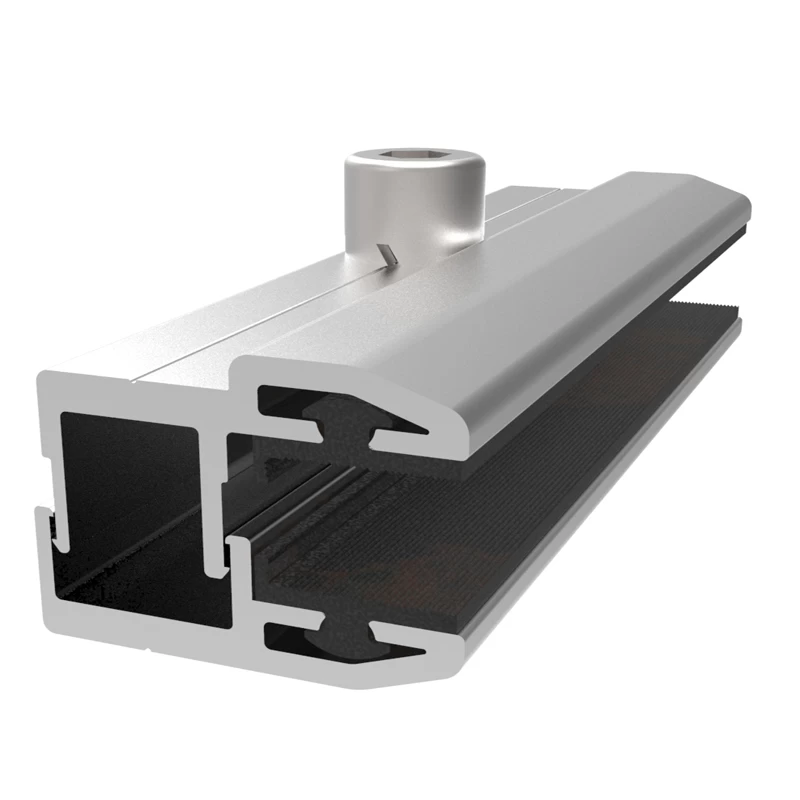

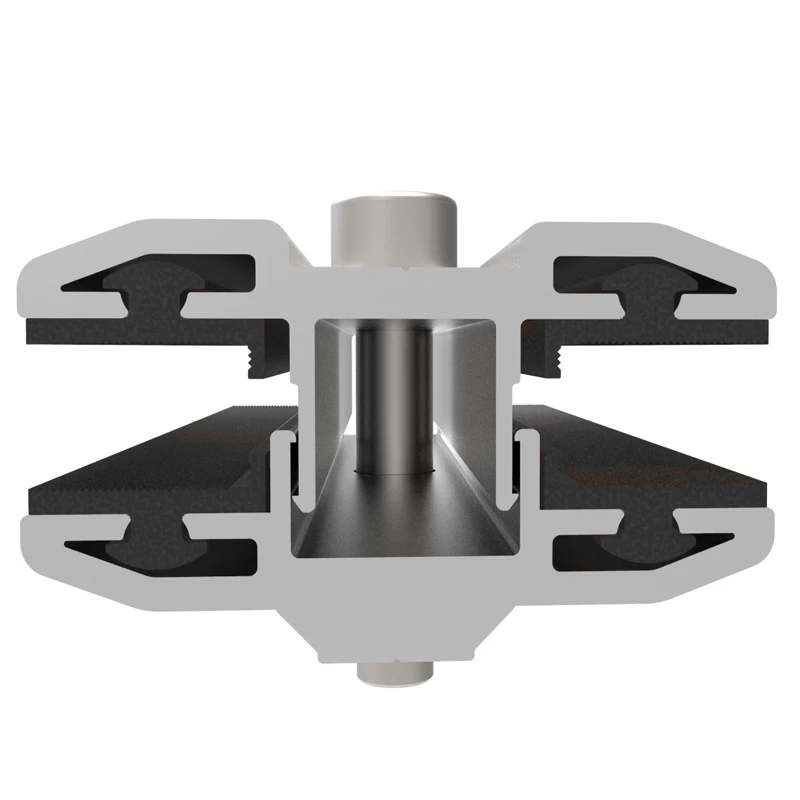

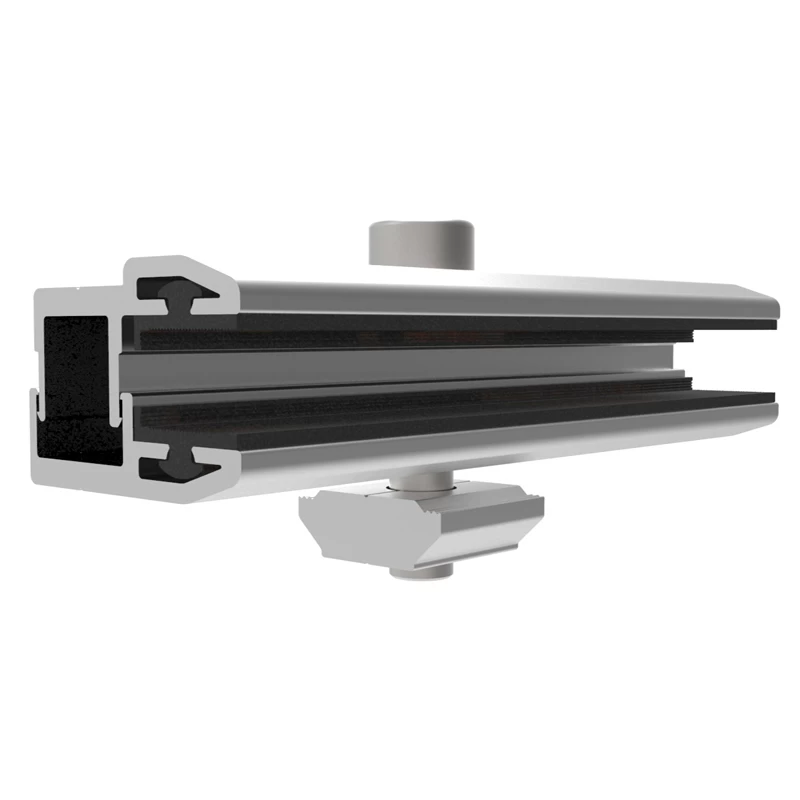

The thin film clamp is suitable for thin film solar panel, which contains the rubber pad and will not damage the solar panel after clamping.
Technical Parameters
|
Installation Angle
|
0-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2011,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.

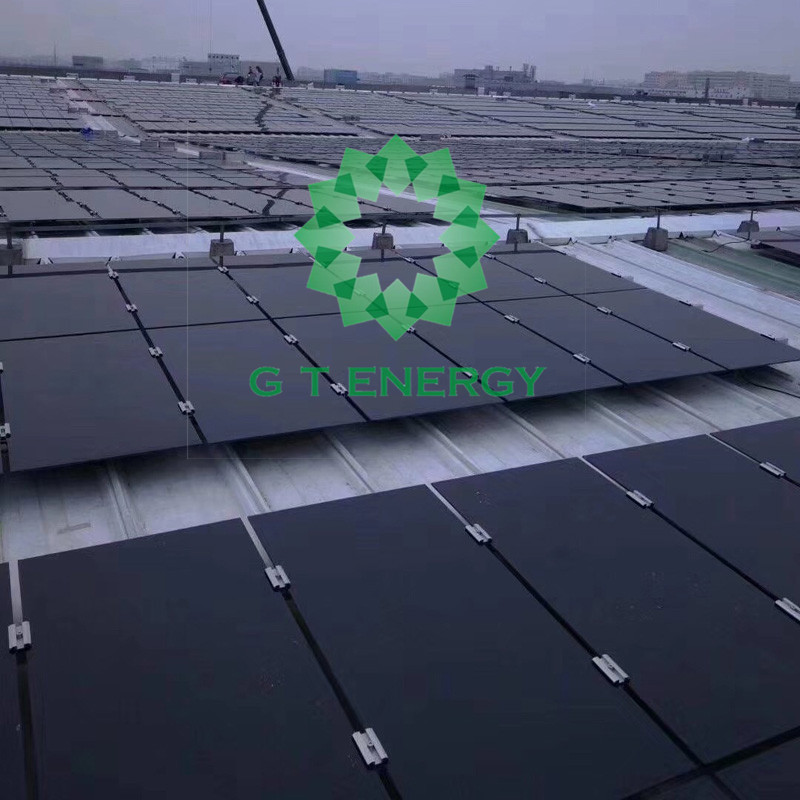

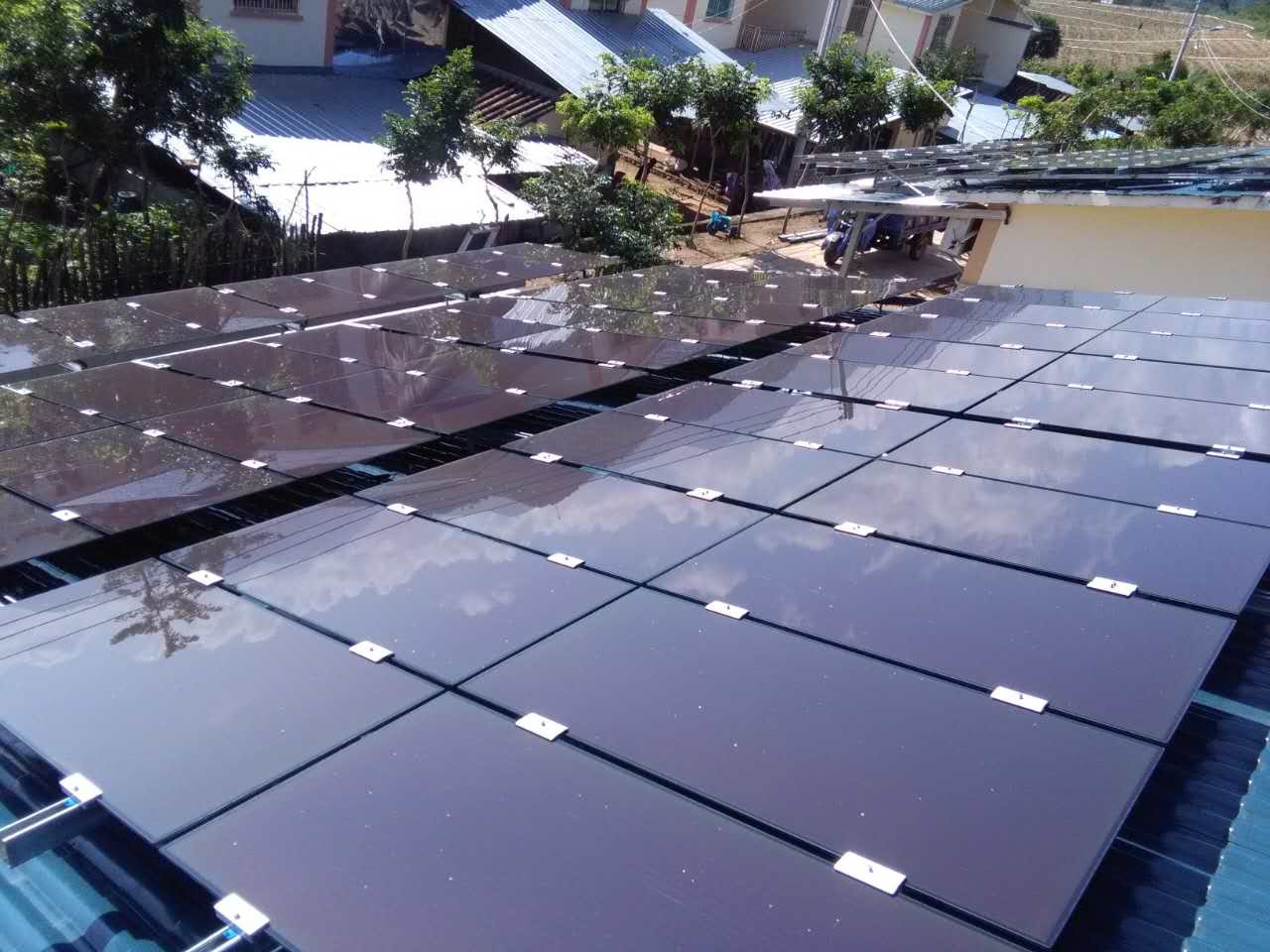

Effect photos
