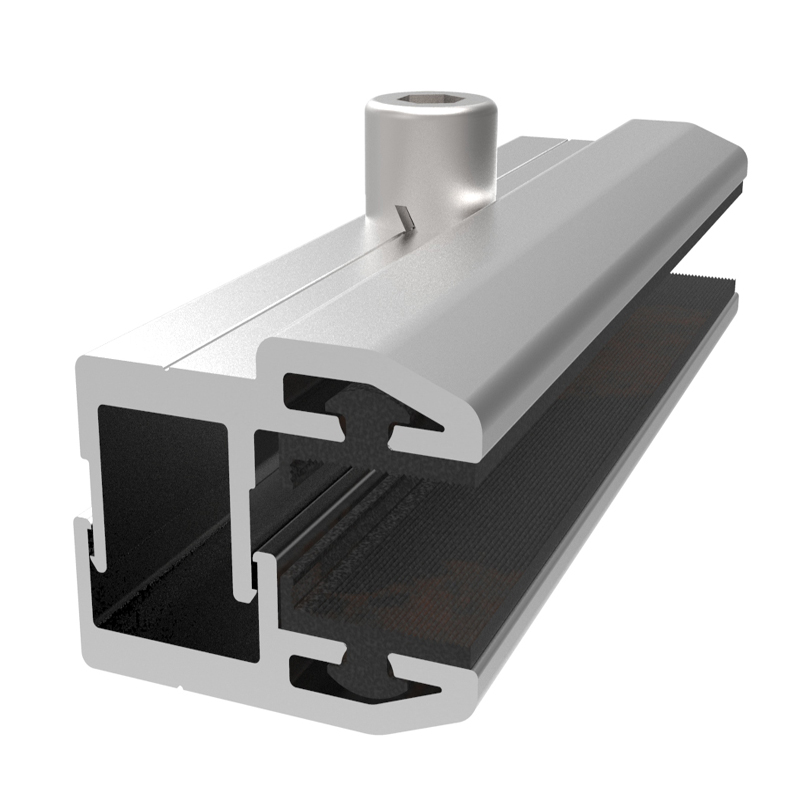

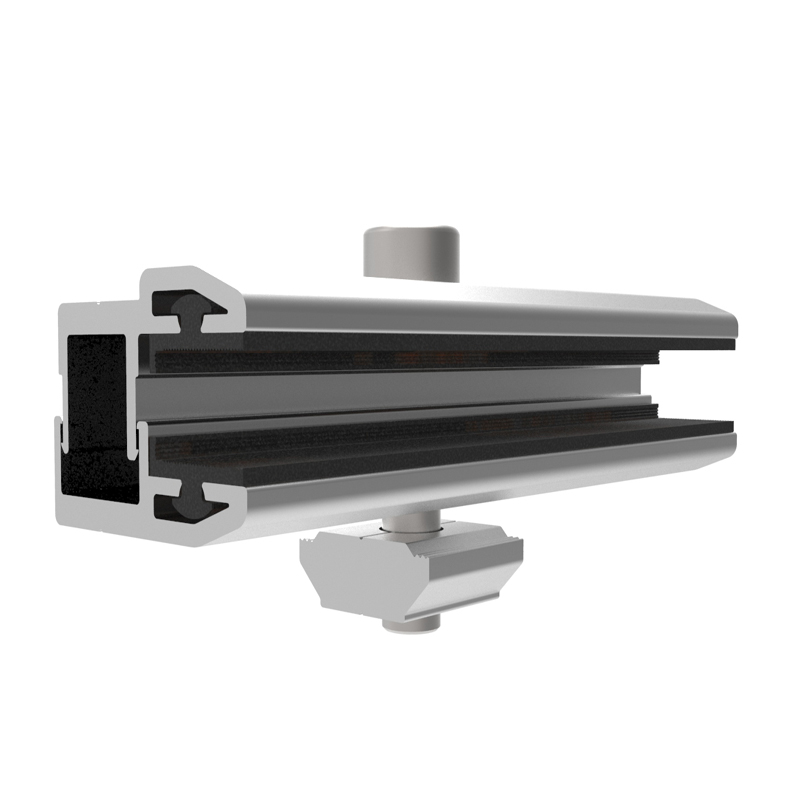

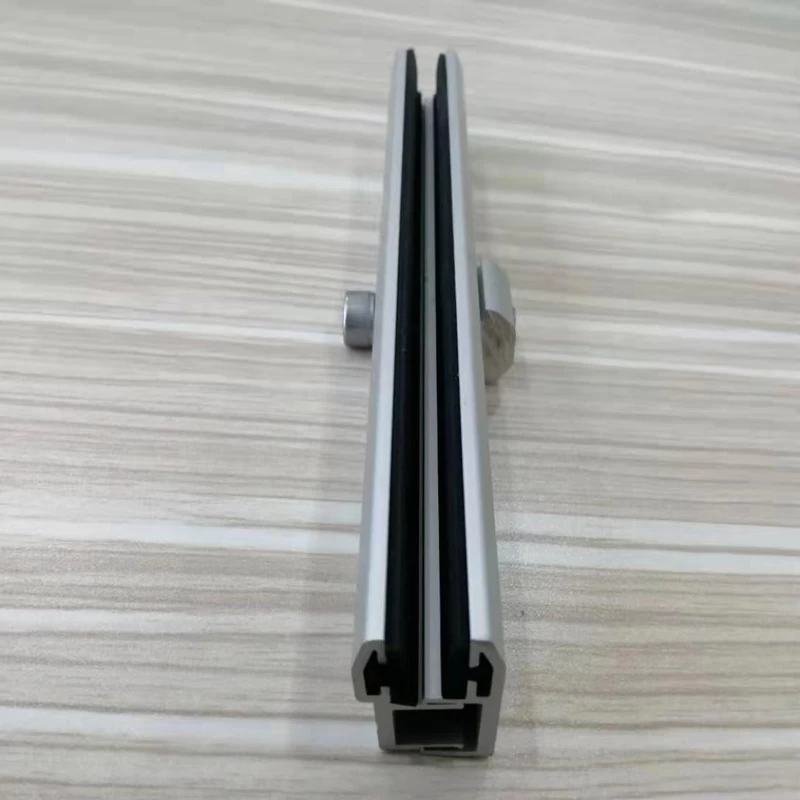

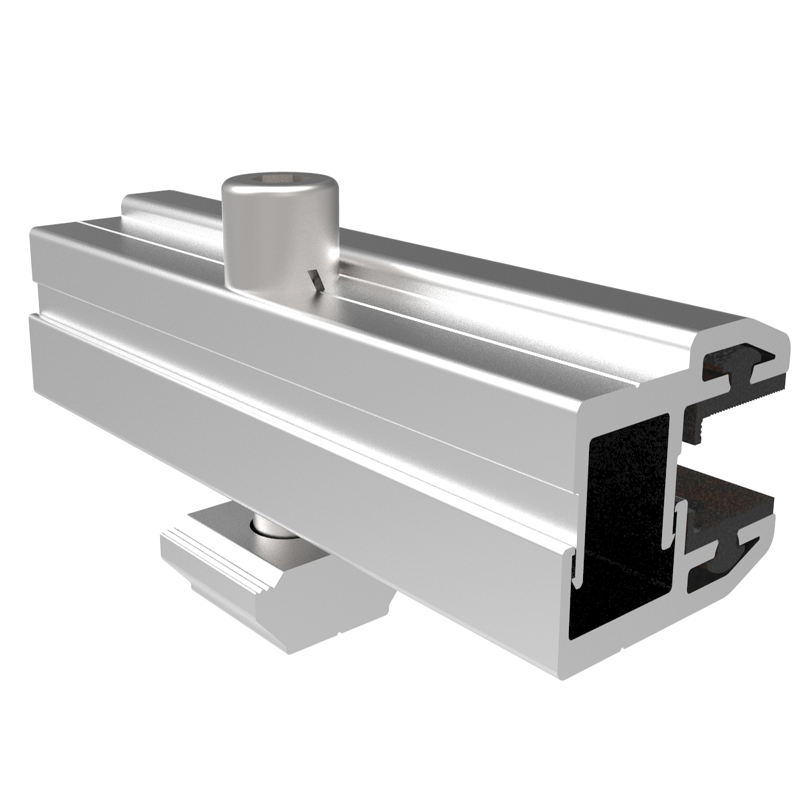

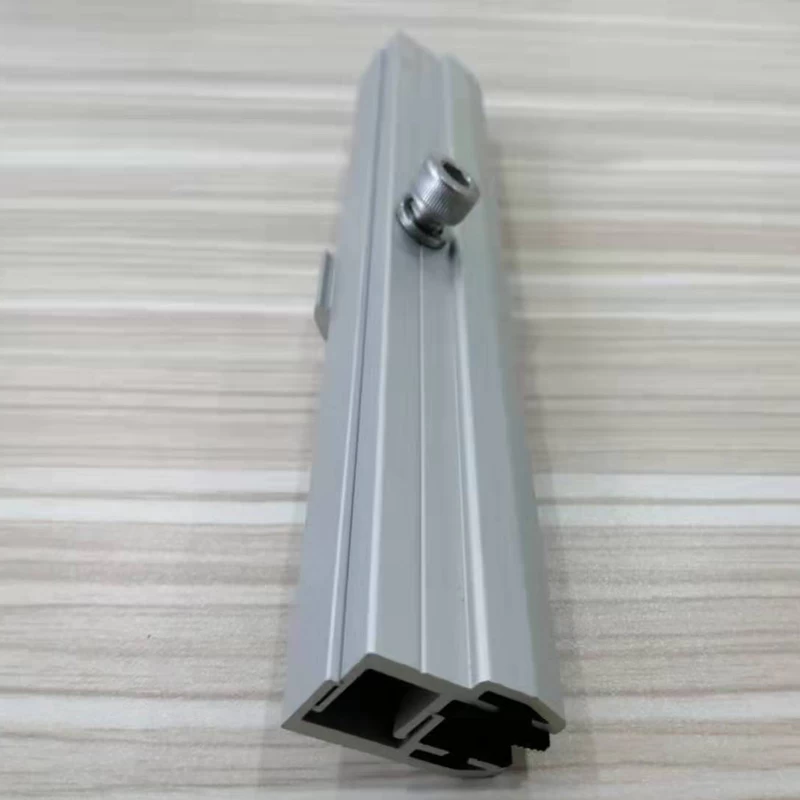

Thin Film End Clamp

The thin film inter clamp is specially used for pressing the solar film panel.


  • Warranty12 years

Thin film inter clamp is specially used for pressing the solar film panel. Used to hold the side of the solar panel, and the thin film end clamp contains the rubber mat, so that the film panel is not easily cracked.

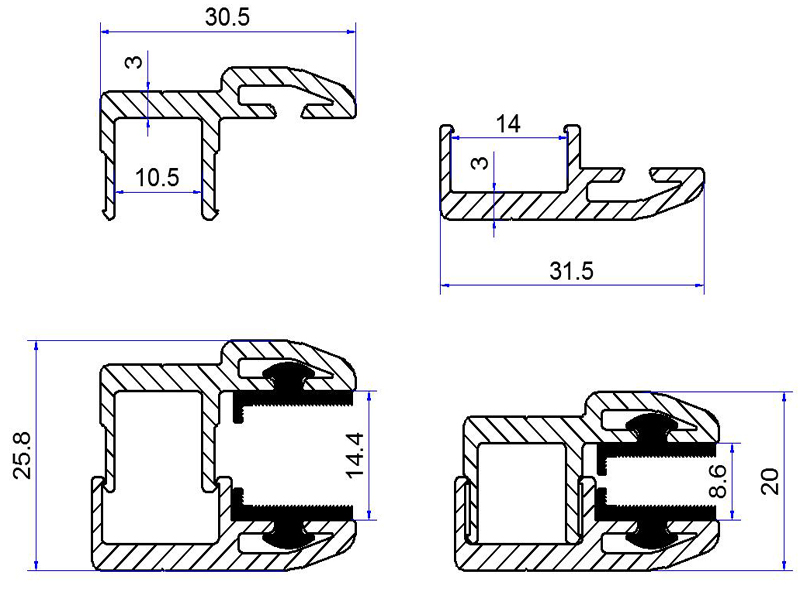

Drawing of component section

Parameter table of section

Upper part of the thin film end clamp

A

131.2834

Ip

11853.9590

Ix

1952.3516

Iy

9901.6074

ix

3.8563

iy

8.6846

Wx(Up)

366.6157

Wy(Left)

728.2069

Wx(Down)

167.2298

Wy(Right)

585.7984

Area moment around

the X-axis

184.1753

Area moment around

 the Y-axis

461.9525

Distance from the center of

the shape to the left edge

13.5972

Distance from the center of

the shape to the right edge

16.9028

Distance from the center of

the shape to the top edge

5.3253

Distance from the center of

the shape to the lower edge

11.6747

 Principal moment I1

1592.733

Direction of principal

moment 1

(0.979,0.204)

 Principal moment I2

10261.226

Direction of principal

moment 2

(-0.204,0.979)


Lower part of the thin film end clamp

A

119.0732

Ip

10759.9150

Ix

695.2656

Iy

10064.6494

ix

2.4164

iy

9.1937

Wx(Up)

92.4202

Wy(Left)

678.7991

Wx(Down)

233.5356

Wy(Right)

603.6549

Area moment around

the X-axis

114.8506

Area moment around

 the Y-axis

456.9257

Distance from the center of

the shape to the left edge

14.8271

Distance from the center of

the shape to the right edge

16.6729

Distance from the center of

the shape to the top edge

7.5229

Distance from the center of

the shape to the lower edge

2.9771

 Principal moment I1

694.767

Direction of principal

moment 1

(1.000,0.007)

 Principal moment I2

10065.148

Direction of principal

moment 2

(-0.007,1.000)






Component composition

Item No.

GT-TF-EC-120

Item Name

Thin film end clamp

Component

Component name
Spec (mm) Qty
Upper part of thin film end clamp
120
1
Lower part of thin film end clamp
120 1
Rubber mat
120 4
Hexagon socket head bolt
M8*35 1
Spring pad
M8
1
Block
20 1

Thin film end clamps

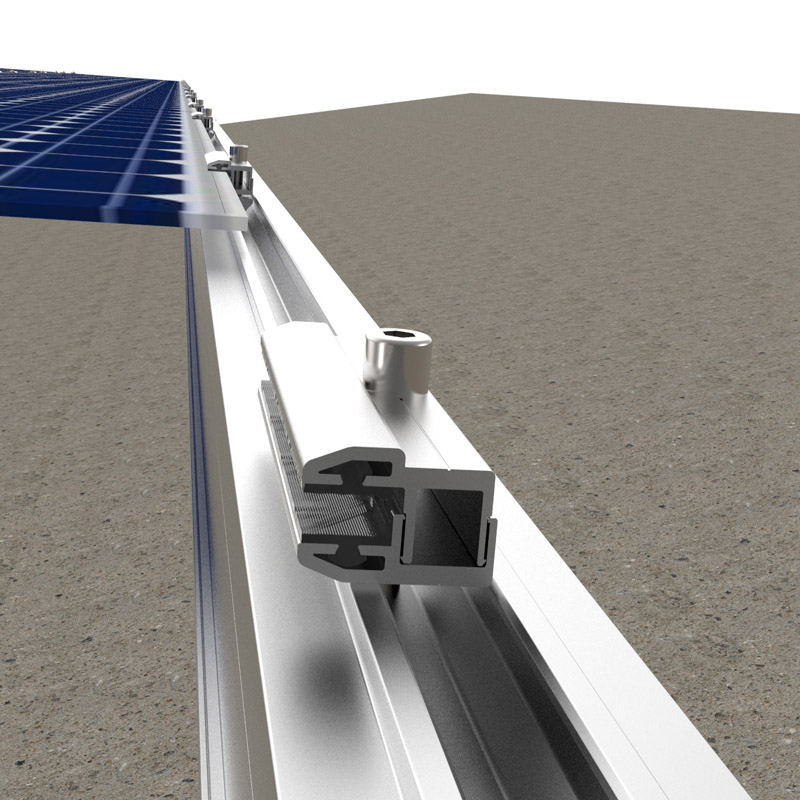

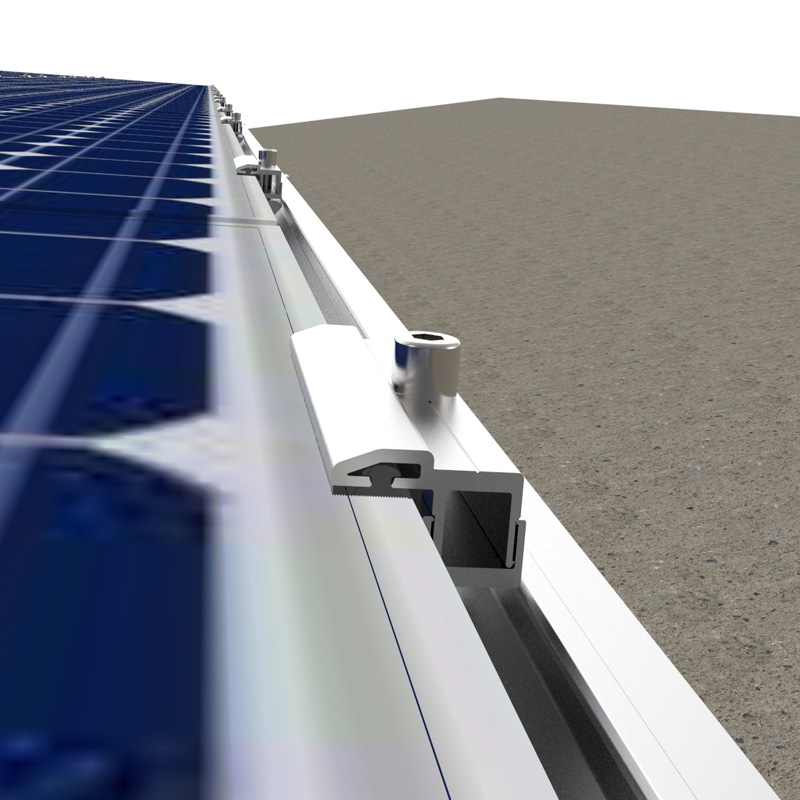

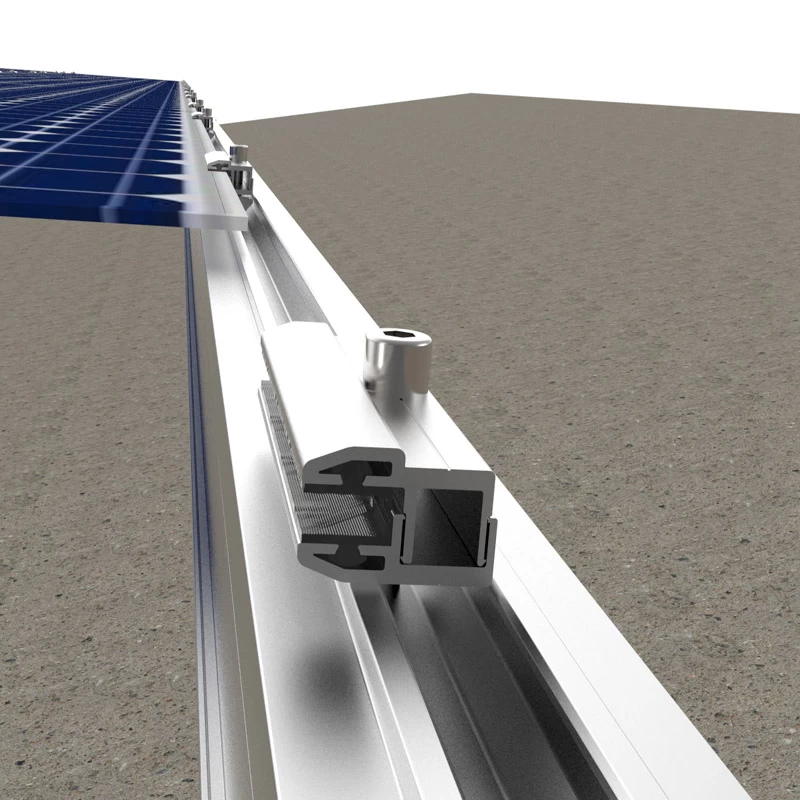

Detail drawing of component installation

thin film solar panel mounting-end clamps

thin film end clamps for panels

Solar panel thin film mount system-end clamps

Thin Film Module End Clamp
