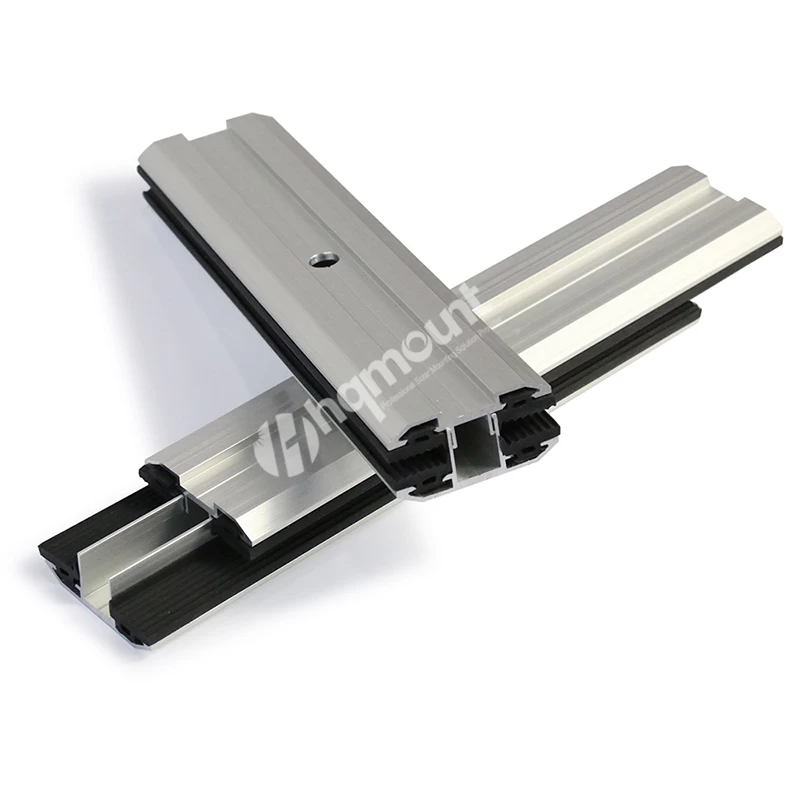

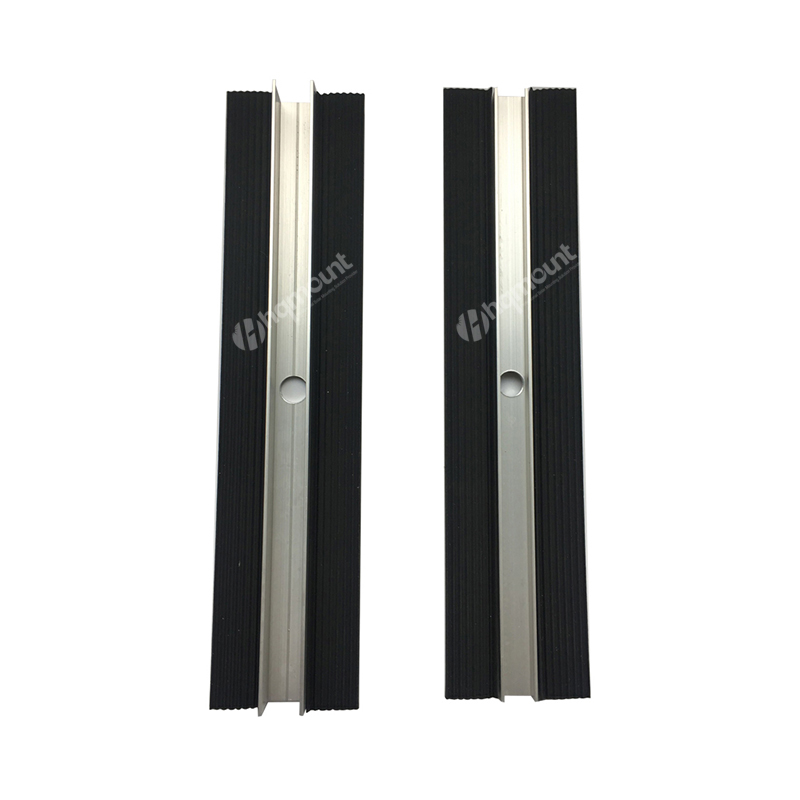

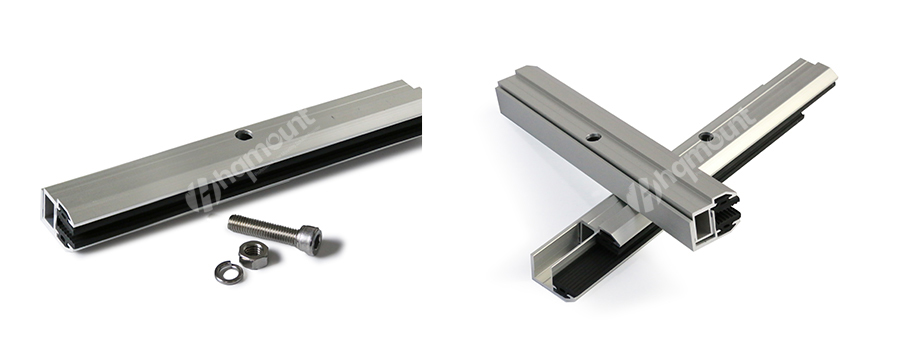

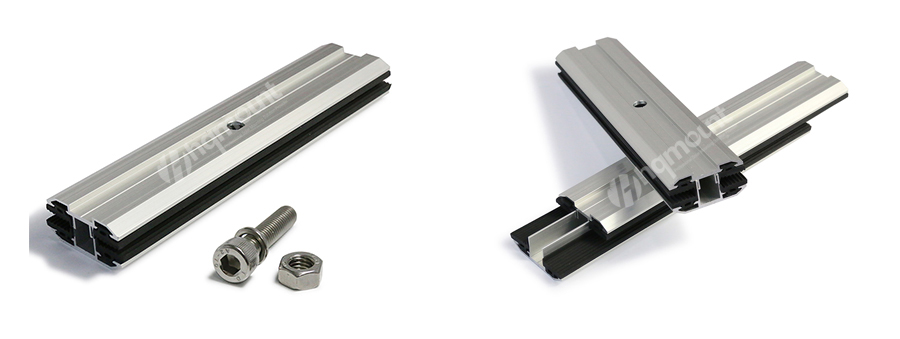

Thin Film End Clamps For Frameless Solar Module

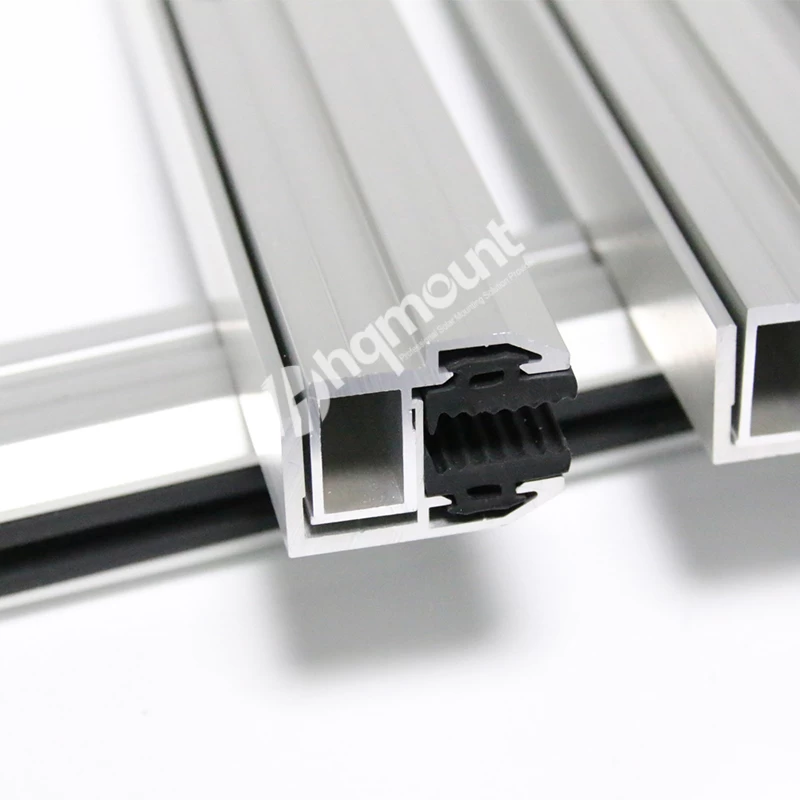

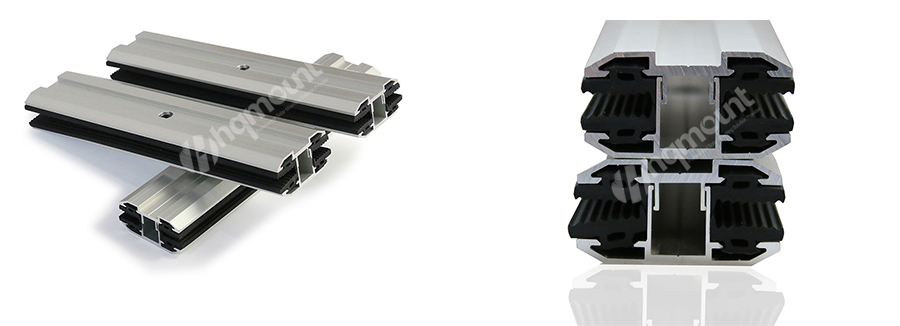

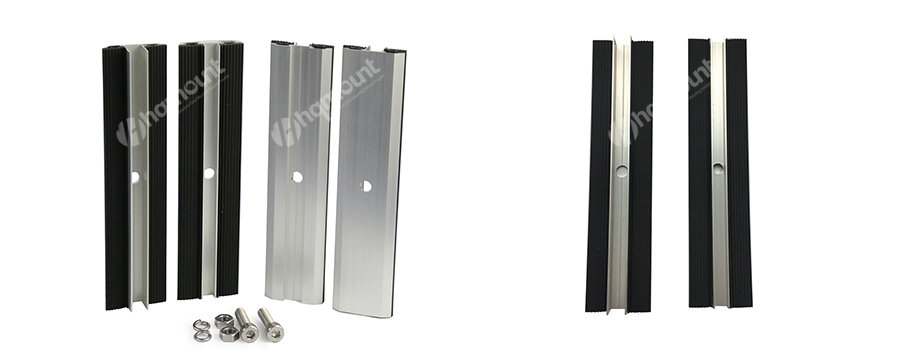

Thin film solar panel clamps can be used for kinds of specification of thin-film solar module or glass unframed solar modules. Rubber in middle will protect thin-film solar panels well. The material is anodized extruded aluminum 6005-T5, Bolt, EPDM rubber and stainless steel fastener. High quality material and accurate design can fix the thin film stable.
Material
|
AL6005-T5 and SUS304
|
Surface Finish
|
Natural Anodizing, black anodizing or other color
|
Accessories
|

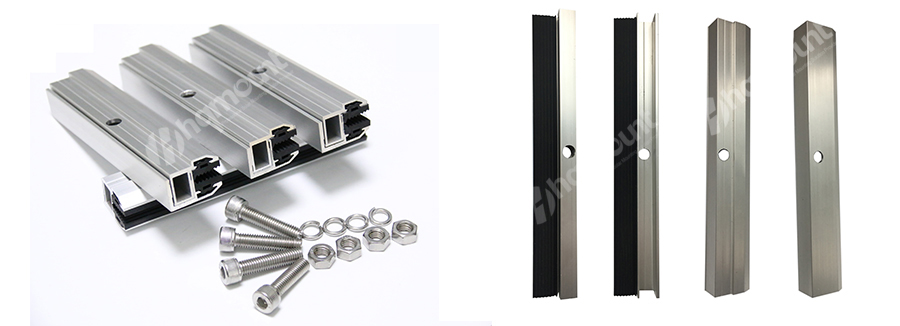

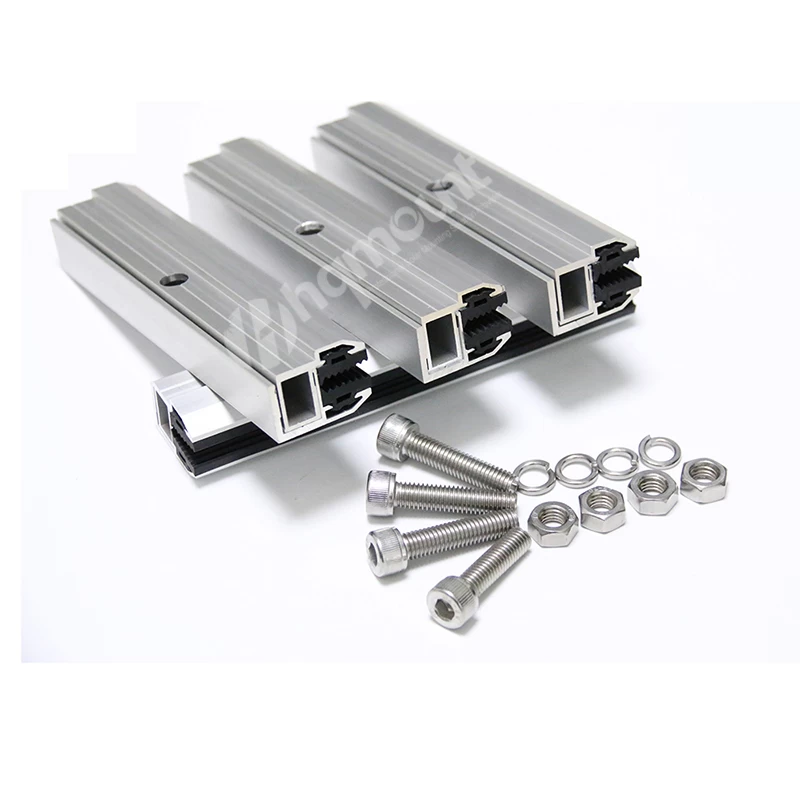

Aluminium body, A2-70 Bolt, EPDM Rubber, Stainless Steel Fastener, etc
|
Applicable Module
|
6-9mm Frameless Thin Film Solar Module
|
Length
|
Frameless Clamp: 80mm, 120mm, 150mm, 200mm etc, End / Mid Clamp: 40mm, 60mm
|
Wind Speed
|
Up to 60m/s
|
Snow Load
|
Up to 1.4KN/M2
|
Warranty
|
12 years in material, 25 years lifespan
|
Standard
|
AS/NZS 1170.2, JIS C 8955:2011
|
Features of the mounting system clamp
1. Widely Application
The structure is Thin Film Aluminum Frameless Solar Panel Glass Mounting End Clamp, with the quality of corrosion-resistance,light-weight, and strong intensity. It can be used in extremely bad installation condition.
2.Strong Compatibility
The structure can not only fit for different PV kits but also work with different PV arrangements which can be interchanged randomly.
3.Safety and Reliability
A load-bearing, wind resistance, and seismic resistance have been given sufficient consideration. All of these functions have been tested extremely, which will ensure the safety of the system.
4.Easy Installation
Most of the parts can be pre-assembled on the factory, which not only can to save your install time but also your cost.
5.Flexibility
Considering the construction error, the structure has been well-design that make it can adjust flexibly.
