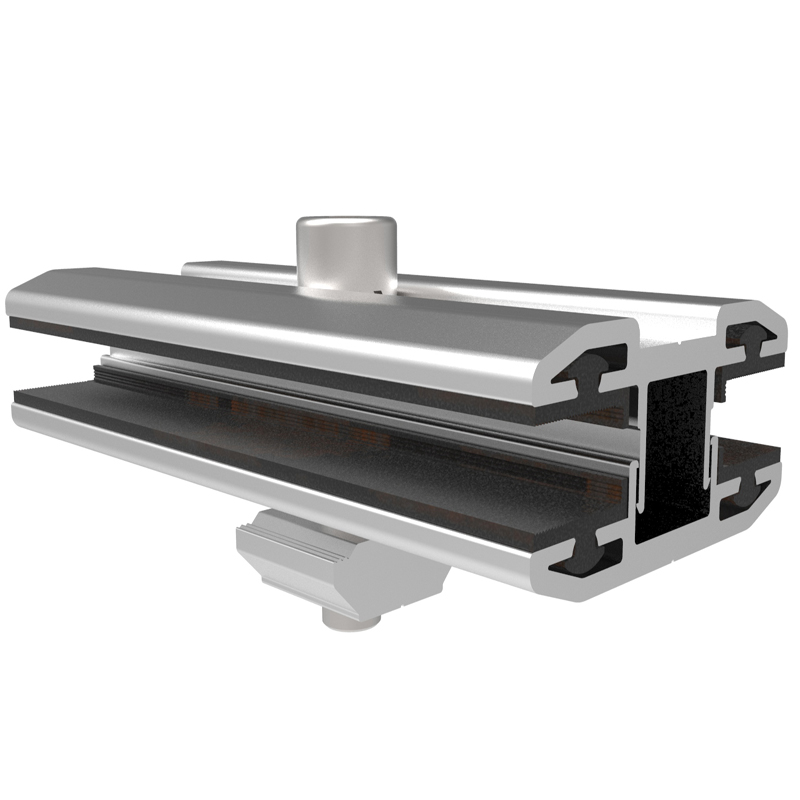

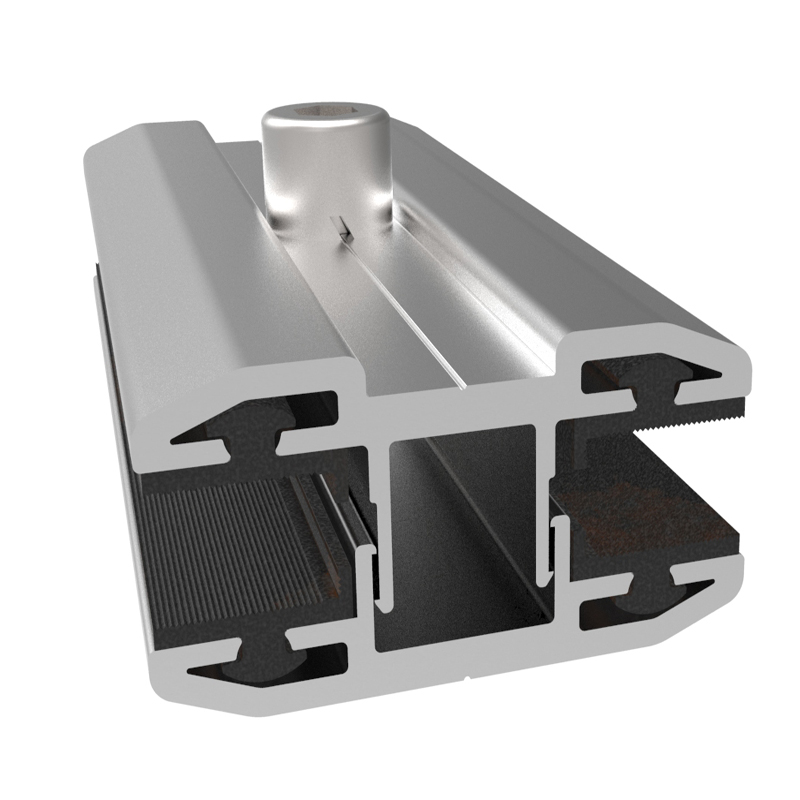

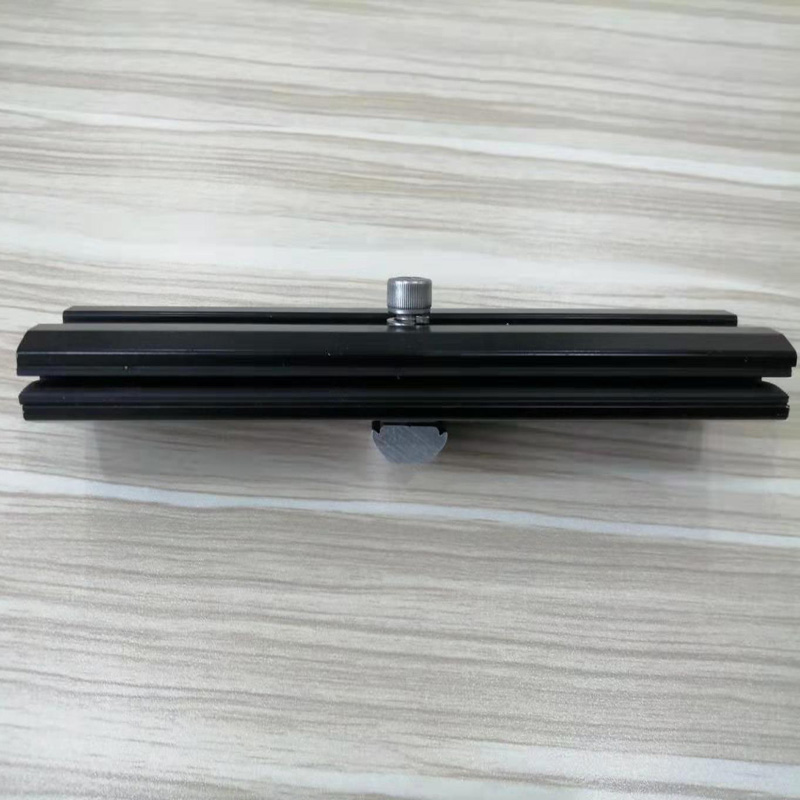

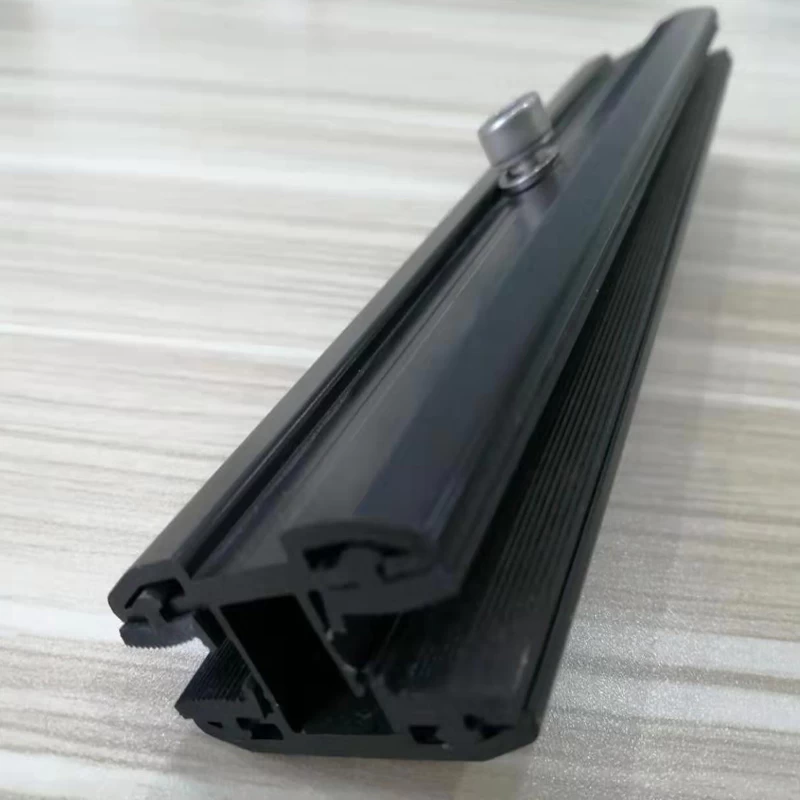

Thin Film Inter Clamp

The thin film inter clamp is specially used for pressing the solar film panel.


  • Warranty12 years

Thin film inter clamp is specially used for pressing the solar film panel. The two solar film panels are fixed by inter clamps in the middle, and the thin film inter clamp contains the rubber mat, so that the film panel is not easily cracked.

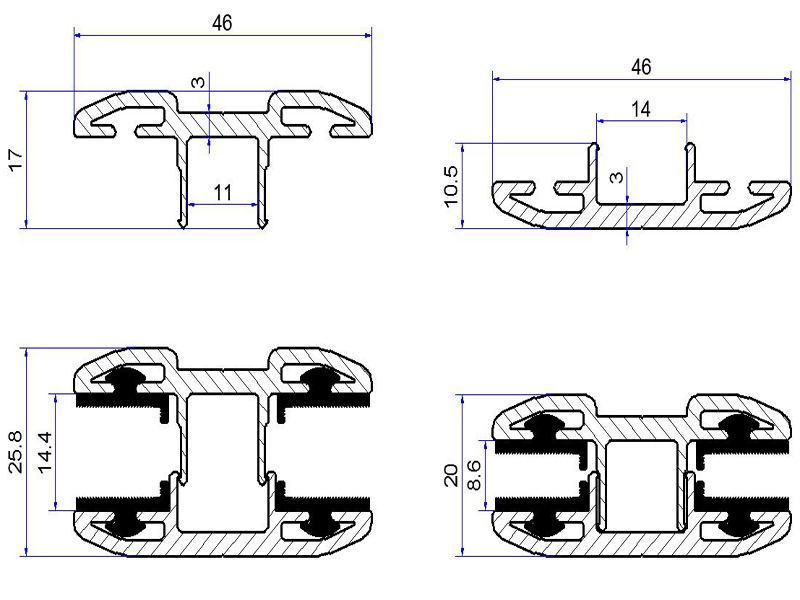

Drawing of component section

Parameter table of section

Upper part of the thin film inter clamp

A

178.6081

Ip

29394.7598

Ix

2016.2969

Iy

27378.4629

ix

3.3599

iy

12.3809

Wx(Up)

460.2313

Wy(Left)

1190.3683

Wx(Down)

159.7833

Wy(Right)

1190.3683

Area moment around

the X-axis

205.9641

Area moment around

 the Y-axis

950.4492

Distance from the center of

the shape to the left edge

23.0000

Distance from the center of

the shape to the right edge

23.0000

Distance from the center of

the shape to the top edge

4.3811

Distance from the center of

the shape to the lower edge

12.6189

 Principal moment I1

2016.297

Direction of principal

moment 1

(1.000,0.000)

 Principal moment I2

27378.463

Direction of principal

moment 2

(0.000,1.000)


Lower part of the thin film inter clamp

A

164.7386

Ip

27913.0234

Ix

803.7813

Iy

27109.2422

ix

2.2089

iy

12.8281

Wx(Up)

105.7216

Wy(Left)

1178.6630

Wx(Down)

277.4346

Wy(Right)

1178.6630

Area moment around

the X-axis

147.7650

Area moment around

 the Y-axis

917.2516

Distance from the center of

the shape to the left edge

23.0000

Distance from the center of

the shape to the right edge

23.0000

Distance from the center of

the shape to the top edge

7.6028

Distance from the center of

the shape to the lower edge

2.8972

 Principal moment I1

803.781

Direction of principal

moment 1

(1.000,0.000)

 Principal moment I2

27109.242

Direction of principal

moment 2

(0.000,1.000)






Component composition

Item No.

GT-TF-IC-120

Item Name

Thin film inter clamp

Component

Component name
Spec (mm) Qty
Upper part of thin film inter clamp
120
1
Lower part of thin film inter clamp
120 1
Rubber mat
120 4
Hexagon socket head bolt
M8*35 1
Spring pad
M8
1
Block
20 1
Thin film inter clamps

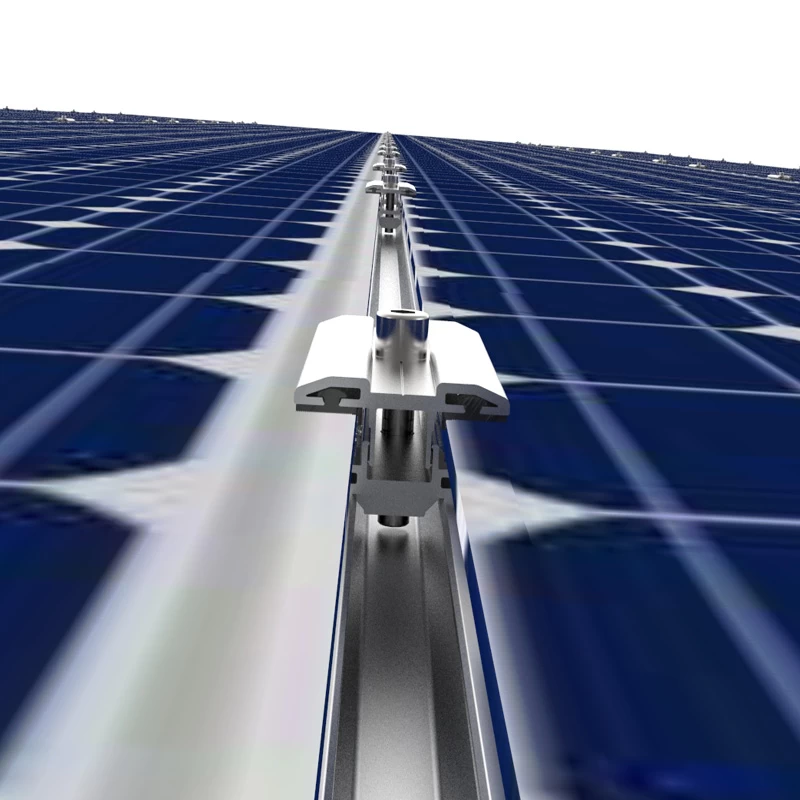

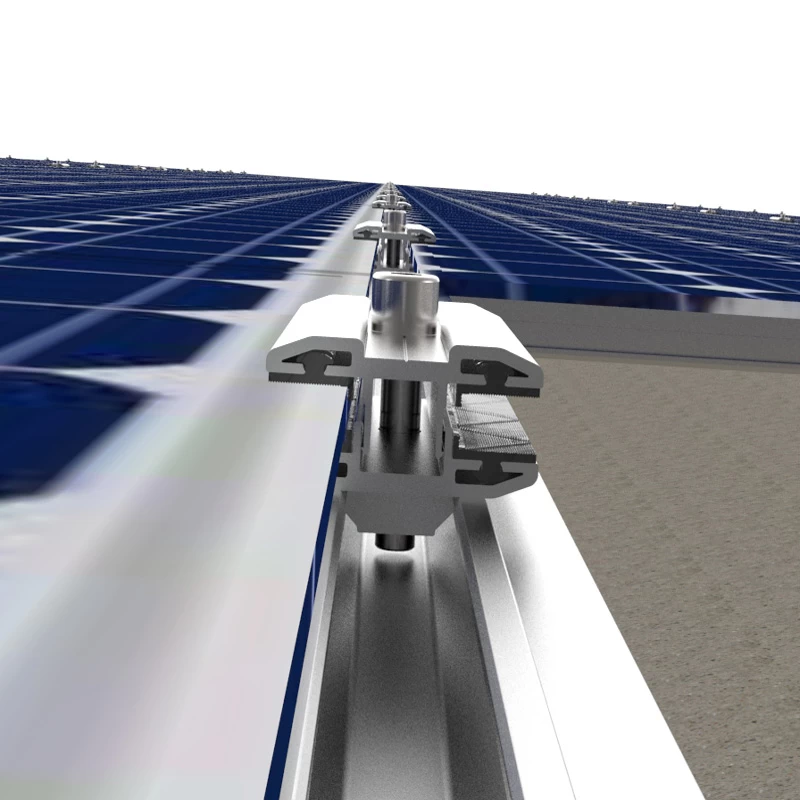

Detail drawing of component installation
